Main technical parameters
Rated voltage (V): 63
Working temperature (°C): -55~125
Electrostatic capacity (μF): 47
Lifespan (hrs): 4000
Leakage current (μA): 592.2 / 20±2℃ / 2min
Capacity tolerance: ±20%
ESR (Ω): 0.05/20±2℃/100KHz
AEC-Q200：——
Rated ripple current (mA/r.ms): 2160 / 105℃ / 100KHz
RoHS Directive: Compliant
Loss angle tangent value (tanδ): 0.12 / 20±2℃ / 120Hz
reference weight: --
Diameter D (mm): 10
Minimum package: 600
Height L (mm): 8.5
Status: Mass product

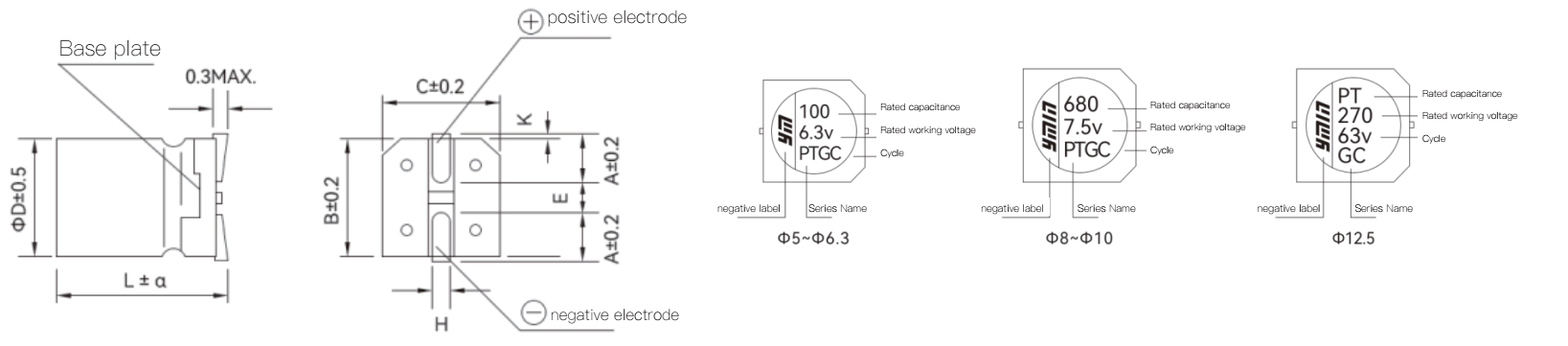

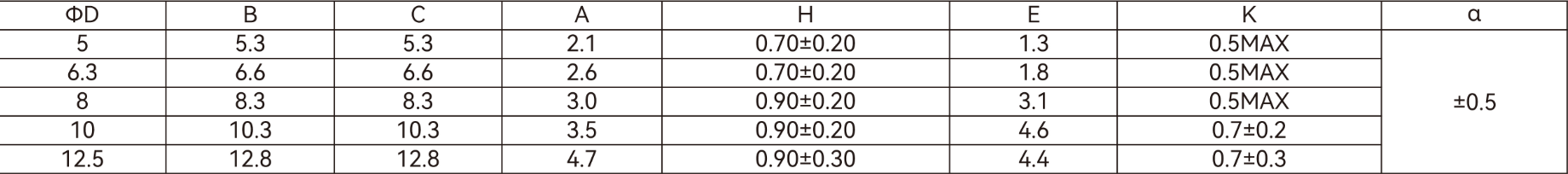

Product Dimensional Drawing
Ripple Current Frequency Correction Coefficient
frequency correction factor
| Frequency(Hz) | 120Hz | 1K Hz | 10K Hz | 100K Hz | 500K Hz |
| correction factor | 0.05 | 0.30 | 0.70 | 1.00 | 1.00 |
| Series | Products Code | Temperature(℃） | Rated Voltage（V.DC） | Capacitance（uF) | Diameter(mm) | Height(mm) | Life(Hrs) | Product certification | |
| VPU | Mass Production | VPUE0851J470MVTM | -55~125 | 63 | 47 | 10 | 8.5 | 4000 | - |
