Main Technical Parameters
project |
characteristic |
|
range of working temperature |
-55~+105℃ |
|
Rated working voltage |
6.3-100V |
|
capacity range |
180~18000 uF 120Hz 20℃ |
|
Capacity tolerance |
±20% (120Hz 20℃) |
|
loss tangent |
120Hz 20℃ below the value in the list of standard products |
|
Leakage current※ |
Charge for 2 minutes at rated voltage below the value in the list of standard products at 20°C |
|
Equivalent Series Resistance (ESR) |
100kHz 20°C below the value in the list of standard products |
|
Durability |
The product should meet the requirements of applying rated working voltage for 2000 hours at a temperature of 105°C and placing it at 20°C for 16 hours |
|
Capacitance change rate |
±20% of initial value |
|
Equivalent Series Resistance (ESR) |
≤200% of initial specification value |
|
loss tangent |
≤200% of initial specification value |
|
leakage current |
≤Initial specification value |
|
High temperature and humidity |
The product should meet |
|
Capacitance change rate |
±20% of initial value |
|
Equivalent Series Resistance (ESR) |
≤200% of initial specification value |
|
loss tangent |
≤200% of initial specification value |
|
leakage current |
≤Initial specification value |

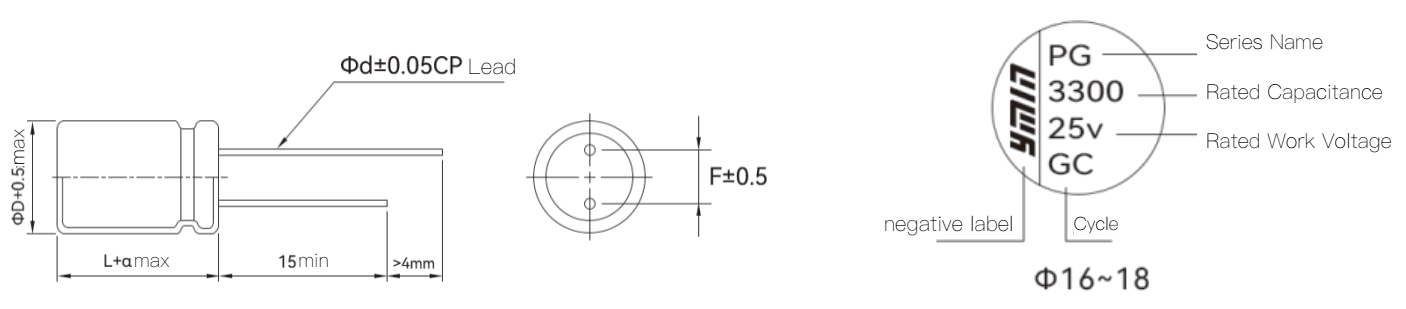

Product Dimensional Drawing
Product Dimensions (Unit:mm)
D (±0.5) |
16 |
18 |
d (±0.05) |
0.8 |
0.8 |
F (±0.5) |
7.5 |
7.5 |
a | 1 |
Ripple Current Frequency Correction Coefficient
Frequency (Hz) | 120Hz | 1kHz | 10kHz | 100kHz | 500kHz |
correction factor | 0.05 | 0.3 | 0.7 | 1 | 1 |
Series | Products Code | Temperature(℃) | Rated Voltage(V.DC) | Capacitance(uF) | Diameter(mm) | Height(mm) | Life(Hrs) | Product certification | |
NPG | Mass Production | NPGI1600J103MJTM | -55~105 | 6.3 | 10000 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1800J123MJTM | -55~105 | 6.3 | 12000 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2000J153MJTM | -55~105 | 6.3 | 15000 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1800J153MJTM | -55~105 | 6.3 | 15000 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2000J183MJTM | -55~105 | 6.3 | 18000 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1601A682MJTM | -55~105 | 10 | 6800 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1801A822MJTM | -55~105 | 10 | 8200 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2001A103MJTM | -55~105 | 10 | 10000 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1801A103MJTM | -55~105 | 10 | 10000 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2001A123MJTM | -55~105 | 10 | 12000 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1601C392MJTM | -55~105 | 16 | 3900 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1801C472MJTM | -55~105 | 16 | 4700 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2001C562MJTM | -55~105 | 16 | 5600 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1801C682MJTM | -55~105 | 16 | 6800 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2001C822MJTM | -55~105 | 16 | 8200 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1601E222MJTM | -55~105 | 25 | 2200 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1801E272MJTM | -55~105 | 25 | 2700 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2001E332MJTM | -55~105 | 25 | 3300 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1801E392MJTM | -55~105 | 25 | 3900 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2001E472MJTM | -55~105 | 25 | 4700 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1601V182MJTM | -55~105 | 35 | 1800 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1801V222MJTM | -55~105 | 35 | 2200 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2001V272MJTM | -55~105 | 35 | 2700 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1801V272MJTM | -55~105 | 35 | 2700 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2001V332MJTM | -55~105 | 35 | 3300 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1601H681MJTM | -55~105 | 50 | 680 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1801H821MJTM | -55~105 | 50 | 820 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2001H102MJTM | -55~105 | 50 | 1000 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1801H122MJTM | -55~105 | 50 | 1200 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2001H152MJTM | -55~105 | 50 | 1500 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1601J561MJTM | -55~105 | 63 | 560 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1801J681MJTM | -55~105 | 63 | 680 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2001J821MJTM | -55~105 | 63 | 820 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1801J821MJTM | -55~105 | 63 | 820 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2001J102MJTM | -55~105 | 63 | 1000 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1601K331MJTM | -55~105 | 80 | 330 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1801K391MJTM | -55~105 | 80 | 390 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2001K471MJTM | -55~105 | 80 | 470 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1801K561MJTM | -55~105 | 80 | 560 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2001K681MJTM | -55~105 | 80 | 680 | 18 | 20 | 2000 | - |
NPG | Mass Production | NPGI1602A181MJTM | -55~105 | 100 | 180 | 16 | 16 | 2000 | - |
NPG | Mass Production | NPGI1802A221MJTM | -55~105 | 100 | 220 | 16 | 18 | 2000 | - |
NPG | Mass Production | NPGI2002A271MJTM | -55~105 | 100 | 270 | 16 | 20 | 2000 | - |
NPG | Mass Production | NPGJ1802A271MJTM | -55~105 | 100 | 270 | 18 | 18 | 2000 | - |
NPG | Mass Production | NPGJ2002A331MJTM | -55~105 | 100 | 330 | 18 | 20 | 2000 | - |
