Lead type solid aluminum electrolytic capacitor NPL

Short Description:

♦ High reliability, low ESR, high allowable ripple current
♦ Guaranteed for 5000 hours at 105℃
♦ Complied with RoHS Directive
♦ Long life product


Product Detail

List of products number

Product Tags

Main Technical Parameters

project

characteristic

range of working temperature

-55~+105℃

Rated working voltage

6.3-100V

capacity range

2.2 - 10000 uF 120Hz 20℃

Capacity tolerance

±20% (120Hz 20℃)

loss tangent

120Hz 20℃ below the value in the list of standard products

Leakage current※

Charge for 2 minutes at rated voltage below the value in the list of standard products at 20°C

Equivalent Series Resistance (ESR)

100kHz 20°C below the value in the list of standard products



Durability

The product should meet the requirements of applying rated working voltage for 2000 hours at a temperature of 105°C and placing it at 20°C for 16 hours

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value



High temperature and humidity

The product should meet the conditions of 60°C temperature and 90%~95%R.H humidity without applying voltage, place it for 1000 hours, and place it at 20°C for 16

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value

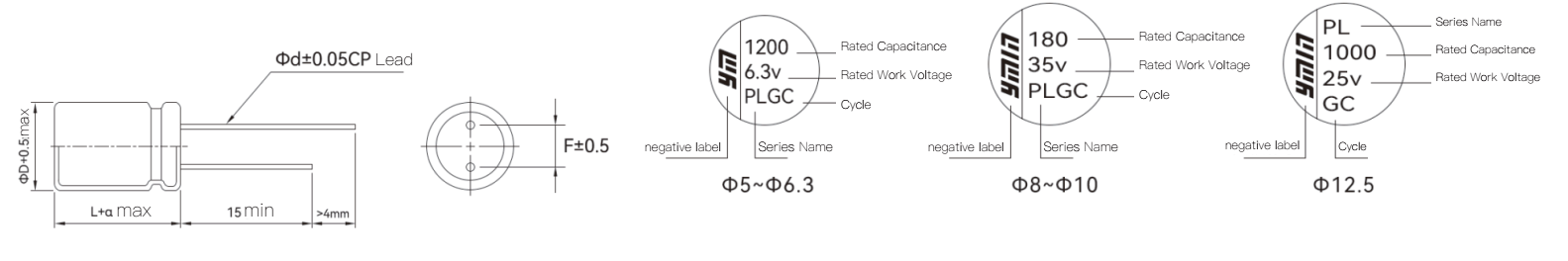

Product Dimensional Drawing

Product Dimensions (Unit:mm)

D (±0.5) 5 5.5 6.3 8 10 12.5
d (±0.05) 0.45/0.50 0.45/0.50 0.45/0.50 0.6 0.6 0.6
F (±0.5) 2 2.5 2.5 3.5 5 5
a 1

Ripple Current Frequency Correction Coefficient

Frequency (Hz)

120Hz 1kHz 10kHz 100kHz 500kHz

correction factor

0.05 0.3 0.7 1 1



Conductive Polymer Solid Aluminum Electrolytic Capacitors: Advanced Components for Modern Electronics

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity compared to traditional electrolytic capacitors. In this article, we'll explore the features, benefits, and applications of these innovative components.

Features

Conductive Polymer Solid Aluminum Electrolytic Capacitors combine the benefits of traditional aluminum electrolytic capacitors with the enhanced characteristics of conductive polymer materials. The electrolyte in these capacitors is a conductive polymer, which replaces the traditional liquid or gel electrolyte found in conventional aluminum electrolytic capacitors.

One of the key features of Conductive Polymer Solid Aluminum Electrolytic Capacitors is their low equivalent series resistance (ESR) and high ripple current handling capabilities. This results in improved efficiency, reduced power losses, and enhanced reliability, particularly in high-frequency applications.

Additionally, these capacitors offer excellent stability over a wide temperature range and have a longer operational lifespan compared to traditional electrolytic capacitors. Their solid construction eliminates the risk of leakage or drying out of the electrolyte, ensuring consistent performance even in harsh operating conditions.

Benefits

The adoption of conductive polymer materials in Solid Aluminum Electrolytic Capacitors brings several benefits to electronic systems. Firstly, their low ESR and high ripple current ratings make them ideal for use in power supply units, voltage regulators, and DC-DC converters, where they help to stabilize output voltages and improve efficiency.

Secondly, Conductive Polymer Solid Aluminum Electrolytic Capacitors offer enhanced reliability and durability, making them suitable for mission-critical applications in industries such as automotive, aerospace, telecommunications, and industrial automation. Their ability to withstand high temperatures, vibrations, and electrical stresses ensures long-term performance and reduces the risk of premature failure.

Furthermore, these capacitors exhibit low impedance characteristics, which contribute to improved noise filtering and signal integrity in electronic circuits. This makes them valuable components in audio amplifiers, audio equipment, and high-fidelity audio systems.

Applications

Conductive Polymer Solid Aluminum Electrolytic Capacitors find applications in a wide range of electronic systems and devices. They are commonly used in power supply units, voltage regulators, motor drives, LED lighting, telecommunications equipment, and automotive electronics.

In power supply units, these capacitors help to stabilize output voltages, reduce ripple, and improve transient response, ensuring reliable and efficient operation. In automotive electronics, they contribute to the performance and longevity of onboard systems, such as engine control units (ECUs), infotainment systems, and safety features.

Conclusion

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity for modern electronic systems. With their low ESR, high ripple current handling capabilities, and enhanced durability, they are well-suited for a wide range of applications in various industries.

As electronic devices and systems continue to evolve, the demand for high-performance capacitors like Conductive Polymer Solid Aluminum Electrolytic Capacitors is expected to grow. Their ability to meet the stringent requirements of modern electronics makes them indispensable components in today's electronic designs, contributing to improved efficiency, reliability, and performance.


  • Previous:
  • Next:

  • Products Code Temperature(℃) Rated Voltage(V.DC) Capacitance(uF) Diameter(mm) Height(mm) Leakage current(uA) ESR/Impedance  [Ωmax] Life(Hrs) Product certification
    NPLD0701V151MJTM -55~105 35 150 8 7 1050 0.06 5000 -
    NPLC1001V181MJTM -55~105 35 180 6.3 10 1260 0.04 5000 -
    NPLD0701V181MJTM -55~105 35 180 8 7 1260 0.06 5000 -
    NPLC1101V221MJTM -55~105 35 220 6.3 11 1540 0.04 5000 -
    NPLD0801V221MJTM -55~105 35 220 8 8 1540 0.05 5000 ——
    NPLE0701V221MJTM -55~105 35 220 10 7 1540 0.06 5000 -
    NPLD1001V331MJTM -55~105 35 330 8 10 2310 0.03 5000 -
    NPLE0801V331MJTM -55~105 35 330 10 8 2310 0.05 5000 -
    NPLD1201V391MJTM -55~105 35 390 8 12 2730 0.03 5000 -
    NPLE1001V391MJTM -55~105 35 390 10 10 2730 0.05 5000 -
    NPLD1401V471MJTM -55~105 35 470 8 14 3290 0.02 5000 ——
    NPLE1201V471MJTM -55~105 35 470 10 12 3290 0.03 5000 -
    NPLD1601V561MJTM -55~105 35 560 8 16 3920 0.02 5000 -
    NPLE1201V561MJTM -55~105 35 560 10 12 3920 0.03 5000 -
    NPLE1401V681MJTM -55~105 35 680 10 14 4760 0.02 5000 -
    NPLE1601V821MJTM -55~105 35 820 10 16 5000 0.02 5000 -
    NPLL1251V821MJTM -55~105 35 820 12.5 12.5 5000 0.03 5000 -
    NPLE1801V102MJTM -55~105 35 1000 10 18 5000 0.02 5000 -
    NPLL1401V102MJTM -55~105 35 1000 12.5 14 5000 0.03 5000 -
    NPLE2101V122MJTM -55~105 35 1200 10 21 5000 0.02 5000 -
    NPLL1601V122MJTM -55~105 35 1200 12.5 16 5000 0.02 5000 -
    NPLL1801V152MJTM -55~105 35 1500 12.5 18 5000 0.02 5000 -
    NPLL2001V182MJTM -55~105 35 1800 12.5 20 5000 0.02 5000 -
    NPLB0571H100MJTM -55~105 50 10 5 5.7 300 0.06 5000 -
    NPLC0421H100MJTM -55~105 50 10 6.3 4.2 300 0.06 5000 -
    NPLB0571H120MJTM -55~105 50 12 5 5.7 300 0.06 5000 -
    NPLC0421H120MJTM -55~105 50 12 6.3 4.2 300 0.06 5000 -
    NPLB0570J101MJTM -55~105 6.3 100 5 5.7 280 0.02 5000 -
    NPLB0571H150MJTM -55~105 50 15 5 5.7 300 0.06 5000 -
    NPLC0420J101MJTM -55~105 6.3 100 6.3 4.2 280 0.02 5000 -
    NPLC0421H150MJTM -55~105 50 15 6.3 4.2 300 0.06 5000 -
    NPLB0570J151MJTM -55~105 6.3 150 5 5.7 280 0.02 5000 -
    NPLB0701H180MJTM -55~105 50 18 5 7 300 0.06 5000 -
    NPLC0420J151MJTM -55~105 6.3 150 6.3 4.2 280 0.02 5000 -
    NPLC0571H180MJTM -55~105 50 18 6.3 5.7 300 0.06 5000 -
    NPLB0570J181MJTM -55~105 6.3 180 5 5.7 280 0.018 5000 -
    NPLB0701H220MJTM -55~105 50 22 5 7 300 0.06 5000 -
    NPLC0420J181MJTM -55~105 6.3 180 6.3 4.2 280 0.02 5000 -
    NPLC0571H220MJTM -55~105 50 22 6.3 5.7 300 0.06 5000 -
    NPLB0570J221MJTM -55~105 6.3 220 5 5.7 280 0.018 5000 -
    NPLB0901H330MJTM -55~105 50 33 5 9 330 0.05 5000 -
    NPLC0420J221MJTM -55~105 6.3 220 6.3 4.2 280 0.02 5000 -
    NPLC0701H330MJTM -55~105 50 33 6.3 7 330 0.06 5000 -
    NPLB0700J271MJTM -55~105 6.3 270 5 7 340 0.012 5000 -
    NPLB1001H390MJTM -55~105 50 39 5 10 390 0.04 5000 -
    NPLC0570J271MJTM -55~105 6.3 270 6.3 5.7 340 0.018 5000 -
    NPLC0701H390MJTM -55~105 50 39 6.3 7 390 0.06 5000 -
    NPLB0700J331MJTM -55~105 6.3 330 5 7 416 0.012 5000 -
    NPLC0801H470MJTM -55~105 50 47 6.3 8 470 0.05 5000 -
    NPLC0570J331MJTM -55~105 6.3 330 6.3 5.7 416 0.018 5000 -
    NPLD0701H470MJTM -55~105 50 47 8 7 470 0.06 5000 -
    NPLB0800J391MJTM -55~105 6.3 390 5 8 491 0.012 5000 -
    NPLC0901H560MJTM -55~105 50 56 6.3 9 560 0.05 5000 -
    NPLC0570J391MJTM -55~105 6.3 390 6.3 5.7 491 0.008 5000 -
    NPLD0701H560MJTM -55~105 50 56 8 7 560 0.06 5000 -
    NPLB0800J471MJTM -55~105 6.3 470 5 8 592 0.012 5000 -
    NPLC1001H680MJTM -55~105 50 68 6.3 10 680 0.05 5000 -
    NPLC0700J471MJTM -55~105 6.3 470 6.3 7 592 0.008 5000 -
    NPLD0701H680MJTM -55~105 50 68 8 7 680 0.06 5000 -
    NPLH0800J561MJTM -55~105 6.3 560 5.5 8 706 0.012 5000 -
    NPLC1101H820MJTM -55~105 50 82 6.3 11 820 0.04 5000 -
    NPLC0700J561MJTM -55~105 6.3 560 6.3 7 706 0.008 5000 -
    NPLD0801H820MJTM -55~105 50 82 8 8 820 0.06 5000 -
    NPLC0800J681MJTM -55~105 6.3 680 6.3 8 857 0.008 5000 -
    NPLD0901H101MJTM -55~105 50 100 8 9 1000 0.05 5000 -
    NPLD0700J681MJTM -55~105 6.3 680 8 7 857 0.012 5000 -
    NPLE0701H101MJTM -55~105 50 100 10 7 1000 0.06 5000 -
    NPLH0900J821MJTM -55~105 6.3 820 5.5 9 1033 0.008 5000 -
    NPLD1001H121MJTM -55~105 50 120 8 10 1200 0.05 5000 -
    NPLC0900J821MJTM -55~105 6.3 820 6.3 9 1033 0.008 5000 -
    NPLE0701H121MJTM -55~105 50 120 10 7 1200 0.06 5000 -
    NPLC0800J821MJTM -55~105 6.3 820 6.3 7.5 1033 0.008 5000 -
    NPLD1201H151MJTM -55~105 50 150 8 12 1500 0.05 5000 -
    NPLD0700J821MJTM -55~105 6.3 820 8 7 1033 0.012 5000 -
    NPLE0801H151MJTM -55~105 50 150 10 8 1500 0.05 5000 -
    NPLC1000J102MJTM -55~105 6.3 1000 6.3 10 1260 0.008 5000 -
    NPLD1401H181MJTM -55~105 50 180 8 14 1800 0.04 5000 -
    NPLD0800J102MJTM -55~105 6.3 1000 8 8 1260 0.008 5000 -
    NPLE0901H181MJTM -55~105 50 180 10 9 1800 0.05 5000 -
    NPLE0700J102MJTM -55~105 6.3 1000 10 7 1260 0.012 5000 -
    NPLD1601H221MJTM -55~105 50 220 8 16 2200 0.03 5000 -
    NPLC1100J122MJTM -55~105 6.3 1200 6.3 11 1512 0.008 5000 -
    NPLE1201H221MJTM -55~105 50 220 10 12 2200 0.04 5000 -
    NPLD0900J122MJTM -55~105 6.3 1200 8 9 1512 0.008 5000 -
    NPLE1301H271MJTM -55~105 50 270 10 13 2700 0.04 5000 -
    NPLE0800J122MJTM -55~105 6.3 1200 10 8 1512 0.008 5000 -
    NPLE1601H331MJTM -55~105 50 330 10 16 3300 0.03 5000 -
    NPLD1100J152MJTM -55~105 6.3 1500 8 11 1890 0.008 5000 -
    NPLE1801H391MJTM -55~105 50 390 10 18 3900 0.03 5000 -
    NPLE0900J152MJTM -55~105 6.3 1500 10 9 1890 0.008 5000 -
    NPLL1401H391MJTM -55~105 50 390 12.5 14 3900 0.04 5000 -
    NPLD1400J202MJTM -55~105 6.3 2000 8 14 2520 0.007 5000 -
    NPLE2101H471MJTM -55~105 50 470 10 21 4700 0.03 5000 -
    NPLE1000J202MJTM -55~105 6.3 2000 10 10 2520 0.008 5000 -
    NPLL1401H471MJTM -55~105 50 470 12.5 14 4700 0.04 5000 -
    NPLD1400J222MJTM -55~105 6.3 2200 8 14 2772 0.007 5000 -
    NPLL1601H561MJTM -55~105 50 560 12.5 16 5000 0.03 5000 -
    NPLE1000J222MJTM -55~105 6.3 2200 10 10 2772 0.008 5000 -
    NPLL2001H681MJTM -55~105 50 680 12.5 20 5000 0.03 5000 -
    NPLE1200J252MJTM -55~105 6.3 2500 10 12 3150 0.008 5000 -
    NPLL2001H821MJTM -55~105 50 820 12.5 20 5000 0.03 5000 -
    NPLE1200J272MJTM -55~105 6.3 2700 10 12 3402 0.008 5000 -
    NPLB0571J6R8MJTM -55~105 63 6.8 5 5.7 300 0.06 5000 -
    NPLE1200J332MJTM -55~105 6.3 3300 10 12 4158 0.008 5000 -
    NPLC0421J6R8MJTM -55~105 63 6.8 6.3 4.2 300 0.06 5000 -
    NPLE1400J392MJTM -55~105 6.3 3900 10 14 4914 0.007 5000 -
    NPLB0571J8R2MJTM -55~105 63 8.2 5 5.7 300 0.06 5000 -
    NPLE1600J472MJTM -55~105 6.3 4700 10 16 5922 0.007 5000 -
    NPLC0421J8R2MJTM -55~105 63 8.2 6.3 4.2 300 0.06 5000 -
    NPLL1250J472MJTM -55~105 6.3 4700 12.5 12.5 5922 0.008 5000 -
    NPLB0701J100MJTM -55~105 63 10 5 7 300 0.06 5000 -
    NPLE1800J562MJTM -55~105 6.3 5600 10 18 7056 0.007 5000 -
    NPLC0421J100MJTM -55~105 63 10 6.3 4.2 300 0.06 5000 -
    NPLL1400J562MJTM -55~105 6.3 5600 12.5 14 7056 0.008 5000 -
    NPLB0701J150MJTM -55~105 63 15 5 7 300 0.06 5000 -
    NPLE2100J682MJTM -55~105 6.3 6800 10 21 7500 0.007 5000 -
    NPLC0571J150MJTM -55~105 63 15 6.3 5.7 300 0.06 5000 -
    NPLL1600J682MJTM -55~105 6.3 6800 12.5 16 7500 0.007 5000 -
    NPLB0901J220MJTM -55~105 63 22 5 9 300 0.05 5000 -
    NPLL1800J822MJTM -55~105 6.3 8200 12.5 18 7500 0.007 5000 -
    NPLC0701J220MJTM -55~105 63 22 6.3 7 300 0.05 5000 -
    NPLL2000J103MJTM -55~105 6.3 10000 12.5 20 7500 0.007 5000 -
    NPLC0801J330MJTM -55~105 63 33 6.3 8 416 0.05 5000 ——
    NPLB0700L271MJTM -55~105 7.5 270 5 7 405 0.012 5000 -
    NPLD0701J330MJTM -55~105 63 33 8 7 416 0.06 5000 -
    NPLC0570L271MJTM -55~105 7.5 270 6.3 5.7 405 0.018 5000 -
    NPLC0901J390MJTM -55~105 63 39 6.3 9 491 0.05 5000 -
    NPLB0900L331MJTM -55~105 7.5 330 5 9 495 0.012 5000 -
    NPLD0701J390MJTM -55~105 63 39 8 7 491 0.06 5000 -
    NPLC0570L331MJTM -55~105 7.5 330 6.3 5.7 495 0.012 5000 -
    NPLC1001J470MJTM -55~105 63 47 6.3 10 592 0.04 5000 -
    NPLB1000L391MJTM -55~105 7.5 390 5 10 585 0.01 5000 -
    NPLD0801J470MJTM -55~105 63 47 8 8 592 0.06 5000 -
    NPLC0700L391MJTM -55~105 7.5 390 6.3 7 585 0.012 5000 -
    NPLD0801J560MJTM -55~105 63 56 8 8 706 0.05 5000 -
    NPLB1100L471MJTM -55~105 7.5 470 5 11 705 0.01 5000 -
    NPLE0801J560MJTM -55~105 63 56 10 8 706 0.06 5000 -
    NPLB0900L471MJTM -55~105 7.5 470 5.15 9 705 0.012 5000 -
    NPLD0901J680MJTM -55~105 63 68 8 9 857 0.05 5000 -
    NPLC0800L471MJTM -55~105 7.5 470 6.3 8 705 0.012 5000 -
    NPLE0701J680MJTM -55~105 63 68 10 7 857 0.06 5000 -
    NPLC0900L561MJTM -55~105 7.5 560 6.3 9 840 0.009 5000 -
    NPLD1001J820MJTM -55~105 63 82 8 10 1033 0.05 5000 -
    NPLC1000L681MJTM -55~105 7.5 680 6.3 10 1020 0.008 5000 -
    NPLE0901J820MJTM -55~105 63 82 10 9 1033 0.06 5000 -
    NPLD0700L681MJTM -55~105 7.5 680 8 7 1020 0.012 5000 -
    NPLD1201J101MJTM -55~105 63 100 8 12 1260 0.04 5000 ——
    NPLC1100L821MJTM -55~105 7.5 820 6.3 11 1230 0.008 5000 -
    NPLE1001J101MJTM -55~105 63 100 10 10 1260 0.05 5000 -
    NPLD0800L821MJTM -55~105 7.5 820 8 8 1230 0.008 5000 -
    NPLE1201J121MJTM -55~105 63 120 10 12 1512 0.05 5000 -
    NPLC1100L102MJTM -55~105 7.5 1000 6.3 11 1500 0.008 5000 -
    NPLE1301J151MJTM -55~105 63 150 10 13 1890 0.04 5000 -
    NPLD0900L102MJTM -55~105 7.5 1000 8 9 1500 0.008 5000 -
    NPLE1401J181MJTM -55~105 63 180 10 14 2268 0.03 5000 -
    NPLB0571A470MJTM -55~105 10 47 5 5.7 280 0.03 5000 -
    NPLE1601J221MJTM -55~105 63 220 10 16 2772 0.03 5000 -
    NPLC0421A470MJTM -55~105 10 47 6.3 4.2 280 0.03 5000 -
    NPLL1251J221MJTM -55~105 63 220 12.5 12.5 2772 0.04 5000 -
    NPLB0571A680MJTM -55~105 10 68 5 5.7 280 0.03 5000 -
    NPLE2101J271MJTM -55~105 63 270 10 21 3402 0.03 5000 -
    NPLB0701C151MJTM -55~105 16 150 5 7 480 0.03 5000 -
    NPLC0421A680MJTM -55~105 10 68 6.3 4.2 280 0.03 5000 -
    NPLL1401J271MJTM -55~105 63 270 12.5 14 3402 0.04 5000 -
    NPLB0571A820MJTM -55~105 10 82 5 5.7 280 0.03 5000 -
    NPLE2101J331MJTM -55~105 63 330 10 21 4158 0.03 5000 -
    NPLC0421A820MJTM -55~105 10 82 6.3 4.2 280 0.03 5000 -
    NPLL1601J331MJTM -55~105 63 330 12.5 16 4158 0.03 5000 -
    NPLB0571A101MJTM -55~105 10 100 5 5.7 280 0.03 5000 -
    NPLL1801J391MJTM -55~105 63 390 12.5 18 4914 0.03 5000 -
    NPLC0421A101MJTM -55~105 10 100 6.3 4.2 280 0.03 5000 -
    NPLL2001J471MJTM -55~105 63 470 12.5 20 5000 0.03 5000 -
    NPLB0701A151MJTM -55~105 10 150 5 7 300 0.015 5000 -
    NPLB0571K4R7MJTM -55~105 80 4.7 5 5.7 300 0.06 5000 -
    NPLC0571A151MJTM -55~105 10 150 6.3 5.7 300 0.03 5000 -
    NPLC0421K4R7MJTM -55~105 80 4.7 6.3 4.2 300 0.06 5000 -
    NPLB0701A181MJTM -55~105 10 180 5 7 360 0.015 5000 -
    NPLB0571K6R8MJTM -55~105 80 6.8 5 5.7 300 0.06 5000 -
    NPLC0571A181MJTM -55~105 10 180 6.3 5.7 360 0.03 5000 -
    NPLC0421K6R8MJTM -55~105 80 6.8 6.3 4.2 300 0.06 5000 -
    NPLB0701A221MJTM -55~105 10 220 5 7 440 0.015 5000 -
    NPLB0701K8R2MJTM -55~105 80 8.2 5 7 300 0.06 5000 -
    NPLC0571A221MJTM -55~105 10 220 6.3 5.7 440 0.03 5000 -
    NPLC0421K8R2MJTM -55~105 80 8.2 6.3 4.2 300 0.06 5000 -
    NPLB1001A271MJTM -55~105 10 270 5 10 540 0.012 5000 -
    NPLB0701K100MJTM -55~105 80 10 5 7 300 0.06 5000 -
    NPLC0571A271MJTM -55~105 10 270 6.3 5.7 540 0.016 5000 -
    NPLC0571K100MJTM -55~105 80 10 6.3 5.7 300 0.06 5000 -
    NPLB1101A331MJTM -55~105 10 330 5 11 660 0.012 5000 -
    NPLB0901K150MJTM -55~105 80 15 5 9 300 0.05 5000 -
    NPLC0701A331MJTM -55~105 10 330 6.3 7 660 0.016 5000 -
    NPLC0701K150MJTM -55~105 80 15 6.3 7 300 0.05 5000 -
    NPLC0701A391MJTM -55~105 10 390 6.3 7 780 0.012 5000 -
    NPLC0801K220MJTM -55~105 80 22 6.3 8 352 0.05 5000 -
    NPLC0801A471MJTM -55~105 10 470 6.3 8 940 0.012 5000 -
    NPLD0701K220MJTM -55~105 80 22 8 7 352 0.06 5000 -
    NPLD0701A471MJTM -55~105 10 470 8 7 940 0.03 5000 -
    NPLC1001K330MJTM -55~105 80 33 6.3 10 528 0.04 5000 -
    NPLC1001A561MJTM -55~105 10 560 6.3 10 1120 0.01 5000 -
    NPLD0701K330MJTM -55~105 80 33 8 7 528 0.06 5000 -
    NPLD0701A561MJTM -55~105 10 560 8 7 1120 0.014 5000 -
    NPLC1101K390MJTM -55~105 80 39 6.3 11 624 0.04 5000 -
    NPLC1101A681MJTM -55~105 10 680 6.3 11 1360 0.009 5000 -
    NPLD0801K390MJTM -55~105 80 39 8 8 624 0.05 5000 -
    NPLD0801A681MJTM -55~105 10 680 8 8 1360 0.01 5000 -
    NPLD0901K470MJTM -55~105 80 47 8 9 752 0.05 5000 -
    NPLD0901A821MJTM -55~105 10 820 8 9 1640 0.009 5000 -
    NPLE0701K470MJTM -55~105 80 47 10 7 752 0.06 5000 -
    NPLE0701A821MJTM -55~105 10 820 10 7 1640 0.014 5000 -
    NPLD1001K560MJTM -55~105 80 56 8 10 896 0.05 5000 -
    NPLD1101A102MJTM -55~105 10 1000 8 11 2000 0.009 5000 -
    NPLE0901K560MJTM -55~105 80 56 10 9 896 0.05 5000 -
    NPLE0801A102MJTM -55~105 10 1000 10 8 2000 0.009 5000 -
    NPLD1101K680MJTM -55~105 80 68 8 11 1088 0.04 5000 -
    NPLD1401A152MJTM -55~105 10 1500 8 14 3000 0.008 5000 -
    NPLE0901K680MJTM -55~105 80 68 10 9 1088 0.05 5000 -
    NPLE1201A152MJTM -55~105 10 1500 10 12 3000 0.009 5000 -
    NPLD1401K820MJTM -55~105 80 82 8 14 1312 0.04 5000 -
    NPLE1401A222MJTM -55~105 10 2200 10 14 4400 0.008 5000 -
    NPLE1001K820MJTM -55~105 80 82 10 10 1312 0.05 5000 -
    NPLE1401A252MJTM -55~105 10 2500 10 14 5000 0.008 5000 -
    NPLD1601K101MJTM -55~105 80 100 8 16 1600 0.03 5000 -
    NPLE1601A272MJTM -55~105 10 2700 10 16 5400 0.008 5000 -
    NPLE1201K101MJTM -55~105 80 100 10 12 1600 0.04 5000 -
    NPLE1801A332MJTM -55~105 10 3300 10 18 6600 0.008 5000 -
    NPLE1301K121MJTM -55~105 80 120 10 13 1920 0.04 5000 -
    NPLL1401A332MJTM -55~105 10 3300 12.5 14 6600 0.009 5000 -
    NPLE1601K151MJTM -55~105 80 150 10 16 2400 0.03 5000 -
    NPLE2101A392MJTM -55~105 10 3900 10 21 7500 0.008 5000 -
    NPLL1251K151MJTM -55~105 80 150 12.5 12.5 2400 0.04 5000 -
    NPLL1601A392MJTM -55~105 10 3900 12.5 16 7500 0.008 5000 -
    NPLE1801K181MJTM -55~105 80 180 10 18 2880 0.03 5000 -
    NPLL1801A472MJTM -55~105 10 4700 12.5 18 7500 0.008 5000 -
    NPLL1401K181MJTM -55~105 80 180 12.5 14 2880 0.04 5000 -
    NPLL1801A562MJTM -55~105 10 5600 12.5 18 7500 0.008 5000 -
    NPLE2101K221MJTM -55~105 80 220 10 21 3520 0.03 5000 -
    NPLL2001A682MJTM -55~105 10 6800 12.5 20 7500 0.008 5000 -
    NPLL1601K221MJTM -55~105 80 220 12.5 16 3520 0.03 5000 -
    NPLB0701B181MJTM -55~105 12 180 5 7 432 0.015 5000 -
    NPLL1801K271MJTM -55~105 80 270 12.5 18 4320 0.03 5000 -
    NPLC0571B181MJTM -55~105 12 180 6.3 5.7 432 0.03 5000 -
    NPLL2001K331MJTM -55~105 80 330 12.5 20 5000 0.03 5000 -
    NPLB0901B221MJTM -55~105 12 220 5 9 528 0.015 5000 -
    NPLB0572A2R2MJTM -55~105 100 2.2 5 5.7 300 0.08 5000 -
    NPLC1101A471MJTM -55~105 10 470 6.3 11 940 0.009 5000 -
    NPLC0571B221MJTM -55~105 12 220 6.3 5.7 528 0.016 5000 -
    NPLC0422A2R2MJTM -55~105 100 2.2 6.3 4.2 300 0.08 5000 -
    NPLC1501C471MJTM -55~105 16 470 6.3 15 1504 0.01 5000 -
    NPLB1001B271MJTM -55~105 12 270 5 10 648 0.012 5000 -
    NPLB0572A3R3MJTM -55~105 100 3.3 5 5.7 300 0.06 5000 -
    NPLC0701E151MJTM -55~105 25 150 6.3 7 750 0.016 5000 -
    NPLC0701B271MJTM -55~105 12 270 6.3 7 648 0.016 5000 -
    NPLC0422A3R3MJTM -55~105 100 3.3 6.3 4.2 300 0.08 5000 -
    NPLC1101E331MJTM -55~105 25 330 6.3 11 1650 0.02 5000 -
    NPLB1001B331MJTM -55~105 12 330 5 10 792 0.012 5000 -
    NPLB0702A4R7MJTM -55~105 100 4.7 5 7 300 0.06 5000 -
    NPLC0900J681MJTM -55~105 6.3 680 6.3 9 856.8 0.008 5000 -
    NPLC0701B331MJTM -55~105 12 330 6.3 7 792 0.012 5000 -
    NPLC0572A4R7MJTM -55~105 100 4.7 6.3 5.7 300 0.08 5000 -
    NPLC0701V470MJTM -55~105 35 47 6.3 7 329 0.05 5000 -
    NPLB1101B391MJTM -55~105 12 390 5 11 936 0.012 5000 -
    NPLB0702A5R6MJTM -55~105 100 5.6 5 7 300 0.06 5000 -
    NPLH0901B391MJTM -55~105 12 390 5.5 9 936 0.015 5000 -
    NPLC0572A5R6MJTM -55~105 100 5.6 6.3 5.7 300 0.08 5000 -
    NPLC0801B391MJTM -55~105 12 390 6.3 8 936 0.012 5000 -
    NPLB0802A6R8MJTM -55~105 100 6.8 5 8 300 0.06 5000 -
    NPLC0901B471MJTM -55~105 12 470 6.3 9 1128 0.012 5000 -
    NPLC0572A6R8MJTM -55~105 100 6.8 6.3 5.7 300 0.06 5000 -
    NPLD0701B471MJTM -55~105 12 470 8 7 1128 0.014 5000 -
    NPLB0902A8R2MJTM -55~105 100 8.2 5 9 300 0.06 5000 -
    NPLC1001B561MJTM -55~105 12 560 6.3 10 1344 0.01 5000 -
    NPLC0702A8R2MJTM -55~105 100 8.2 6.3 7 300 0.06 5000 -
    NPLD0701B561MJTM -55~105 12 560 8 7 1344 0.014 5000 -
    NPLC0702A100MJTM -55~105 100 10 6.3 7 300 0.06 5000 -
    NPLC1101B681MJTM -55~105 12 680 6.3 11 1632 0.009 5000 -
    NPLC0802A120MJTM -55~105 100 12 6.3 8 300 0.05 5000 -
    NPLD0801B681MJTM -55~105 12 680 8 8 1632 0.01 5000 -
    NPLC0902A150MJTM -55~105 100 15 6.3 9 300 0.05 5000 -
    NPLD1001B102MJTM -55~105 12 1000 8 10 2400 0.01 5000 -
    NPLD0702A150MJTM -55~105 100 15 8 7 300 0.06 5000 -
    NPLB0571C220MJTM -55~105 16 22 5 5.7 280 0.03 5000 -
    NPLC1002A180MJTM -55~105 100 18 6.3 10 360 0.05 5000 -
    NPLC0421C220MJTM -55~105 16 22 6.3 4.2 280 0.03 5000 -
    NPLD0802A180MJTM -55~105 100 18 8 8 360 0.06 5000 -
    NPLB0571C330MJTM -55~105 16 33 5 5.7 280 0.03 5000 -
    NPLC1202A220MJTM -55~105 100 22 6.3 12 440 0.05 5000 -
    NPLC0421C330MJTM -55~105 16 33 6.3 4.2 280 0.03 5000 -
    NPLD0802A220MJTM -55~105 100 22 8 8 440 0.05 5000 -
    NPLB0571C470MJTM -55~105 16 47 5 5.7 280 0.03 5000 -
    NPLD1102A270MJTM -55~105 100 27 8 11 540 0.05 5000 -
    NPLC0421C470MJTM -55~105 16 47 6.3 4.2 280 0.03 5000 -
    NPLE0702A270MJTM -55~105 100 27 10 7 540 0.06 5000 -
    NPLB0571C680MJTM -55~105 16 68 5 5.7 280 0.03 5000 -
    NPLD1102A330MJTM -55~105 100 33 8 11 660 0.05 5000 -
    NPLC0421C680MJTM -55~105 16 68 6.3 4.2 280 0.03 5000 -
    NPLE0902A330MJTM -55~105 100 33 10 9 660 0.05 5000 -
    NPLB0571C820MJTM -55~105 16 82 5.15 5.7 280 0.03 5000 -
    NPLD1402A390MJTM -55~105 100 39 8 14 780 0.05 5000 -
    NPLC0421C820MJTM -55~105 16 82 6.3 4.2 280 0.03 5000 -
    NPLE0902A390MJTM -55~105 100 39 10 9 780 0.05 5000 -
    NPLB0701C101MJTM -55~105 16 100 5 7 320 0.03 5000 -
    NPLE1002A470MJTM -55~105 100 47 10 10 940 0.05 5000 -
    NPLC0571C101MJTM -55~105 16 100 6.3 5.7 320 0.03 5000 -
    NPLE1202A560MJTM -55~105 100 56 10 12 1120 0.05 5000 -
    NPLB0801C151MJTM -55~105 16 150 5 8 480 0.03 5000 -
    NPLE1602A680MJTM -55~105 100 68 10 16 1360 0.05 5000 -
    NPLC0571C151MJTM -55~105 16 150 6.3 5.7 480 0.03 5000 -
    NPLE1802A820MJTM -55~105 100 82 10 18 1640 0.04 5000 -
    NPLB1001C221MJTM -55~105 16 220 5 10 704 0.012 5000 -
    NPLL1252A820MJTM -55~105 100 82 12.5 12.5 1640 0.05 5000 -
    NPLH0901C221MJTM -55~105 16 220 5.5 9 704 0.012 5000 -
    NPLE2102A101MJTM -55~105 100 100 10 21 2000 0.04 5000 -
    NPLC0701C221MJTM -55~105 16 220 6.3 7 704 0.02 5000 -
    NPLL1402A101MJTM -55~105 100 100 12.5 14 2000 0.05 5000 -
    NPLC0801C271MJTM -55~105 16 270 6.3 8 864 0.015 5000 -
    NPLE2102A121MJTM -55~105 100 120 10 21 2400 0.04 5000 -
    NPLD0701C271MJTM -55~105 16 270 8 7 864 0.03 5000 -
    NPLL1602A121MJTM -55~105 100 120 12.5 16 2400 0.04 5000 -
    NPLC0901C331MJTM -55~105 16 330 6.3 9 1056 0.012 5000 -
    NPLL1802A151MJTM -55~105 100 150 12.5 18 3000 0.04 5000 -
    NPLD0701C331MJTM -55~105 16 330 8 7 1056 0.03 5000 -
    NPLL2002A181MJTM -55~105 100 180 12.5 20 3600 0.04 5000 -
    NPLC0901C391MJTM -55~105 16 390 6.3 9 1248 0.012 5000 -
    NPLC1101C471MJTM -55~105 16 470 6.3 11 1504 0.01 5000 ——
    NPLD0801C471MJTM -55~105 16 470 8 8 1504 0.02 5000 ——
    NPLD0901C561MJTM -55~105 16 560 8 9 1792 0.012 5000 -
    NPLE0801C561MJTM -55~105 16 560 10 8 1792 0.012 5000 -
    NPLD1001C681MJTM -55~105 16 680 8 10 2176 0.01 5000 -
    NPLE0801C681MJTM -55~105 16 680 10 8 2176 0.012 5000 -
    NPLD1201C821MJTM -55~105 16 820 8 12 2624 0.01 5000 -
    NPLE0901C821MJTM -55~105 16 820 10 9 2624 0.012 5000 ——
    NPLD1401C102MJTM -55~105 16 1000 8 14 3200 0.008 5000 -
    NPLD1601C102MJTM -55~105 16 1000 8 16 3200 0.01 5000 -
    NPLE0901C102MJTM -55~105 16 1000 10 9 3200 0.012 5000 -
    NPLE1201C152MJTM -55~105 16 1500 10 12 4800 0.008 5000 ——
    NPLE1601C182MJTM -55~105 16 1800 10 16 5760 0.008 5000 -
    NPLE1801C222MJTM -55~105 16 2200 10 18 7040 0.008 5000 -
    NPLE2001C222MJTM -55~105 16 2200 10 20 7040 0.008 5000 -
    NPLL1401C222MJTM -55~105 16 2200 12.5 14 7040 0.01 5000 -
    NPLD2001V471MJTM -55~105 35 470 8 20 3290 0.02 5000 -
    NPLE2101C272MJTM -55~105 16 2700 10 21 7500 0.008 5000 -
    NPLD1101H101MJTM -55~105 50 100 8 11 1000 0.04 5000 -
    NPLL1601C272MJTM -55~105 16 2700 12.5 16 7500 0.01 5000 -
    NPLL1801C332MJTM -55~105 16 3300 12.5 18 7500 0.008 5000 -
    NPLL2001C392MJTM -55~105 16 3900 12.5 20 7500 0.008 5000 -
    NPLB0571E100MJTM -55~105 25 10 5 5.7 280 0.04 5000 -
    NPLC0421E100MJTM -55~105 25 10 6.3 4.2 280 0.04 5000 -
    NPLB0571E150MJTM -55~105 25 15 5 5.7 280 0.04 5000 -
    NPLC0421E150MJTM -55~105 25 15 6.3 4.2 280 0.04 5000 -
    NPLB0571E220MJTM -55~105 25 22 5 5.7 280 0.04 5000 -
    NPLC0421E220MJTM -55~105 25 22 6.3 4.2 280 0.04 5000 -
    NPLB0571E330MJTM -55~105 25 33 5 5.7 280 0.04 5000 -
    NPLC0421E330MJTM -55~105 25 33 6.3 4.2 280 0.04 5000 -
    NPLB0571E390MJTM -55~105 25 39 5 5.7 280 0.04 5000 -
    NPLC0421E390MJTM -55~105 25 39 6.3 4.2 280 0.04 5000 -
    NPLB0571E470MJTM -55~105 25 47 5 5.7 280 0.03 5000 -
    NPLC0421E470MJTM -55~105 25 47 6.3 4.2 280 0.04 5000 -
    NPLB0701E680MJTM -55~105 25 68 5 7 340 0.03 5000 -
    NPLC0571E680MJTM -55~105 25 68 6.3 5.7 340 0.04 5000 -
    NPLB0901E101MJTM -55~105 25 100 5 9 500 0.03 5000 -
    NPLC0571E101MJTM -55~105 25 100 6.3 5.7 500 0.03 5000 -
    NPLC0801E151MJTM -55~105 25 150 6.3 8 750 0.016 5000 -
    NPLC0801E181MJTM -55~105 25 180 6.3 8 900 0.016 5000 -
    NPLD0701E181MJTM -55~105 25 180 8 7 900 0.03 5000 -
    NPLC0901E221MJTM -55~105 25 220 6.3 9 1100 0.02 5000 -
    NPLD0701E221MJTM -55~105 25 220 8 7 1100 0.03 5000 -
    NPLD0901E331MJTM -55~105 25 330 8 9 1650 0.016 5000 ——
    NPLE0801E331MJTM -55~105 25 330 10 8 1650 0.016 5000 -
    NPLD1401E471MJTM -55~105 25 470 8 14 2350 0.016 5000 -
    NPLD1101E471MJTM -55~105 25 470 8 11 2350 0.016 5000 -
    NPLE0901E471MJTM -55~105 25 470 10 9 2350 0.016 5000 -
    NPLD1401E561MJTM -55~105 25 560 8 14 2800 0.016 5000 -
    NPLD1101E561MJTM -55~105 25 560 8 11 2800 0.016 5000 -
    NPLE1001E561MJTM -55~105 25 560 10 10 2800 0.016 5000 -
    NPLD1401E681MJTM -55~105 25 680 8 14 3400 0.016 5000 ——
    NPLE1201E681MJTM -55~105 25 680 10 12 3400 0.016 5000 -
    NPLD1601E821MJTM -55~105 25 820 8 16 4100 0.016 5000 -
    NPLD1701E821MJTM -55~105 25 820 8 17 4100 0.016 5000 -
    NPLE1301E821MJTM -55~105 25 820 10 13 4100 0.016 5000 -
    NPLE1601E102MJTM -55~105 25 1000 10 16 5000 0.016 5000 -
    NPLL1251E102MJTM -55~105 25 1000 12.5 12.5 5000 0.016 5000 -
    NPLE1801E152MJTM -55~105 25 1500 10 18 7500 0.016 5000 -
    NPLL1401E152MJTM -55~105 25 1500 12.5 14 7500 0.016 5000 -
    NPLE2101E182MJTM -55~105 25 1800 10 21 7500 0.016 5000 -
    NPLL1601E182MJTM -55~105 25 1800 12.5 16 7500 0.016 5000 -
    NPLL1801E222MJTM -55~105 25 2200 12.5 18 7500 0.016 5000 -
    NPLL2001E272MJTM -55~105 25 2700 12.5 20 7500 0.016 5000 -
    NPLB0571V100MJTM -55~105 35 10 5 5.7 300 0.06 5000 -
    NPLC0421V100MJTM -55~105 35 10 6.3 4.2 300 0.06 5000 -
    NPLB0571V150MJTM -55~105 35 15 5 5.7 300 0.06 5000 -
    NPLC0421V150MJTM -55~105 35 15 6.3 4.2 300 0.06 5000 -
    NPLB0571V220MJTM -55~105 35 22 5 5.7 300 0.06 5000 -
    NPLC0421V220MJTM -55~105 35 22 6.3 4.2 300 0.06 5000 -
    NPLB0571V330MJTM -55~105 35 33 5 5.7 300 0.06 5000 -
    NPLC0421V330MJTM -55~105 35 33 6.3 4.2 300 0.06 5000 -
    NPLB0701V390MJTM -55~105 35 39 5 7 300 0.05 5000 -
    NPLC0571V390MJTM -55~105 35 39 6.3 5.7 300 0.06 5000 -
    NPLB0701V470MJTM -55~105 35 47 5 7 329 0.05 5000 -
    NPLC0571V470MJTM -55~105 35 47 6.3 5.7 329 0.06 5000 -
    NPLB0701V560MJTM -55~105 35 56 5 7 392 0.05 5000 -
    NPLC0571V560MJTM -55~105 35 56 6.3 5.7 392 0.06 5000 -
    NPLB0801V680MJTM -55~105 35 68 5 8 476 0.05 5000 -
    NPLC0571V680MJTM -55~105 35 68 6.3 5.7 476 0.06 5000 -
    NPLB0901V820MJTM -55~105 35 82 5 9 574 0.05 5000 -
    NPLC0701V820MJTM -55~105 35 82 6.3 7 574 0.05 5000 -
    NPLC0701V101MJTM -55~105 35 100 6.3 7 700 0.05 5000 -
    NPLC0801V121MJTM -55~105 35 120 6.3 8 840 0.05 5000 -
    NPLD0701V121MJTM -55~105 35 120 8 7 840 0.06 5000 -
    NPLC0901V151MJTM -55~105 35 150 6.3 9 1050 0.05 5000 -
