Chip solid Aluminum electrolytic capacitor VPX

Short Description:

♦ High reliability, low ESR, high allowable ripple current
♦ Guaranteed for 2000 hours at 105℃
♦ Complied with RoHS Directive
♦ Surface mount type for miniaturized products


Product Detail

List of products Number

Product Tags

Main technical parameters

project

characteristic

range of working temperature

-55~+105℃

Rated working voltage

6.3-100V

capacity range

2.2 - 10000 uF 120Hz 20℃

Capacity tolerance

±20% (120Hz 20℃)

loss tangent

120Hz 20℃ below the value in the list of standard products

Leakage current※

Charge for 2 minutes at rated voltage below the value in the list of standard products at 20°C

Equivalent Series Resistance (ESR)

100kHz 20°C below the value in the list of standard products



Durability

The product should meet the temperature of 105 ℃, apply the rated working voltage for 2000 hours, and after 16 hours at 20 ℃,

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value



High temperature and humidity

The product should meet the conditions of 60°C temperature and 90%~95%R.H humidity without applying voltage, place it for 1000 hours, and place it at 20°C for 16 hours

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value

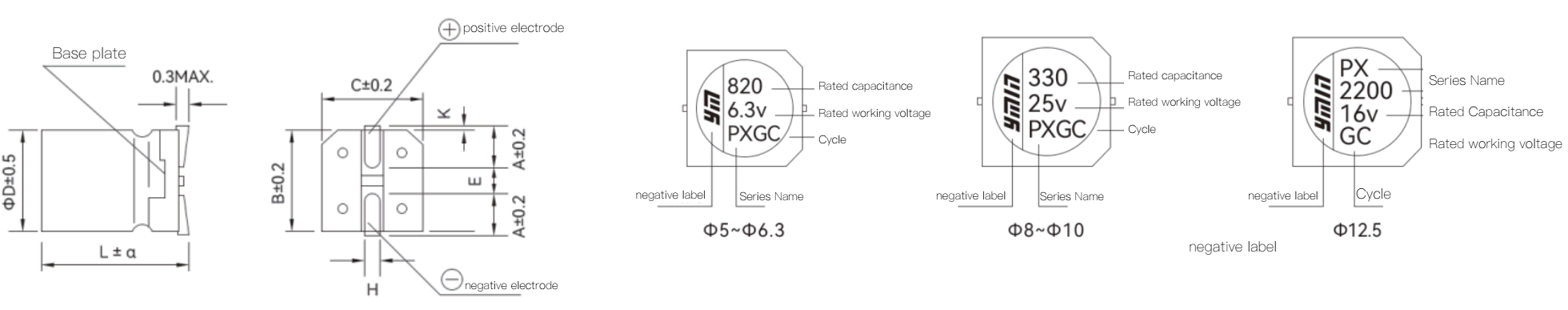

Product Dimensional Drawing



ΦD B C A H E K a
5 5.3 5.3 2.1 0.70±0.20 1.3 0.5MAX ±0.5
6.3 6.6 6.6 2.6 0.70±0.20 1.8 0.5MAX
8 8.3 8.3 3 0.90±0.20 3.1 0.5MAX
10 10.3 10.3 3.5 0.90±0.20 4.6 0.7±0.2
12.5 12.8 12.8 4.7 0.90±0.30 4.4 0.7±0.3

Ripple Current Frequency Correction Coefficient

frequency correction factor

Frequency (Hz)  120Hz  1kHz  10kHz  100kHz  500kHz
correction factor  0.05 0.3 0.7 1 1



Conductive Polymer Solid Aluminum Electrolytic Capacitors: Advanced Components for Modern Electronics

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity compared to traditional electrolytic capacitors. In this article, we'll explore the features, benefits, and applications of these innovative components.

Features

Conductive Polymer Solid Aluminum Electrolytic Capacitors combine the benefits of traditional aluminum electrolytic capacitors with the enhanced characteristics of conductive polymer materials. The electrolyte in these capacitors is a conductive polymer, which replaces the traditional liquid or gel electrolyte found in conventional aluminum electrolytic capacitors.

One of the key features of Conductive Polymer Solid Aluminum Electrolytic Capacitors is their low equivalent series resistance (ESR) and high ripple current handling capabilities. This results in improved efficiency, reduced power losses, and enhanced reliability, particularly in high-frequency applications.

Additionally, these capacitors offer excellent stability over a wide temperature range and have a longer operational lifespan compared to traditional electrolytic capacitors. Their solid construction eliminates the risk of leakage or drying out of the electrolyte, ensuring consistent performance even in harsh operating conditions.

Benefits

The adoption of conductive polymer materials in Solid Aluminum Electrolytic Capacitors brings several benefits to electronic systems. Firstly, their low ESR and high ripple current ratings make them ideal for use in power supply units, voltage regulators, and DC-DC converters, where they help to stabilize output voltages and improve efficiency.

Secondly, Conductive Polymer Solid Aluminum Electrolytic Capacitors offer enhanced reliability and durability, making them suitable for mission-critical applications in industries such as automotive, aerospace, telecommunications, and industrial automation. Their ability to withstand high temperatures, vibrations, and electrical stresses ensures long-term performance and reduces the risk of premature failure.

Furthermore, these capacitors exhibit low impedance characteristics, which contribute to improved noise filtering and signal integrity in electronic circuits. This makes them valuable components in audio amplifiers, audio equipment, and high-fidelity audio systems.

Applications

Conductive Polymer Solid Aluminum Electrolytic Capacitors find applications in a wide range of electronic systems and devices. They are commonly used in power supply units, voltage regulators, motor drives, LED lighting, telecommunications equipment, and automotive electronics.

In power supply units, these capacitors help to stabilize output voltages, reduce ripple, and improve transient response, ensuring reliable and efficient operation. In automotive electronics, they contribute to the performance and longevity of onboard systems, such as engine control units (ECUs), infotainment systems, and safety features.

Conclusion

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity for modern electronic systems. With their low ESR, high ripple current handling capabilities, and enhanced durability, they are well-suited for a wide range of applications in various industries.

As electronic devices and systems continue to evolve, the demand for high-performance capacitors like Conductive Polymer Solid Aluminum Electrolytic Capacitors is expected to grow. Their ability to meet the stringent requirements of modern electronics makes them indispensable components in today's electronic designs, contributing to improved efficiency, reliability, and performance.


  • Previous:
  • Next:

  • Products Code Temperature(℃) Rated Voltage(V.DC) Capacitance(uF) Diameter(mm) Height(mm) Leakage current(uA) ESR/Impedance  [Ωmax] Life(Hrs)
    VPXE1051H221MVTM -55~105 50 220 10 10.5 2200 0.05 2000
    VPXE1451H271MVTM -55~105 50 270 10 14.5 2700 0.04 2000
    VPXD1651H271MVTM -55~105 50 270 8 16.5 2700 0.03 2000
    VPXC4500J101MVTM -55~105 6.3 100 6.3 4.5 280 0.02 2000
    VPXE1701H331MVTM -55~105 50 330 10 17 3300 0.03 2000
    VPXB0580J151MVTM -55~105 6.3 150 5 5.8 280 0.02 2000
    VPXE1701H391MVTM -55~105 50 390 10 17 3900 0.03 2000
    VPXC4500J151MVTM -55~105 6.3 150 6.3 4.5 280 0.02 2000
    VPXL1351H391MVTM -55~105 50 390 12.5 13.5 3900 0.04 2000
    VPXB0770J181MVTM -55~105 6.3 180 5 7.7 280 0.018 2000
    VPXE1951H471MVTM -55~105 50 470 10 19.5 4700 0.03 2000
    VPXC4500J181MVTM -55~105 6.3 180 6.3 4.5 280 0.02 2000
    VPXL1501H471MVTM -55~105 50 470 12.5 15 4700 0.04 2000
    VPXB0770J221MVTM -55~105 6.3 220 5 7.7 280 0.018 2000
    VPXE2201H561MVTM -55~105 50 560 10 22 5000 0.03 2000
    VPXC4500J221MVTM -55~105 6.3 220 6.3 4.5 280 0.02 2000
    VPXL1701H561MVTM -55~105 50 560 12.5 17 5000 0.03 2000
    VPXB0850J271MVTM -55~105 6.3 270 5 8.5 340 0.012 2000
    VPXL1851H681MVTM -55~105 50 680 12.5 18.5 5000 0.03 2000
    VPXC0580J271MVTM -55~105 6.3 270 6.3 5.8 340 0.018 2000
    VPXL2101H821MVTM -55~105 50 820 12.5 21 5000 0.03 2000
    VPXB0850J331MVTM -55~105 6.3 330 5 8.5 416 0.012 2000
    VPXB0581J6R8MVTM -55~105 63 6.8 5 5.8 300 0.06 2000
    VPXC0580J331MVTM -55~105 6.3 330 6.3 5.8 416 0.018 2000
    VPXC4501J6R8MVTM -55~105 63 6.8 6.3 4.5 300 0.06 2000
    VPXB0850J391MVTM -55~105 6.3 390 5 8.5 491 0.012 2000
    VPXB0771J8R2MVTM -55~105 63 8.2 5 7.7 300 0.06 2000
    VPXC0850J391MVTM -55~105 6.3 390 6.3 8.5 491 0.008 2000
    VPXC4501J8R2MVTM -55~105 63 8.2 6.3 4.5 300 0.06 2000
    VPXC0850J471MVTM -55~105 6.3 470 6.3 8.5 592 0.008 2000
    VPXB0771J100MVTM -55~105 63 10 5 7.7 300 0.06 2000
    VPXC0850J561MVTM -55~105 6.3 560 6.3 8.5 706 0.008 2000
    VPXC0581J100MVTM -55~105 63 10 6.3 5.8 300 0.06 2000
    VPXD0770J561MVTM -55~105 6.3 560 8 7.7 706 0.016 2000
    VPXB0771J150MVTM -55~105 63 15 5 7.7 300 0.06 2000
    VPXC0950J681MVTM -55~105 6.3 680 6.3 9.5 857 0.008 2000
    VPXC0581J150MVTM -55~105 63 15 6.3 5.8 300 0.06 2000
    VPXD0770J681MVTM -55~105 6.3 680 8 7.7 857 0.012 2000
    VPXB0951J220MVTM -55~105 63 22 5 9.5 300 0.05 2000
    VPXC0950J821MVTM -55~105 6.3 820 6.3 9.5 1033 0.008 2000
    VPXC0851J220MVTM -55~105 63 22 6.3 8.5 300 0.05 2000
    VPXD0770J821MVTM -55~105 6.3 820 8 7.7 1033 0.012 2000
    VPXC0851J330MVTM -55~105 63 33 6.3 8.5 416 0.05 2000
    VPXC1100J102MVTM -55~105 6.3 1000 6.3 11 1260 0.008 2000
    VPXD0771J330MVTM -55~105 63 33 8 7.7 416 0.06 2000
    VPXB0581E101MVTM -55~105 25 100 5 5.8 500 0.04 2000
    VPXD0900J102MVTM -55~105 6.3 1000 8 9 1260 0.008 2000
    VPXC0951J390MVTM -55~105 63 39 6.3 9.5 491 0.05 2000
    VPXB0771E101MVTM -55~105 25 100 5 7.7 500 0.03 2000
    VPXE0850J102MVTM -55~105 6.3 1000 10 7.5 1260 0.012 2000
    VPXD0771J390MVTM -55~105 63 39 8 7.7 491 0.06 2000
    VPXB0771E151MVTM -55~105 25 150 5 7.7 750 0.03 2000
    VPXD1000J122MVTM -55~105 6.3 1200 8 10 1512 0.008 2000
    VPXC1101J470MVTM -55~105 63 47 6.3 11 592 0.04 2000
    VPXB1551E471MVTM -55~105 25 470 5 15.5 2350 0.02 2000
    VPXE0850J122MVTM -55~105 6.3 1200 10 8.5 1512 0.008 2000
    VPXD0771J470MVTM -55~105 63 47 8 7.7 592 0.06 2000
    VPXB1101E221MVTM -55~105 25 220 5 11 1100 0.02 2000
    VPXD1250J152MVTM -55~105 6.3 1500 8 12.5 1890 0.008 2000
    VPXD0901J560MVTM -55~105 63 56 8 9 706 0.05 2000
    VPXB0581V470MVTM -55~105 35 47 5 5.8 500 0.06 2000
    VPXE0950J152MVTM -55~105 6.3 1500 10 9.5 1890 0.008 2000
    VPXE0851J560MVTM -55~105 63 56 10 7.5 706 0.06 2000
    VPXB0770J331MVTM -55~105 6.3 330 5 7.7 500 0.018 2000
    VPXD1500J202MVTM -55~105 6.3 2000 8 15 2520 0.007 2000
    VPXD1001J680MVTM -55~105 63 68 8 10 857 0.05 2000
    VPXB0581A101MVTM -55~105 10 100 5 5.8 500 0.03 2000
    VPXE1050J202MVTM -55~105 6.3 2000 10 10.5 2520 0.008 2000
    VPXE0851J680MVTM -55~105 63 68 10 8.5 857 0.06 2000
    VPXB0581A680MVTM -55~105 10 68 5 5.8 500 0.03 2000
    VPXE1050J222MVTM -55~105 6.3 2200 10 10.5 2772 0.008 2000
    VPXD1001J820MVTM -55~105 63 82 8 10 1033 0.05 2000
    VPXB0581C470MVTM -55~105 16 47 5 5.8 500 0.03 2000
    VPXE1250J252MVTM -55~105 6.3 2500 10 12.5 3150 0.008 2000
    VPXE0851J820MVTM -55~105 63 82 10 8.5 1033 0.06 2000
    VPXB0771E470MVTM -55~105 25 47 5 7.7 500 0.03 2000
    VPXE1250J272MVTM -55~105 6.3 2700 10 12.5 3402 0.008 2000
    VPXD1251J101MVTM -55~105 63 100 8 12.5 1260 0.04 2000
    VPXB0580J101MVTM -55~105 6.3 100 5 5.8 500 0.02 2000
    VPXE1350J332MVTM -55~105 6.3 3300 10 13.5 4158 0.008 2000
    VPXE0951J101MVTM -55~105 63 100 10 9.5 1260 0.05 2000
    VPXE1550J392MVTM -55~105 6.3 3900 10 15.5 4914 0.007 2000
    VPXD1501J121MVTM -55~105 63 120 8 15 1512 0.04 2000
    VPXH1551E471MVTM -55~105 25 470 5.5 15.5 2350 0.02 2000
    VPXE1700J472MVTM -55~105 6.3 4700 10 17 5922 0.007 2000
    VPXE1051J121MVTM -55~105 63 120 10 10.5 1512 0.05 2000
    VPXL1350J472MVTM -55~105 6.3 4700 12.5 13.5 5922 0.008 2000
    VPXD1651J151MVTM -55~105 63 150 8 16.5 1890 0.03 2000
    VPXE1950J562MVTM -55~105 6.3 5600 10 19.5 7056 0.007 2000
    VPXE1451J151MVTM -55~105 63 150 10 14.5 1890 0.04 2000
    VPXL1500J562MVTM -55~105 6.3 5600 12.5 15 7056 0.008 2000
    VPXE1551J181MVTM -55~105 63 180 10 15.5 2268 0.03 2000
    VPXL1700J682MVTM -55~105 6.3 6800 12.5 17 7500 0.007 2000
    VPXE1701J221MVTM -55~105 63 220 10 17 2772 0.03 2000
    VPXL1850J822MVTM -55~105 6.3 8200 12.5 18.5 7500 0.007 2000
    VPXL1351J221MVTM -55~105 63 220 12.5 13.5 2772 0.04 2000
    VPXL2100J103MVTM -55~105 6.3 10000 12.5 21 7500 0.007 2000
    VPXE1951J271MVTM -55~105 63 270 10 19.5 3402 0.03 2000
    VPXB0850L271MVTM -55~105 7.5 270 5 8.5 405 0.012 2000
    VPXL1501J271MVTM -55~105 63 270 12.5 15 3402 0.04 2000
    VPXC0580L271MVTM -55~105 7.5 270 6.3 5.8 405 0.018 2000
    VPXE2201J331MVTM -55~105 63 330 10 22 4158 0.03 2000
    VPXC0581A331MVTM -55~105 10 330 6.3 5.8 660 0.03 2000
    VPXB0950L331MVTM -55~105 7.5 330 5 9.5 495 0.012 2000
    VPXL1701J331MVTM -55~105 63 330 12.5 17 4158 0.03 2000
    VPXC0581C101MVTM -55~105 16 100 6.3 5.8 500 0.03 2000
    VPXC0770L331MVTM -55~105 7.5 330 6.3 7.7 495 0.012 2000
    VPXL1851J391MVTM -55~105 63 390 12.5 18.5 4914 0.03 2000
    VPXC0581C221MVTM -55~105 16 220 6.3 5.8 704 0.03 2000
    VPXB1100L391MVTM -55~105 7.5 390 5 11 585 0.01 2000
    VPXL2101J471MVTM -55~105 63 470 12.5 21 5000 0.03 2000
    VPXC0951C471MVTM -55~105 16 470 6.3 9.5 1504 0.012 2000
    VPXC0850L391MVTM -55~105 7.5 390 6.3 8.5 585 0.012 2000
    VPXB0581K4R7MVTM -55~105 80 4.7 5 5.8 300 0.06 2000
    VPXC0581E101MVTM -55~105 25 100 6.3 5.8 500 0.04 2000
    VPXD0770L391MVTM -55~105 7.5 390 8 7.7 585 0.018 2000
    VPXC4501K4R7MVTM -55~105 80 4.7 6.3 4.5 300 0.06 2000
    VPXC0801V181MVTM -55~105 35 180 6.3 8 1260 0.05 2000
    VPXC0950L471MVTM -55~105 7.5 470 6.3 9.5 705 0.012 2000
    VPXB0771K6R8MVTM -55~105 80 6.8 5 7.7 300 0.06 2000
    VPXC1001E221MVTM -55~105 25 220 6.3 10 1100 0.02 2000
    VPXC0950L561MVTM -55~105 7.5 560 6.3 9.5 840 0.009 2000
    VPXC4501K6R8MVTM -55~105 80 6.8 6.3 4.5 300 0.06 2000
    VPXC0581E221MVTM -55~105 25 220 6.3 5.8 1100 0.04 2000
    VPXD0770L561MVTM -55~105 7.5 560 8 7.7 840 0.018 2000
    VPXB0771K8R2MVTM -55~105 80 8.2 5 7.7 300 0.06 2000
    VPXC0771E221MVTM -55~105 25 220 6.3 7.7 1100 0.03 2000
    VPXC1100L681MVTM -55~105 7.5 680 6.3 11 1020 0.008 2000
    VPXC0581K8R2MVTM -55~105 80 8.2 6.3 5.8 300 0.06 2000
    VPXC0851E221MVTM -55~105 25 220 6.3 8.5 1100 0.016 2000
    VPXD0770L681MVTM -55~105 7.5 680 8 7.7 1020 0.012 2000
    VPXB0771K100MVTM -55~105 80 10 5 7.7 300 0.06 2000
    VPXC0581E220MVTM -55~105 25 22 6.3 5.8 500 0.04 2000
    VPXD0900L821MVTM -55~105 7.5 820 8 9 1230 0.008 2000
    VPXC0581K100MVTM -55~105 80 10 6.3 5.8 300 0.06 2000
    VPXC0951E331MVTM -55~105 25 330 6.3 9.5 1650 0.02 2000
    VPXD1000L102MVTM -55~105 7.5 1000 8 10 1500 0.008 2000
    VPXB0951K150MVTM -55~105 80 15 5 9.5 300 0.05 2000
    VPXC1201E471MVTM -55~105 25 470 6.3 12 2350 0.02 2000
    VPXB0581A470MVTM -55~105 10 47 5 5.8 280 0.03 2000
    VPXC0851K150MVTM -55~105 80 15 6.3 8.5 300 0.05 2000
    VPXC1301E471MVTM -55~105 25 470 6.3 13 2350 0.02 2000
    VPXC4501A470MVTM -55~105 10 47 6.3 4.5 280 0.03 2000
    VPXC0851K220MVTM -55~105 80 22 6.3 8.5 352 0.05 2000
    VPXC1601E681MVTM -55~105 25 680 6.3 16 3400 0.02 2000
    VPXC4501A680MVTM -55~105 10 68 6.3 4.5 280 0.03 2000
    VPXD0771K220MVTM -55~105 80 22 8 7.7 352 0.06 2000
    VPXC0581V101MVTM -55~105 35 100 6.3 5.8 700 0.06 2000
    VPXB0581A820MVTM -55~105 10 82 5 5.8 280 0.03 2000
    VPXC1101K330MVTM -55~105 80 33 6.3 11 528 0.04 2000
    VPXC0771V101MVTM -55~105 35 100 6.3 7.7 700 0.06 2000
    VPXC4501A820MVTM -55~105 10 82 6.3 4.5 280 0.03 2000
    VPXD0771K330MVTM -55~105 80 33 8 7.7 528 0.06 2000
    VPXC0581H470MVTM -55~105 50 47 6.3 5.8 500 0.06 2000
    VPXC4501A101MVTM -55~105 10 100 6.3 4.5 280 0.03 2000
    VPXC1201K390MVTM -55~105 80 39 6.3 12 624 0.04 2000
    VPXC0580J101MVTM -55~105 6.3 100 6.3 5.8 500 0.018 2000
    VPXB0851A151MVTM -55~105 10 150 5 8.5 300 0.015 2000
    VPXD0901K390MVTM -55~105 80 39 8 9 624 0.05 2000
    VPXC0580J221MVTM -55~105 6.3 220 6.3 5.8 500 0.018 2000
    VPXC0581A151MVTM -55~105 10 150 6.3 5.8 300 0.03 2000
    VPXD0901K470MVTM -55~105 80 47 8 9 752 0.05 2000
    VPXC0770J471MVTM -55~105 6.3 470 6.3 7.7 592.2 0.008 2000
    VPXB0851A181MVTM -55~105 10 180 5 8.5 360 0.015 2000
    VPXE0851K470MVTM -55~105 80 47 10 8.5 752 0.06 2000
    VPXC0581A181MVTM -55~105 10 180 6.3 5.8 360 0.03 2000
    VPXD1001K560MVTM -55~105 80 56 8 10 896 0.05 2000
    VPXC0771A221MVTM -55~105 10 220 6.3 7.7 500 0.016 2000
    VPXB0851A221MVTM -55~105 10 220 5 8.5 440 0.015 2000
    VPXE0951K560MVTM -55~105 80 56 10 9.5 896 0.05 2000
    VPXC0771C221MVTM -55~105 16 220 6.3 7.7 704 0.02 2000
    VPXC0581A221MVTM -55~105 10 220 6.3 5.8 440 0.03 2000
    VPXD1251K680MVTM -55~105 80 68 8 12.5 1088 0.04 2000
    VPXC0771C271MVTM -55~105 16 270 6.3 7.7 864 0.02 2000
    VPXB1101A271MVTM -55~105 10 270 5 11 540 0.012 2000
    VPXE0951K680MVTM -55~105 80 68 10 9.5 1088 0.05 2000
    VPXC0581E680MVTM -55~105 25 68 6.3 5.8 500 0.04 2000
    VPXC0771A271MVTM -55~105 10 270 6.3 7.7 540 0.016 2000
    VPXD1301K820MVTM -55~105 80 82 8 13.5 1312 0.04 2000
    VPXC0581V470MVTM -55~105 35 47 6.3 5.8 500 0.06 2000
    VPXC0771A331MVTM -55~105 10 330 6.3 7.7 660 0.016 2000
    VPXE1051K820MVTM -55~105 80 82 10 10.5 1312 0.05 2000
    VPXC0771V680MVTM -55~105 35 68 6.3 7.7 500 0.06 2000
    VPXC0851A391MVTM -55~105 10 390 6.3 8.5 780 0.012 2000
    VPXD1651K101MVTM -55~105 80 100 8 16.5 1600 0.03 2000
    VPXC0770J821MVTM -55~105 6.3 820 6.3 7.7 1033.2 0.008 2000
    VPXD0771A391MVTM -55~105 10 390 8 7.7 780 0.03 2000
    VPXE1351K101MVTM -55~105 80 100 10 13.5 1600 0.04 2000
    VPXC0951A471MVTM -55~105 10 470 6.3 9.5 940 0.012 2000
    VPXD1651K121MVTM -55~105 80 120 8 16.5 1920 0.03 2000
    VPXD0771A471MVTM -55~105 10 470 8 7.7 940 0.03 2000
    VPXE1451K121MVTM -55~105 80 120 10 14.5 1920 0.04 2000
    VPXC1101A561MVTM -55~105 10 560 6.3 11 1120 0.01 2000
    VPXE1701K151MVTM -55~105 80 150 10 17 2400 0.03 2000
    VPXD0771A561MVTM -55~105 10 560 8 7.7 1120 0.014 2000
    VPXL1351K151MVTM -55~105 80 150 12.5 13.5 2400 0.04 2000
    VPXD0901A681MVTM -55~105 10 680 8 9 1360 0.01 2000
    VPXE1951K181MVTM -55~105 80 180 10 19.5 2880 0.03 2000
    VPXD1001A821MVTM -55~105 10 820 8 10 1640 0.009 2000
    VPXL1501K181MVTM -55~105 80 180 12.5 15 2880 0.04 2000
    VPXD1251E221MVTM -55~105 25 220 8 12.5 1100 0.016 2000
    VPXE0851A821MVTM -55~105 10 820 10 8.5 1640 0.014 2000
    VPXE2201K221MVTM -55~105 80 220 10 22 3520 0.03 2000
    VPXD1251E821MVTM -55~105 25 820 8 12.5 4100 0.016 2000
    VPXD1251A102MVTM -55~105 10 1000 8 12.5 2000 0.009 2000
    VPXL1701K221MVTM -55~105 80 220 12.5 17 3520 0.03 2000
    VPXE0851A102MVTM -55~105 10 1000 10 8.5 2000 0.009 2000
    VPXL1851K271MVTM -55~105 80 270 12.5 18.5 4320 0.03 2000
    VPXD1501A152MVTM -55~105 10 1500 8 15 3000 0.008 2000
    VPXL2101K331MVTM -55~105 80 330 12.5 21 5000 0.03 2000
    VPXE1251A102MVTM -55~105 10 1000 10 12.5 2000 0.009 2000
    VPXE1351A152MVTM -55~105 10 1500 10 13.5 3000 0.009 2000
    VPXB0582A2R2MVTM -55~105 100 2.2 5 5.8 300 0.08 2000
    VPXE1050J182MVTM -55~105 6.3 1800 10 10.5 2268 0.008 2000
    VPXE1551A222MVTM -55~105 10 2200 10 15.5 4400 0.008 2000
    VPXC4502A2R2MVTM -55~105 100 2.2 6.3 4.5 300 0.08 2000
    VPXE1551A252MVTM -55~105 10 2500 10 15.5 5000 0.008 2000
    VPXB0772A3R3MVTM -55~105 100 3.3 5 7.7 300 0.06 2000
    VPXE1701A272MVTM -55~105 10 2700 10 17 5400 0.008 2000
    VPXC4502A3R3MVTM -55~105 100 3.3 6.3 4.5 300 0.08 2000
    VPXE1951A332MVTM -55~105 10 3300 10 19.5 6600 0.008 2000
    VPXB0772A4R7MVTM -55~105 100 4.7 5 7.7 300 0.06 2000
    VPXL1501A332MVTM -55~105 10 3300 12.5 15 6600 0.009 2000
    VPXC0582A4R7MVTM -55~105 100 4.7 6.3 5.8 300 0.08 2000
    VPXL1701A472MVTM -55~105 10 4700 12.5 17 7000 0.009 2000
    VPXB0772A5R6MVTM -55~105 100 5.6 5 7.7 300 0.06 2000
    VPXL1851A562MVTM -55~105 10 5600 12.5 18.5 7500 0.008 2000
    VPXC0582A5R6MVTM -55~105 100 5.6 6.3 5.8 300 0.08 2000
    VPXL2101A682MVTM -55~105 10 6800 12.5 21 7500 0.008 2000
    VPXB0852A6R8MVTM -55~105 100 6.8 5 8.5 300 0.06 2000
    VPXB0851B181MVTM -55~105 12 180 5 8.5 432 0.015 2000
    VPXC0772A6R8MVTM -55~105 100 6.8 6.3 7.7 300 0.06 2000
    VPXC0581B181MVTM -55~105 12 180 6.3 5.8 432 0.03 2000
    VPXB0952A8R2MVTM -55~105 100 8.2 5 9.5 300 0.06 2000
    VPXB0951B221MVTM -55~105 12 220 5 9.5 528 0.015 2000
    VPXC0772A8R2MVTM -55~105 100 8.2 6.3 7.7 300 0.06 2000
    VPXC0771B221MVTM -55~105 12 220 6.3 7.7 528 0.016 2000
    VPXC0772A100MVTM -55~105 100 10 6.3 7.7 300 0.06 2000
    VPXB1101B271MVTM -55~105 12 270 5 11 648 0.012 2000
    VPXC0852A120MVTM -55~105 100 12 6.3 8.5 300 0.05 2000
    VPXC0771B271MVTM -55~105 12 270 6.3 7.7 648 0.016 2000
    VPXC0952A150MVTM -55~105 100 15 6.3 9.5 300 0.05 2000
    VPXB1101B331MVTM -55~105 12 330 5 11 792 0.012 2000
    VPXD0772A150MVTM -55~105 100 15 8 7.7 300 0.06 2000
    VPXC0851B331MVTM -55~105 12 330 6.3 8.5 792 0.012 2000
    VPXC1102A180MVTM -55~105 100 18 6.3 11 360 0.05 2000
    VPXD0771B331MVTM -55~105 12 330 8 7.7 792 0.03 2000
    VPXD0772A180MVTM -55~105 100 18 8 7.7 360 0.06 2000
    VPXC0851B391MVTM -55~105 12 390 6.3 8.5 936 0.012 2000
    VPXC1202A220MVTM -55~105 100 22 6.3 12 440 0.05 2000
    VPXC0951B471MVTM -55~105 12 470 6.3 9.5 1128 0.012 2000
    VPXD0902A220MVTM -55~105 100 22 8 9 440 0.05 2000
    VPXD0771B471MVTM -55~105 12 470 8 7.7 1128 0.014 2000
    VPXD0902A270MVTM -55~105 100 27 8 9 540 0.05 2000
    VPXC1101B561MVTM -55~105 12 560 6.3 11 1344 0.01 2000
    VPXE0852A270MVTM -55~105 100 27 10 8.5 540 0.06 2000
    VPXD0771B561MVTM -55~105 12 560 8 7.7 1344 0.014 2000
    VPXD1252A330MVTM -55~105 100 33 8 12.5 660 0.05 2000
    VPXD0901B681MVTM -55~105 12 680 8 9 1632 0.01 2000
    VPXE0952A330MVTM -55~105 100 33 10 9.5 660 0.05 2000
    VPXD1001B102MVTM -55~105 12 1000 8 10 2400 0.01 2000
    VPXD1252A390MVTM -55~105 100 39 8 12.5 780 0.05 2000
    VPXB0581C220MVTM -55~105 16 22 5 5.8 280 0.03 2000
    VPXE1052A390MVTM -55~105 100 39 10 10.5 780 0.05 2000
    VPXC4501C220MVTM -55~105 16 22 6.3 4.5 280 0.03 2000
    VPXD1302A470MVTM -55~105 100 47 8 13.5 940 0.05 2000
    VPXB0581C330MVTM -55~105 16 33 5 5.8 280 0.03 2000
    VPXE1352A470MVTM -55~105 100 47 10 13.5 940 0.05 2000
    VPXC4501C330MVTM -55~105 16 33 6.3 4.5 280 0.03 2000
    VPXD1652A560MVTM -55~105 100 56 8 16.5 1120 0.04 2000
    VPXC4501C470MVTM -55~105 16 47 6.3 4.5 280 0.03 2000
    VPXE1352A560MVTM -55~105 100 56 10 13.5 1120 0.05 2000
    VPXB0581C680MVTM -55~105 16 68 5 5.8 280 0.03 2000
    VPXD1502A680MVTM -55~105 100 68 8 15 1360 0.04 2000
    VPXC4501C680MVTM -55~105 16 68 6.3 4.5 280 0.03 2000
    VPXE1452A680MVTM -55~105 100 68 10 14.5 1360 0.05 2000
    VPXC4501C820MVTM -55~105 16 82 6.3 4.5 280 0.03 2000
    VPXE1702A820MVTM -55~105 100 82 10 17 1640 0.04 2000
    VPXB0851C101MVTM -55~105 16 100 5 8.5 320 0.03 2000
    VPXL1352A820MVTM -55~105 100 82 12.5 13.5 1640 0.05 2000
    VPXC4501C101MVTM -55~105 16 100 6.3 4.5 320 0.03 2000
    VPXE1952A101MVTM -55~105 100 100 10 19.5 2000 0.04 2000
    VPXB0851C151MVTM -55~105 16 150 5 8.5 480 0.03 2000
    VPXL1502A101MVTM -55~105 100 100 12.5 15 2000 0.05 2000
    VPXC0581C151MVTM -55~105 16 150 6.3 5.8 480 0.03 2000
    VPXE2202A121MVTM -55~105 100 120 10 22 2400 0.04 2000
    VPXB1101C221MVTM -55~105 16 220 5 11 704 0.012 2000
    VPXL1702A121MVTM -55~105 100 120 12.5 17 2400 0.04 2000
    VPXC0851C271MVTM -55~105 16 270 6.3 8.5 864 0.015 2000
    VPXL1852A151MVTM -55~105 100 150 12.5 18.5 3000 0.04 2000
    VPXD0771C271MVTM -55~105 16 270 8 7.7 864 0.03 2000
    VPXL2102A181MVTM -55~105 100 180 12.5 21 3600 0.04 2000
    VPXC0951C331MVTM -55~105 16 330 6.3 9.5 1056 0.012 2000
    VPXD0771C331MVTM -55~105 16 330 8 7.7 1056 0.03 2000
    VPXC1101C471MVTM -55~105 16 470 6.3 11 1504 0.01 2000
    VPXD0771C471MVTM -55~105 16 470 8 7.7 1504 0.02 2000
    VPXD1001C561MVTM -55~105 16 560 8 10 1792 0.012 2000
    VPXE0851C561MVTM -55~105 16 560 10 8.5 1792 0.012 2000
    VPXD1251C681MVTM -55~105 16 680 8 12.5 2176 0.01 2000
    VPXE0851C681MVTM -55~105 16 680 10 8.5 2176 0.012 2000
    VPXD1251C821MVTM -55~105 16 820 8 12.5 2624 0.01 2000
    VPXE0951C821MVTM -55~105 16 820 10 9.5 2624 0.012 2000
    VPXD1501C102MVTM -55~105 16 1000 8 15 3200 0.008 2000
    VPXE1051C102MVTM -55~105 16 1000 10 10.5 3200 0.012 2000
    VPXE1351C152MVTM -55~105 16 1500 10 13.5 4800 0.008 2000
    VPXE1551C182MVTM -55~105 16 1800 10 15.5 5760 0.008 2000
    VPXE1701C222MVTM -55~105 16 2200 10 17 7040 0.008 2000
    VPXL1501C222MVTM -55~105 16 2200 12.5 15 7040 0.01 2000
    VPXE1951C272MVTM -55~105 16 2700 10 19.5 7500 0.008 2000
    VPXL1501C272MVTM -55~105 16 2700 12.5 15 7500 0.01 2000
    VPXL1701C332MVTM -55~105 16 3300 12.5 17 7500 0.008 2000
    VPXL1851C392MVTM -55~105 16 3900 12.5 18.5 7500 0.008 2000
    VPXL2101C472MVTM -55~105 16 4700 12.5 21 7500 0.008 2000
    VPXB0581E100MVTM -55~105 25 10 5 5.8 280 0.04 2000
    VPXC4501E100MVTM -55~105 25 10 6.3 4.5 280 0.04 2000
    VPXB0581E150MVTM -55~105 25 15 5 5.8 280 0.04 2000
    VPXC4501E150MVTM -55~105 25 15 6.3 4.5 280 0.04 2000
    VPXB0581E220MVTM -55~105 25 22 5 5.8 280 0.04 2000
    VPXC4501E220MVTM -55~105 25 22 6.3 4.5 280 0.04 2000
    VPXB0581E330MVTM -55~105 25 33 5 5.8 280 0.04 2000
    VPXC4501E330MVTM -55~105 25 33 6.3 4.5 280 0.04 2000
    VPXB0581E390MVTM -55~105 25 39 5 5.8 280 0.04 2000
    VPXC4501E390MVTM -55~105 25 39 6.3 4.5 280 0.04 2000
    VPXC4501E470MVTM -55~105 25 47 6.3 4.5 280 0.04 2000
    VPXB0851E680MVTM -55~105 25 68 5 8.5 340 0.03 2000
    VPXB0951E101MVTM -55~105 25 100 5 9.5 500 0.03 2000
    VPXC0771E101MVTM -55~105 25 100 6.3 7.7 500 0.03 2000
    VPXC0951E151MVTM -55~105 25 150 6.3 9.5 750 0.016 2000
    VPXD0771E151MVTM -55~105 25 150 8 7.7 750 0.03 2000
    VPXC0951E181MVTM -55~105 25 180 6.3 9.5 900 0.016 2000
    VPXD0771E181MVTM -55~105 25 180 8 7.7 900 0.03 2000
    VPXC0951E221MVTM -55~105 25 220 6.3 9.5 1100 0.02 2000
    VPXD0771E221MVTM -55~105 25 220 8 7.7 1100 0.03 2000
    VPXD1001E331MVTM -55~105 25 330 8 10 1650 0.016 2000
    VPXE0851E331MVTM -55~105 25 330 10 8.5 1650 0.016 2000
    VPXD1501E471MVTM -55~105 25 470 8 15 2350 0.016 2000
    VPXE0951E471MVTM -55~105 25 470 10 9.5 2350 0.016 2000
    VPXD1501E561MVTM -55~105 25 560 8 15 2800 0.016 2000
    VPXE1051E561MVTM -55~105 25 560 10 10.5 2800 0.016 2000
    VPXD1501E681MVTM -55~105 25 680 8 15 3400 0.016 2000
    VPXE1351E681MVTM -55~105 25 680 10 13.5 3400 0.016 2000
    VPXD1651E821MVTM -55~105 25 820 8 16.5 4100 0.016 2000
    VPXE1451E821MVTM -55~105 25 820 10 14.5 4100 0.016 2000
    VPXE1701E102MVTM -55~105 25 1000 10 17 5000 0.016 2000
    VPXL1351E102MVTM -55~105 25 1000 12.5 13.5 5000 0.016 2000
    VPXE1951E152MVTM -55~105 25 1500 10 19.5 7500 0.016 2000
    VPXL1501E152MVTM -55~105 25 1500 12.5 15 7500 0.016 2000
    VPXL1701E182MVTM -55~105 25 1800 12.5 17 7500 0.016 2000
    VPXL1851E222MVTM -55~105 25 2200 12.5 18.5 7500 0.016 2000
    VPXL2101E272MVTM -55~105 25 2700 12.5 21 7500 0.016 2000
    VPXB0581V100MVTM -55~105 35 10 5 5.8 300 0.06 2000
    VPXC4501V100MVTM -55~105 35 10 6.3 4.5 300 0.06 2000
    VPXB0581V150MVTM -55~105 35 15 5 5.8 300 0.06 2000
    VPXC4501V150MVTM -55~105 35 15 6.3 4.5 300 0.06 2000
    VPXB0771V220MVTM -55~105 35 22 5 7.7 300 0.06 2000
    VPXC4501V220MVTM -55~105 35 22 6.3 4.5 300 0.06 2000
    VPXB0771V330MVTM -55~105 35 33 5 7.7 300 0.06 2000
    VPXC4501V330MVTM -55~105 35 33 6.3 4.5 300 0.06 2000
    VPXB0771V390MVTM -55~105 35 39 5 7.7 300 0.05 2000
    VPXC0581V390MVTM -55~105 35 39 6.3 5.8 300 0.06 2000
    VPXB0851V470MVTM -55~105 35 47 5 8.5 329 0.05 2000
    VPXB0851V560MVTM -55~105 35 56 5 8.5 392 0.05 2000
    VPXC0771V560MVTM -55~105 35 56 6.3 7.7 392 0.06 2000
    VPXB0951V680MVTM -55~105 35 68 5 9.5 476 0.05 2000
    VPXB0951V820MVTM -55~105 35 82 5 9.5 574 0.05 2000
    VPXC0851V820MVTM -55~105 35 82 6.3 8.5 574 0.05 2000
    VPXC0851V101MVTM -55~105 35 100 6.3 8.5 700 0.05 2000
    VPXD0771V101MVTM -55~105 35 100 8 7 700 0.06 2000
    VPXC0951V121MVTM -55~105 35 120 6.3 9.5 840 0.05 2000
    VPXD0771V121MVTM -55~105 35 120 8 7.7 840 0.06 2000
    VPXC0951V151MVTM -55~105 35 150 6.3 9.5 1050 0.05 2000
    VPXD0771V151MVTM -55~105 35 150 8 7.7 1050 0.06 2000
    VPXD0771V181MVTM -55~105 35 180 8 7.7 1260 0.06 2000
    VPXC1101V181MVTM -55~105 35 180 6.3 11 1260 0.04 2000
    VPXD0901V221MVTM -55~105 35 220 8 9 1540 0.05 2000
    VPXE0851V221MVTM -55~105 35 220 10 7.5 1540 0.06 2000
    VPXD1251V331MVTM -55~105 35 330 8 12.5 2310 0.03 2000
    VPXE0851V331MVTM -55~105 35 330 10 8.5 2310 0.05 2000
    VPXD1251V391MVTM -55~105 35 390 8 12.5 2730 0.03 2000
    VPXE1051V391MVTM -55~105 35 390 10 10.5 2730 0.05 2000
    VPXD1501V471MVTM -55~105 35 470 8 15 3290 0.02 2000
    VPXE1251V471MVTM -55~105 35 470 10 12.5 3290 0.03 2000
    VPXD1651V561MVTM -55~105 35 560 8 16.5 3920 0.02 2000
    VPXE1351V561MVTM -55~105 35 560 10 13.5 3920 0.03 2000
    VPXE1551V681MVTM -55~105 35 680 10 15.5 4760 0.02 2000
    VPXE1701V821MVTM -55~105 35 820 10 17 5000 0.02 2000
    VPXL1351V821MVTM -55~105 35 820 12.5 13.5 5000 0.03 2000
    VPXE1951V102MVTM -55~105 35 1000 10 19.5 5000 0.02 2000
    VPXL1501V102MVTM -55~105 35 1000 12.5 15 5000 0.03 2000
    VPXE2201V122MVTM -55~105 35 1200 10 22 5000 0.02 2000
    VPXL1701V122MVTM -55~105 35 1200 12.5 17 5000 0.02 2000
    VPXL1851V152MVTM -55~105 35 1500 12.5 18.5 5000 0.02 2000
    VPXL2101V182MVTM -55~105 35 1800 12.5 21 5000 0.02 2000
    VPXB0581H100MVTM -55~105 50 10 5 5.8 300 0.06 2000
    VPXC4501H100MVTM -55~105 50 10 6.3 4.5 300 0.06 2000
    VPXB0581H120MVTM -55~105 50 12 5 5.8 300 0.06 2000
    VPXC4501H120MVTM -55~105 50 12 6.3 4.5 300 0.06 2000
    VPXB0771H150MVTM -55~105 50 15 5 7.7 300 0.06 2000
    VPXC4501H150MVTM -55~105 50 15 6.3 4.5 300 0.06 2000
    VPXB0771H180MVTM -55~105 50 18 5 7.7 300 0.06 2000
    VPXC4501H180MVTM -55~105 50 18 6.3 4.5 300 0.06 2000
    VPXB0771H220MVTM -55~105 50 22 5 7.7 300 0.06 2000
    VPXC0581H220MVTM -55~105 50 22 6.3 5.8 300 0.06 2000
    VPXB0951H330MVTM -55~105 50 33 5 9.5 330 0.05 2000
    VPXC0771H330MVTM -55~105 50 33 6.3 7.7 330 0.06 2000
    VPXB1101H390MVTM -55~105 50 39 5 11 390 0.04 2000
    VPXC0771H390MVTM -55~105 50 39 6.3 7.7 390 0.06 2000
    VPXC0851H470MVTM -55~105 50 47 6.3 8.5 500 0.05 2000
    VPXC0851H560MVTM -55~105 50 56 6.3 8.5 560 0.05 2000
    VPXD0771H560MVTM -55~105 50 56 8 7.7 560 0.06 2000
    VPXC0951H680MVTM -55~105 50 68 6.3 9.5 680 0.05 2000
    VPXD0771H680MVTM -55~105 50 68 8 7 680 0.06 2000
    VPXC1101H820MVTM -55~105 50 82 6.3 11 820 0.04 2000
    VPXD0771H820MVTM -55~105 50 82 8 7.7 820 0.06 2000
    VPXD0901H101MVTM -55~105 50 100 8 9 1000 0.05 2000
    VPXE0851H101MVTM -55~105 50 100 10 7.5 1000 0.06 2000
    VPXD1001H121MVTM -55~105 50 120 8 10 1200 0.05 2000
    VPXE0851H121MVTM -55~105 50 120 10 8.5 1200 0.06 2000
    VPXD1001H151MVTM -55~105 50 150 8 10 1500 0.05 2000
    VPXE0951H151MVTM -55~105 50 150 10 9.5 1500 0.05 2000
    VPXD1251H181MVTM -55~105 50 180 8 12.5 1800 0.04 2000
    VPXE1051H181MVTM -55~105 50 180 10 10.5 1800 0.05 2000
    VPXD1501H221MVTM -55~105 50 220 8 15 2200 0.03 2000
