Chip solid aluminum electrolytic capacitor VPG

Short Description:

♦ Large capacity, high reliability, low ESR, high allowable ripple current
♦ Guaranteed for 2000 hours at 105℃
♦ Complied with RoHS Directive
♦ Large-capacity miniaturized surface mount type


Product Detail

list of Products Number

Product Tags

Main technical parameters

project

characteristic

range of working temperature

-55~+105℃

Rated working voltage

6.3-100V

capacity range

180~18000 uF 120Hz 20℃

Capacity tolerance

±20% (120Hz 20℃)

loss tangent

120Hz 20℃ below the value in the list of standard products

Leakage current※

Charge for 2 minutes at rated voltage below the value in the list of standard products at 20°C

Equivalent Series Resistance (ESR)

100kHz 20°C below the value in the list of standard products



Durability

The product should meet the temperature of 105 ℃, apply the rated working voltage for 2000 hours, and after 16 hours at 20 ℃,

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤200% of initial specification value

loss tangent

≤200% of initial specification value

leakage current

≤Initial specification value



High temperature and humidity

The product should meet the conditions of 60°C temperature and 90%~95%R.H humidity without applying voltage, place it for 1000 hours, and place it at 20°C for 16 hours

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤200% of initial specification value

loss tangent

≤200% of initial specification value

leakage current

≤Initial specification value

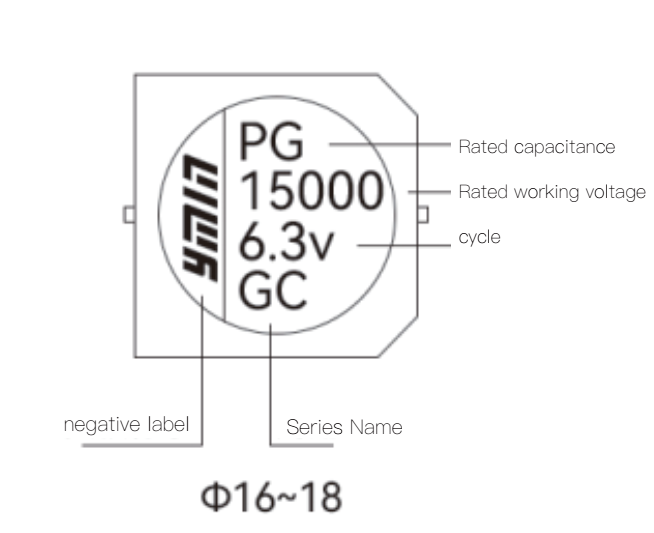

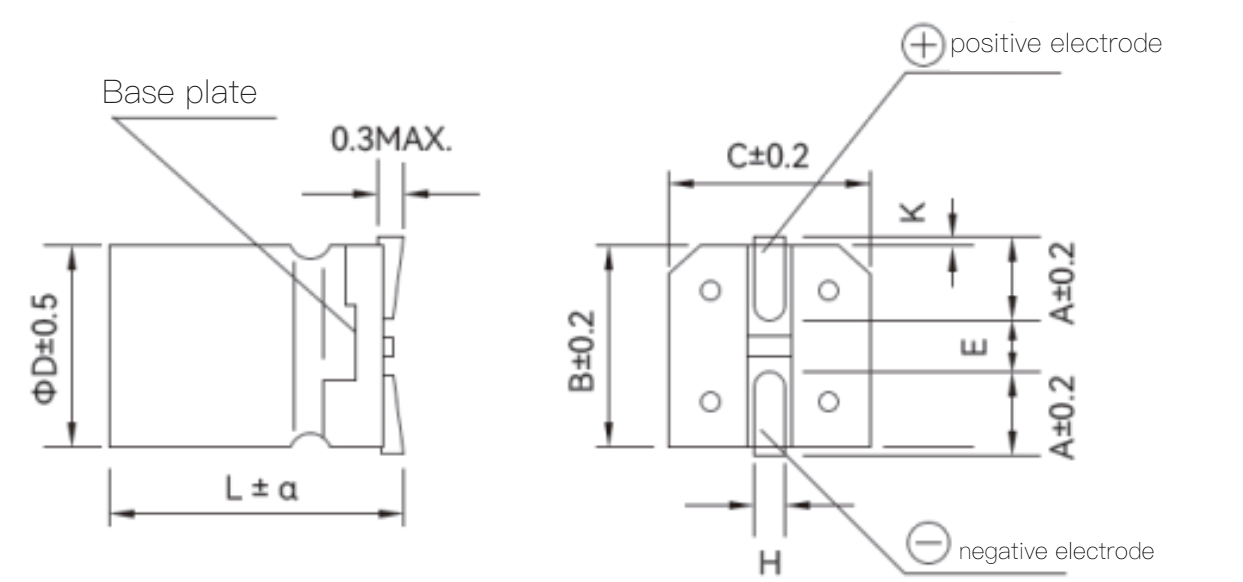

Product Dimensional Drawing

Product Dimensions (Unit:mm)

ΦD

B

C

A H E K a
16

17

17

5.5 1.20±0.30 6.7 0.70±0.30

±1.0

18

19

19

6.7 1.20±0.30 6.7 0.70±0.30

Ripple Current Frequency Correction Coefficient

frequency correction factor

Frequency (Hz) 120Hz 1kHz 10kHz 100kHz 500kHz
correction factor 0.05 0.3 0.7 1 1

Conductive Polymer Solid Aluminum Electrolytic Capacitors: Advanced Components for Modern Electronics

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity compared to traditional electrolytic capacitors. In this article, we'll explore the features, benefits, and applications of these innovative components.

Features

Conductive Polymer Solid Aluminum Electrolytic Capacitors combine the benefits of traditional aluminum electrolytic capacitors with the enhanced characteristics of conductive polymer materials. The electrolyte in these capacitors is a conductive polymer, which replaces the traditional liquid or gel electrolyte found in conventional aluminum electrolytic capacitors.

One of the key features of Conductive Polymer Solid Aluminum Electrolytic Capacitors is their low equivalent series resistance (ESR) and high ripple current handling capabilities. This results in improved efficiency, reduced power losses, and enhanced reliability, particularly in high-frequency applications.

Additionally, these capacitors offer excellent stability over a wide temperature range and have a longer operational lifespan compared to traditional electrolytic capacitors. Their solid construction eliminates the risk of leakage or drying out of the electrolyte, ensuring consistent performance even in harsh operating conditions.

Benefits

The adoption of conductive polymer materials in Solid Aluminum Electrolytic Capacitors brings several benefits to electronic systems. Firstly, their low ESR and high ripple current ratings make them ideal for use in power supply units, voltage regulators, and DC-DC converters, where they help to stabilize output voltages and improve efficiency.

Secondly, Conductive Polymer Solid Aluminum Electrolytic Capacitors offer enhanced reliability and durability, making them suitable for mission-critical applications in industries such as automotive, aerospace, telecommunications, and industrial automation. Their ability to withstand high temperatures, vibrations, and electrical stresses ensures long-term performance and reduces the risk of premature failure.

Furthermore, these capacitors exhibit low impedance characteristics, which contribute to improved noise filtering and signal integrity in electronic circuits. This makes them valuable components in audio amplifiers, audio equipment, and high-fidelity audio systems.

Applications

Conductive Polymer Solid Aluminum Electrolytic Capacitors find applications in a wide range of electronic systems and devices. They are commonly used in power supply units, voltage regulators, motor drives, LED lighting, telecommunications equipment, and automotive electronics.

In power supply units, these capacitors help to stabilize output voltages, reduce ripple, and improve transient response, ensuring reliable and efficient operation. In automotive electronics, they contribute to the performance and longevity of onboard systems, such as engine control units (ECUs), infotainment systems, and safety features.

Conclusion

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity for modern electronic systems. With their low ESR, high ripple current handling capabilities, and enhanced durability, they are well-suited for a wide range of applications in various industries.

As electronic devices and systems continue to evolve, the demand for high-performance capacitors like Conductive Polymer Solid Aluminum Electrolytic Capacitors is expected to grow. Their ability to meet the stringent requirements of modern electronics makes them indispensable components in today's electronic designs, contributing to improved efficiency, reliability, and performance.


  • Previous:
  • Next:

  • Products Code Temperature(℃) Rated Voltage(V.DC) Capacitance(uF) Diameter(mm) Height(mm) Leakage current(uA) ESR/Impedance  [Ωmax] Life(Hrs) Product certification
    VPGJ1951H122MVTM -55~105 50 1200 18 19.5 7500 0.03 2000 -
    VPGJ2151H152MVTM -55~105 50 1500 18 21.5 7500 0.03 2000 -
    VPGI1751J561MVTM -55~105 63 560 16 17.5 7056 0.03 2000 -
    VPGI1951J681MVTM -55~105 63 680 16 19.5 7500 0.03 2000 -
    VPGI2151J821MVTM -55~105 63 820 16 21.5 7500 0.03 2000 -
    VPGJ1951J821MVTM -55~105 63 820 18 19.5 7500 0.03 2000 -
    VPGJ2151J102MVTM -55~105 63 1000 18 21.5 7500 0.03 2000 -
    VPGI1751K331MVTM -55~105 80 330 16 17.5 5280 0.03 2000 -
    VPGI1951K391MVTM -55~105 80 390 16 19.5 6240 0.03 2000 -
    VPGI2151K471MVTM -55~105 80 470 16 21.5 7500 0.03 2000 -
    VPGJ1951K561MVTM -55~105 80 560 18 19.5 7500 0.03 2000 -
    VPGJ2151K681MVTM -55~105 80 680 18 21.5 7500 0.03 2000 -
    VPGI1752A181MVTM -55~105 100 180 16 17.5 3600 0.04 2000 -
    VPGI1952A221MVTM -55~105 100 220 16 19.5 4400 0.04 2000 -
    VPGI2152A271MVTM -55~105 100 270 16 21.5 5400 0.04 2000 -
    VPGJ1952A271MVTM -55~105 100 270 18 19.5 5400 0.04 2000 -
    VPGJ2152A331MVTM -55~105 100 330 18 21.5 6600 0.04 2000 -
    VPGI1750J103MVTM -55~105 6.3 10000 16 17.5 7500 0.007 2000 -
    VPGI1950J123MVTM -55~105 6.3 12000 16 19.5 7500 0.007 2000 -
    VPGI2150J153MVTM -55~105 6.3 15000 16 21.5 7500 0.007 2000 -
    VPGJ1950J153MVTM -55~105 6.3 15000 18 19.5 7500 0.007 2000 -
    VPGJ2150J183MVTM -55~105 6.3 18000 18 21.5 7500 0.007 2000 -
    VPGI1751A682MVTM -55~105 10 6800 16 17.5 7500 0.008 2000 -
    VPGI1951A822MVTM -55~105 10 8200 16 19.5 7500 0.008 2000 -
    VPGI2151A103MVTM -55~105 10 10000 16 21.5 7500 0.008 2000 -
    VPGJ1951A103MVTM -55~105 10 10000 18 19.5 7500 0.008 2000 -
    VPGJ2151A123MVTM -55~105 10 12000 18 21.5 7500 0.008 2000 -
    VPGI1751C392MVTM -55~105 16 3900 16 17.5 7500 0.008 2000 -
    VPGI1951C472MVTM -55~105 16 4700 16 19.5 7500 0.008 2000 -
    VPGI2151C562MVTM -55~105 16 5600 16 21.5 7500 0.008 2000 -
    VPGJ1951C682MVTM -55~105 16 6800 18 19.5 7500 0.008 2000 -
    VPGJ2151C822MVTM -55~105 16 8200 18 21.5 7500 0.008 2000 -
    VPGI1751E222MVTM -55~105 25 2200 16 17.5 7500 0.016 2000 -
    VPGI1951E272MVTM -55~105 25 2700 16 19.5 7500 0.016 2000 -
    VPGI2151E332MVTM -55~105 25 3300 16 21.5 7500 0.016 2000 -
    VPGJ1951E392MVTM -55~105 25 3900 18 19.5 7500 0.016 2000 -
    VPGJ2151E472MVTM -55~105 25 4700 18 21.5 7500 0.016 2000 -
    VPGI1751V182MVTM -55~105 35 1800 16 17.5 7500 0.02 2000 -
    VPGI1951V222MVTM -55~105 35 2200 16 19.5 7500 0.02 2000 -
    VPGI2151V272MVTM -55~105 35 2700 16 21.5 7500 0.02 2000 -
    VPGJ1951V272MVTM -55~105 35 2700 18 19.5 7500 0.02 2000 -
    VPGJ2151V332MVTM -55~105 35 3300 18 21.5 7500 0.02 2000 -
    VPGI1751H681MVTM -55~105 50 680 16 17.5 6800 0.03 2000 -
    VPGI1951H821MVTM -55~105 50 820 16 19.5 7500 0.03 2000 -
    VPGI2151H102MVTM -55~105 50 1000 16 21.5 7500 0.03 2000 -
