chip solid aluminum electrolytic capacitor VPL

Short Description:

♦ High reliability, low ESR, high allowable ripple current
♦ Guaranteed for 5000 hours at 105℃
♦ Complied with RoHS Directive
♦ Long-life product surface mount type


Product Detail

list of products number

Product Tags

Main technical parameters

project

characteristic

range of working temperature

-55~+105℃

Rated working voltage

6.3-100V

capacity range

2.2 ~ 10000uF 120Hz 20℃

Capacity tolerance

±20% (120Hz 20℃)

loss tangent

120Hz 20℃ below the value in the list of standard products

Leakage current※

Charge for 2 minutes at rated voltage below the value in the list of standard products at 20°C

Equivalent Series Resistance (ESR)

100kHz 20°C below the value in the list of standard products



Durability

The product should meet the temperature of 105 ℃, apply the rated working voltage for 2000 hours, and after 16 hours at 20 ℃,

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value



High temperature and humidity

The product should meet the conditions of 60°C temperature and 90%~95%R.H humidity without applying voltage, place it for 1000 hours, and place it at 20°C for 16 hours

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value

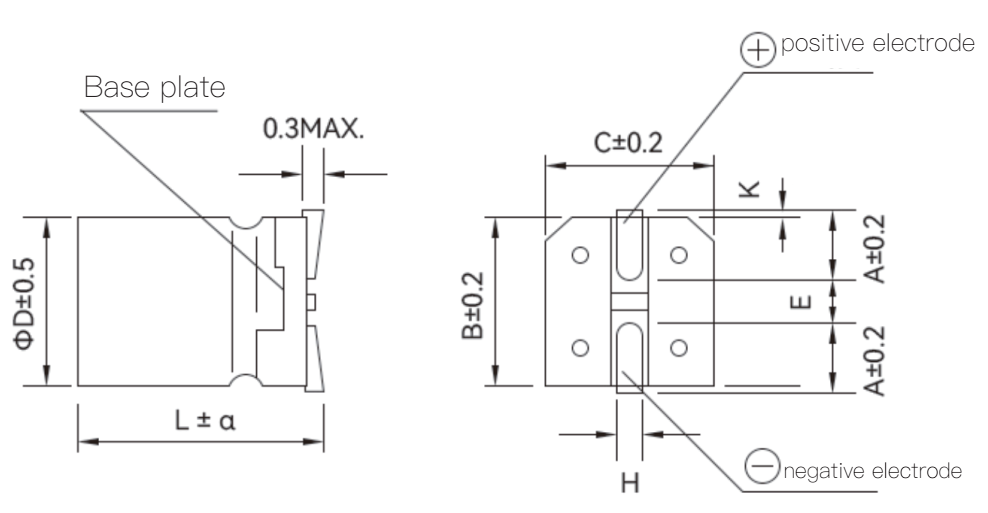

Product Dimensional Drawing

Product Dimensions (Unit:mm)

ΦD B C A H E K a
5 5.3 5.3 2.1 0.70±0.20 1.3 0.5MAX ±0.5
6.3 6.6 6.6 2.6 0.70±0.20 1.8 0.5MAX
8 8.3 8.3 3 0.90±0.20 3.1 0.5MAX
10 10.3 10.3 3.5 0.90±0.20 4.6 0.7±0.2
12.5 12.8 12.8 4.7 0.90±0.30 4.4 0.7±0.3





Ripple Current Frequency Correction Coefficient

frequency correction factor

Frequency (Hz) 120Hz 1kHz 10kHz 100kHz 500kHz
correction factor 0.05 0.3 0.7 1 1

Conductive Polymer Solid Aluminum Electrolytic Capacitors: Advanced Components for Modern Electronics

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity compared to traditional electrolytic capacitors. In this article, we'll explore the features, benefits, and applications of these innovative components.

Features

Conductive Polymer Solid Aluminum Electrolytic Capacitors combine the benefits of traditional aluminum electrolytic capacitors with the enhanced characteristics of conductive polymer materials. The electrolyte in these capacitors is a conductive polymer, which replaces the traditional liquid or gel electrolyte found in conventional aluminum electrolytic capacitors.

One of the key features of Conductive Polymer Solid Aluminum Electrolytic Capacitors is their low equivalent series resistance (ESR) and high ripple current handling capabilities. This results in improved efficiency, reduced power losses, and enhanced reliability, particularly in high-frequency applications.

Additionally, these capacitors offer excellent stability over a wide temperature range and have a longer operational lifespan compared to traditional electrolytic capacitors. Their solid construction eliminates the risk of leakage or drying out of the electrolyte, ensuring consistent performance even in harsh operating conditions.

Benefits

The adoption of conductive polymer materials in Solid Aluminum Electrolytic Capacitors brings several benefits to electronic systems. Firstly, their low ESR and high ripple current ratings make them ideal for use in power supply units, voltage regulators, and DC-DC converters, where they help to stabilize output voltages and improve efficiency.

Secondly, Conductive Polymer Solid Aluminum Electrolytic Capacitors offer enhanced reliability and durability, making them suitable for mission-critical applications in industries such as automotive, aerospace, telecommunications, and industrial automation. Their ability to withstand high temperatures, vibrations, and electrical stresses ensures long-term performance and reduces the risk of premature failure.

Furthermore, these capacitors exhibit low impedance characteristics, which contribute to improved noise filtering and signal integrity in electronic circuits. This makes them valuable components in audio amplifiers, audio equipment, and high-fidelity audio systems.

Applications

Conductive Polymer Solid Aluminum Electrolytic Capacitors find applications in a wide range of electronic systems and devices. They are commonly used in power supply units, voltage regulators, motor drives, LED lighting, telecommunications equipment, and automotive electronics.

In power supply units, these capacitors help to stabilize output voltages, reduce ripple, and improve transient response, ensuring reliable and efficient operation. In automotive electronics, they contribute to the performance and longevity of onboard systems, such as engine control units (ECUs), infotainment systems, and safety features.

Conclusion

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity for modern electronic systems. With their low ESR, high ripple current handling capabilities, and enhanced durability, they are well-suited for a wide range of applications in various industries.

As electronic devices and systems continue to evolve, the demand for high-performance capacitors like Conductive Polymer Solid Aluminum Electrolytic Capacitors is expected to grow. Their ability to meet the stringent requirements of modern electronics makes them indispensable components in today's electronic designs, contributing to improved efficiency, reliability, and performance.


  • Previous:
  • Next:

  • Products Code Temperature(℃) Rated Voltage(V.DC) Capacitance(uF) Diameter(mm) Height(mm) Leakage current(uA) ESR/Impedance  [Ωmax] Life(Hrs)
    VPLB0771H180MVTM -55~105 50 18 5 7.7 300 0.06 5000
    VPLC0581H180MVTM -55~105 50 18 6.3 5.8 300 0.06 5000
    VPLB0771H220MVTM -55~105 50 22 5 7.7 300 0.06 5000
    VPLC0581H220MVTM -55~105 50 22 6.3 5.8 300 0.06 5000
    VPLB0951H330MVTM -55~105 50 33 5 9.5 330 0.05 5000
    VPLB0580J101MVTM -55~105 6.3 100 5 5.8 280 0.02 5000
    VPLC0771H330MVTM -55~105 50 33 6.3 7.7 330 0.06 5000
    VPLC4500J101MVTM -55~105 6.3 100 6.3 4.5 280 0.02 5000
    VPLB0951H390MVTM -55~105 50 39 5 9.5 390 0.04 5000
    VPLB0580J151MVTM -55~105 6.3 150 5 5.8 280 0.02 5000
    VPLC0771H390MVTM -55~105 50 39 6.3 7.7 390 0.06 5000
    VPLC4500J151MVTM -55~105 6.3 150 6.3 4.5 280 0.02 5000
    VPLC0851H470MVTM -55~105 50 47 6.3 8.5 470 0.05 5000
    VPLB0580J181MVTM -55~105 6.3 180 5 5.8 280 0.018 5000
    VPLD0771H470MVTM -55~105 50 47 8 7.7 470 0.06 5000
    VPLC4500J181MVTM -55~105 6.3 180 6.3 4.5 280 0.02 5000
    VPLC0951H560MVTM -55~105 50 56 6.3 9.5 560 0.05 5000
    VPLB0580J221MVTM -55~105 6.3 220 5 5.8 280 0.018 5000
    VPLD0771H560MVTM -55~105 50 56 8 7.7 560 0.06 5000
    VPLC4500J221MVTM -55~105 6.3 220 6.3 4.5 280 0.02 5000
    VPLC1101H680MVTM -55~105 50 68 6.3 11 680 0.05 5000
    VPLB0770J271MVTM -55~105 6.3 270 5 7.7 340 0.012 5000
    VPLD0771H680MVTM -55~105 50 68 8 7.7 680 0.06 5000
    VPLC0580J271MVTM -55~105 6.3 270 6.3 5.8 340 0.018 5000
    VPLC1201H820MVTM -55~105 50 82 6.3 12 820 0.04 5000
    VPLB0770J331MVTM -55~105 6.3 330 5 7.7 416 0.012 5000
    VPLD0901H820MVTM -55~105 50 82 8 9 820 0.06 5000
    VPLC0580J331MVTM -55~105 6.3 330 6.3 5.8 416 0.018 5000
    VPLD1001H101MVTM -55~105 50 100 8 10 1000 0.05 5000
    VPLB0850J391MVTM -55~105 6.3 390 5 8.5 491 0.012 5000
    VPLE0851H101MVTM -55~105 50 100 10 8.5 1000 0.06 5000
    VPLC0580J391MVTM -55~105 6.3 390 6.3 5.8 491 0.008 5000
    VPLD1251H121MVTM -55~105 50 120 8 12.5 1200 0.05 5000
    VPLB0850J471MVTM -55~105 6.3 470 5 8.5 592 0.012 5000
    VPLE0851H121MVTM -55~105 50 120 10 8.5 1200 0.06 5000
    VPLC0770J471MVTM -55~105 6.3 470 6.3 7.7 592 0.008 5000
    VPLD1301H151MVTM -55~105 50 150 8 13.5 1500 0.05 5000
    VPLC0850J561MVTM -55~105 6.3 560 6.3 8.5 706 0.012 5000
    VPLE0851H151MVTM -55~105 50 150 10 8.5 1500 0.05 5000
    VPLC0770J561MVTM -55~105 6.3 560 6.3 7.7 706 0.008 5000
    VPLD1501H181MVTM -55~105 50 180 8 15 1800 0.04 5000
    VPLC0850J681MVTM -55~105 6.3 680 6.3 8.5 857 0.008 5000
    VPLE0951H181MVTM -55~105 50 180 10 9.5 1800 0.05 5000
    VPLD0770J681MVTM -55~105 6.3 680 8 7.7 857 0.012 5000
    VPLD1651H221MVTM -55~105 50 220 8 16.5 2200 0.03 5000
    VPLC0950J821MVTM -55~105 6.3 820 6.3 9.5 1033 0.008 5000
    VPLE1351H221MVTM -55~105 50 220 10 13.5 2200 0.04 5000
    VPLC0770J821MVTM -55~105 6.3 820 6.3 7.7 1033 0.008 5000
    VPLE1451H271MVTM -55~105 50 270 10 14.5 2700 0.04 5000
    VPLD0770J821MVTM -55~105 6.3 820 8 7.7 1033 0.012 5000
    VPLE1701H331MVTM -55~105 50 330 10 17 3300 0.03 5000
    VPLC1100J102MVTM -55~105 6.3 1000 6.3 11 1260 0.008 5000
    VPLE1951H391MVTM -55~105 50 390 10 19.5 3900 0.03 5000
    VPLD0900J102MVTM -55~105 6.3 1000 8 9 1260 0.008 5000
    VPLL1501H391MVTM -55~105 50 390 12.5 15 3900 0.04 5000
    VPLE0850J102MVTM -55~105 6.3 1000 10 8.5 1260 0.012 5000
    VPLE2201H471MVTM -55~105 50 470 10 22 4700 0.03 5000
    VPLC1200J122MVTM -55~105 6.3 1200 6.3 12 1512 0.008 5000
    VPLL1501H471MVTM -55~105 50 470 12.5 15 4700 0.04 5000
    VPLD1000J122MVTM -55~105 6.3 1200 8 10 1512 0.008 5000
    VPLL1701H561MVTM -55~105 50 560 12.5 17 5000 0.03 5000
    VPLE0950J122MVTM -55~105 6.3 1200 10 9.5 1512 0.008 5000
    VPLL2101H681MVTM -55~105 50 680 12.5 21 5000 0.03 5000
    VPLD1250J152MVTM -55~105 6.3 1500 8 12.5 1890 0.008 5000
    VPLL2101H821MVTM -55~105 50 820 12.5 21 5000 0.03 5000
    VPLE1050J152MVTM -55~105 6.3 1500 10 10.5 1890 0.008 5000
    VPLB0581J6R8MVTM -55~105 63 6.8 5 5.8 300 0.06 5000
    VPLD1500J202MVTM -55~105 6.3 2000 8 15 2520 0.007 5000
    VPLC4501J6R8MVTM -55~105 63 6.8 6.3 4.5 300 0.06 5000
    VPLE1050J202MVTM -55~105 6.3 2000 10 10.5 2520 0.008 5000
    VPLB0581J8R2MVTM -55~105 63 8.2 5 5.8 300 0.06 5000
    VPLD1500J222MVTM -55~105 6.3 2200 8 15 2772 0.007 5000
    VPLC4501J8R2MVTM -55~105 63 8.2 6.3 4.5 300 0.06 5000
    VPLE1050J222MVTM -55~105 6.3 2200 10 10.5 2772 0.008 5000
    VPLB0771J100MVTM -55~105 63 10 5 7.7 300 0.06 5000
    VPLE1350J272MVTM -55~105 6.3 2700 10 13.5 3402 0.008 5000
    VPLC4501J100MVTM -55~105 63 10 6.3 4.5 300 0.06 5000
    VPLE1350J332MVTM -55~105 6.3 3300 10 13.5 4158 0.008 5000
    VPLB0771J150MVTM -55~105 63 15 5 7.7 300 0.06 5000
    VPLC0951C271MVTM -55~105 16 270 6.3 9.5 864 0.012 5000
    VPLE1550J392MVTM -55~105 6.3 3900 10 15.5 4914 0.007 5000
    VPLC0581J150MVTM -55~105 63 15 6.3 5.8 300 0.06 5000
    VPLC0581H100MVTM -55~105 50 10 6.3 5.8 500 0.06 5000
    VPLE1700J472MVTM -55~105 6.3 4700 10 17 5922 0.007 5000
    VPLB0951J220MVTM -55~105 63 22 5 9.5 300 0.05 5000
    VPLL1350J472MVTM -55~105 6.3 4700 12.5 13.5 5922 0.008 5000
    VPLC0771J220MVTM -55~105 63 22 6.3 7.7 300 0.05 5000
    VPLE1950J562MVTM -55~105 6.3 5600 10 19.5 7056 0.007 5000
    VPLC0851J330MVTM -55~105 63 33 6.3 8.5 416 0.05 5000
    VPLL1500J562MVTM -55~105 6.3 5600 12.5 15 7056 0.008 5000
    VPLD0771J330MVTM -55~105 63 33 8 7.7 416 0.06 5000
    VPLE2200J682MVTM -55~105 6.3 6800 10 22 7500 0.007 5000
    VPLC0951J390MVTM -55~105 63 39 6.3 9.5 491 0.05 5000
    VPLL1700J682MVTM -55~105 6.3 6800 12.5 17 7500 0.007 5000
    VPLD0771J390MVTM -55~105 63 39 8 7.7 491 0.06 5000
    VPLL1850J822MVTM -55~105 6.3 8200 12.5 18.5 7500 0.007 5000
    VPLC1101J470MVTM -55~105 63 47 6.3 11 592 0.04 5000
    VPLL2100J103MVTM -55~105 6.3 10000 12.5 21 7500 0.007 5000
    VPLD0901J470MVTM -55~105 63 47 8 9 592 0.06 5000
    VPLB0770L271MVTM -55~105 7.5 270 5 7.7 405 0.012 5000
    VPLD0901J560MVTM -55~105 63 56 8 9 706 0.05 5000
    VPLC0580L271MVTM -55~105 7.5 270 6.3 5.8 405 0.018 5000
    VPLE0851J560MVTM -55~105 63 56 10 8.5 706 0.06 5000
    VPLB0950L331MVTM -55~105 7.5 330 5 9.5 495 0.012 5000
    VPLD1001J680MVTM -55~105 63 68 8 10 857 0.05 5000
    VPLC0580L331MVTM -55~105 7.5 330 6.3 5.8 495 0.012 5000
    VPLE0851J680MVTM -55~105 63 68 10 8.5 857 0.06 5000
    VPLB0950L391MVTM -55~105 7.5 390 5 9.5 585 0.01 5000
    VPLD1251J820MVTM -55~105 63 82 8 12.5 1033 0.05 5000
    VPLC0770L391MVTM -55~105 7.5 390 6.3 7.7 585 0.012 5000
    VPLE0951J820MVTM -55~105 63 82 10 9.5 1033 0.06 5000
    VPLB0950L471MVTM -55~105 7.5 470 5 9.5 705 0.012 5000
    VPLD1301J101MVTM -55~105 63 100 8 13.5 1260 0.04 5000
    VPLC0850L471MVTM -55~105 7.5 470 6.3 8.5 705 0.012 5000
    VPLE1051J101MVTM -55~105 63 100 10 10.5 1260 0.05 5000
    VPLC0950L561MVTM -55~105 7.5 560 6.3 9.5 840 0.009 5000
    VPLE1351J121MVTM -55~105 63 120 10 13.5 1512 0.05 5000
    VPLC1100L681MVTM -55~105 7.5 680 6.3 11 1020 0.008 5000
    VPLE1451J151MVTM -55~105 63 150 10 14.5 1890 0.04 5000
    VPLD0770L681MVTM -55~105 7.5 680 8 7.7 1020 0.012 5000
    VPLE1551J181MVTM -55~105 63 180 10 15.5 2268 0.03 5000
    VPLC1200L821MVTM -55~105 7.5 820 6.3 12 1230 0.008 5000
    VPLE1701J221MVTM -55~105 63 220 10 17 2772 0.03 5000
    VPLD0900L821MVTM -55~105 7.5 820 8 9 1230 0.008 5000
    VPLL1351J221MVTM -55~105 63 220 12.5 13.5 2772 0.04 5000
    VPLC1200L102MVTM -55~105 7.5 1000 6.3 12 1500 0.008 5000
    VPLE2201J271MVTM -55~105 63 270 10 22 3402 0.03 5000
    VPLD1000L102MVTM -55~105 7.5 1000 8 10 1500 0.008 5000
    VPLL1501J271MVTM -55~105 63 270 12.5 15 3402 0.04 5000
    VPLB0581A470MVTM -55~105 10 47 5 5.8 280 0.03 5000
    VPLE2201J331MVTM -55~105 63 330 10 22 4158 0.03 5000
    VPLC4501A470MVTM -55~105 10 47 6.3 4.5 280 0.03 5000
    VPLL1701J331MVTM -55~105 63 330 12.5 17 4158 0.03 5000
    VPLB0581A680MVTM -55~105 10 68 5 5.8 280 0.03 5000
    VPLL1851J391MVTM -55~105 63 390 12.5 18.5 4914 0.03 5000
    VPLC4501A680MVTM -55~105 10 68 6.3 4.5 280 0.03 5000
    VPLL2101J471MVTM -55~105 63 470 12.5 21 5000 0.03 5000
    VPLB0581A820MVTM -55~105 10 82 5 5.8 280 0.03 5000
    VPLB0581K4R7MVTM -55~105 80 4.7 5 5.8 300 0.06 5000
    VPLC4501A820MVTM -55~105 10 82 6.3 4.5 280 0.03 5000
    VPLC4501K4R7MVTM -55~105 80 4.7 6.3 4.5 300 0.06 5000
    VPLB0581A101MVTM -55~105 10 100 5 5.8 280 0.03 5000
    VPLB0581K6R8MVTM -55~105 80 6.8 5 5.8 300 0.06 5000
    VPLC4501A101MVTM -55~105 10 100 6.3 4.5 280 0.03 5000
    VPLC4501K6R8MVTM -55~105 80 6.8 6.3 4.5 300 0.06 5000
    VPLB0771A151MVTM -55~105 10 150 5 7.7 300 0.015 5000
    VPLB0771K8R2MVTM -55~105 80 8.2 5 7.7 300 0.06 5000
    VPLD1001C681MVTM -55~105 16 680 8 10 2176 0.012 5000
    VPLC0581A151MVTM -55~105 10 150 6.3 5.8 300 0.03 5000
    VPLC4501K8R2MVTM -55~105 80 8.2 6.3 4.5 300 0.06 5000
    VPLD0771V221MVTM -55~105 35 220 8 7.7 1540 0.06 5000
    VPLB0771A181MVTM -55~105 10 180 5 7.7 360 0.015 5000
    VPLB0771K100MVTM -55~105 80 10 5 7.7 300 0.06 5000
    VPLD1251V820MVTM -55~105 35 82 8 12.5 574 0.03 5000
    VPLC0581A181MVTM -55~105 10 180 6.3 5.8 360 0.03 5000
    VPLC0581K100MVTM -55~105 80 10 6.3 5.8 300 0.06 5000
    VPLD0771J470MVTM -55~105 63 47 8 7.7 592.2 0.06 5000
    VPLB0771A221MVTM -55~105 10 220 5 7.7 440 0.015 5000
    VPLB0951K150MVTM -55~105 80 15 5 9.5 300 0.05 5000
    VPLD1051J560MVTM -55~105 63 56 8 10.5 705.6 0.05 5000
    VPLC0581A221MVTM -55~105 10 220 6.3 5.8 440 0.03 5000
    VPLC0771K150MVTM -55~105 80 15 6.3 7.7 300 0.05 5000
    VPLB0951A271MVTM -55~105 10 270 5 9.5 540 0.012 5000
    VPLC0851K220MVTM -55~105 80 22 6.3 8.5 352 0.05 5000
    VPLC0581A271MVTM -55~105 10 270 6.3 5.8 540 0.016 5000
    VPLD0771K220MVTM -55~105 80 22 8 7.7 352 0.06 5000
    VPLC0771A331MVTM -55~105 10 330 6.3 7.7 660 0.016 5000
    VPLC1101K330MVTM -55~105 80 33 6.3 11 528 0.04 5000
    VPLE1051K101MVTM -55~105 80 100 10 10.5 1600 0.05 5000
    VPLC0771A391MVTM -55~105 10 390 6.3 7.7 780 0.012 5000
    VPLD0771K330MVTM -55~105 80 33 8 7.7 528 0.06 5000
    VPLC0851A471MVTM -55~105 10 470 6.3 8.5 940 0.012 5000
    VPLC1201K390MVTM -55~105 80 39 6.3 12 624 0.04 5000
    VPLD0771A471MVTM -55~105 10 470 8 7.7 940 0.03 5000
    VPLD0901K390MVTM -55~105 80 39 8 9 624 0.05 5000
    VPLC1101A561MVTM -55~105 10 560 6.3 11 1120 0.01 5000
    VPLD1001K470MVTM -55~105 80 47 8 10 752 0.05 5000
    VPLD0771A561MVTM -55~105 10 560 8 7.7 1120 0.014 5000
    VPLE0851K470MVTM -55~105 80 47 10 8.5 752 0.06 5000
    VPLC1201A681MVTM -55~105 10 680 6.3 12 1360 0.009 5000
    VPLD1251K560MVTM -55~105 80 56 8 12.5 896 0.05 5000
    VPLD0901A681MVTM -55~105 10 680 8 9 1360 0.01 5000
    VPLE0951K560MVTM -55~105 80 56 10 9.5 896 0.05 5000
    VPLD1001A821MVTM -55~105 10 820 8 10 1640 0.009 5000
    VPLD1251K680MVTM -55~105 80 68 8 12.5 1088 0.04 5000
    VPLE0851A821MVTM -55~105 10 820 10 8.5 1640 0.014 5000
    VPLE0951K680MVTM -55~105 80 68 10 9.5 1088 0.05 5000
    VPLD1251A102MVTM -55~105 10 1000 8 12.5 2000 0.009 5000
    VPLD1501K820MVTM -55~105 80 82 8 15 1312 0.04 5000
    VPLE0851A102MVTM -55~105 10 1000 10 8.5 2000 0.009 5000
    VPLE1051K820MVTM -55~105 80 82 10 10.5 1312 0.05 5000
    VPLD1501A152MVTM -55~105 10 1500 8 15 3000 0.008 5000
    VPLD1651K101MVTM -55~105 80 100 8 16.5 1600 0.03 5000
    VPLE1051A152MVTM -55~105 10 1500 10 10.5 3000 0.009 5000
    VPLE1351K101MVTM -55~105 80 100 10 13.5 1600 0.04 5000
    VPLE1251A222MVTM -55~105 10 2200 10 12.5 4400 0.008 5000
    VPLE1551K121MVTM -55~105 80 120 10 15.5 1920 0.04 5000
    VPLE1351A252MVTM -55~105 10 2500 10 13.5 5000 0.008 5000
    VPLE1701K151MVTM -55~105 80 150 10 17 2400 0.03 5000
    VPLE1701A272MVTM -55~105 10 2700 10 17 5400 0.008 5000
    VPLL1351K151MVTM -55~105 80 150 12.5 13.5 2400 0.04 5000
    VPLE1951A332MVTM -55~105 10 3300 10 19.5 6600 0.008 5000
    VPLE1951K181MVTM -55~105 80 180 10 19.5 2880 0.03 5000
    VPLL1501A332MVTM -55~105 10 3300 12.5 15 6600 0.009 5000
    VPLL1501K181MVTM -55~105 80 180 12.5 15 2880 0.04 5000
    VPLE2201A392MVTM -55~105 10 3900 10 22 7500 0.008 5000
    VPLE2201K221MVTM -55~105 80 220 10 22 3520 0.03 5000
    VPLL1701A392MVTM -55~105 10 3900 12.5 17 7500 0.008 5000
    VPLL1701K221MVTM -55~105 80 220 12.5 17 3520 0.03 5000
    VPLL1851A472MVTM -55~105 10 4700 12.5 18.5 7500 0.008 5000
    VPLL1851K271MVTM -55~105 80 270 12.5 18.5 4320 0.03 5000
    VPLL1851A562MVTM -55~105 10 5600 12.5 18.5 7500 0.008 5000
    VPLL2101K331MVTM -55~105 80 330 12.5 21 5000 0.03 5000
    VPLL2101A682MVTM -55~105 10 6800 12.5 21 7500 0.008 5000
    VPLB0582A2R2MVTM -55~105 100 2.2 5 5.8 300 0.08 5000
    VPLB0771B181MVTM -55~105 12 180 5 7.7 432 0.015 5000
    VPLC4502A2R2MVTM -55~105 100 2.2 6.3 4.5 300 0.08 5000
    VPLC0581B181MVTM -55~105 12 180 6.3 5.8 432 0.03 5000
    VPLB0582A3R3MVTM -55~105 100 3.3 5 5.8 300 0.06 5000
    VPLB0951B221MVTM -55~105 12 220 5 9.5 528 0.015 5000
    VPLC4502A3R3MVTM -55~105 100 3.3 6.3 4.5 300 0.08 5000
    VPLC0581B221MVTM -55~105 12 220 6.3 5.8 528 0.016 5000
    VPLB0772A4R7MVTM -55~105 100 4.7 5 7.7 300 0.06 5000
    VPLB0951B271MVTM -55~105 12 270 5 9.5 648 0.012 5000
    VPLC0582A4R7MVTM -55~105 100 4.7 6.3 5.8 300 0.08 5000
    VPLC0771B271MVTM -55~105 12 270 6.3 7.7 648 0.016 5000
    VPLB0772A5R6MVTM -55~105 100 5.6 5 7.7 300 0.06 5000
    VPLB0951B331MVTM -55~105 12 330 5 9.5 792 0.012 5000
    VPLC0582A5R6MVTM -55~105 100 5.6 6.3 5.8 300 0.08 5000
    VPLC0771B331MVTM -55~105 12 330 6.3 7.7 792 0.012 5000
    VPLB0852A6R8MVTM -55~105 100 6.8 5 8.5 300 0.06 5000
    VPLC0951B391MVTM -55~105 12 390 6.3 9.5 936 0.015 5000
    VPLC0582A6R8MVTM -55~105 100 6.8 6.3 5.8 300 0.06 5000
    VPLC0851B391MVTM -55~105 12 390 6.3 8.5 936 0.012 5000
    VPLB0952A8R2MVTM -55~105 100 8.2 5 9.5 300 0.06 5000
    VPLC0951B471MVTM -55~105 12 470 6.3 9.5 1128 0.012 5000
    VPLC0772A8R2MVTM -55~105 100 8.2 6.3 7.7 300 0.06 5000
    VPLD0771B471MVTM -55~105 12 470 8 7.7 1128 0.014 5000
    VPLC0772A100MVTM -55~105 100 10 6.3 7.7 300 0.06 5000
    VPLC1101B561MVTM -55~105 12 560 6.3 11 1344 0.01 5000
    VPLC0852A120MVTM -55~105 100 12 6.3 8.5 300 0.05 5000
    VPLD0771B561MVTM -55~105 12 560 8 7.7 1344 0.014 5000
    VPLC0952A150MVTM -55~105 100 15 6.3 9.5 300 0.05 5000
    VPLC1201B681MVTM -55~105 12 680 6.3 12 1632 0.009 5000
    VPLD0772A150MVTM -55~105 100 15 8 7.7 300 0.06 5000
    VPLD0901B681MVTM -55~105 12 680 8 9 1632 0.01 5000
    VPLC1102A180MVTM -55~105 100 18 6.3 11 360 0.05 5000
    VPLD1251B102MVTM -55~105 12 1000 8 12.5 2400 0.01 5000
    VPLD0902A180MVTM -55~105 100 18 8 9 360 0.06 5000
    VPLB0581C220MVTM -55~105 16 22 5 5.8 280 0.03 5000
    VPLD0902A220MVTM -55~105 100 22 8 9 440 0.05 5000
    VPLC4501C220MVTM -55~105 16 22 6.3 4.5 280 0.03 5000
    VPLD1252A270MVTM -55~105 100 27 8 12.5 540 0.05 5000
    VPLB0581C330MVTM -55~105 16 33 5 5.8 280 0.03 5000
    VPLE0852A270MVTM -55~105 100 27 10 8.5 540 0.06 5000
    VPLC4501C330MVTM -55~105 16 33 6.3 4.5 280 0.03 5000
    VPLD1252A330MVTM -55~105 100 33 8 12.5 660 0.05 5000
    VPLB0581C470MVTM -55~105 16 47 5 5.8 280 0.03 5000
    VPLE0952A330MVTM -55~105 100 33 10 9.5 660 0.05 5000
    VPLC4501C470MVTM -55~105 16 47 6.3 4.5 280 0.03 5000
    VPLD1502A390MVTM -55~105 100 39 8 15 780 0.05 5000
    VPLB0581C680MVTM -55~105 16 68 5 5.8 280 0.03 5000
    VPLE0952A390MVTM -55~105 100 39 10 9.5 780 0.05 5000
    VPLC4501C680MVTM -55~105 16 68 6.3 4.5 280 0.03 5000
    VPLE1052A470MVTM -55~105 100 47 10 10.5 940 0.05 5000
    VPLB0581C820MVTM -55~105 16 82 5 5.8 280 0.03 5000
    VPLE1352A560MVTM -55~105 100 56 10 13.5 1120 0.05 5000
    VPLC4501C820MVTM -55~105 16 82 6.3 4.5 280 0.03 5000
    VPLE1702A680MVTM -55~105 100 68 10 17 1360 0.05 5000
    VPLB0771C101MVTM -55~105 16 100 5 7.7 320 0.03 5000
    VPLE1952A820MVTM -55~105 100 82 10 19.5 1640 0.04 5000
    VPLC0581C101MVTM -55~105 16 100 6.3 5.8 320 0.03 5000
    VPLL1352A820MVTM -55~105 100 82 12.5 13.5 1640 0.05 5000
    VPLB0851C151MVTM -55~105 16 150 5 8.5 480 0.03 5000
    VPLE2202A101MVTM -55~105 100 100 10 22 2000 0.04 5000
    VPLC0581C151MVTM -55~105 16 150 6.3 5.8 480 0.03 5000
    VPLL1502A101MVTM -55~105 100 100 12.5 15 2000 0.05 5000
    VPLB0951C221MVTM -55~105 16 220 5 9.5 704 0.012 5000
    VPLE2202A121MVTM -55~105 100 120 10 22 2400 0.04 5000
    VPLC0951C221MVTM -55~105 16 220 6.3 9.5 704 0.012 5000
    VPLL1702A121MVTM -55~105 100 120 12.5 17 2400 0.04 5000
    VPLC0771C221MVTM -55~105 16 220 6.3 7.7 704 0.02 5000
    VPLL1852A151MVTM -55~105 100 150 12.5 18.5 3000 0.04 5000
    VPLC0851C271MVTM -55~105 16 270 6.3 8.5 864 0.015 5000
    VPLL2102A181MVTM -55~105 100 180 12.5 21 3600 0.04 5000
    VPLD0771C271MVTM -55~105 16 270 8 7.7 864 0.03 5000
    VPLC0951C331MVTM -55~105 16 330 6.3 9.5 1056 0.012 5000
    VPLD0771C331MVTM -55~105 16 330 8 7.7 1056 0.03 5000
    VPLC0951C391MVTM -55~105 16 390 6.3 9.5 1248 0.012 5000
    VPLC1201C471MVTM -55~105 16 470 6.3 12 1504 0.01 5000
    VPLD0901C471MVTM -55~105 16 470 8 9 1504 0.02 5000
    VPLD1001C561MVTM -55~105 16 560 8 10 1792 0.012 5000
    VPLE0851C561MVTM -55~105 16 560 10 8.5 1792 0.012 5000
    VPLD1251C681MVTM -55~105 16 680 8 12.5 2176 0.01 5000
    VPLE0851C681MVTM -55~105 16 680 10 8.5 2176 0.012 5000
    VPLD1301C821MVTM -55~105 16 820 8 13.5 2624 0.01 5000
    VPLE0951C821MVTM -55~105 16 820 10 9.5 2624 0.012 5000
    VPLD1501C102MVTM -55~105 16 1000 8 15 3200 0.008 5000
    VPLD1651C102MVTM -55~105 16 1000 8 16.5 3200 0.01 5000
    VPLE0951C102MVTM -55~105 16 1000 10 9.5 3200 0.012 5000
    VPLE1551C152MVTM -55~105 16 1500 10 15.5 4800 0.008 5000
    VPLE1701C182MVTM -55~105 16 1800 10 17 5760 0.008 5000
    VPLE1951C222MVTM -55~105 16 2200 10 19.5 7040 0.008 5000
    VPLL1501C222MVTM -55~105 16 2200 12.5 15 7040 0.01 5000
    VPLE2201C272MVTM -55~105 16 2700 10 22 7500 0.008 5000
    VPLL1701C272MVTM -55~105 16 2700 12.5 17 7500 0.01 5000
    VPLL1851C332MVTM -55~105 16 3300 12.5 18.5 7500 0.008 5000
    VPLL2101C392MVTM -55~105 16 3900 12.5 21 7500 0.008 5000
    VPLB0581E100MVTM -55~105 25 10 5 5.8 280 0.04 5000
    VPLC4501E100MVTM -55~105 25 10 6.3 4.5 280 0.04 5000
    VPLB0581E150MVTM -55~105 25 15 5 5.8 280 0.04 5000
    VPLC4501E150MVTM -55~105 25 15 6.3 4.5 280 0.04 5000
    VPLB0581E220MVTM -55~105 25 22 5 5.8 280 0.04 5000
    VPLC4501E220MVTM -55~105 25 22 6.3 4.5 280 0.04 5000
    VPLB0581E330MVTM -55~105 25 33 5 5.8 280 0.04 5000
    VPLC4501E330MVTM -55~105 25 33 6.3 4.5 280 0.04 5000
    VPLB0581E390MVTM -55~105 25 39 5 5.8 280 0.04 5000
    VPLC4501E390MVTM -55~105 25 39 6.3 4.5 280 0.04 5000
    VPLB0581E470MVTM -55~105 25 47 5 5.8 280 0.03 5000
    VPLC4501E470MVTM -55~105 25 47 6.3 4.5 280 0.04 5000
    VPLB0771E680MVTM -55~105 25 68 5 7.7 340 0.03 5000
    VPLC0581E680MVTM -55~105 25 68 6.3 5.8 340 0.04 5000
    VPLB0951E101MVTM -55~105 25 100 5 9.5 500 0.03 5000
    VPLC0581E101MVTM -55~105 25 100 6.3 5.8 500 0.03 5000
    VPLC0851E151MVTM -55~105 25 150 6.3 8.5 750 0.016 5000
    VPLC0851E181MVTM -55~105 25 180 6.3 8.5 900 0.016 5000
    VPLD0771E181MVTM -55~105 25 180 8 7.7 900 0.03 5000
    VPLC0951E221MVTM -55~105 25 220 6.3 9.5 1100 0.02 5000
    VPLD0771E221MVTM -55~105 25 220 8 7.7 1100 0.03 5000
    VPLD1001E331MVTM -55~105 25 330 8 10 1650 0.016 5000
    VPLE0851E331MVTM -55~105 25 330 10 8.5 1650 0.016 5000
    VPLD1501E471MVTM -55~105 25 470 8 15 2350 0.016 5000
    VPLD1251E471MVTM -55~105 25 470 8 12.5 2350 0.016 5000
    VPLE0951E471MVTM -55~105 25 470 10 9.5 2350 0.016 5000
    VPLD1501E561MVTM -55~105 25 560 8 15 2800 0.016 5000
    VPLD1251E561MVTM -55~105 25 560 8 12.5 2800 0.016 5000
    VPLE1051E561MVTM -55~105 25 560 10 10.5 2800 0.016 5000
    VPLD1501E681MVTM -55~105 25 680 8 15 3400 0.016 5000
    VPLE1251E681MVTM -55~105 25 680 10 12.5 3400 0.016 5000
    VPLD1651E821MVTM -55~105 25 820 8 16.5 4100 0.016 5000
    VPLE1551E821MVTM -55~105 25 820 10 15.5 4100 0.016 5000
    VPLE1701E102MVTM -55~105 25 1000 10 17 5000 0.016 5000
    VPLL1351E102MVTM -55~105 25 1000 12.5 13.5 5000 0.016 5000
    VPLE1951E152MVTM -55~105 25 1500 10 19.5 7500 0.016 5000
    VPLL1501E152MVTM -55~105 25 1500 12.5 15 7500 0.016 5000
    VPLE2201E182MVTM -55~105 25 1800 10 22 7500 0.016 5000
    VPLL1701E182MVTM -55~105 25 1800 12.5 17 7500 0.016 5000
    VPLL1851E222MVTM -55~105 25 2200 12.5 18.5 7500 0.016 5000
    VPLL2101E272MVTM -55~105 25 2700 12.5 21 7500 0.016 5000
    VPLB0581V100MVTM -55~105 35 10 5 5.8 300 0.06 5000
    VPLC4501V100MVTM -55~105 35 10 6.3 4.5 300 0.06 5000
    VPLB0581V150MVTM -55~105 35 15 5 5.8 300 0.06 5000
    VPLC4501V150MVTM -55~105 35 15 6.3 4.5 300 0.06 5000
    VPLB0581V220MVTM -55~105 35 22 5 5.8 300 0.06 5000
    VPLC4501V220MVTM -55~105 35 22 6.3 4.5 300 0.06 5000
    VPLB0581V330MVTM -55~105 35 33 5 5.8 300 0.06 5000
    VPLC4501V330MVTM -55~105 35 33 6.3 4.5 300 0.06 5000
    VPLB0771V390MVTM -55~105 35 39 5 7.7 300 0.05 5000
    VPLC0581V390MVTM -55~105 35 39 6.3 5.8 300 0.06 5000
    VPLB0771V470MVTM -55~105 35 47 5 7.7 329 0.05 5000
    VPLC0581V470MVTM -55~105 35 47 6.3 5.8 329 0.06 5000
    VPLB0771V560MVTM -55~105 35 56 5 7.7 392 0.05 5000
    VPLC0581V560MVTM -55~105 35 56 6.3 5.8 392 0.06 5000
    VPLB0851V680MVTM -55~105 35 68 5 8.5 476 0.05 5000
    VPLC0581V680MVTM -55~105 35 68 6.3 5.8 476 0.06 5000
    VPLB0951V820MVTM -55~105 35 82 5 9.5 574 0.05 5000
    VPLC0771V820MVTM -55~105 35 82 6.3 7.7 574 0.05 5000
    VPLC0771V101MVTM -55~105 35 100 6.3 7.7 700 0.05 5000
    VPLC0851V121MVTM -55~105 35 120 6.3 8.5 840 0.05 5000
    VPLD0771V121MVTM -55~105 35 120 8 7.7 840 0.06 5000
    VPLC0951V151MVTM -55~105 35 150 6.3 9.5 1050 0.05 5000
    VPLD0771V151MVTM -55~105 35 150 8 7.7 1050 0.06 5000
    VPLC1101V181MVTM -55~105 35 180 6.3 11 1260 0.04 5000
    VPLD0771V181MVTM -55~105 35 180 8 7.7 1260 0.06 5000
    VPLC1201V221MVTM -55~105 35 220 6.3 12 1540 0.04 5000
    VPLD0901V221MVTM -55~105 35 220 8 9 1540 0.05 5000
    VPLE0851V221MVTM -55~105 35 220 10 8.5 1540 0.06 5000
    VPLD1251V331MVTM -55~105 35 330 8 12.5 2310 0.03 5000
    VPLE0851V331MVTM -55~105 35 330 10 8.5 2310 0.05 5000
    VPLD1301V391MVTM -55~105 35 390 8 13.5 2730 0.03 5000
    VPLE1051V391MVTM -55~105 35 390 10 10.5 2730 0.05 5000
    VPLD1501V471MVTM -55~105 35 470 8 15 3290 0.02 5000
    VPLE1351V471MVTM -55~105 35 470 10 13.5 3290 0.03 5000
    VPLD1651V561MVTM -55~105 35 560 8 16.5 3920 0.02 5000
    VPLE1351V561MVTM -55~105 35 560 10 13.5 3920 0.03 5000
    VPLE1551V681MVTM -55~105 35 680 10 15.5 4760 0.02 5000
    VPLE1701V821MVTM -55~105 35 820 10 17 5000 0.02 5000
    VPLL1351V821MVTM -55~105 35 820 12.5 13.5 5000 0.03 5000
    VPLE1951V102MVTM -55~105 35 1000 10 19.5 5000 0.02 5000
    VPLL1501V102MVTM -55~105 35 1000 12.5 15 5000 0.03 5000
    VPLE2201V122MVTM -55~105 35 1200 10 22 5000 0.02 5000
    VPLL1701V122MVTM -55~105 35 1200 12.5 17 5000 0.02 5000
    VPLL1851V152MVTM -55~105 35 1500 12.5 18.5 5000 0.02 5000
    VPLL2101V182MVTM -55~105 35 1800 12.5 21 5000 0.02 5000
    VPLB0581H100MVTM -55~105 50 10 5 5.8 300 0.06 5000
    VPLC4501H100MVTM -55~105 50 10 6.3 4.5 300 0.06 5000
    VPLB0581H120MVTM -55~105 50 12 5 5.8 300 0.06 5000
    VPLC4501H120MVTM -55~105 50 12 6.3 4.5 300 0.06 5000
    VPLB0581H150MVTM -55~105 50 15 5 5.8 300 0.06 5000
    VPLC4501H150MVTM -55~105 50 15 6.3 4.5 300 0.06 5000
