Lead type solid aluminum electrolytic capacitor NPH

Short Description:

♦  High reliability, low ESR, high allowable ripple current

♦  Guaranteed for 2000 hours at 105℃

♦  Compliant with RoHS Directive

♦  High voltage products


Product Detail

List of Products Number

Product Tags

Main technical parameters

project

characteristic

range of working temperature

-55~+105℃

Rated working voltage

125 -250V

capacity range

1 - 82 uF 120Hz 20℃

Capacity tolerance

±20% (120Hz 20℃)

loss tangent

120Hz 20℃ below the value in the list of standard products

Leakage current※

Charge for 2 minutes at rated voltage below the value in the list of standard products at 20°C

Equivalent Series Resistance (ESR)

100kHz 20°C below the value in the list of standard products





Durability

The product should meet the requirements of applying rated working voltage for 2000 hours at a temperature of 105°C and placing it at 20°C for 16 hours

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value



High temperature and humidity

The product should meet

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value

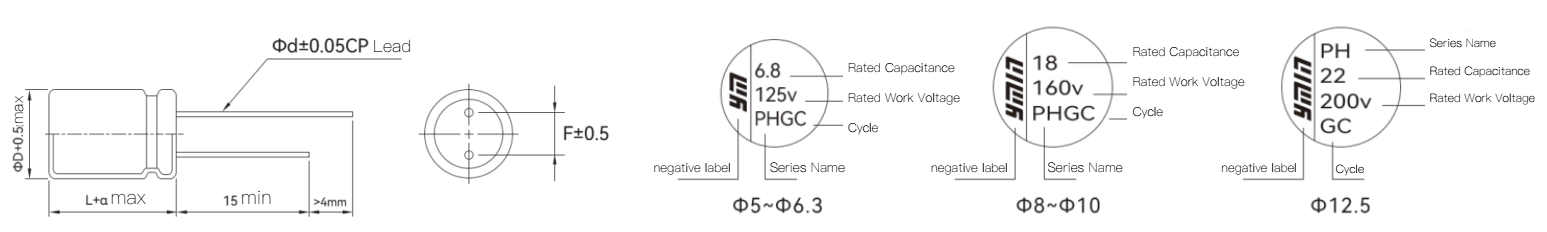

Product Dimensional Drawing

Product Dimensions (Unit:mm)

D (±0.5) 5 6.3 8 10

12.5

d (±0.05) 0.45/0.50 0.45/0.50 0.6 0.6

0.6

F (±0.5) 2 2.5 3.5 5

5

a 1

Ripple Current Frequency Correction Coefficient

Rated ripple current frequency correction factor

Frequency (Hz) 120Hz 1kHz 10kHz 100kHz 500kHz
correction factor 0.05 0.3 0.7 1 1



Conductive Polymer Solid Aluminum Electrolytic Capacitors: Advanced Components for Modern Electronics

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity compared to traditional electrolytic capacitors. In this article, we'll explore the features, benefits, and applications of these innovative components.

Features

Conductive Polymer Solid Aluminum Electrolytic Capacitors combine the benefits of traditional aluminum electrolytic capacitors with the enhanced characteristics of conductive polymer materials. The electrolyte in these capacitors is a conductive polymer, which replaces the traditional liquid or gel electrolyte found in conventional aluminum electrolytic capacitors.

One of the key features of Conductive Polymer Solid Aluminum Electrolytic Capacitors is their low equivalent series resistance (ESR) and high ripple current handling capabilities. This results in improved efficiency, reduced power losses, and enhanced reliability, particularly in high-frequency applications.

Additionally, these capacitors offer excellent stability over a wide temperature range and have a longer operational lifespan compared to traditional electrolytic capacitors. Their solid construction eliminates the risk of leakage or drying out of the electrolyte, ensuring consistent performance even in harsh operating conditions.

Benefits

The adoption of conductive polymer materials in Solid Aluminum Electrolytic Capacitors brings several benefits to electronic systems. Firstly, their low ESR and high ripple current ratings make them ideal for use in power supply units, voltage regulators, and DC-DC converters, where they help to stabilize output voltages and improve efficiency.

Secondly, Conductive Polymer Solid Aluminum Electrolytic Capacitors offer enhanced reliability and durability, making them suitable for mission-critical applications in industries such as automotive, aerospace, telecommunications, and industrial automation. Their ability to withstand high temperatures, vibrations, and electrical stresses ensures long-term performance and reduces the risk of premature failure.

Furthermore, these capacitors exhibit low impedance characteristics, which contribute to improved noise filtering and signal integrity in electronic circuits. This makes them valuable components in audio amplifiers, audio equipment, and high-fidelity audio systems.

Applications

Conductive Polymer Solid Aluminum Electrolytic Capacitors find applications in a wide range of electronic systems and devices. They are commonly used in power supply units, voltage regulators, motor drives, LED lighting, telecommunications equipment, and automotive electronics.

In power supply units, these capacitors help to stabilize output voltages, reduce ripple, and improve transient response, ensuring reliable and efficient operation. In automotive electronics, they contribute to the performance and longevity of onboard systems, such as engine control units (ECUs), infotainment systems, and safety features.

Conclusion

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity for modern electronic systems. With their low ESR, high ripple current handling capabilities, and enhanced durability, they are well-suited for a wide range of applications in various industries.

As electronic devices and systems continue to evolve, the demand for high-performance capacitors like Conductive Polymer Solid Aluminum Electrolytic Capacitors is expected to grow. Their ability to meet the stringent requirements of modern electronics makes them indispensable components in today's electronic designs, contributing to improved efficiency, reliability, and performance.


  • Previous:
  • Next:

  • Products Code Temperature(℃) Rated Voltage(V.DC) Capacitance(uF) Diameter(mm) Height(mm) Leakage current(uA) ESR/Impedance  [Ωmax] Life(Hrs) Product certification
    NPHE1202E8R2MJTM -55~105 250 8.2 10 12 410 0.08 2000 -
    NPHE1202E100MJTM -55~105 250 10 10 12 500 0.08 2000 -
    NPHC1101V221MJTM -55~105 35 220 6.3 11 1540 0.04 2000 -
    NPHC0572B1R5MJTM -55~105 125 1.5 6.3 5.7 300 0.4 2000 -
    NPHC0572B2R2MJTM -55~105 125 2.2 6.3 5.7 300 0.4 2000 -
    NPHC0702B2R7MJTM -55~105 125 2.7 6.3 7 300 0.35 2000 -
    NPHC0702B3R3MJTM -55~105 125 3.3 6.3 7 300 0.35 2000 -
    NPHC0902B4R7MJTM -55~105 125 4.7 6.3 9 300 0.25 2000 -
    NPHC0902B5R6MJTM -55~105 125 5.6 6.3 9 300 0.25 2000 -
    NPHD0702B5R6MJTM -55~105 125 5.6 8 7 300 0.2 2000 -
    NPHC1102B6R8MJTM -55~105 125 6.8 6.3 11 300 0.2 2000 -
    NPHD0802B6R8MJTM -55~105 125 6.8 8 8 300 0.2 2000 -
    NPHC1102B8R2MJTM -55~105 125 8.2 6.3 11 300 0.2 2000 -
    NPHD0902B8R2MJTM -55~105 125 8.2 8 9 300 0.08 2000 -
    NPHD0902B100MJTM -55~105 125 10 8 9 300 0.08 2000 -
    NPHD1152B120MJTM -55~105 125 12 8 11.5 300 0.08 2000 -
    NPHE0702B120MJTM -55~105 125 12 10 7 300 0.1 2000 -
    NPHD1152B150MJTM -55~105 125 15 8 11.5 375 0.08 2000 -
    NPHE0902B150MJTM -55~105 125 15 10 9 375 0.08 2000 -
    NPHD1302B180MJTM -55~105 125 18 8 13 450 0.08 2000 -
    NPHE1002B180MJTM -55~105 125 18 10 10 450 0.08 2000 -
    NPHD1502B220MJTM -55~105 125 22 8 15 550 0.06 2000 -
    NPHE1002B220MJTM -55~105 125 22 10 11 550 0.08 2000 -
    NPHD1602B270MJTM -55~105 125 27 8 16 675 0.06 2000 -
    NPHE1302B270MJTM -55~105 125 27 10 13 675 0.08 2000 -
    NPHE1602B330MJTM -55~105 125 33 10 16 825 0.06 2000 -
    NPHE1702B390MJTM -55~105 125 39 10 17 975 0.06 2000 -
    NPHL1252B390MJTM -55~105 125 39 12.5 12.5 975 0.08 2000 -
    NPHE1802B470MJTM -55~105 125 47 10 18 1175 0.06 2000 -
    NPHL1402B470MJTM -55~105 125 47 12.5 14 1175 0.08 2000 -
    NPHE2102B560MJTM -55~105 125 56 10 21 1400 0.06 2000 -
    NPHL1602B560MJTM -55~105 125 56 12.5 16 1400 0.06 2000 -
    NPHL1802B680MJTM -55~105 125 68 12.5 18 1700 0.06 2000 -
    NPHL2002B820MJTM -55~105 125 82 12.5 20 2050 0.06 2000 -
    NPHB0502C1R0MJTM -55~105 160 1 5 5 300 0.5 2000 -
    NPHB0502C1R2MJTM -55~105 160 1.2 5 5 300 0.5 2000 -
    NPHC0572C1R5MJTM -55~105 160 1.5 6.3 5.7 300 0.4 2000 -
    NPHC0702C2R2MJTM -55~105 160 2.2 6.3 7 300 0.35 2000 -
    NPHC0902C3R3MJTM -55~105 160 3.3 6.3 9 300 0.25 2000 -
    NPHD0702C3R3MJTM -55~105 160 3.3 8 7 300 0.2 2000 -
    NPHC1102C4R7MJTM -55~105 160 4.7 6.3 11 300 0.2 2000 -
    NPHD0802C4R7MJTM -55~105 160 4.7 8 8 300 0.15 2000 -
    NPHC1102C5R6MJTM -55~105 160 5.6 6.3 11 300 0.2 2000 -
    NPHD0702C5R6MJTM -55~105 160 5.6 8 7 300 0.2 2000 -
    NPHC1102C6R8MJTM -55~105 160 6.8 6.3 11 300 0.2 2000 -
    NPHD0902C6R8MJTM -55~105 160 6.8 8 9 300 0.08 2000 -
    NPHD0902C8R2MJTM -55~105 160 8.2 8 9 300 0.08 2000 -
    NPHE0702C8R2MJTM -55~105 160 8.2 10 7 300 0.1 2000 -
    NPHD1152C100MJTM -55~105 160 10 8 11.5 320 0.08 2000 -
    NPHE0902C100MJTM -55~105 160 10 10 9 320 0.08 2000 -
    NPHD1152C120MJTM -55~105 160 12 8 11.5 384 0.08 2000 -
    NPHE0902C120MJTM -55~105 160 12 10 9 384 0.08 2000 -
    NPHD1302C150MJTM -55~105 160 15 8 13 480 0.08 2000 -
    NPHE1002C150MJTM -55~105 160 15 10 10 480 0.08 2000 -
    NPHD1502C180MJTM -55~105 160 18 8 15 576 0.06 2000 -
    NPHE1002C180MJTM -55~105 160 18 10 11 576 0.08 2000 -
    NPHD1702C220MJTM -55~105 160 22 8 17 704 0.06 2000 -
    NPHE1302C220MJTM -55~105 160 22 10 13 704 0.08 2000 -
    NPHD1702C270MJTM -55~105 160 27 8 17 864 0.06 2000 -
    NPHE1502C270MJTM -55~105 160 27 10 15 864 0.06 2000 -
    NPHE1702C330MJTM -55~105 160 33 10 17 1056 0.06 2000 -
    NPHE1802C390MJTM -55~105 160 39 10 18 1248 0.06 2000 -
    NPHL1402C390MJTM -55~105 160 39 12.5 14 1248 0.08 2000 -
    NPHL1602C470MJTM -55~105 160 47 12.5 16 1504 0.08 2000 -
    NPHL1802C560MJTM -55~105 160 56 12.5 18 1792 0.06 2000 -
    NPHL2002C680MJTM -55~105 160 68 12.5 20 2176 0.06 2000 -
    NPHC0572D1R0MJTM -55~105 200 1 6.3 5.7 300 0.4 2000 -
    NPHC0702D1R5MJTM -55~105 200 1.5 6.3 7 300 0.35 2000 -
    NPHC0902D2R2MJTM -55~105 200 2.2 6.3 9 300 0.25 2000 -
    NPHD0702D3R3MJTM -55~105 200 3.3 8 7 300 0.2 2000 -
    NPHD0902D3R9MJTM -55~105 200 3.9 8 9 300 0.1 2000 -
    NPHD0902D4R7MJTM -55~105 200 4.7 8 9 300 0.08 2000 -
    NPHE0702D4R7MJTM -55~105 200 4.7 10 7 300 0.1 2000 -
    NPHD1152D5R6MJTM -55~105 200 5.6 8 11.5 300 0.08 2000 -
    NPHD1152D6R8MJTM -55~105 200 6.8 8 11.5 300 0.08 2000 -
    NPHE0902D6R8MJTM -55~105 200 6.8 10 9 300 0.08 2000 -
    NPHD1402D8R2MJTM -55~105 200 8.2 8 14 328 0.08 2000 -
    NPHE0902D8R2MJTM -55~105 200 8.2 10 9 328 0.08 2000 -
    NPHD1602D100MJTM -55~105 200 10 8 16 400 0.06 2000 -
    NPHE1202D100MJTM -55~105 200 10 10 12 400 0.08 2000 -
    NPHE1302D150MJTM -55~105 200 15 10 13 600 0.08 2000 -
    NPHE1602D180MJTM -55~105 200 18 10 16 720 0.06 2000 -
    NPHL1252D180MJTM -55~105 200 18 12.5 12.5 720 0.06 2000 -
    NPHL1402D220MJTM -55~105 200 22 12.5 14 880 0.08 2000 -
    NPHD1152E4R7MJTM -55~105 250 4.7 8 11.5 300 0.08 2000 -
    NPHD1402E6R8MJTM -55~105 250 6.8 8 14 340 0.08 2000 -
    NPHE1002E6R8MJTM -55~105 250 6.8 10 11 340 0.08 2000 -
    NPHD1602E8R2MJTM -55~105 250 8.2 8 16 410 0.06 2000 -
