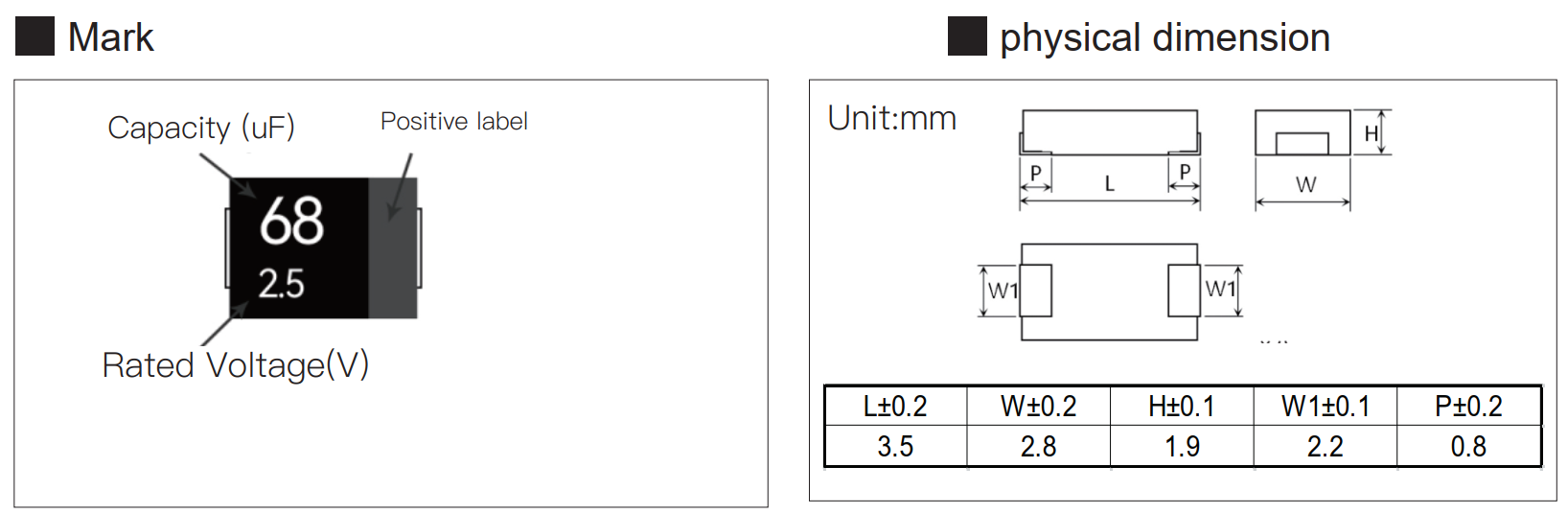

Main Technical Parameters
project |
characteristic |
|
range of working temperature |
-55~+105℃ |
|
Rated working voltage |
2-50V |
|
capacity range |
1.8~82uF 120Hz 20℃ |
|
Capacity tolerance |
±20% (120Hz 20℃) |
|
loss tangent |
120Hz 20℃ below the value in the list of standard products |
|
leakage current |
Charge for 2 minutes at I≤0.1CV rated voltage, 20°C |
|
Equivalent Series Resistance (ESR) |
100kHz 20°C below the value in the list of standard products |
|
Surge voltage (V) |
1.15 times the rated voltage |
|
Durability |
The product should meet the temperature of 105 ℃, apply the rated working voltage for 2000 hours, and after 16 hours at 20 ℃, |
|
Capacitance change rate |
± 20% of initial value |
|
loss tangent |
≤200% of the initial specification value |
|
leakage current |
≤Initial specification value |
|
High temperature and humidity |
The product should meet the conditions of 60°C temperature, 90%~95%R.H humidity for 500 hours, no voltage, and 20°C for 16 hours |
|
Capacitance change rate |
+50% -20% of initial value |
|
loss tangent |
≤200% of the initial specification value |
|
leakage current |
to initial specification value |
Temperature Coefficient Of Rated Ripple Current
temperature | T≤45℃ | 45℃<T≤85℃ | 85℃<T≤105℃ |
coefficient | 1 | 0.7 | 0.25 |
Note: The surface temperature of the capacitor does not exceed the maximum operating temperature of the product |
Rated Ripple Current Frequency Correction Factor
Frequency (Hz) |
120Hz | 1kHz | 10kHz | 100-300kHz |
correction factor |
0.1 | 0.45 | 0.5 | 1 |
Series | Products Number | Operate Temperature(℃) | Rated Voltage (V.DC) | Capacitance (uF) | Length(mm) | Width (mm) | Height (mm) | Life(Hrs) | Leakage Current(uA) | Products Certification | |
MPB19 | mass products | MPB150M0DB19015R | -55~105 | 2 | 15 | 3.5 | 2.8 | 1.9 | 2000 | 3 | - |
MPB19 | mass products | MPB270M0DB19012R | -55~105 | 2 | 27 | 3.5 | 2.8 | 1.9 | 2000 | 5 | - |
MPB19 | mass products | MPB390M0DB19009R | -55~105 | 2 | 39 | 3.5 | 2.8 | 1.9 | 2000 | 8 | - |
MPB19 | mass products | MPB470M0DB19009R | -55~105 | 2 | 47 | 3.5 | 2.8 | 1.9 | 2000 | 9 | - |
MPB19 | mass products | MPB560M0DB19007R | -55~105 | 2 | 56 | 3.5 | 2.8 | 1.9 | 2000 | 11 | - |
MPB19 | mass products | MPB680M0DB19006R | -55~105 | 2 | 68 | 3.5 | 2.8 | 1.9 | 2000 | 14 | - |
MPB19 | mass products | MPB820M0DB19006R | -55~105 | 2 | 82 | 3.5 | 2.8 | 1.9 | 2000 | 16 | - |
MPB19 | mass products | MPB150M0EB19015R | -55~105 | 2.5 | 15 | 3.5 | 2.8 | 1.9 | 2000 | 4 | - |
MPB19 | mass products | MPB270M0EB19012R | -55~105 | 2.5 | 27 | 3.5 | 2.8 | 1.9 | 2000 | 7 | - |
MPB19 | mass products | MPB390M0EB19009R | -55~105 | 2.5 | 39 | 3.5 | 2.8 | 1.9 | 2000 | 10 | - |
MPB19 | mass products | MPB470M0EB19009R | -55~105 | 2.5 | 47 | 3.5 | 2.8 | 1.9 | 2000 | 12 | - |
MPB19 | mass products | MPB560M0EB19006R | -55~105 | 2.5 | 56 | 3.5 | 2.8 | 1.9 | 2000 | 14 | - |
MPB19 | mass products | MPB680M0EB19006R | -55~105 | 2.5 | 68 | 3.5 | 2.8 | 1.9 | 2000 | 17 | - |
MPB19 | mass products | MPB8R2M0JB19020R | -55~105 | 4 | 8.2 | 3.5 | 2.8 | 1.9 | 2000 | 3 | - |
MPB19 | mass products | MPB180M0JB19012R | -55~105 | 4 | 18 | 3.5 | 2.8 | 1.9 | 2000 | 7 | - |
MPB19 | mass products | MPB270M0JB19009R | -55~105 | 4 | 27 | 3.5 | 2.8 | 1.9 | 2000 | 11 | - |
MPB19 | mass products | MPB390M0JB19007R | -55~105 | 4 | 39 | 3.5 | 2.8 | 1.9 | 2000 | 16 | - |
MPB19 | mass products | MPB470M0JB19007R | -55~105 | 4 | 47 | 3.5 | 2.8 | 1.9 | 2000 | 19 | - |
MPB19 | mass products | MPB5R6M0LB19020R | -55~105 | 6.3 | 5.6 | 3.5 | 2.8 | 1.9 | 2000 | 4 | - |
MPB19 | mass products | MPB150M0LB19015R | -55~105 | 6.3 | 15 | 3.5 | 2.8 | 1.9 | 2000 | 9 | - |
MPB19 | mass products | MPB180M0LB19012R | -55~105 | 6.3 | 18 | 3.5 | 2.8 | 1.9 | 2000 | 11 | - |
MPB19 | mass products | MPB270M0LB19009R | -55~105 | 6.3 | 27 | 3.5 | 2.8 | 1.9 | 2000 | 17 | - |
MPB19 | mass products | MPB330M0LB19009R | -55~105 | 6.3 | 33 | 3.5 | 2.8 | 1.9 | 2000 | 21 | - |
MPB19 | mass products | MPB390M0LB19009R | -55~105 | 6.3 | 39 | 3.5 | 2.8 | 1.9 | 2000 | 25 | - |
MPB19 | mass products | MPB4R7M1AB19020R | -55~105 | 10 | 4.7 | 3.5 | 2.8 | 1.9 | 2000 | 5 | - |
MPB19 | mass products | MPB6R8M1AB19018R | -55~105 | 10 | 6.8 | 3.5 | 2.8 | 1.9 | 2000 | 7 | - |
MPB19 | mass products | MPB100M1AB19015R | -55~105 | 10 | 10 | 3.5 | 2.8 | 1.9 | 2000 | 10 | - |
MPB19 | mass products | MPB150M1AB19012R | -55~105 | 10 | 15 | 3.5 | 2.8 | 1.9 | 2000 | 15 | - |
MPB19 | mass products | MPB180M1AB19010R | -55~105 | 10 | 18 | 3.5 | 2.8 | 1.9 | 2000 | 18 | - |
MPB19 | mass products | MPB2R7M1CB19070R | -55~105 | 16 | 2.7 | 3.5 | 2.8 | 1.9 | 2000 | 4 | - |
MPB19 | mass products | MPB5R6M1CB19050R | -55~105 | 16 | 5.6 | 3.5 | 2.8 | 1.9 | 2000 | 9 | - |
MPB19 | mass products | MPB100M1CB19030R | -55~105 | 16 | 10 | 3.5 | 2.8 | 1.9 | 2000 | 16 | - |
MPB19 | mass products | MPB150M1CB19020R | -55~105 | 16 | 15 | 3.5 | 2.8 | 1.9 | 2000 | 24 | - |
MPB19 | mass products | MPB1R8M1DB19080R | -55~105 | 20 | 1.8 | 3.5 | 2.8 | 1.9 | 2000 | 4 | - |
MPB19 | mass products | MPB3R9M1DB19070R | -55~105 | 20 | 3.9 | 3.5 | 2.8 | 1.9 | 2000 | 8 | - |
MPB19 | mass products | MPB5R6M1DB19045R | -55~105 | 20 | 5.6 | 3.5 | 2.8 | 1.9 | 2000 | 11 | - |
MPB19 | mass products | MPB8R2M1DB19035R | -55~105 | 20 | 8.2 | 3.5 | 2.8 | 1.9 | 2000 | 16 | - |
MPB19 | mass products | MPB120M1DB19025R | -55~105 | 20 | 12 | 3.5 | 2.8 | 1.9 | 2000 | 24 | - |
MPB19 | mass products | MPB1R8M1EB19080R | -55~105 | 25 | 1.8 | 3.5 | 2.8 | 1.9 | 2000 | 5 | - |
MPB19 | mass products | MPB3R9M1EB19065R | -55~105 | 25 | 3.9 | 3.5 | 2.8 | 1.9 | 2000 | 10 | - |
MPB19 | mass products | MPB5R6M1EB19045R | -55~105 | 25 | 5.6 | 3.5 | 2.8 | 1.9 | 2000 | 14 | - |
MPB19 | mass products | MPB8R2M1EB19035R | -55~105 | 25 | 8.2 | 3.5 | 2.8 | 1.9 | 2000 | 21 | - |
MPB19 | mass products | MPB2R7M1VB19050R | -55~105 | 35 | 2.7 | 3.5 | 2.8 | 1.9 | 2000 | 9 | - |
MPB19 | mass products | MPB4R7M1VB19040R | -55~105 | 35 | 4.7 | 3.5 | 2.8 | 1.9 | 2000 | 16 | - |
MPB19 | mass products | MPB1R8M1HB19055R | -55~105 | 50 | 1.8 | 3.5 | 2.8 | 1.9 | 2000 | 9 | - |
MPB19 | mass products | MPB2R7M1HB19040R | -55~105 | 50 | 2.7 | 3.5 | 2.8 | 1.9 | 2000 | 14 | - |
