MPX

Short Description:

Multilayer Polymer Aluminum Solid Electrolytic Capacitor

Ultra-low ESR (3mΩ), high ripple current, 125℃ 3000 hours guarantee,

RoHS Directive (2011/65/EU) Compliant, +85℃ 85%RH 1000H, compliant with AEC-Q200 certification.


Product Detail

List of Products Number

Product Tags

Main Technical Parameters

project characteristic
range of working temperature -55~+125℃
Rated working voltage 2~6.3V
Capacity range 33 ~ 560 uF1 20Hz 20℃
Capacity tolerance ±20% (120Hz 20℃)
Loss tangent 120Hz 20℃ below the value in the standard product list
Leakage current I≤0.2CVor200uA takes the maximum value, charge for 2 minutes at rated voltage, 20℃
Equivalent Series Resistance (ESR) Below the value in the standard product list 100kHz 20℃
Surge voltage(V) 1.15 times the rated voltage
Durability The product should meet the following requirements: apply category voltage +125℃ to the capacitor for 3000 hours and place it at 20℃ for 16 hours.
Electrostatic capacity change rate ±20% of initial value
Loss tangent ≤200% of initial specification value
Leakage current ≤300% of initial specification value
High temperature and humidity The product should meet the following requirements: apply the rated voltage for 1000 hours under the conditions of +85℃ temperature and 85%R.H humidity, and after placing it at 20℃ for 16 hours
Electrostatic capacity change rate +70% -20% of initial value
Loss tangent ≤200% of initial specification value
Leakage current ≤500% of initial specification value

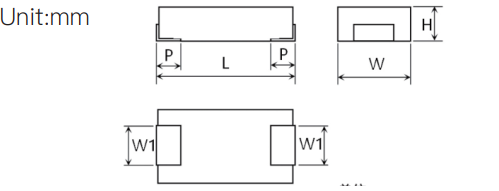

Product Dimensional Drawing

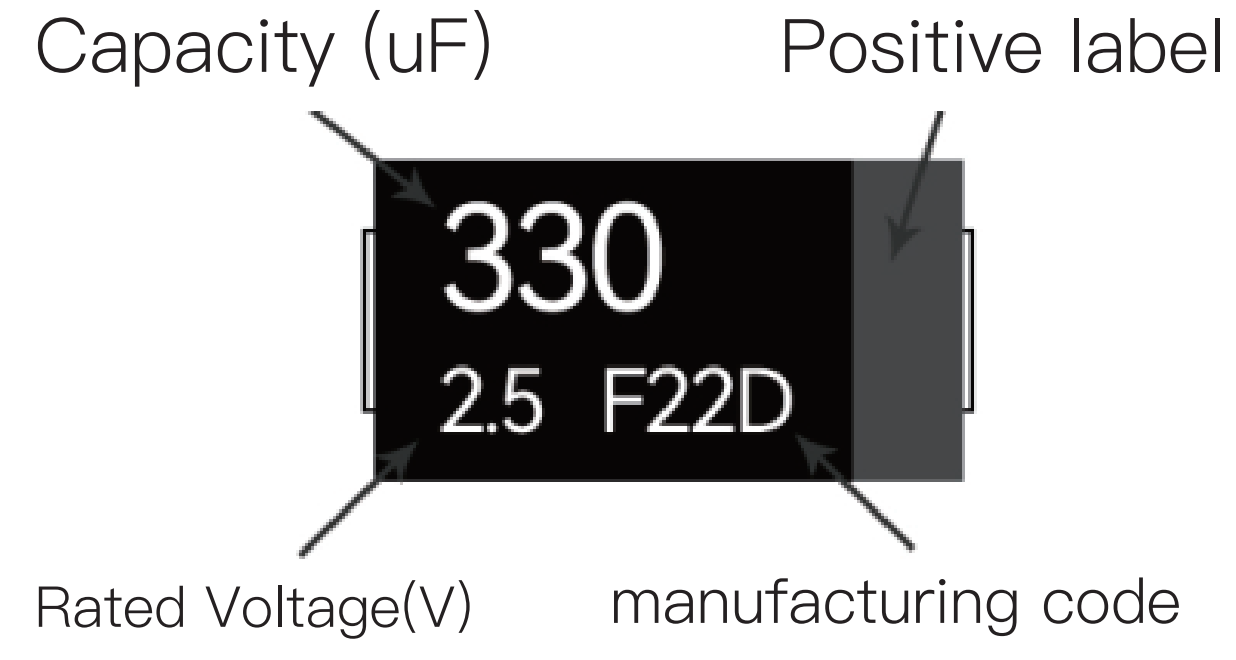

Mark

Manufacturing coding rules The first digit is the manufacturing month

month 1 2 3 4 5 6 7 8 9 10 11 12
code A B C D E F G H J K L M

physical dimension(unit:mm)

L±0.2

W±0.2

H±0.1

W1±0.1

P±0.2

7.3

4.3

1.9

2.4

1.3



Rated ripple current temperature coefficient

Temperature

T≤45℃

45℃<T≤85℃

85℃<T≤105℃

2-10V

1.0

0.7

0.25

16-50V

1.0

0.8

0.5

Rated ripple current frequency correction factor

Frequency(Hz)

120Hz

1kHz

10kHz

100-300kHz

correction factor

0.10

0.45

0.50

1.00



Stacked Polymer Solid-State Aluminum Electrolytic Capacitors combine stacked polymer technology with solid-state electrolyte technology. Using aluminum foil as the electrode material and separating the electrodes with solid-state electrolyte layers, they achieve efficient charge storage and transmission. Compared to traditional aluminum electrolytic capacitors, Stacked Polymer Solid-State Aluminum Electrolytic Capacitors offer higher operating voltages, lower ESR (Equivalent Series Resistance), longer lifespans, and a wider operating temperature range.

Advantages:

High Operating Voltage: Stacked Polymer Solid-State Aluminum Electrolytic Capacitors feature a high operating voltage range, often reaching several hundred volts, making them suitable for high-voltage applications such as power converters and electrical drive systems.
Low ESR: ESR, or Equivalent Series Resistance, is the internal resistance of a capacitor. The solid-state electrolyte layer in Stacked Polymer Solid-State Aluminum Electrolytic Capacitors reduces ESR, enhancing the capacitor's power density and response speed.
Long Lifespan: The use of solid-state electrolytes extends the lifespan of capacitors, often reaching several thousand hours, significantly reducing maintenance and replacement frequency.
Wide Operating Temperature Range: Stacked Polymer Solid-State Aluminum Electrolytic Capacitors can operate stably over a wide temperature range, from extremely low to high temperatures, making them suitable for applications in various environmental conditions.
Applications:

  • Power Management: Used for filtering, coupling, and energy storage in power modules, voltage regulators, and switch-mode power supplies, Stacked Polymer Solid-State Aluminum Electrolytic Capacitors provide stable power outputs.



  • Power Electronics: Employed for energy storage and current smoothing in inverters, converters, and AC motor drives, Stacked Polymer Solid-State Aluminum Electrolytic Capacitors enhance equipment efficiency and reliability.



  • Automotive Electronics: In automotive electronic systems such as engine control units, infotainment systems, and electric power steering systems, Stacked Polymer Solid-State Aluminum Electrolytic Capacitors are used for power management and signal processing.



  • New Energy Applications: Utilized for energy storage and power balancing in renewable energy storage systems, electric vehicle charging stations, and solar inverters, Stacked Polymer Solid-State Aluminum Electrolytic Capacitors contribute to energy storage and power management in new energy applications.

Conclusion:

As a novel electronic component, Stacked Polymer Solid-State Aluminum Electrolytic Capacitors offer numerous advantages and promising applications. Their high operating voltage, low ESR, long lifespan, and wide operating temperature range make them essential in power management, power electronics, automotive electronics, and new energy applications. They are poised to be a significant innovation in future energy storage, contributing to advancements in energy storage technology.


  • Previous:
  • Next:

  • Products Number Operate Temperature(℃) Rated Voltage (V.DC) Capacitance (uF) Length(mm) Width (mm) Height (mm) surge voltage (V) ESR            [mΩmax] Life(Hrs) Leakage Current(uA) Products Certification
    MPX331M0DD19009R -55~125 2 330 7.3 4.3 1.9 2.3 9 3000 66 AEC-Q200
    MPX331M0DD19006R -55~125 2 330 7.3 4.3 1.9 2.3 6 3000 66 AEC-Q200
    MPX331M0DD19003R -55~125 2 330 7.3 4.3 1.9 2.3 3 3000 66 AEC-Q200
    MPX471M0DD19009R -55~125 2 470 7.3 4.3 1.9 2.3 9 3000 94 AEC-Q200
    MPX471M0DD19006R -55~125 2 470 7.3 4.3 1.9 2.3 6 3000 94 AEC-Q200
    MPX471M0DD194R5R -55~125 2 470 7.3 4.3 1.9 2.3 4.5 3000 94 AEC-Q200
    MPX471M0DD19003R -55~125 2 470 7.3 4.3 1.9 2.3 3 3000 94 AEC-Q200
    MPX221M0ED19009R -55~125 2.5 220 7.3 4.3 1.9 2.875 9 3000 55 AEC-Q200
    MPX331M0ED19009R -55~125 2.5 330 7.3 4.3 1.9 2.875 9 3000 82.5 AEC-Q200
    MPX331M0ED19006R -55~125 2.5 330 7.3 4.3 1.9 2.875 6 3000 82.5 AEC-Q200
    MPX331M0ED19003R -55~125 2.5 330 7.3 4.3 1.9 2.875 3 3000 82.5 AEC-Q200
    MPX471M0ED19009R -55~125 2.5 470 7.3 4.3 1.9 2.875 9 3000 117.5 AEC-Q200
    MPX471M0ED19006R -55~125 2.5 470 7.3 4.3 1.9 2.875 6 3000 117.5 AEC-Q200
    MPX471M0ED194R5R -55~125 2.5 470 7.3 4.3 1.9 2.875 4.5 3000 117.5 AEC-Q200
    MPX471M0ED19003R -55~125 2.5 470 7.3 4.3 1.9 2.875 3 3000 117.5 AEC-Q200
    MPX151M0JD19015R -55~125 4 150 7.3 4.3 1.9 4.6 15 3000 60 AEC-Q200
    MPX181M0JD19015R -55~125 4 180 7.3 4.3 1.9 4.6 15 3000 72 AEC-Q200
    MPX221M0JD19015R -55~125 4 220 7.3 4.3 1.9 4.6 15 3000 88 AEC-Q200
    MPX121M0LD19015R -55~125 6.3 120 7.3 4.3 1.9 7.245 15 3000 75.6 AEC-Q200
    MPX151M0LD19015R -55~125 6.3 150 7.3 4.3 1.9 7.245 15 3000 94.5 AEC-Q200
