Main Technical Parameters
|
project |
characteristic |
|
|
range of working temperature |
-55~+125℃ |
|
|
Rated working voltage |
16-80V |
|
|
capacity range |
6.8 ~ 470uF 120Hz 20℃ |
|
|
Capacity tolerance |
±20% (120Hz 20℃) |
|
|
loss tangent |
120Hz 20℃ below the value in the list of standard products |
|
|
Leakage current※ |
Below 0.01 CV(uA), charge at rated voltage for 2 minutes at 20°C |
|
|
Equivalent Series Resistance (ESR) |
100kHz 20°C below the value in the list of standard products |
|
|
Temperature Characteristics (Impedance Ratio) |
Z(-25℃)/Z(+20℃)≤2.0 ; Z(-55℃)/Z(+20℃)≤2.5 (100kHz) |
|
|
Durability |
At a temperature of 1250c, apply a rated voltage including a rated ripple current, and after a specified period of time, place it at 20°C for 16 hours and test, the product should meet |
|
|
Capacitance change rate |
±30% of initial value |
|
|
Equivalent Series Resistance (ESR) |
≤200% of the initial specification value |
|
|
loss tangent |
≤200% of the initial specification value |
|
|
leakage current |
≤Initial specification value |
|
|
high temperature storage |
Store at 125°C for 1000 hours, place it at room temperature for 16 hours before testing, the test temperature is 20°C±2°C, the product should meet the following requirements |
|
|
Capacitance change rate |
±30% of initial value |
|
|
Equivalent Series Resistance (ESR) |
≤200% of the initial specification value |
|
|
loss tangent |
≤200% of the initial specification value |
|
|
leakage current |
to initial specification value |
|
|
High temperature and humidity |
After applying the rated voltage for 1000 hours at 85°C and 85%R.H humidity, and placing it at 20°C for 16 hours, the product should meet |
|
|
Capacitance change rate |
±30% of initial value |
|
|
loss tangent |
≤200% of the initial specification value |
|
|
leakage current |
to initial specification value |
|
※When in doubt about the leakage current value, please place the product at 105°C and apply the rated working voltage for 2 hours, and then conduct the leakage current test after cooling down to 20°C.

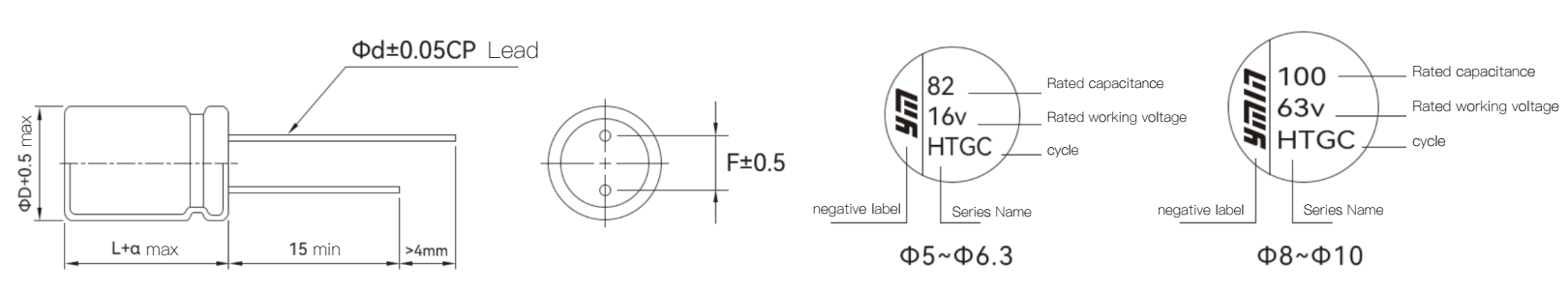

Product Dimensional Drawing
Products Dimension(unit:mm)
| D (±0.5) | 5 | 6.3 | 8 | 10 |
| d (±0.05) | 0.45/0.50 | 0.45/0.50 | 0.6 | 0.6 |
| F(±0.5) | 2 | 2.5 | 3.5 | 5 |
| a | 0.5 | 1 | ||
Ripple Current Frequency Correction Coefficient
frequency correction factor
|
Frequency (Hz) |
120Hz |
1kHz |
10kHz | 100kHz | 300kHz |
|
correction factor |
0.12 |
0.35 |
0.8 | 1 | 1 |
Polymer Hybrid Aluminum Electrolytic Capacitor (PHAEC) VHX is a new type of capacitor, which combines aluminum electrolytic capacitors and organic electrolytic capacitors, so that it has the advantages of both. In addition, PHAEC also has unique excellent performance in the design, manufacture and application of capacitors. The following are the main application areas of PHAEC:
1. Communication field PHAEC has the characteristics of high capacity and low resistance, so it has a wide range of applications in the field of communication. For example, it is widely used in devices such as mobile phones, computers and network infrastructure. In these devices, PHAEC can provide a stable power supply, resist voltage fluctuations and electromagnetic noise, so as to ensure the normal operation of the equipment.
2. Power field PHAEC is excellent in power management, so it also has many applications in the power field. For example, in the fields of high-voltage power transmission and grid regulation, PHAEC can help achieve more efficient energy management, reduce energy waste, and improve energy utilization efficiency.
3. Automotive electronics In recent years, with the rapid development of automotive electronics technology, capacitors have also become one of the important components of automotive electronics. The application of PHAEC in automotive electronics is mainly reflected in intelligent driving, on-board electronics and Internet of Vehicles. It can not only provide a stable power supply for electronic equipment, but also resist various sudden electromagnetic interference.
4. Industrial automation Industrial automation is another important field of application for PHAEC. In automation equipment, PHAEC can be used to help realize the precise control and data processing of the control system and ensure the stable operation of the equipment. Its high capacity and long life can also provide more reliable energy storage and backup power for equipment.
In short, polymer hybrid aluminum electrolytic capacitors have broad application prospects, and there will be more technological innovations and application explorations in more fields in the future with the help of the characteristics and advantages of PHAEC.
| Products Number | Temperature (℃) | RatedVoltage(Vdc) | Capacitance (μF) | Diameter(mm) | Length(mm) | Leakage Current(μA) | ESR/Impedance [Ωmax] | Life (hrs) | Products Certification |
| NHTC0701C151MJCG | -55~125 | 16 | 150 | 6.3 | 7 | 150 | 0.027 | 4000 | AEC-Q200 |
| NHTD0901C271MJCG | -55~125 | 16 | 270 | 8 | 9 | 270 | 0.022 | 4000 | AEC-Q200 |
| NHTE0901C471MJCG | -55~125 | 16 | 470 | 10 | 9 | 470 | 0.018 | 4000 | AEC-Q200 |
| NHTB0571E330MJCG | -55~125 | 25 | 33 | 5 | 5.7 | 33 | 0.08 | 4000 | AEC-Q200 |
| NHTC0571E470MJCG | -55~125 | 25 | 47 | 6.3 | 5.7 | 47 | 0.05 | 4000 | AEC-Q200 |
| NHTC0571E560MJCG | -55~125 | 25 | 56 | 6.3 | 5.7 | 56 | 0.05 | 4000 | AEC-Q200 |
| NHTC0701E680MJCG | -55~125 | 25 | 68 | 6.3 | 7 | 68 | 0.03 | 4000 | AEC-Q200 |
| NHTC0701E101MJCG | -55~125 | 25 | 100 | 6.3 | 7 | 100 | 0.03 | 4000 | AEC-Q200 |
| NHTD0901E151MJCG | -55~125 | 25 | 150 | 8 | 9 | 150 | 0.027 | 4000 | AEC-Q200 |
| NHTD0901E221MJCG | -55~125 | 25 | 220 | 8 | 9 | 220 | 0.027 | 4000 | AEC-Q200 |
| NHTE0901E271MJCG | -55~125 | 25 | 270 | 10 | 9 | 270 | 0.02 | 4000 | AEC-Q200 |
| NHTE1251E331MJCG | -55~125 | 25 | 330 | 10 | 12.5 | 330 | 0.016 | 4000 | AEC-Q200 |
| NHTE0901E331MJCG | -55~125 | 25 | 330 | 10 | 9 | 330 | 0.02 | 4000 | AEC-Q200 |
| NHTB0571V220MJCG | -55~125 | 35 | 22 | 5 | 5.7 | 22 | 0.1 | 4000 | AEC-Q200 |
| NHTC0571V270MJCG | -55~125 | 35 | 27 | 6.3 | 5.7 | 27 | 0.06 | 4000 | AEC-Q200 |
| NHTC0571V470MJCG | -55~125 | 35 | 47 | 6.3 | 5.7 | 47 | 0.06 | 4000 | AEC-Q200 |
| NHTC0701V470MJCG | -55~125 | 35 | 47 | 6.3 | 7 | 47 | 0.035 | 4000 | AEC-Q200 |
| NHTC0701V680MJCG | -55~125 | 35 | 68 | 6.3 | 7 | 68 | 0.035 | 4000 | AEC-Q200 |
| NHTD0901V101MJCG | -55~125 | 35 | 100 | 8 | 9 | 100 | 0.027 | 4000 | AEC-Q200 |
| NHTD0901V151MJCG | -55~125 | 35 | 150 | 8 | 9 | 150 | 0.027 | 4000 | AEC-Q200 |
| NHTE0901V151MJCG | -55~125 | 35 | 150 | 10 | 9 | 150 | 0.02 | 4000 | AEC-Q200 |
| NHTE1251V271MJCG | -55~125 | 35 | 270 | 10 | 12.5 | 270 | 0.017 | 4000 | AEC-Q200 |
| NHTE0901V271MJCG | -55~125 | 35 | 270 | 10 | 9 | 270 | 0.02 | 4000 | AEC-Q200 |
| NHTB0571H100MJCG | -55~125 | 50 | 10 | 5 | 5.7 | 10 | 0.12 | 4000 | AEC-Q200 |
| NHTC0571H100MJCG | -55~125 | 50 | 10 | 6.3 | 5.7 | 10 | 0.08 | 4000 | AEC-Q200 |
| NHTC0701H150MJCG | -55~125 | 50 | 15 | 6.3 | 7 | 15 | 0.04 | 4000 | AEC-Q200 |
| NHTC0571H220MJCG | -55~125 | 50 | 22 | 6.3 | 5.7 | 22 | 0.08 | 4000 | AEC-Q200 |
| NHTC0701H330MJCG | -55~125 | 50 | 33 | 6.3 | 7 | 33 | 0.04 | 4000 | AEC-Q200 |
| NHTD0901H330MJCG | -55~125 | 50 | 33 | 8 | 9 | 33 | 0.03 | 4000 | AEC-Q200 |
| NHTD0901H470MJCG | -55~125 | 50 | 47 | 8 | 9 | 47 | 0.03 | 4000 | AEC-Q200 |
| NHTE0901H560MJCG | -55~125 | 50 | 56 | 10 | 9 | 56 | 0.025 | 4000 | AEC-Q200 |
| NHTD0901H680MJCG | -55~125 | 50 | 68 | 8 | 9 | 68 | 0.03 | 4000 | AEC-Q200 |
| NHTE0901H101MJCG | -55~125 | 50 | 100 | 10 | 9 | 100 | 0.025 | 4000 | AEC-Q200 |
| NHTE1251H121MJCG | -55~125 | 50 | 120 | 10 | 12.5 | 120 | 0.019 | 4000 | AEC-Q200 |
| NHTE0901H121MJCG | -55~125 | 50 | 120 | 10 | 9 | 120 | 0.025 | 4000 | AEC-Q200 |
| NHTC0571J6R8MJCG | -55~125 | 63 | 6.8 | 6.3 | 5.7 | 6.8 | 0.12 | 4000 | AEC-Q200 |
| NHTC0571J100MJCG | -55~125 | 63 | 10 | 6.3 | 5.7 | 10 | 0.12 | 4000 | AEC-Q200 |
| NHTC0701J100MJCG | -55~125 | 63 | 10 | 6.3 | 7 | 10 | 0.08 | 4000 | AEC-Q200 |
| NHTC0701J220MJCG | -55~125 | 63 | 22 | 6.3 | 7 | 22 | 0.08 | 4000 | AEC-Q200 |
| NHTD0901J220MJCG | -55~125 | 63 | 22 | 8 | 9 | 22 | 0.04 | 4000 | AEC-Q200 |
| NHTD0901J330MJCG | -55~125 | 63 | 33 | 8 | 9 | 33 | 0.04 | 4000 | AEC-Q200 |
| NHTE0901J330MJCG | -55~125 | 63 | 33 | 10 | 9 | 33 | 0.03 | 4000 | AEC-Q200 |
| NHTD0901J470MJCG | -55~125 | 63 | 47 | 8 | 9 | 47 | 0.04 | 4000 | AEC-Q200 |
| NHTE0901J560MJCG | -55~125 | 63 | 56 | 10 | 9 | 56 | 0.03 | 4000 | AEC-Q200 |
| NHTE0901J820MJCG | -55~125 | 63 | 82 | 10 | 9 | 82 | 0.03 | 4000 | AEC-Q200 |
| NHTE1251J101MJCG | -55~125 | 63 | 100 | 10 | 12.5 | 100 | 0.02 | 4000 | AEC-Q200 |
| NHTD0901K220MJCG | -55~125 | 80 | 22 | 8 | 9 | 22 | 0.045 | 4000 | AEC-Q200 |
| NHTE0901K330MJCG | -55~125 | 80 | 33 | 10 | 9 | 33 | 0.036 | 4000 | AEC-Q200 |
| NHTE0901K390MJCG | -55~125 | 80 | 39 | 10 | 9 | 39 | 0.035 | 4000 | AEC-Q200 |
| NHTC0901E221MJCG | -55~125 | 25 | 220 | 6.3 | 9 | 220 | 0.03 | 4000 | AEC-Q200 |
| NHTB0571C470MJCG | -55~125 | 16 | 47 | 5 | 5.7 | 47 | 0.08 | 4000 | AEC-Q200 |
| NHTC0571C820MJCG | -55~125 | 16 | 82 | 6.3 | 5.7 | 82 | 0.045 | 4000 | AEC-Q200 |
