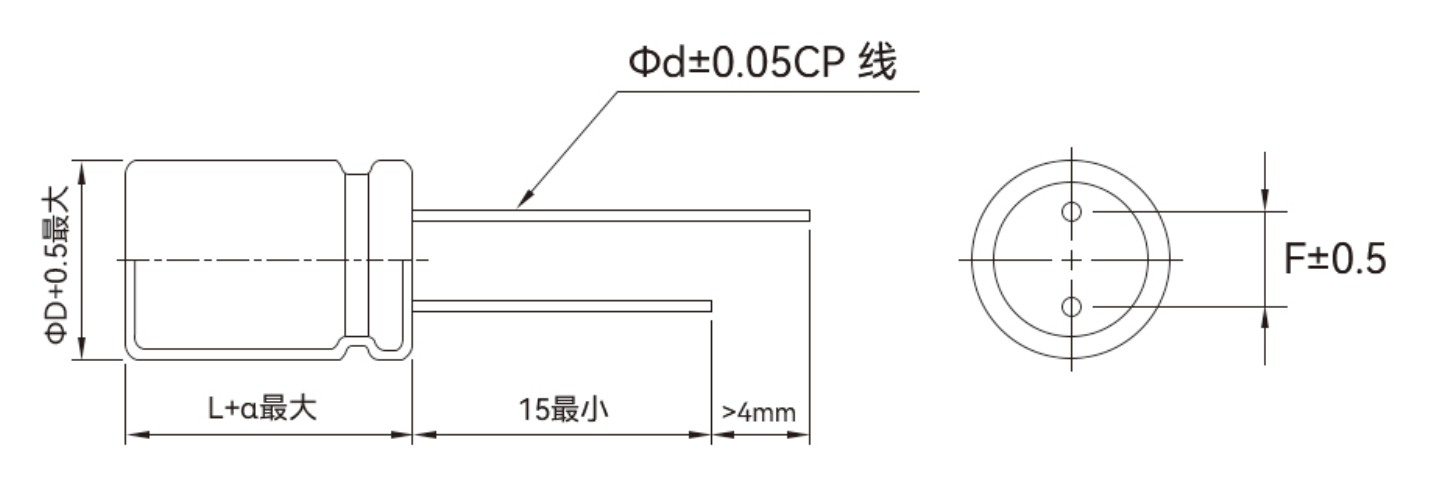

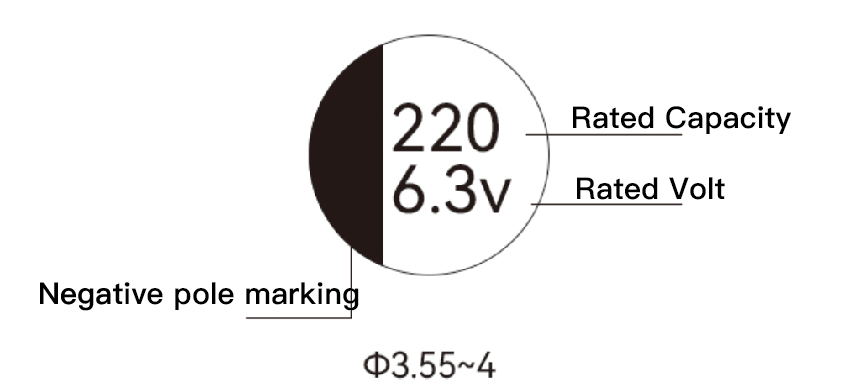

Products Dimension(mm)

Frequency correction factor

Enabling High Efficiency and Stability: YMIN NPM Series Conductive Polymer Aluminum Solid Electrolytic Capacitors

In today's data-driven digital age, unprecedented demands are placed on the performance, reliability, and power density of electronic devices. Whether it's data center servers operating day and night, or rapidly developing new energy vehicles and industrial automation equipment, the stability and efficiency of their core power circuits rely heavily on seemingly small yet crucial components—capacitors. YMIN's NPM series conductive polymer aluminum solid electrolytic capacitors are high-end solutions designed to meet these stringent challenges. With their superior characteristics such as high reliability, low ESR, and high permissible ripple current, they have become the ideal choice for many high-end applications.

I. Core Characteristics: Analyzing the Technical Advantages of the NPM Series

To understand the wide range of applications of the NPM series, it is essential to first understand its outstanding product characteristics, which directly determine its performance in complex circuits.

1. Excellent High Temperature Resistance and Long Lifespan Guarantee (105℃ 2000 hours)

The NPM series products can operate stably within a wide temperature range of -55℃ to +105℃. Its key commitment lies in maintaining key parameters (such as capacitance change, ESR, and loss tangent) within strict limits of their initial specifications after 2000 hours of continuous operation at 105°C under rated voltage. This "2000-hour guarantee" is not simply a duration, but a direct reflection of product durability and material stability, ensuring that capacitor performance does not rapidly degrade over time in high-temperature environments such as those inside server power supplies, significantly improving the mean time between failures (MTBF) of the entire system.

2. Ultra-Low Equivalent Series Resistance (ESR)

ESR is one of the core indicators for measuring capacitor performance, directly affecting the capacitor's filtering effect and self-heating. The NPM series uses advanced conductive polymers as solid electrolytes, with conductivity far exceeding that of traditional liquid electrolytes, thus achieving extremely low ESR. At a high frequency of 100kHz (the typical operating frequency of modern switching power supplies), its ESR value is far below the specified value in the standard list. Low ESR means:

◦ Superior high-frequency filtering: Effectively filters out high-frequency noise generated by the switching power supply, providing a cleaner and more stable DC voltage for core loads such as CPU, GPU, and memory.

◦ Lower self-heating: Under high ripple current, the power loss (I²R) caused by ESR is smaller, and the capacitor's own temperature rise is lower, further ensuring long-term operational reliability.

3. High tolerable ripple current capability

Ripple current is the main cause of capacitor heating. The high tolerable ripple current characteristic of the NPM series allows it to withstand greater current stress and remain stable. This is crucial for scenarios such as server power supplies and communication base station power supplies that need to handle high-power, high-current dynamic loads. High ripple current capability means that a single capacitor can undertake a greater filtering task, or, under the same design requirements, the number of parallel capacitors can be reduced, which helps to improve the power density of the power module.

4. Ultra-miniaturized design (diameter as small as 3.55mm)

As electronic devices develop towards miniaturization and high density, PCB space is extremely valuable. The NPM series offers a variety of ultra-compact sizes ranging from 4x5.7mm to 3.55x11mm, providing significant flexibility for the layout of high-density power supply motherboards (such as server motherboards, graphics cards, and mini PCs), enabling more compact device designs.

5. RoHS Compliant, Meeting Environmental Requirements

The products fully comply with the RoHS directive, are lead-free and environmentally friendly, meeting global market environmental regulations and clearing obstacles for exporting to international markets.

II. Core Application Areas: How the NPM Series Performs

1. Server and Data Center Power Systems – The “Guardian” of Stable Operation

Servers are the cornerstone of the digital economy, and their power systems must meet the requirements of 24/7 uninterrupted, high-efficiency, and highly stable operation. NPM series capacitors play an irreplaceable role in this field:

• Motherboard CPU/GPU VRM (Voltage Regulator Module): Modern server CPUs and GPUs have a very wide dynamic range of power consumption, requiring extremely high transient response from the power supply. VRM circuits typically use a multi-phase Buck architecture, requiring a large number of capacitors at both the input and output ends for energy storage and decoupling. The NPM series' low ESR and high ripple current characteristics enable it to respond rapidly to drastic load changes, providing instantaneous high current to the CPU/GPU while effectively suppressing voltage fluctuations and noise. This ensures stable operation of the computing core and prevents downtime or data errors caused by voltage instability.

• Power Supply Unit (PSU): In the primary side (PFC circuit) and secondary side (DC-DC converter circuit) of a server PSU, the NPM series can be used for output filtering. Its high-temperature and long-life characteristics directly address the high-temperature environment inside the PSU, ensuring the long-term reliability of the power supply itself and reducing the overall operation and maintenance costs of the data center.

• Solid State Drive (SSD): The power management circuits of high-end enterprise-grade SSDs also require high-performance capacitors. The NPM's small size and low ESR characteristics are ideal for space-constrained SSD boards, providing clean power to NAND flash memory and the main controller.

2. Industrial Automation and Power Electronics – A Reliable Partner in Harsh Environments

Industrial environments are typically characterized by high temperatures, vibrations, and long periods of continuous operation. The NPM series excels in this field:

• Inverters and Servo Drives: As filter capacitors for inverter circuit outputs, the NPM series can withstand high-frequency, high-amplitude ripple currents generated during motor start-up, shutdown, and speed changes. Low ESR helps reduce switching losses and improve drive efficiency.

• Industrial PCs and PLCs (Programmable Logic Controllers): Ensuring stable power supply to the control core in industrial environments with high dust, vibration, and temperature fluctuations, improving the reliability of the entire automation system.

• New Energy Power Generation (Photovoltaic Inverters, Wind Power Converters): In equipment operating in these harsh outdoor environments, the long lifespan and high-temperature stability of capacitors are crucial to ensuring system power generation efficiency and lifespan.

3. Communication Equipment Infrastructure – The “Cornerstone” for Clear Signals

• 5G Base Stations (AAU, BBU): 5G base stations consume a lot of power and are often deployed in outdoor cabinets, facing high-temperature challenges. Base station power modules and RF power amplifier circuits require high-performance capacitors for power filtering; the high reliability of the NPM series is designed for such demanding applications.

• Routers and Switches: Core network equipment handles massive data exchanges, and its internal power integrity is crucial for ensuring high-speed, low-latency networks.

4. Automotive Electronics – A Rising Force Towards the Future

While automotive electronics have stricter AEC-Q standards for components, the technical characteristics exhibited by the NPM series, such as wide temperature range, long lifespan, and high reliability, are precisely what automotive electronics seek. In non-safety-critical but highly demanding applications such as on-board chargers (OBCs), on-board DC-DC converters, and advanced driver assistance systems (ADAS), conductive polymer capacitors with NPM technology are showing great application potential.

5. High-End Consumer Electronics – The Unsung Heroes of Performance Pursuit

• High-End Graphics Cards: The VRM circuitry of graphics cards has extremely high requirements for capacitor performance. The NPM series helps graphics cards maintain voltage stability under high loads (such as gaming and rendering), enhancing overclocking potential.

• Ultra-thin Laptops and Mini PCs: While pursuing extreme thinness and lightness, without sacrificing performance stability, the small size and high-performance characteristics of NPM perfectly meet this requirement.

III. Selection Guide and Technical Support

Yongming's NPM series offers a wide range of product models, such as NPMA0540J101MJTM (6.3V, 100μF) and NPMW1101E101MJTM (25V, 100μF), covering a wide voltage range from 6.3V to 100V and a capacitance range from 1.2μF to 270μF. Engineers can follow these steps when selecting a product:

1. Determine circuit requirements: operating voltage, required capacitance, maximum ripple current, and operating ambient temperature.

2. Evaluate space constraints: Select a suitable diameter (D) and height (H) combination based on the PCB layout.

3. Refer to performance parameters: Focus on the ESR value, allowable ripple current, and leakage current of specific models in the product catalog to ensure they meet design margins.

YMIN Electric provides engineers with comprehensive technical information and a strong technical support team (contact email: ymin-sale@ymin.com), offering personalized selection advice and solutions based on specific application scenarios.

Conclusion

YMIN's NPM series conductive polymer aluminum solid electrolytic capacitors, with their superior stability and long lifespan under high temperature, high frequency, and high ripple current conditions, have transcended the role of traditional capacitors, becoming a "key component" ensuring the power source of high-end electronic equipment. From data centers supporting cloud computing to industrial production lines driving intelligent manufacturing, and communication networks connecting everything, the NPM series, with its solid technical foundation and reliable product quality, is quietly empowering the digital and intelligent transformation of various industries, making it a trustworthy partner for engineers pursuing ultimate performance and reliability.
