NPX Series Conductive Polymer Solid Aluminum Electrolytic Capacitors: Infusing a Stable Core into Modern High-Reliability Electronic Devices

In today's rapidly developing electronics industry, performance requirements for capacitors—core components—are becoming increasingly stringent. High efficiency, high power density, long life, and high reliability have become essential challenges for power circuit designers. The NPX Series Conductive Polymer Solid Aluminum Electrolytic Capacitors are an innovative solution designed to meet these challenges. They abandon traditional liquid electrolytes and utilize cutting-edge conductive polymer materials as cathodes. While retaining the high capacitance advantages of aluminum electrolytic capacitors, they achieve a quantum leap in performance, becoming a key driver of innovation in automotive electronics, industrial control, communications equipment, and new energy.

I. Technological Breakthrough: A Performance Revolution from "Liquid" to "Solid"

The core advantage of the NPX Series capacitors stems from their fundamentally innovative solid-state structure. Compared to traditional liquid aluminum electrolytic capacitors, these capacitors achieve several key performance breakthroughs:

1. Extremely low equivalent series resistance (ESR) and excellent ripple current capability: The conductive polymer material possesses extremely high conductivity, several orders of magnitude higher than traditional electrolytes. This enables NPX series capacitors to maintain extremely low ESR even at high frequencies up to 100kHz. This characteristic directly benefits two major aspects: First, in switching power supplies, the heat generated by the capacitors due to ripple current is significantly reduced, significantly improving power conversion efficiency and reducing thermal stress; second, they can withstand ripple currents far higher than those of similarly sized liquid capacitors, providing a cleaner and more stable DC voltage for high-power loads such as CPUs, GPUs, and ASICs, ensuring stable system operation.

2. Excellent frequency characteristics and temperature stability: Due to the absence of hysteresis effects associated with ionic conduction, the NPX capacitor's impedance-frequency curve decreases smoothly at high frequencies, demonstrating excellent high-frequency response. Furthermore, unlike liquid electrolytes, which experience increased viscosity at low temperatures and volatilization at high temperatures, the NPX series maintains stable capacitance and ESR across a wide temperature range (-55°C to +105°C), easily surviving harsh operating environments.

3. Fundamentally Long Life and High Reliability: Traditional liquid capacitors often end their life due to electrolyte evaporation or drying out. The NPX series completely eliminates this failure mechanism. Its solid-state structure eliminates leakage risk, ensuring highly consistent electrical performance throughout its lifecycle. Under rigorous conditions of 105°C, the product has achieved a full-load lifespan test of over 2,000 hours. Converted to lower operating temperatures, its service life can easily exceed 10 years, significantly reducing ongoing maintenance costs and failure rates.

4. Environmentally Friendly: The NPX series fully complies with the RoHS directive, meeting stringent global environmental standards for electronic products and ensuring your product's green compliance.

II. Practical Application Scenarios: A Stable Foundation Empowering Various Industries

The exceptional properties of the NPX series capacitors make them irreplaceable key components in numerous demanding applications.

• Automotive Electronics: With the increasing electrification and intelligence of vehicles, the reliability requirements for components have reached unprecedented heights. NPX capacitors can be used in engine control units (ECUs), advanced driver assistance systems (ADAS), in-vehicle infotainment systems, and battery management systems (BMSs). Their high-temperature resistance, long life, and excellent stability enable them to withstand the high current surge during vehicle startup and the high-temperature vibrations within the engine compartment, ensuring driving safety and system reliability.

• AI Data Server & Communication Equipment: Data center servers and 5G base station power supplies require extremely high power density and efficiency. NPX capacitors are used in key components such as motherboard VRMs (voltage regulator modules), DC-DC converters, and power supply filtering. Their low ESR helps reduce ripple noise in the power supply network of core processors (CPUs/GPUs/FPGAs), improving computing stability. Their high efficiency also helps lower the power usage effectiveness (PUE) of data centers, achieving energy savings and cost reductions.

• Industrial Automation & Motor Drive: Industrial robots, inverters, servo drives, and other equipment are plagued by frequent switching events and large current fluctuations. NPX capacitors are used in inverter output filtering, braking units, and I/O module power supplies. They effectively absorb high-frequency noise and voltage spikes, protecting power devices (such as IGBTs), improving system control accuracy and response speed, and ensuring continuous and stable operation of production lines.

• New Energy & Smart Meter: NPX capacitors can be used in DC-Link circuits in solar inverters, wind power converters, UPSs, and smart meters. Their high ripple current capability and long life are crucial for smoothing DC bus voltage, suppressing harmonics, and improving overall efficiency and service life.

• High-end Consumer Electronics (PD Chargers, LED Displays): High-power fast-charging chargers and high-end LED display driver power supplies place extremely high demands on miniaturization and efficiency. NPX capacitors' small size, high capacitance density, and low ESR contribute to miniaturization and lightweighting of chargers, reducing heat generation and improving user experience.

III. Product Specifications and Selection Guide

The NPX series offers a broad product portfolio to meet diverse design needs:
• Rated voltage: Covering a wide range from 6.3V to 100V, it accommodates a wide range of requirements, from low-voltage digital circuits to higher-voltage industrial power supplies.

• Capacitance range: Offering a wide range of capacitance options from 2.2μF to 10,000μF, enabling flexible circuit design.

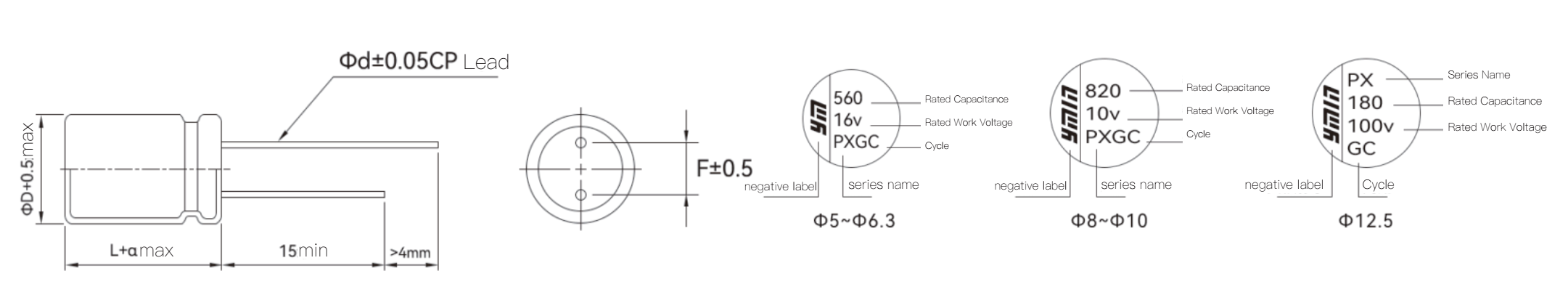

• Package size: Available in a variety of diameter (D: 5mm to 12.5mm) and height (F) combinations, supporting high-density PCB layouts.

When selecting NPX series capacitors, engineers should focus on the rated voltage, nominal capacitance, maximum allowable ripple current, and operating ambient temperature. Ripple current rating and ESR should be key factors, especially in high-frequency, high-current applications. The detailed parameters in the NPX product list provide solid data support for accurate selection.

IV. Summary: Choose NPX, Choose a Reliable Future

In short, the NPX series of conductive polymer solid aluminum electrolytic capacitors is more than just a simple component upgrade; it represents a strategic direction for capacitor technology to meet the needs of future electronic devices. By combining the inherent advantages of solid-state technology—ultra-high reliability, superior electrical performance, outstanding temperature stability, and exceptionally long service life—the NPX series provides electronics designers with a powerful tool for addressing increasingly complex power management challenges.

Whether you're looking to enhance your product's market competitiveness or build future-proof, highly reliable systems, choosing the NPX series capacitors means choosing a durable, stable, and efficient "heart" for your electronic products. They will continue to serve as silent guardians, silently supporting the stable operation and continuous innovation of the modern electronics world in a variety of critical applications.
