NPU Series Capacitors: An Ideal Choice for Modern Electronic Devices

In today's rapidly developing electronics industry, continuous improvement in component performance is a key driver of technological innovation. As a revolutionary advancement in traditional electrolytic capacitor technology, the NPU series conductive polymer aluminum solid electrolytic capacitors, with their superior electrical properties and reliable performance, have become the preferred component for numerous high-end electronic devices.

Technical Features and Performance Advantages

The NPU series capacitors utilize advanced conductive polymer technology, revolutionizing the design of traditional electrolytes. Their most notable feature is their extremely low equivalent series resistance (ESR). This low ESR directly benefits multiple applications: First, it significantly reduces energy loss during operation, improving overall circuit efficiency. Second, low ESR enables the capacitors to withstand higher ripple currents. The NPU series can achieve 3200mA/r.ms at 105°C, meaning that within the same size, NPU capacitors can handle greater power fluctuations.

This series offers a wide operating temperature range (-55°C to 125°C), ensuring stable performance in a variety of harsh environments. A guaranteed 4,000-hour service life makes it ideal for industrial equipment and automotive electronic systems requiring long-term continuous operation. Furthermore, the product is fully RoHS compliant, meeting the stringent environmental performance standards of modern electronic products.

Structural Design and Material Innovation

The superior performance of NPU capacitors stems from their unique material selection and structural design. The use of a conductive polymer as a solid electrolyte completely eliminates the electrolyte drying and leakage issues common in traditional liquid electrolytic capacitors. This solid-state structure not only improves product reliability but also enhances resistance to vibration and mechanical shock, making it an excellent choice for applications such as mobile devices and automotive electronics.

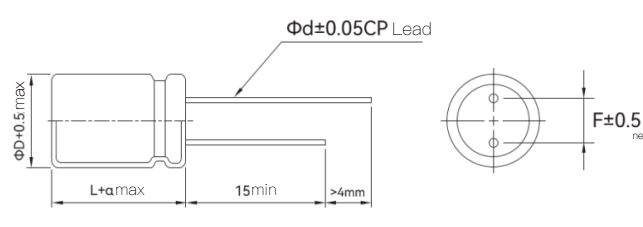

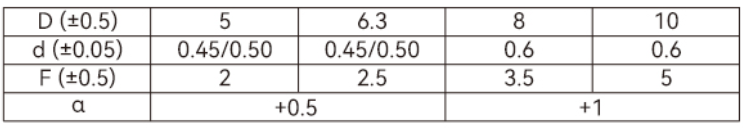

The product features a radial lead package with a compact design of 8mm diameter and 11mm height, meeting high performance requirements while conserving PCB space. This design allows NPU capacitors to adapt to high-density circuit board layouts, strongly supporting the trend towards miniaturization in electronic products.

Wide Applications

With its superior performance, the NPU series capacitors play a key role in several key areas:

Automotive Electronic Systems: Electronic control systems are becoming increasingly important in modern vehicles. NPU capacitors are used in engine control units (ECUs), advanced driver assistance systems (ADAS), in-vehicle infotainment systems, and other applications. Their high-temperature stability and long lifespan fully meet the stringent reliability requirements of automotive electronics. In electric and hybrid vehicles, NPU capacitors are crucial components of power management systems and motor drive systems.

Industrial Automation Equipment: In industrial control systems, NPU capacitors are widely used in PLCs, inverters, servo drives, and other devices. Their low ESR helps reduce power loss and improve system efficiency, while their wide temperature range ensures stable operation in industrial environments.

Communications Infrastructure: 5G base stations, data center servers, and other communications equipment require extremely high component performance and reliability. NPU capacitors operate stably under high ripple current conditions, providing clean and stable power to processors, memory, and network chips, ensuring 24/7 uninterrupted operation of communications equipment.

Consumer Electronics: Although the NPU series is an industrial-grade product, its excellent performance has also led to its use in some high-end consumer electronics devices, such as game consoles, 4K/8K display devices, and high-end audio equipment, providing a superior user experience.

Frequency Characteristics and Circuit Design

NPU capacitors have unique frequency response characteristics. Their capacitance correction factor exhibits a regular pattern at different frequencies: 0.12 at 120Hz, gradually increasing with increasing frequency, reaching 1.0 at 100kHz. This characteristic enables circuit designers to select the most appropriate model based on the specific application frequency and optimize circuit performance.

Capacitors of different capacitance values ​​also exhibit slightly different frequency characteristics: products with a capacitance less than 47μF have a correction factor of 1.05 at 500kHz; products between 47-120μF maintain a constant correction factor of 1.0 above 200kHz; and products greater than 120μF exhibit a specific characteristic curve at higher frequencies. This detailed frequency characteristic provides an important reference for precise circuit design.

Technology Development Trends and Market Prospects

As electronic devices move toward higher frequencies, higher efficiency, and higher reliability, market demand for conductive polymer solid electrolytic capacitors continues to grow. The NPU series products perfectly align with this trend, and their technical features fully meet the requirements of modern electronic devices for power supply components.

With the rapid development of emerging technologies such as the Internet of Things, artificial intelligence, and autonomous driving, the demand for high-performance capacitors will further expand. The NPU series capacitors will continue to optimize performance, increase capacitance density, and expand temperature range, providing more comprehensive solutions for next-generation electronic devices.

Selection and Application Recommendations

When selecting NPU series capacitors, engineers need to consider multiple factors: first, the operating voltage and capacitance requirements, ensuring a certain design margin; second, the ripple current requirements, selecting the appropriate model based on the actual operating current and frequency; and finally, the ambient temperature conditions, ensuring stable operation within the operating temperature range.

When designing PCB layout, pay attention to the effects of lead inductance and minimize the distance between the capacitor and the load. For high-frequency applications, it is recommended to connect multiple small-capacity capacitors in parallel to further reduce ESR and ESL. Additionally, proper heat dissipation design will help improve the capacitor's lifespan and reliability.

Summary

The NPU series conductive polymer aluminum solid electrolytic capacitors represent a significant advancement in capacitor technology, combining the advantages of traditional aluminum electrolytic capacitors with the superior performance of conductive polymers. Their low ESR, high ripple current capability, wide temperature range, and long life make them indispensable components in modern electronic devices.

With the continuous advancement of electronic technology, the NPU series capacitors will continue to evolve, providing higher-quality, more reliable power solutions for electronic devices across various industries, fueling technological innovation and product upgrades. Whether in automotive electronics, industrial control, or communications equipment, NPU capacitors will play a vital role in driving the electronics industry towards higher performance and greater reliability.
