Shanghai YMIN showcases capacitor solutions across four major sectors at the 2026 Munich Shanghai Electronics Fair | Pre-show preview ① New Energy Vehicle Electronics

Foreword

Shanghai YMIN Electronics will participate in the 2026 Munich Shanghai Electronics Fair from July 1st to 3rd, at booth 705 in Hall N1 of the Shanghai New International Expo Centre. YMIN will showcase its capacitor solutions across four core areas: New Energy Vehicle Electronics, AI Servers, Drones & Robots (Motor Drives), and Energy & Industrial Power. We welcome you to visit our booth to discuss how core component technology innovation can drive industrial upgrading.

Full-Function Vehicle Coverage & Automotive-Grade Certification: ymin New Energy Vehicle Electronic Capacitor Solutions

In the field of new energy vehicle electronics, ymin’s capacitor solutions cover core applications such as thermal management systems, safety systems, electric drive and control systems, vehicle collision mitigation modules (CPM), smart cockpits, and parking lithium battery battery management systems. The entire product line is AEC-Q200 certified. From electric drive to cockpit, from thermal management to safety systems, ymin provides OEMs and Tier 1 suppliers with domestically produced PIN-to-PIN alternatives to imported brands.

Thermal Management System & Electronic Water Pump: Solid-Liquid Hybrid Capacitors, 150℃ Wide Temperature Range + 30G Vibration Resistance. Vehicle electronic water pumps face multiple challenges during operation, including high vibration, wide temperature shock, and high current ripple.

Ymin offers three series of solid-liquid hybrid capacitor solutions (VHT/VHU/VHR) to address the complex operating conditions of electronic water pumps. Their core advantages include: • High vibration resistance design: Standard products withstand 10G vibration, with the addition of a mounting plate reaching 30G; • Dual electrolyte technology: The VHT/VHU/VHR series together form a full-temperature range matrix from 105℃, 135℃ to 150℃; • Ultra-low ESR and wide-band stability: ESR can be as low as 0.020Ω at 100kHz, and it can withstand large ripple currents up to 2800mA (@125℃), ensuring smooth and stable output current.

【Recommended Core Specifications】

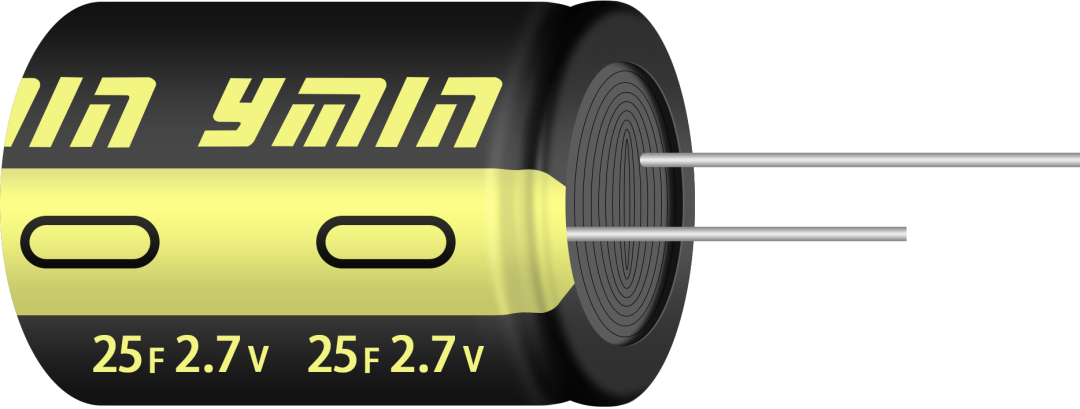

| CPM Collision Module: Double-Layer Supercapacitor Solution, Replacing Batteries, Millisecond-Level Response

The occurrence of emergencies such as electronic door lock malfunctions in new energy vehicles has led to new applications for CPM collision power modules, while also raising the requirement for instantaneous start-up. YMIN provides a high-reliability double-layer supercapacitor SDH/SDL(H) solution to address this, replacing batteries with poor low-temperature performance. Certified by AEC-Q200, its automotive-grade fully automated production line is in operation, ensuring product consistency and providing reliable protection for collision safety.

· Ultra-high power density: Millisecond-level response, instantly providing hundreds of amperes of current to ensure reliable door lock operation after a collision;

· Wide temperature range performance: Capacity decay <10% and ESR change <15% at -40℃ to 85℃, maintenance-free throughout its entire lifespan.

· Ultra-long lifespan: Cycle life exceeding 500,000 cycles, high temperature resistance of 85℃@1000 hours;

【Recommended Core Specifications】

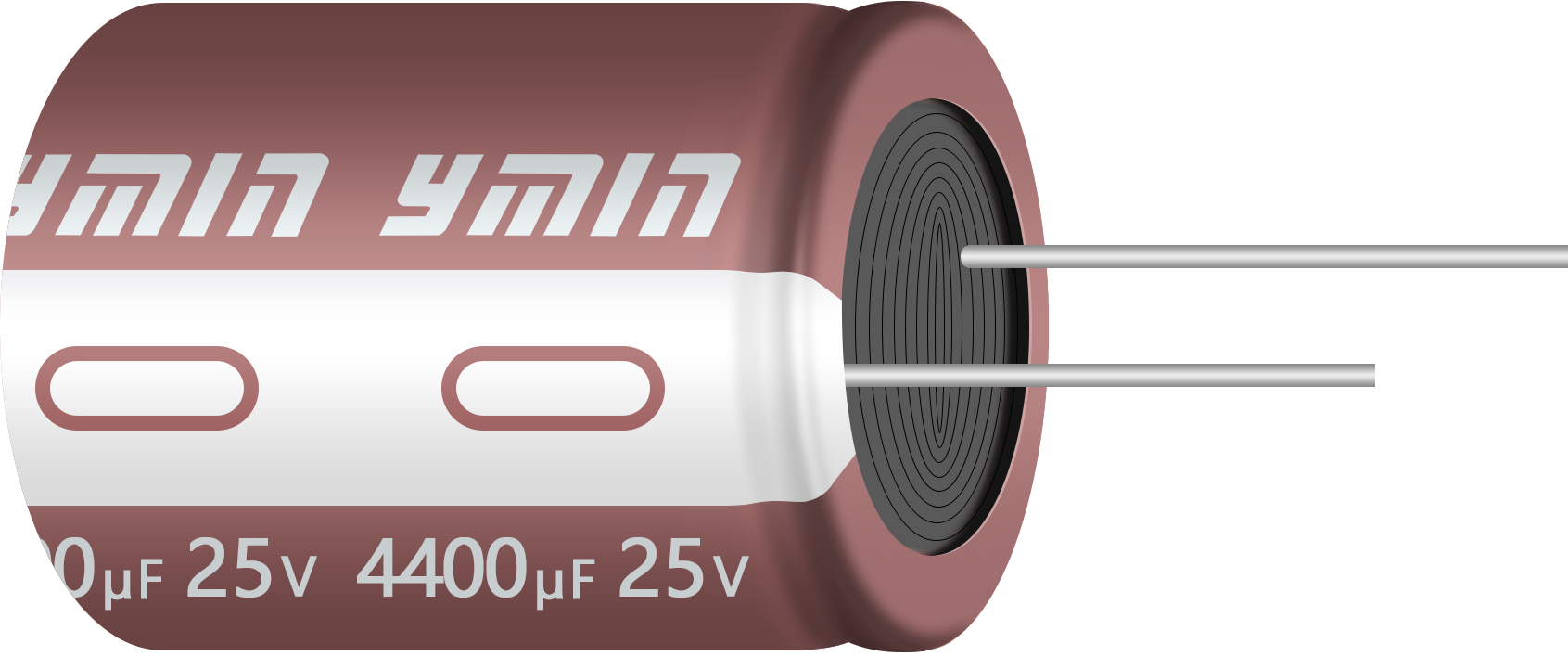

| Airbag ECU: LK Series Aluminum Electrolytic Capacitor Solution

Airbag ECUs place high demands on low-temperature discharge, high-temperature lifespan, and durability. ymin’s LK series liquid-leaded aluminum electrolytic capacitors, certified by AEC-Q200, can directly replace the NCC LBG/LBV series.

* Low-Temperature High-Rate Discharge: ymin LK series achieves an ESR as low as 97.72mΩ at -40℃/120Hz;

* High-Temperature Long Lifespan: Capacitance decay at 105℃/3000h (-2.71%), performance comparable to Japanese counterparts, enabling direct replacement;

* Durability: 100,000 cycle life, ensuring stable performance during frequent self-tests.

【Recommended Core Specifications】

| Electric Drive & Control: Thin-Film Capacitor Solution, Easily Handling the Challenges of 800V High-Voltage Systems

The product utilizes modified metallized polypropylene film and a multi-tab structure, with ultra-low ESR perfectly suited for SiC high-frequency circuits, effectively suppressing voltage spikes and reducing overall power consumption. Equipped with self-healing protection technology, it is safe and reliable to use.

· Non-polar design with a lifespan exceeding 100,000 hours, and fully sealed epoxy encapsulation ensures stable operation in harsh automotive environments.

· Real-world application: 8 MDP capacitors replace 22 aluminum electrolytic capacitors, reducing PCB area by over 50%, lowering peak bus voltage by 40%, and improving system peak efficiency by approximately 1.5%.

YMIN showcases its superior capacitor products and cordially invites you to visit and explore solutions.

Whether you are facing challenges with thermal management vibration failure or seeking the optimal solution for domestically produced safety systems, we look forward to your visit to the YMIN booth (Hall N1, Booth 705) to discuss the infinite possibilities that capacitor technology brings to new energy vehicles!

Capacitor Solutions，Ask YMIN for your Applications.
