YMIN snap-in type /bolt-type aluminum electrolytic capacitors | Core solution for long-term energy storage and voltage stabilization of photovoltaic inverters

A single inverter outage results in more than just maintenance; it represents a tangible loss of power generation. In large ground-mounted power plants, a single inverter outage can lead to a loss of hundreds of yuan in power generation per day. If component replacement takes even longer, the losses will be even greater.

A string photovoltaic inverter is typically designed for a lifespan of 20-25 years. However, the DC-Link capacitor is often the first component to age and fail, becoming a bottleneck that lowers the inverter’s overall reliability. For photovoltaic power plant owners and inverter manufacturers, the real cost is never the capacitors themselves, which cost only a few yuan or tens of yuan, but rather the losses from outages, reduced power generation, after-sales maintenance costs, and damage to brand reputation.

I. Photovoltaic Inverter Capacitors: The Most Stringent Industrial-Grade Operating Conditions

Photovoltaic inverters operate outdoors for extended periods, and the capacitors face some of the most demanding operating conditions in any industrial application:

Continuous High Temperatures: In summer, inverter enclosure temperatures can reach 70-90°C, accelerating electrolyte evaporation and causing a continuous increase in ESR (Equivalent Series Resistance), leading to a vicious cycle of “heating → degradation → more heat.”

Day-Night Temperature Cycles: High-temperature operation during the day and cooling at night result in daily thermal expansion and contraction, accelerating seal aging and mechanical fatigue, and easily causing electrolyte leakage.

High Ripple Current: MPPT (Maximum Power Point Tracking) + IGBT/SiC high-frequency switching generates significant ripple, and ESR heating further accelerates capacitor aging.

Evolution of High-Voltage Systems: Currently, 1500V systems are standard in ground-mounted power plants, with DC-Link voltages reaching 800-1100V, continuously increasing the voltage withstand requirements for capacitors.

25-Year Lifespan Requirement: Far Exceeding the 5-10 Year Lifespan of Typical Industrial Products The 25-year lifespan requirement necessitates extremely low capacitance degradation and extremely high sealing reliability.

Grid fluctuations: Frequent voltage changes, flashovers, and surges require capacitors to withstand transient overvoltage tests at all times.

These operational challenges faced by capacitors ultimately translate into actual losses for customers.

II. YMIN snap in type  Aluminum Electrolytic Capacitors | Every Advantage Corresponds to Perceptible Value for Customers

Since its establishment in 2009, YMIN Electronics’ Liquid Large Scale Business Unit has been deeply involved in the development of snap in type /bolt-shaped aluminum electrolytic capacitors. Its products are widely used in photovoltaic inverters, charging piles, vehicle OBCs, outdoor energy storage power supplies, and industrial frequency converters, making it one of the earliest manufacturers in China to systematically enter the photovoltaic inverter capacitor market. Addressing the extreme operating conditions of photovoltaic inverters, YMIN has launched the SW6/CW6/CW3 series snap in type  aluminum electrolytic capacitors, matching the 25-year lifespan requirements of the photovoltaic industry in terms of voltage withstand capability, lifespan, and ripple tolerance.

1. Ultra-high voltage withstand coverage, suitable for high-voltage photovoltaic systems across the entire power range

YMIN’s snap in type /bolt type aluminum electrolytic capacitors cover voltage specifications from 16V to 630V. In 2010, YMIN pioneered the 600V ultra-high voltage snap in type  product in China, accumulating profound technical expertise in the high-voltage field:

- Full voltage range coverage from 16V to 630V, matching the DC-Link requirements of 1000V/1500V photovoltaic systems

- Rated voltage with a 20-30% safety margin, effectively resisting grid surges and voltage spikes

- CW6 series supports up to 630V, suitable for capacitor series solutions on the DC-Link side of 1500V systems

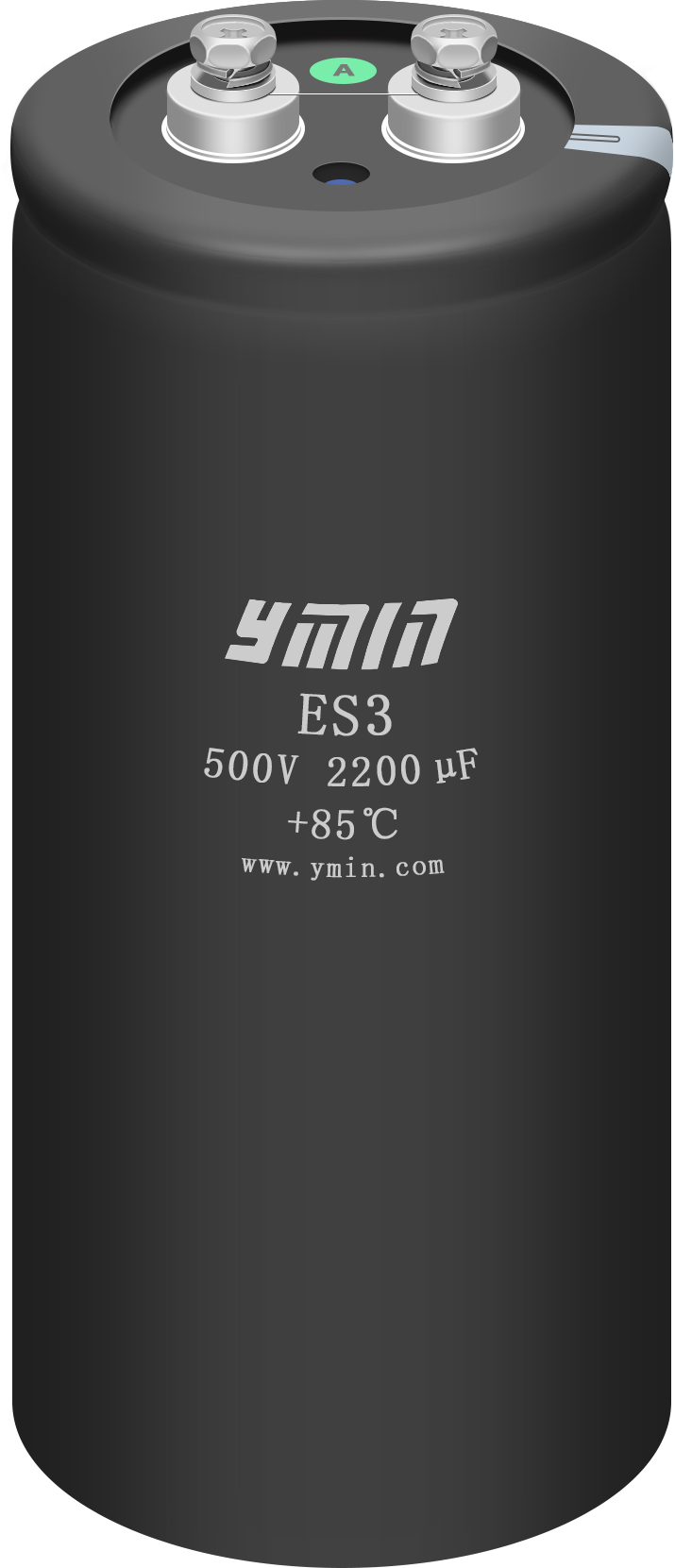

- ES3 bolt type series offers 500V/2200μF specifications, suitable for high-voltage filtering in centralized high-power inverters

YMIN’s corresponding solutions for different photovoltaic systems are as follows:

2. Long lifespan and high temperature resistance, meeting the 25-year design life requirement of photovoltaic systems.

YMIN utilizes high-temperature resistant electrolyte and proprietary sealing technology. The SW6/CW6 series boasts a rated lifespan of 6000 hours at 105℃, and based on Arrhenius model calculations, the lifespan at 85℃ is approximately 24000 hours. Lifespan parameters for each series are as follows:

*Actual lifespan is affected by factors such as ambient temperature, ripple current, and heat dissipation conditions. A precise assessment can be made using the lifespan calculator on the YMIN website.
Sealing reliability is key to a long lifespan.

- High-temperature resistant butyl rubber (IIR)/ethylene propylene diene monomer (EPDM) sealing plugs reduce electrolyte evaporation.

- Dual sealing structure with aluminum shell and sealing plug, passed 85℃/85%RH damp heat test.

- Strict capacity decay control (≤-10% over the entire lifespan) ensures stable operation throughout the photovoltaic system’s lifespan.

Longer lifespan means a lower probability of capacitor replacement, reducing downtime maintenance labor costs and power generation loss, and lowering the total cost of ownership (TCO) of the power plant.

3. High Ripple Tolerance + Low Loss, Boosting Inverter Conversion Efficiency

YMIN optimizes electrode structure and electrolyte formulation, resulting in outstanding high ripple current tolerance:

- Ripple current tolerance is 30% higher than conventional products, effectively absorbing high-frequency pulsating current during MPPT tracking and inversion.

- Low equivalent series resistance (ESR) design reduces power consumption and heat generation, helping to improve inverter conversion efficiency by 0.2~0.5%.

- Low leakage current (as low as 0.94mA), reducing useless power consumption, especially noticeable in improving standby power consumption at night.

- Optimized winding structure reduces equivalent series inductance (ESL), suitable for SiC MOSFET switching frequencies of 20~40kHz.

YMIN has created a virtuous cycle from the design stage: low ESR → low temperature rise → slow electrolyte evaporation → more stable ESR → longer lifespan, breaking the vicious cycle of “high temperature – degradation” from the source, bringing tangible power generation benefits to customers.

4. Ultra-wide operating temperature range and high stability, suitable for installation scenarios in all climates worldwide

YMIN snap in type  aluminum electrolytic capacitors support a wide operating temperature range of -40℃ to +105℃, making them suitable for installation environments in different regions.

Addressing the challenges of thin air and poor heat dissipation at high altitudes, Ymin’s low-temperature rise design provides a greater derating margin, ensuring safe operation even at altitudes above 3000m.

5. Miniaturization and Easy Integration, Cost Reduction and Efficiency Improvement Throughout the Process

- Smaller size for the same specifications, adapting to the trend of inverter miniaturization and lightweighting, with particularly significant advantages in string inverters.

- Standard snap-in package, dual-pin through-hole design for strong compatibility, suitable for automated production line surface mount manufacturing.

- Domestically developed, with a lead time of 2-4 weeks for standard specifications (Japanese brands typically take 6-12 weeks), helping customers reduce supply chain inventory pressure.

- Supports customized development, providing rapid response to non-standard sizes, special voltage ratings, and custom pin requirements.

- 3D CAD models and SPICE simulation models are available for download on the official website, helping customers shorten the front-end design and development cycle.

III. Total Cost of Ownership (TCO) Calculation: Seemingly Higher Unit Price, Lower Actual Total Cost

Many customers are concerned about the unit price of aluminum electrolytic capacitors. However, the truly expensive aspect is never the device itself, but rather the downtime losses, power generation losses, and after-sales maintenance costs caused by premature capacitor failure.

Based on the equivalent service life of YMIN products (15-25 years), compared to conventional aluminum electrolytic capacitors which need replacement every 5-8 years, the initial purchase of YMIN capacitors may cost tens of yuan more, but it can reduce capacitor replacements by 1-2 times, saving thousands of yuan in maintenance labor and power generation losses during downtime. The total lifecycle cost can actually decrease by about 20%-30%—the increased power generation alone already covers the initial cost of the components.

In short: a few tens of yuan investment in components buys out thousands of yuan in downtime, returns, and power generation loss risks.

IV. Recommended Scenarios and Selection Table

snap in type  aluminum electrolytic capacitor

Bolted aluminum electrolytic capacitor

In addition to aluminum electrolytic capacitors, ymin Electronics also offers the MDR/MDP series of thin-film capacitors, suitable for SiC high-frequency inverter solutions with more stringent ESL requirements, as well as supercapacitor modules (for DC support and short-term backup power in string inverters), supporting customers’ selection needs for different technical routes.

V. Frequently Asked Questions (Q&A)

Q1: Compared to conventional capacitors, ymin products are slightly more expensive. Why is it worth choosing them?

A1: The real expense is not the capacitor itself, but the power generation loss and labor maintenance costs caused by inverter downtime. Although the unit price of a single capacitor is slightly higher, it can reduce the frequency of subsequent capacitor replacements, avoid downtime losses of hundreds of yuan per day, and reduce the total life cycle cost of the power plant. A few yuan of margin for upgrades can buy out thousands of yuan of downtime repair risks, and in the long run, the benefits far outweigh the initial investment.

Q2: How do ymin’s snap in type  aluminum electrolytic capacitors meet the high withstand voltage requirements of a 1500V photovoltaic system? Is additional protection circuitry required?

A2: YMIN CW6 series snap in type  aluminum electrolytic capacitors support a maximum rated voltage of 630V. In 1500V photovoltaic systems (DC-Link voltage 800~1100V), the withstand voltage can be doubled by connecting two capacitors in series, with an additional 20%~30% safety margin, effectively resisting grid surges and voltage spikes. Meanwhile, YMIN capacitors adopt a low leakage current design (as low as 0.94mA), resulting in lower power consumption of the voltage equalization resistor when connected in series, eliminating the need for additional complex protection circuits. For centralized high-power inverters, the YMIN ES3 bolt-type series offers a 500V/2200μF large-capacity solution, which can be directly used for high-voltage filtering. For actual selection, please refer to the official website’s lifespan calculator or contact technical support to evaluate the series voltage equalization design.

VI. Summary

Shanghai YMIN Electronics has been deeply involved in the development of snap in type /bolt-shaped aluminum electrolytic capacitors for over 20 years. Its full range of products, developed for the extreme operating conditions of photovoltaic inverters, covers the entire power range from micro-inverters to centralized high-power inverters, helping customers reduce capacitor failure risks, minimize downtime losses, and optimize total lifecycle costs.

For datasheets, samples, or product selection consultation, please visit YMIN’s website www.ymin.com or call the product hotline 400-900-1922.
