Screw terminal aluminum electrolytic capacitor ES6

Screw terminal aluminum electrolytic capacitor ES6 Featured Image
  • Screw terminal aluminum electrolytic capacitor ES6

Short Description:

85℃6000 hours suitable for UPS power supply and industrial frequency conversion RoHS directive compliance


Product Detail

List of Products Number

Product Tags

Main technical parameters

Technical Parameter

 ♦ 85℃ 6000 Hours

♦ Designed For Power Supply, Inverter, Medium Frequency Furnace

♦ DC Welder, Welding Machine

♦ High Ripple Current, Small Size, Long Life

♦ RoHS Compliant

Specification

Items

Characteristics

Temperature Range(℃)

-40(-25)℃~+85℃

Voltage Range(V)

200 〜500V.DC

Capacitance Range(uF)

1000 〜47000uF ( 20℃ 120Hz )

Capacitance Tolerance

±20%

Leakage Current(mA)

<1.5mA or 0.01 CV, 5 minutes test at 20℃

Maximum DF(20℃)

0.18(20℃, 120HZ)

Temperature Characteristics(120Hz)

200-450 C(-25℃)/C(+20℃)≥0.7 ； 500 C(-25℃)/C(+20℃)≥0.6

Insulating Resistance

The value measured by applying DC 500V insulation resistance tester between all terminals and snap ring with insulating sleeve = 100mΩ.

Insulating Voltage

Apply AC 2000V between all terminals and snap ring with insulating sleeve for 1 minute and no abnormality appears.

Endurance

Apply rated ripple current on capacitor with voltage not more than rated voltage under 85 ℃ environment and apply rated voltage for 6000hours, then recover to 20℃ environment and the test results should satisfy the requirements as below.

Capacitance change rate (△C )

≤initial value 土20%

DF (tgδ)

≤200% of initial specification value

Leakage current(LC)

≤initial specification value

Shelf Life

Capacitor kept in 85 ℃ environment fbr 1000 hours, then tested in 20℃ environment and the test result should satisfy the requirements as below.

Capacitance change rate (△C )

≤initial value ±20%

DF (tgδ)

≤200% of initial specification value

Leakage current(LC)

≤initial specification value

(Voltage pretreatment should be done before test: apply rated voltage on both ends of capacitor through a resister of about 1000Ω for 1 Hrs, then discharge electricity through 1Ω/V resister after pretreatment. Place under normal temperature fbr 24hrs after total discharging, then starts test.)

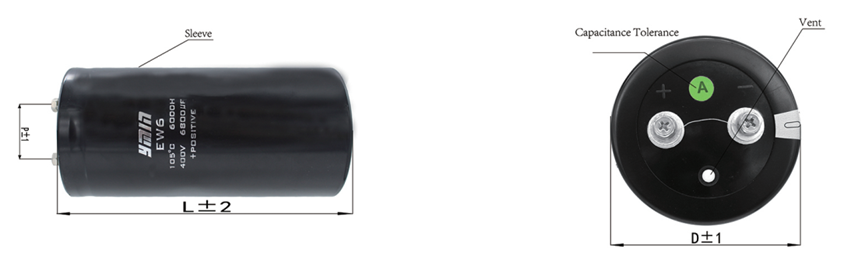

Product Dimensional Drawing

Dimension (Unit:mm)

D(mm)

51

64

77

90

101

P(mm)

22

28.3

32

32

41

Screw

M5

M5

M5

M6

M8

Terminal Diameter(mm)

13

13

13

17

17

Torque(n.m)

2.2

2.2

2.2

3.5

7.5

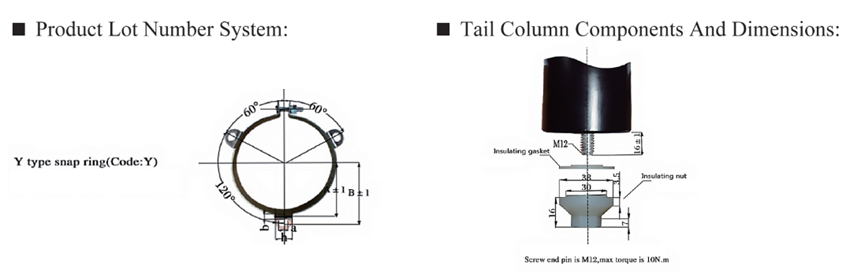

Diameter(mm)

A(mm)

B(mm)

a(mm)

b(mm)

h(mm)

51

31.8

36.5

7

4.5

14

64

38.1

42.5

7

4.5

14

77

44.5

49.2

7

4.5

14

90

50.8

55.6

7

4.5

14

101

56.5

63.4

7

4.5

14

Ripple Current Correction Parameter

Frequency Correction Coefficient Of Rated Ripple Current

Frequency (Hz)

50Hz

120Hz

300Hz

1KHz

≥100KHz

Coefficient

0.7

1

1.1

1.3

1.4

Temperature Correction Coefficient Of Rated Ripple Current

Temperature(℃)

40℃

60℃

85℃

Coefficient

1.89

1.67

1

Screw Terminal Capacitors: Versatile Components for Electrical Systems

Screw terminal capacitors are essential components in electrical systems, providing capacitance and energy storage capabilities in a wide range of applications. In this article, we will explore the features, applications, and advantages of screw terminal capacitors.

Features

Screw terminal capacitors, as the name suggests, are capacitors equipped with screw terminals for easy and secure electrical connections. These capacitors typically have cylindrical or rectangular shapes, with one or more pairs of terminals for connection to the circuit. The terminals are usually made of metal, providing a reliable and durable connection.

One of the key features of screw terminal capacitors is their high capacitance values, which range from microfarads to farads. This makes them suitable for applications requiring large amounts of charge storage. Additionally, screw terminal capacitors are available in various voltage ratings to accommodate different voltage levels in electrical systems.

Applications

Screw terminal capacitors find applications in a wide range of industries and electrical systems. They are commonly used in power supply units, motor control circuits, frequency converters, UPS (Uninterruptible Power Supply) systems, and industrial automation equipment.

In power supply units, screw terminal capacitors are often employed for filtering and voltage regulation purposes, helping to smooth out voltage fluctuations and improve overall system stability. In motor control circuits, these capacitors assist in starting and running induction motors by providing the necessary phase shift and reactive power compensation.

Moreover, screw terminal capacitors play a crucial role in frequency converters and UPS systems, where they help to maintain stable voltage and current levels during power fluctuations or outages. In industrial automation equipment, these capacitors contribute to the efficient operation of control systems and machinery by providing energy storage and power factor correction.

Advantages

Screw terminal capacitors offer several advantages that make them preferred choices in many applications. Their screw terminals facilitate easy and secure connections, ensuring reliable performance even in demanding environments. Additionally, their high capacitance values and voltage ratings allow for efficient energy storage and power conditioning.

Furthermore, screw terminal capacitors are designed to withstand high temperatures, vibrations, and electrical stresses, making them suitable for use in harsh industrial environments. Their robust construction and long service life contribute to the overall reliability and durability of electrical systems.

Conclusion

In conclusion, screw terminal capacitors are versatile components that play vital roles in various electrical systems and applications. With their high capacitance values, voltage ratings, and robust construction, they provide efficient energy storage, voltage regulation, and power conditioning solutions. Whether in power supply units, motor control circuits, frequency converters, or industrial automation equipment, screw terminal capacitors offer reliable performance and contribute to the smooth operation of electrical systems.

  • Previous:
  • Next:
    • Series State Products Number Operating temperature (℃) Voltage(V.DC) Capacitance(uF) Diameter(mm) Length(mm) Life (hrs) Certification
    ES6 mass product ES62D472ANNCG06M5 -25~85 200 4700 51 90 6000 -
    ES6 mass product ES62D562ANNCG07M5 -25~85 200 5600 51 96 6000 -
    ES6 mass product ES62D682ANNDG03M5 -25~85 200 6800 64 80 6000 -
    ES6 mass product ES62D682ANNCG11M5 -25~85 200 6800 51 115 6000 -
    ES6 mass product ES62D822ANNDG06M5 -25~85 200 8200 64 90 6000 -
    ES6 mass product ES62D822ANNCG14M5 -25~85 200 8200 51 130 6000 -
    ES6 mass product ES62D103ANNDG07M5 -25~85 200 10000 64 96 6000 -
    ES6 mass product ES62D103ANNCG18M5 -25~85 200 10000 51 150 6000 -
    ES6 mass product ES62D123ANNEG06M5 -25~85 200 12000 77 90 6000 -
    ES6 mass product ES62D123ANNDG11M5 -25~85 200 12000 64 115 6000 -
    ES6 mass product ES62D153ANNEG07M5 -25~85 200 15000 77 96 6000 -
    ES6 mass product ES62D153ANNDG14M5 -25~85 200 15000 64 130 6000 -
    ES6 mass product ES62D183ANNEG11M5 -25~85 200 18000 77 115 6000 -
    ES6 mass product ES62D183ANNDG19M5 -25~85 200 18000 64 155 6000 -
    ES6 mass product ES62D222ANNFG07M6 -25~85 200 2200 90 96 6000 -
    ES6 mass product ES62D222ANNEG14M5 -25~85 200 2200 77 130 6000 -
    ES6 mass product ES62D273ANNFG14M6 -25~85 200 27000 90 130 6000 -
    ES6 mass product ES62D273ANNEG22M5 -25~85 200 27000 77 165 6000 -
    ES6 mass product ES62D333ANNFG18M6 -25~85 200 33000 90 150 6000 -
    ES6 mass product ES62D333ANNEG26M5 -25~85 200 33000 77 190 6000 -
    ES6 mass product ES62D393ANNGG16M8 -25~85 200 39000 101 140 6000 -
    ES6 mass product ES62D393ANNFG21M6 -25~85 200 39000 90 160 6000 -
    ES6 mass product ES62D473ANNGG23M8 -25~85 200 47000 101 170 6000 -
    ES6 mass product ES62D473ANNFG26M6 -25~85 200 47000 90 190 6000 -
    ES6 mass product ES62E332ANNCG06M5 -25~85 250 3300 51 90 6000 -
    ES6 mass product ES62E392ANNCG07M5 -25~85 250 3900 51 96 6000 -
    ES6 mass product ES62E472ANNDG03M5 -25~85 250 4700 64 80 6000 -
    ES6 mass product ES62E472ANNCG11M5 -25~85 250 4700 51 115 6000 -
    ES6 mass product ES62E562ANNDG06M5 -25~85 250 5600 64 90 6000 -
    ES6 mass product ES62E562ANNCG14M5 -25~85 250 5600 51 130 6000 -
    ES6 mass product ES62E682ANNDG07M5 -25~85 250 6800 64 96 6000 -
    ES6 mass product ES62E682ANNCG18M5 -25~85 250 6800 51 150 6000 -
    ES6 mass product ES62E822ANNEG06M5 -25~85 250 8200 77 90 6000 -
    ES6 mass product ES62E822ANNDG11M5 -25~85 250 8200 64 115 6000 -
    ES6 mass product ES62E103ANNEG07M5 -25~85 250 10000 77 96 6000 -
    ES6 mass product ES62E103ANNDG14M5 -25~85 250 10000 64 130 6000 -
    ES6 mass product ES62E123ANNEG11M5 -25~85 250 12000 77 115 6000 -
    ES6 mass product ES62E123ANNDG19M5 -25~85 250 12000 64 155 6000 -
    ES6 mass product ES62E153ANNFG07M6 -25~85 250 15000 90 96 6000 -
    ES6 mass product ES62E153ANNEG14M5 -25~85 250 15000 77 130 6000 -
    ES6 mass product ES62E183ANNFG11M6 -25~85 250 18000 90 115 6000 -
    ES6 mass product ES62E183ANNEG18M5 -25~85 250 18000 77 150 6000 -
    ES6 mass product ES62E222ANNFG14M6 -25~85 250 2200 90 130 6000 -
    ES6 mass product ES62E222ANNEG23M5 -25~85 250 2200 77 170 6000 -
    ES6 mass product ES62E273ANNFG18M6 -25~85 250 27000 90 150 6000 -
    ES6 mass product ES62E273ANNEG26M5 -25~85 250 27000 77 190 6000 -
    ES6 mass product ES62E333ANNGG18M8 -25~85 250 33000 101 150 6000 -
    ES6 mass product ES62E333ANNFG30M6 -25~85 250 33000 90 210 6000 -
    ES6 mass product ES62V222ANNCG06M5 -25~85 350 2200 51 90 6000 -
    ES6 mass product ES62V272ANNDG03M5 -25~85 350 2700 64 80 6000 -
    ES6 mass product ES62V272ANNCG11M5 -25~85 350 2700 51 115 6000 -
    ES6 mass product ES62V332ANNDG06M5 -25~85 350 3300 64 90 6000 -
    ES6 mass product ES62V332ANNCG14M5 -25~85 350 3300 51 130 6000 -
    ES6 mass product ES62V392ANNDG06M5 -25~85 350 3900 64 90 6000 -
    ES6 mass product ES62V392ANNCG18M5 -25~85 350 3900 51 150 6000 -
    ES6 mass product ES62V472ANNEG06M5 -25~85 350 4700 77 90 6000 -
    ES6 mass product ES62V472ANNDG11M5 -25~85 350 4700 64 115 6000 -
    ES6 mass product ES62V562ANNEG11M5 -25~85 350 5600 77 115 6000 -
    ES6 mass product ES62V562ANNDG14M5 -25~85 350 5600 64 130 6000 -
    ES6 mass product ES62V682ANNEG11M5 -25~85 350 6800 77 115 6000 -
    ES6 mass product ES62V682ANNDG19M5 -25~85 350 6800 64 155 6000 -
    ES6 mass product ES62V822ANNFG11M6 -25~85 350 8200 90 115 6000 -
    ES6 mass product ES62V822ANNEG14M5 -25~85 350 8200 77 130 6000 -
    ES6 mass product ES62V103ANNFG11M6 -25~85 350 10000 90 115 6000 -
    ES6 mass product ES62V103ANNEG19M5 -25~85 350 10000 77 155 6000 -
    ES6 mass product ES62V123ANNFG18M6 -25~85 350 12000 90 150 6000 -
    ES6 mass product ES62V123ANNEG26M5 -25~85 350 12000 77 190 6000 -
    ES6 mass product ES62V153ANNGG18M8 -25~85 350 15000 101 150 6000 -
    ES6 mass product ES62V153ANNFG23M6 -25~85 350 15000 90 170 6000 -
    ES6 mass product ES62V183ANNGG23M8 -25~85 350 18000 101 170 6000 -
    ES6 mass product ES62V183ANNFG26M6 -25~85 350 18000 90 190 6000 -
    ES6 mass product ES62V222ANNGG28M8 -25~85 350 2200 101 200 6000 -
    ES6 mass product ES62V222ANNFG31M6 -25~85 350 2200 90 220 6000 -
    ES6 mass product ES62V253ANNGG30M8 -25~85 350 25000 101 210 6000 -
    ES6 mass product ES62V253ANNFG36M6 -25~85 350 25000 90 250 6000 -
    ES6 mass product ES62G222ANNCG07M5 -25~85 400 2200 51 96 6000 -
    ES6 mass product ES62G272ANNDG03M5 -25~85 400 2700 64 80 6000 -
    ES6 mass product ES62G272ANNCG11M5 -25~85 400 2700 51 115 6000 -
    ES6 mass product ES62G332ANNDG06M5 -25~85 400 3300 64 90 6000 -
    ES6 mass product ES62G332ANNCG18M5 -25~85 400 3300 51 150 6000 -
    ES6 mass product ES62G392ANNEG06M5 -25~85 400 3900 77 90 6000 -
    ES6 mass product ES62G392ANNDG11M5 -25~85 400 3900 64 115 6000 -
    ES6 mass product ES62G472ANNEG07M5 -25~85 400 4700 77 96 6000 -
    ES6 mass product ES62G472ANNDG11M5 -25~85 400 4700 64 115 6000 -
    ES6 mass product ES62G562ANNEG11M5 -25~85 400 5600 77 115 6000 -
    ES6 mass product ES62G562ANNDG14M5 -25~85 400 5600 64 130 6000 -
    ES6 mass product ES62G682ANNEG14M5 -25~85 400 6800 77 130 6000 -
    ES6 mass product ES62G682ANNDG19M5 -25~85 400 6800 64 155 6000 -
    ES6 mass product ES62G822ANNFG11M6 -25~85 400 8200 90 115 6000 -
    ES6 mass product ES62G822ANNEG18M5 -25~85 400 8200 77 150 6000 -
    ES6 mass product ES62G103ANNFG14M6 -25~85 400 10000 90 130 6000 -
    ES6 mass product ES62G103ANNEG23M5 -25~85 400 10000 77 170 6000 -
    ES6 mass product ES62G123ANNFG18M6 -25~85 400 12000 90 150 6000 -
    ES6 mass product ES62G123ANNEG26M5 -25~85 400 12000 77 190 6000 -
    ES6 mass product ES62G153ANNGG18M8 -25~85 400 15000 101 150 6000 -
    ES6 mass product ES62G153ANNFG23M6 -25~85 400 15000 90 170 6000 -
    ES6 mass product ES62G183ANNGG18M8 -25~85 400 18000 101 150 6000 -
    ES6 mass product ES62G183ANNFG30M6 -25~85 400 18000 90 210 6000 -
    ES6 mass product ES62G222ANNGG30M8 -25~85 400 2200 101 210 6000 -
    ES6 mass product ES62G222ANNFG36M6 -25~85 400 2200 90 250 6000 -
    ES6 mass product ES62W102ANNCG03M5 -25~85 450 1000 51 80 6000 -
    ES6 mass product ES62W152ANNCG07M5 -25~85 450 1500 51 96 6000 -
    ES6 mass product ES62W222ANNDG03M5 -25~85 450 2200 64 80 6000 -
    ES6 mass product ES62W222ANNCG11M5 -25~85 450 2200 51 115 6000 -
    ES6 mass product ES62W272ANNDG07M5 -25~85 450 2700 64 96 6000 -
    ES6 mass product ES62W272ANNCG18M5 -25~85 450 2700 51 150 6000 -
    ES6 mass product ES62W332ANNEG06M5 -25~85 450 3300 77 90 6000 -
    ES6 mass product ES62W332ANNDG11M5 -25~85 450 3300 64 115 6000 -
    ES6 mass product ES62W392ANNEG07M5 -25~85 450 3900 77 96 6000 -
    ES6 mass product ES62W392ANNDG14M5 -25~85 450 3900 64 130 6000 -
    ES6 mass product ES62W472ANNEG11M5 -25~85 450 4700 77 115 6000 -
    ES6 mass product ES62W472ANNDG19M5 -25~85 450 4700 64 155 6000 -
    ES6 mass product ES62W562ANNFG11M6 -25~85 450 5600 90 115 6000 -
    ES6 mass product ES62W562ANNEG14M5 -25~85 450 5600 77 130 6000 -
    ES6 mass product ES62W682ANNFG11M6 -25~85 450 6800 90 115 6000 -
    ES6 mass product ES62W682ANNEG18M5 -25~85 450 6800 77 150 6000 -
    ES6 mass product ES62W822ANNFG14M6 -25~85 450 8200 90 130 6000 -
    ES6 mass product ES62W822ANNEG23M5 -25~85 450 8200 77 170 6000 -
    ES6 mass product ES62W103ANNFG19M6 -25~85 450 10000 90 155 6000 -
    ES6 mass product ES62W103ANNEG26M5 -25~85 450 10000 77 190 6000 -
    ES6 mass product ES62W123ANNGG16M8 -25~85 450 12000 101 140 6000 -
    ES6 mass product ES62W123ANNFG23M6 -25~85 450 12000 90 170 6000 -
    ES6 mass product ES62W153ANNGG18M8 -25~85 450 15000 101 150 6000 -
    ES6 mass product ES62W153ANNFG30M6 -25~85 450 15000 90 210 6000 -
    ES6 mass product ES62W183ANNGG30M8 -25~85 450 18000 101 210 6000 -
    ES6 mass product ES62W183ANNFG36M6 -25~85 450 18000 90 250 6000 -
    ES6 mass product ES62H102ANNCG06M5 -25~85 500 1000 51 90 6000 -
    ES6 mass product ES62H122ANNCG07M5 -25~85 500 1200 51 96 6000 -
    ES6 mass product ES62H152ANNDG03M5 -25~85 500 1500 64 80 6000 -
    ES6 mass product ES62H152ANNCG11M5 -25~85 500 1500 51 115 6000 -
    ES6 mass product ES62H182ANNDG07M5 -25~85 500 1800 64 96 6000 -
    ES6 mass product ES62H182ANNCG14M5 -25~85 500 1800 51 130 6000 -
    ES6 mass product ES62H222ANNEG07M5 -25~85 500 2200 77 96 6000 -
    ES6 mass product ES62H222ANNDG11M5 -25~85 500 2200 64 115 6000 -
    ES6 mass product ES62H272ANNEG11M5 -25~85 500 2700 77 115 6000 -
    ES6 mass product ES62H272ANNDG14M5 -25~85 500 2700 64 130 6000 -
    ES6 mass product ES62H332ANNEG11M5 -25~85 500 3300 77 115 6000 -
    ES6 mass product ES62H332ANNDG19M5 -25~85 500 3300 64 155 6000 -
    ES6 mass product ES62H392ANNFG08M6 -25~85 500 3900 90 100 6000 -
    ES6 mass product ES62H392ANNEG14M5 -25~85 500 3900 77 130 6000 -
    ES6 mass product ES62H472ANNFG11M6 -25~85 500 4700 90 115 6000 -
    ES6 mass product ES62H472ANNEG19M5 -25~85 500 4700 77 155 6000 -
    ES6 mass product ES62H562ANNFG14M6 -25~85 500 5600 90 130 6000 -
    ES6 mass product ES62H562ANNEG26M5 -25~85 500 5600 77 190 6000 -
    ES6 mass product ES62H682ANNGG14M8 -25~85 500 6800 101 130 6000 -
    ES6 mass product ES62H682ANNFG19M6 -25~85 500 6800 90 155 6000 -
    ES6 mass product ES62H822ANNGG18M8 -25~85 500 8200 101 150 6000 -
    ES6 mass product ES62H822ANNFG23M6 -25~85 500 8200 90 170 6000 -
    ES6 mass product ES62H103ANNGG18M8 -25~85 500 10000 101 150 6000 -
    ES6 mass product ES62H103ANNFG30M6 -25~85 500 10000 90 210 6000 -

    RELATED PRODUCTS
