YMIN VHU Series Solid-Liquid Hybrid Aluminum Electrolytic Capacitors: Low Leakage Current Technology Solution for Automotive DC-DC Systems

I. Industry Background: Low Power Consumption Evolves from “Optimization Target” to “Entry Barrier”
In Europe, particularly in the German automotive electronics sector, low power consumption requirements have evolved from “optimization targets” to “entry barriers.” This shift stems not only from a single technology development trend but also from the combined influence of vehicle regulations, energy efficiency assessment systems, and OEM design specifications.

In this context, power consumption optimization is no longer limited to the chip or topology level but extends to every passive component. Especially in DC-DC systems, the long-term cumulative effect of minute power consumption at the device level is becoming a key factor affecting the overall vehicle’s energy efficiency compliance.

II. YMIN’s Precise Positioning: Solving the Core Problem of Low Power Consumption in DC-DC Systems from the Component Source

Problem Origin: Capacitor Leakage Current (LC) is a Key Source of Hidden Losses
In DC-DC systems, excessive power consumption often does not originate from core components but from easily overlooked hidden losses—capacitor leakage current (LC).

Under standby and light-load conditions, when multiple electrolytic capacitors are used in parallel, the leakage current of a single capacitor in the μA range continuously accumulates and fluctuates with temperature and time, ultimately increasing the system’s static power consumption and making it difficult for the overall vehicle IQ to consistently meet standards.

Technical Principle: Leakage Current Optimization Solution Based on Nanoscale Dielectric Layer Aluminum Foil Technology

To address the above issues, YMIN’s VHU series solid-liquid hybrid aluminum electrolytic capacitors optimize leakage current performance from the source. Based on nanoscale dielectric layer aluminum foil technology, the VHU series significantly reduces leakage current levels while ensuring the capacitor’s performance stability after high-temperature reflow soldering, avoiding the leakage current rebound problem caused by process impacts in traditional solutions.

Selection Basis: Key Parameters of the Main Recommended Model

【Main Recommended Model: VHU 35V 270μF (10×10.5mm)】

Performance Verification: Long-Term Stability and Wide Temperature Adaptability

Based on measured performance curves:

Verified through a 4000-hour high-temperature load test, the VHU series exhibits excellent performance in both capacity retention and ESR stability, ensuring no leakage current rebound under long-term use.

The VHU series maintains excellent leakage current control capabilities across the entire temperature range of -55℃ to +135℃.

Under high-temperature and long-term operating conditions, the parameters of the VHU series remain highly consistent.

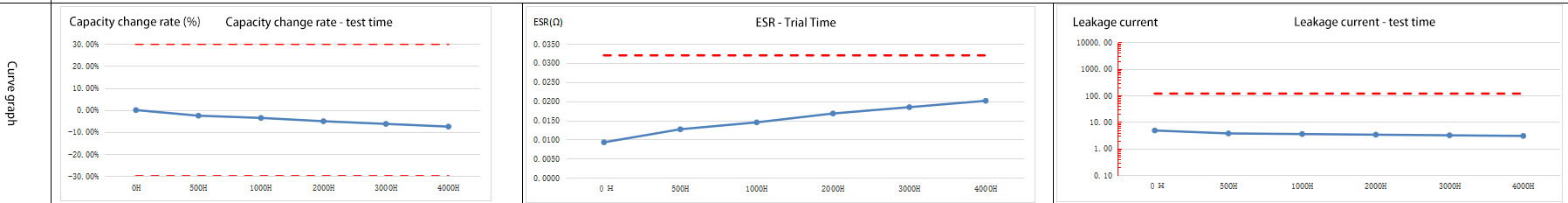

[Figure 1: VHU series 4000-hour high-temperature load test curve]

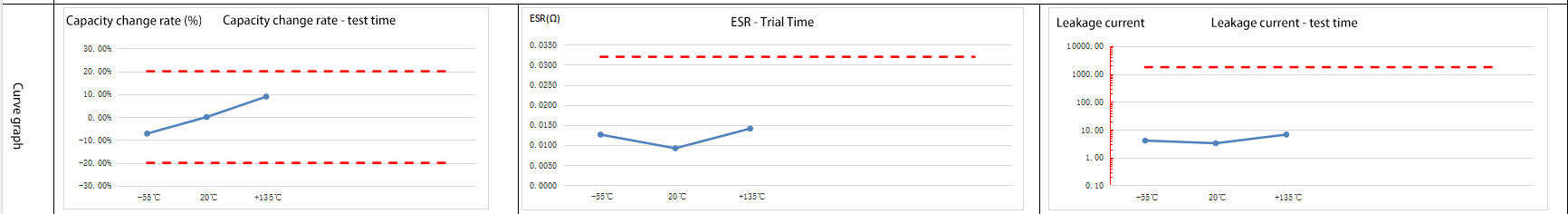

[Figure 2: VHU Series Wide Temperature Adaptability Test Curve] The above test results show that in practical DC-DC applications, the VHU series not only achieves lower initial power consumption but also maintains stability during long-term operation, effectively avoiding the power consumption risks caused by parameter drift.

III. Solution Verification: Breaking Through Power Constraints through Key Component Optimization

Application Background
In leading new energy vehicle platforms (such as 3.0 EV platforms and DMI DC-DC systems), customers have faced typical problems:

 Overall power consumption exceeds 240μA

 Inability to meet vehicle energy efficiency requirements

Solution
Without changing the original system architecture, VHU 35V 270μF (10×10.5mm) was introduced, and key node capacitors were specifically optimized and replaced.

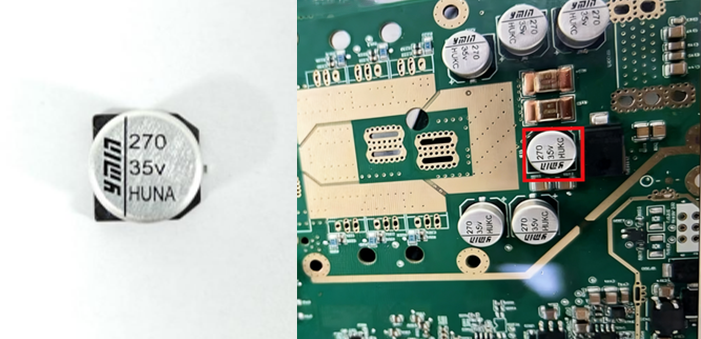

[Figure 3: Application Case of DC-DC / 5.0 DMI DC-DC on a 3.0 EV Platform for a Certain Automobile]

Verification Results
The optimized system performance is as follows:

 Power consumption significantly reduced, successfully controlled below 240μA

 Power consumption fluctuations converged, and system stability improved simultaneously

 Successfully met the vehicle’s energy consumption design requirements

This result not only achieved the target, but more importantly, it verifies that by optimizing key components, the power consumption bottleneck of the DC-DC system can be effectively broken.

IV. Conclusion: Product Certification and Selection Value

YMIN VHU series solid-liquid hybrid aluminum electrolytic capacitors, with their lower leakage current and higher stability, have helped customers achieve a leap from “parameter optimization” to “system performance breakthrough” in practical applications, providing a reliable guarantee for meeting overall power consumption standards.

The product has passed AEC-Q200 automotive-grade certification and international environmental certifications such as RoHS, REACH, and ELV, meeting stringent automotive standards and global market requirements. In automotive-grade DC-DC low-power applications, the VHU series solid-liquid hybrid aluminum electrolytic capacitors can achieve pin-to-pin replacement with leading international brands, becoming a reliable second source for customers.

Get datasheets and certification materials | Request samples | Verification support Contact the ymin technical team to quickly advance the mass production of your DC-DC low-power solution.
