Main Technical Parameters
|
project |
characteristic |
|
|
range of working temperature |
-55~+105℃ |
|
|
Rated working voltage |
2-20V |
|
|
capacity range |
5.6~220" 120Hz 20℃ |
|
|
Capacity tolerance |
±20% (120Hz 20℃) |
|
|
loss tangent |
120Hz 20℃ below the value in the list of standard products |
|
|
leakage current |
I≤0.1CV rated voltage charging for 2 minutes, 20 ℃ |
|
|
Equivalent Series Resistance (ESR) |
100kHz 20°C below the value in the list of standard products |
|
|
Surge voltage (V) |
1.15 times the rated voltage |
|
|
Durability |
The product should meet the temperature of 105 ℃, apply the rated working voltage for 2000 hours, and after 16 hours at 20 ℃, |
|
|
Capacitance change rate |
± 20% of initial value |
|
|
loss tangent |
≤200% of the initial specification value |
|
|
leakage current |
≤Initial specification value |
|
|
High temperature and humidity |
The product should meet the conditions of 60°C temperature, 90%~95%R.H humidity for 500 hours, no voltage, and 20°C for 16 hours |
|
|
Capacitance change rate |
+50% -20% of initial value |
|
|
loss tangent |
≤200% of the initial specification value |
|
|
leakage current |
to initial specification value |
|
Temperature Coefficient Of Rated Ripple Current
| temperature | T≤45℃ | 45℃<T≤85℃ | 85℃<T≤105℃ |
| coefficient | 1 | 0.7 | 0.25 |
|
Note: The surface temperature of the capacitor does not exceed the maximum operating temperature of the product |
|||
Rated Ripple Current Frequency Correction Factor
|
Frequency (Hz) |
120Hz | 1kHz | 10kHz | 100-300kHz |
|
correction factor |
0.1 | 0.45 | 0.5 | 1 |
MPD10: Technological Innovation and Application Prospects of Multilayer Polymer Aluminum Solid Electrolytic Capacitors
In today's rapidly developing electronics industry, capacitor performance is directly related to the stability and efficiency of the entire electronic system. The MPD10 multilayer polymer aluminum solid electrolytic capacitor represents a major leap forward in capacitor technology, seamlessly combining multilayer stacking technology with solid electrolyte technology to provide an unprecedented high-performance solution for modern electronic devices.
Technical Features and Performance Advantages
The MPD10 series utilizes advanced stacking polymer technology and solid electrolytes. It uses aluminum foil as the electrode material, separated by a solid electrolyte layer, achieving efficient charge storage and transfer. Compared to traditional aluminum electrolytic capacitors, the MPD10 exhibits several superior features:
Ultra-thin Design and High Space Utilization: The MPD10 series is one of the thinnest capacitors on the market. This ultra-thin design offers unparalleled advantages in space-constrained applications, making it particularly well-suited for the increasingly demanding internal space requirements of modern consumer electronics.
Excellent Temperature Stability: The product operates stably over a wide temperature range of -55°C to +105°C, ensuring reliability in a variety of harsh environments. The product maintains its performance after 2000 hours of application of the rated operating voltage at 105°C, far exceeding the lifespan of traditional electrolytic capacitors.
Excellent Electrical Performance: The MPD10 has a rated operating voltage range of 2-20V and a capacitance range of 5.6 to 220μF. Its extremely low equivalent series resistance (ESR) performs exceptionally well at 100kHz and 20°C, significantly reducing energy loss.
High Reliability and Long Life: The use of a solid-state electrolyte completely eliminates issues such as liquid electrolyte drying and leakage, significantly extending the product's lifespan.
Technological Innovation and Design Breakthroughs
The MPD10's success stems from several technological innovations:
Multi-layer Stack Structure: A unique stacked design achieves higher capacitance density and improved frequency characteristics. This design allows the capacitor to deliver higher capacitance within a limited volume while maintaining low ESR.
Solid-state Electrolyte Technology: The use of a conductive polymer as the solid electrolyte completely eliminates the issues of evaporation, leakage, and poor low-temperature performance common to traditional liquid electrolytic capacitors. The solid-state electrolyte also provides improved temperature stability and a longer service life.

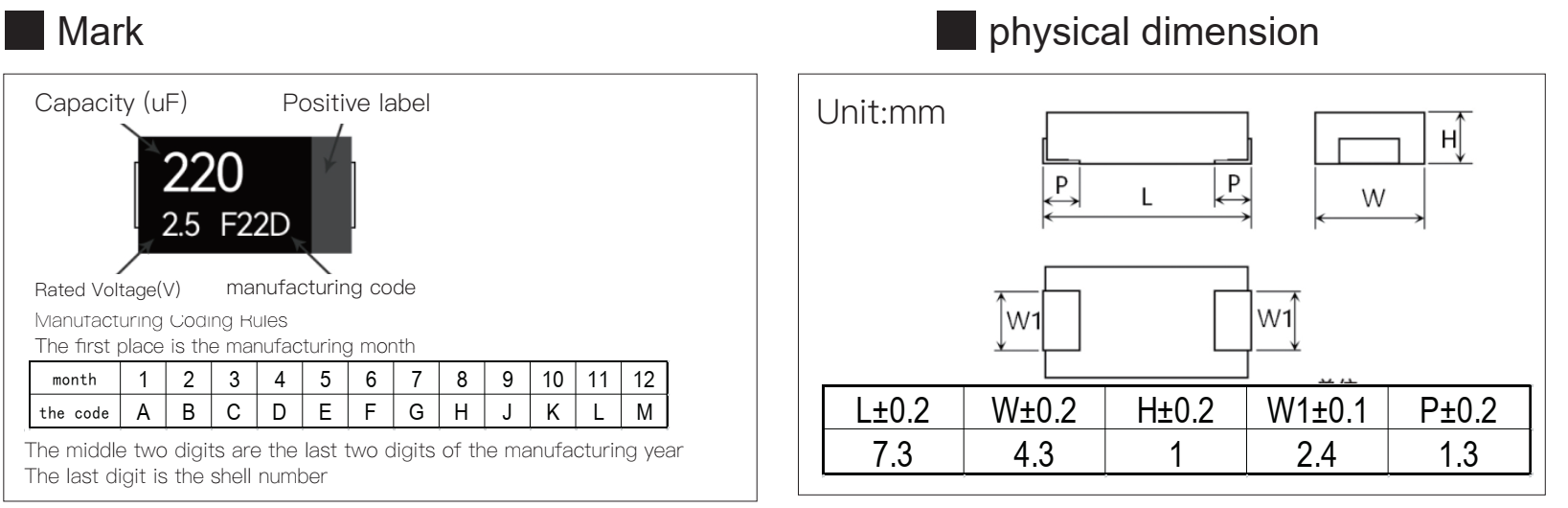

Advanced Packaging: Utilizing a compact 7.3mm × 4.3mm × 1mm package, the MPD10 achieves high performance in an extremely small footprint. Special terminal and internal connection designs ensure low ESR and high ripple current ratings.
Wide Applications
Power Management Systems: The MPD10 can be used for input and output filtering, decoupling, and energy storage in switching power supplies, voltage regulator modules, and power adapters. Its low ESR effectively suppresses power supply noise, providing clean and stable power output, making it particularly suitable for applications requiring high power quality.
Automotive Electronic Systems: With the increasing electronicization of automobiles, the MPD10 plays a vital role in engine control units, infotainment systems, electric power steering systems, and advanced driver assistance systems (ADAS). Its wide temperature range and long life fully meet the stringent reliability requirements of automotive electronics.
New Energy: The MPD10 is used for DC link support, buffering, and filtering in solar inverters, wind power generation systems, electric vehicle charging stations, and energy storage systems. Its high withstand voltage and low ESR contribute to improved energy conversion efficiency.
Industrial Automation and Drives: In inverters, servo drives, industrial robots, and automated control systems, the MPD10 can withstand high ripple currents, providing stable performance and ensuring reliable operation of industrial equipment.
Consumer Electronics: In smartphones, tablets, wearable devices, and high-end game consoles, the MPD10's ultra-thin design and high performance meet the dual demands of miniaturization and high performance in modern consumer electronics.
In-Depth Performance Parameter Analysis
The MPD10 series offers a wide range of models to cover a variety of application needs:
Low-voltage, high-capacity models, such as the MPD221M0DD10009R (2V, 220μF, ESR ≤ 9mΩ), are suitable for applications requiring large energy storage and fast response.
Medium-voltage, balanced models, such as the MPD101M0LD10012R (6.3V, 100μF, ESR ≤ 12mΩ), achieve an optimal balance between voltage and capacity, suitable for a variety of general-purpose applications.
High-voltage application models, such as the MPD330M1DD10045R (20V, 33μF, ESR ≤ 45mΩ), provide reliable solutions for high-voltage applications.
All models guarantee a service life of over 2000 hours, with leakage current strictly controlled below 0.1CV, demonstrating excellent quality consistency.
Future Development Trends
With the rapid development of technologies such as 5G communications, the Internet of Things, artificial intelligence, and new energy vehicles, the performance requirements for electronic components are continuously increasing. The MPD10 multilayer polymer aluminum solid electrolytic capacitor, with its excellent comprehensive performance, will demonstrate greater potential in the following areas:
High-frequency, high-power applications: As operating frequencies continue to increase, low ESR characteristics will become increasingly important. The MPD10's excellent high-frequency performance makes it suitable for next-generation high-frequency power applications.
High-temperature environment applications: Industry 4.0 and automotive electronics are driving demand for high-temperature components, and the MPD10's wide temperature range will be fully utilized.
Miniaturized Devices: The MPD10's ultra-thin design will be a key advantage in applications such as wearables and implantable medical devices, where component size is a critical requirement.
Conclusion
The MPD10 multilayer polymer aluminum solid electrolytic capacitor represents a new level of advancement in capacitor technology. Its superior performance and broad application prospects make it an indispensable component in modern electronic systems. Whether in traditional power management or emerging fields such as new energy and automotive electronics, the MPD10 provides reliable solutions, driving the advancement of electronic technology towards higher performance, smaller size, and greater reliability.
With continuous technological advancement and increasingly diverse market demands, the MPD10 series will continue to be optimized and upgraded, providing solid technical support and product assurance for the development of the global electronics industry. Choosing the MPD10 is more than just choosing an electronic component; it's choosing a future-proof technology solution.
| Products Number | Operate Temperature(℃） | Rated Voltage (V.DC) | Capacitance (uF) | Length(mm) | Width (mm) | Height (mm) | ESR [mΩmax] | Life(Hrs) | Leakage Current(uA) |
| MPD820M0DD10015R | -55~105 | 2 | 82 | 7.3 | 4.3 | 1 | 15 | 2000 | 16.4 |
| MPD181M0DD10012R | -55~105 | 2 | 180 | 7.3 | 4.3 | 1 | 12 | 2000 | 36 |
| MPD221M0DD10009R | -55~105 | 2 | 220 | 7.3 | 4.3 | 1 | 9 | 2000 | 44 |
| MPD680M0ED10015R | -55~105 | 2.5 | 68 | 7.3 | 4.3 | 1 | 15 | 2000 | 17 |
| MPD181M0ED10012R | -55~105 | 2.5 | 180 | 7.3 | 4.3 | 1 | 12 | 2000 | 38 |
| MPD470M0JD10020R | -55~105 | 4 | 47 | 7.3 | 4.3 | 1 | 20 | 2000 | 9.4 |
| MPD101M0JD10012R | -55~105 | 4 | 100 | 7.3 | 4.3 | 1 | 12 | 2000 | 40 |
| MPD151M0JD10009R | -55~105 | 4 | 150 | 7.3 | 4.3 | 1 | 9 | 2000 | 60 |
| MPD151M0JD10007R | -55~105 | 4 | 150 | 7.3 | 4.3 | 1 | 7 | 2000 | 60 |
| MPD330M0LD10020R | -55~105 | 6.3 | 33 | 7.3 | 4.3 | 1 | 20 | 2000 | 21 |
| MPD680M0LD10015R | -55~105 | 6.3 | 68 | 7.3 | 4.3 | 1 | 15 | 2000 | 43 |
| MPD101M0LD10012R | -55~105 | 6.3 | 100 | 7.3 | 4.3 | 1 | 12 | 2000 | 63 |
| MPD180M1AD10020R | -55~105 | 10 | 18 | 7.3 | 4.3 | 1 | 20 | 2000 | 14 |
| MPD390M1AD10018R | -55~105 | 10 | 39 | 7.3 | 4.3 | 1 | 18 | 2000 | 39 |
| MPD560M1AD10015R | -55~105 | 10 | 56 | 7.3 | 4.3 | 1 | 15 | 2000 | 68 |
| MPD150M1CD10070R | -55~105 | 16 | 15 | 7.3 | 4.3 | 1 | 70 | 2000 | 24 |
| MPD330M1CD10050R | -55~105 | 16 | 33 | 7.3 | 4.3 | 1 | 50 | 2000 | 53 |
| MPD470M1CD10030R | -55~105 | 16 | 47 | 7.3 | 4.3 | 1 | 30 | 2000 | 75 |
| MPD100M1DD10080R | -55~105 | 20 | 10 | 7.3 | 4.3 | 1 | 80 | 2000 | 20 |
| MPD220M1DD10065R | -55~105 | 20 | 22 | 7.3 | 4.3 | 1 | 65 | 2000 | 44 |
| MPD330M1DD10045R | -55~105 | 20 | 33 | 7.3 | 4.3 | 1 | 45 | 2000 | 66 |
