Short Description:

Aluminum Electrolytic Capacitor

Screw Terminal Type

105℃ 3000 hours suitable for UPS power supply and industrial control RoHS directive compliance


Product Detail

List of Products Number

Product Tags

Main technical parameters

Technical Parameter

 ♦ 105℃ 3000 Hours

♦ High Temperature

♦ RoHS Compliant

Specification

Items

Characteristics

Temperature Range(℃)

-40(-25)℃~+105℃

Voltage Range(V)

200 〜500V.DC

Capacitance Range(uF)

1000 〜33000uF ( 20℃ 120Hz )

Capacitance Tolerance

±20%

Leakage Current(mA)

≤1.5mA or 0.01 CV, 5 minutes test at 20℃

Maximum DF(20℃)

0.15(20℃, 120HZ)

Temperature Characteristics(120Hz)

200-450 C(-25℃)/C(+20℃)≥0.7 ； 500 C(-25℃)/C(+20℃)≥0.6

Insulating Resistance

The value measured by applying DC 500V insulation resistance tester between all terminals and snap ring with insulating sleeve = 100mΩ.

Insulating Voltage

Apply AC 2000V between all terminals and snap ring with insulating sleeve for 1 minute and no abnormality appears.

Endurance

Apply rated ripple current on capacitor with voltage not more than rated voltage under 105℃ environment and apply rated voltage for 3000hours, then recover to 20℃ environment and the test results should satisfy the requirements as below.

Capacitance change rate (△C )

≤initial value 土20%

DF (tgδ)

≤200% of initial specification value

Leakage current(LC)

≤initial specification value

Shelf Life

Capacitor kept in 105℃ environment for 500 hours, then tested in 20℃ environment and the test result should satisfy the requirements as below.

Capacitance change rate (△C )

≤initial value ±20%

DF (tgδ)

≤200% of initial specification value

Leakage current(LC)

≤initial specification value

(Voltage pretreatment should be done before test: apply rated voltage on both ends of capacitor through a resister of about 1000Ω for 1 Hrs, then discharge electricity through 1Ω/V resister after pretreatment. Place under normal temperature fbr 24hrs after total discharging, then starts test.)

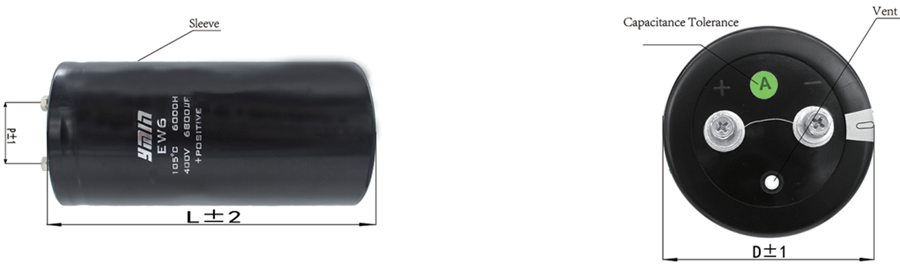

Product Dimensional Drawing

Dimension (Unit:mm)

D(mm)

51

64

77

90

101

P(mm)

22

28.3

32

32

41

Screw

M5

M5

M5

M6

M8

Terminal Diameter(mm)

13

13

13

17

17

Torque(n.m)

2.2

2.2

2.2

3.5

7.5

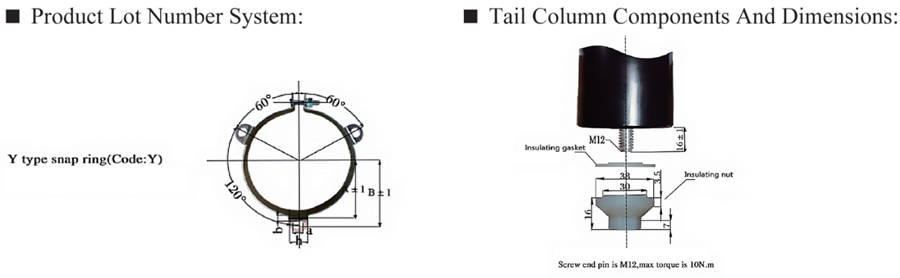

Diameter(mm)

A(mm)

B(mm)

a(mm)

b(mm)

h(mm)

51

31.8

36.5

7

4.5

14

64

38.1

42.5

7

4.5

14

77

44.5

49.2

7

4.5

14

90

50.8

55.6

7

4.5

14

101

56.5

63.4

7

4.5

14

Ripple Current Correction Parameter

Frequency (Hz)

50Hz

120Hz

500Hz

1KHz

≥10KHz

Coefficient

0.8

1

1.2

1.25

1.4

Temperature Correction Coefficient Of Rated Ripple Current

Temperature(℃)

40 ℃

60℃

85℃

105℃

Coefficient

2.7

2.2

1.7

1

EW3 Series Aluminum Electrolytic Capacitors: Cost-Effective Industrial-Grade Power Solutions

Product Overview and Technical Advantages

In modern industrial power systems, the choice of capacitor directly impacts equipment stability and service life. The EW3 series of aluminum electrolytic capacitors, launched by Shanghai YMIN Electronic Technology Co., Ltd., boasts superior performance and reliable quality, making them an ideal choice for applications such as industrial control and UPS power supplies. This series offers an operating temperature range of -40°C to +105°C, a rated voltage of 200-500V DC, and a capacitance range of 1000-33000μF, providing comprehensive power support for a wide range of industrial applications.

The EW3 series' most notable feature is its 3000-hour service life at 105°C, demonstrating its stability and durability in high-temperature environments. The use of high-quality electrolytic materials and advanced manufacturing processes ensures superior performance in harsh industrial environments.

Precision Design and Structural Features

The EW3 series embodies a commitment to continuous improvement in its mechanical design. The product is available in five diameters, ranging from 51mm to 101mm, each meticulously calculated and optimized. Screw terminals range from M5 to M8, with terminal diameters ranging from 13mm to 17mm, ensuring reliable connections while meeting the requirements of varying current levels.

For installation, the product features optimized torque parameters (2.2Nm to 7.5Nm) to ensure a secure connection while preventing damage from overtightening. The unique insulating sleeve design and 2000V AC insulation voltage test standard provide dual assurance for safe equipment operation. The capacitor housing is constructed of high-quality aluminum alloy, offering excellent heat dissipation and mechanical strength, ensuring stable performance in harsh environments such as vibration and shock.

Wide Applications

Industrial Control Systems

The EW3 series capacitors play a key role in industrial automation control systems. As power supply filtering and energy storage components, they effectively smooth voltage fluctuations, suppress electromagnetic interference, and provide stable power for precision control equipment such as PLCs and servo drives. Its rapid charge and discharge characteristics ensure instantaneous system response to sudden load changes, significantly improving control accuracy and system reliability.

UPS Uninterruptible Power Supply Systems

The EW3 series is particularly well-suited for UPS applications. In UPS systems, capacitors perform crucial functions such as energy buffering and voltage stabilization. When the mains power supply is abnormal, capacitors can promptly release stored energy, maintaining system voltage stability and ensuring uninterrupted operation of critical equipment. The product's excellent temperature characteristics enable it to maintain stable performance even in the high-temperature environments within UPS equipment, significantly enhancing system reliability.

Industrial Power Supply Equipment

The EW3 series demonstrates outstanding performance in industrial power supply equipment such as switching power supplies and variable frequency power supplies. Its low equivalent series resistance (ESR) effectively reduces power loss and improves power conversion efficiency. It can withstand high ripple currents and maintains stable performance during frequent charge and discharge cycles, extending the life of the power supply equipment.

Technical Innovation and Performance Features

Advanced Material Technology

The EW3 series utilizes high-purity aluminum foil and a specialized electrolyte formulation. Advanced etching and chemical conversion processes form a dense oxide film dielectric layer on the aluminum foil surface. This technology not only enhances the product's withstand voltage but also significantly improves its frequency and temperature characteristics. Special electrolyte additives effectively suppress gas generation and enhance high-temperature stability.

Scientific Ripple Current Handling Capability

This product offers excellent ripple current handling capabilities, automatically adjusting performance based on the operating frequency and ambient temperature. At 10kHz, the ripple current correction factor reaches 1.4, enabling the capacitor to effectively handle the high-frequency ripple current generated by high-frequency switching, reducing temperature rise and extending service life.

Stable Temperature Adaptability

The EW3 series exhibits excellent temperature characteristics. At -25°C, the capacity retention rate reaches 60%-70% of the capacity at +20°C. The temperature correction factor decreases with increasing temperature (2.7 at 40°C, 1.0 at 105°C), ensuring optimal performance across a wide range of ambient temperatures.

Strict Quality Control System

Each EW3 series capacitor undergoes a rigorous quality inspection process. Strict quality control is implemented at every stage, from raw material receipt to finished product shipment. The product has passed multiple reliability tests, including high-temperature load life testing, temperature cycling testing, and voltage withstand testing, ensuring its reliability in actual use.

In durability testing, after applying rated voltage at 105°C for 3000 hours, the capacitance change rate remained within ±20% of the initial value, the loss tangent value did not exceed 200% of the initial specification value, and the leakage current remained within the specified range. These test results fully demonstrate the product's stability during long-term use.

Engineering Application Recommendations

In actual applications, users are advised to select product specifications based on specific operating conditions. For applications with higher operating temperatures, appropriate derating should be applied to ensure product life. In high-frequency switching power supply applications, the product's ESR characteristics and ripple current handling capacity should be considered.

During installation, ensure proper wiring torque is maintained to avoid overtightening or undertightening. Ensure good heat dissipation from the capacitor to prevent local overheating that could affect product performance. When using multiple capacitors in parallel, pay attention to current sharing to ensure that each capacitor operates within a safe range.

After-Sales Service and Technical Support

Shanghai YMIN Electronic Technology Co., Ltd. provides customers with comprehensive technical support and service guarantees. The company boasts a professional technical team capable of providing comprehensive technical assistance, including product selection and application solution design. Furthermore, the company has established a comprehensive after-sales service system to ensure prompt resolution of any problems encountered during use.

Conclusion

The EW3 series aluminum electrolytic capacitors, with their excellent performance, reliable quality, and competitive pricing, have become a leading choice in the industrial power electronics field. Whether used in industrial control systems, UPS power supply equipment, or other power electronics devices, the EW3 series provides stable and reliable power support.

With the continuous advancement of industrial automation and increasingly stringent requirements for equipment reliability, the EW3 series will continue to create value for customers across various industries with its superior performance and reliable quality.

  • Previous:
  • Next:
    • Products Number Operating temperature (℃) Voltage(V.DC) Capacitance(uF) Diameter(mm) Length(mm) Leakage current (uA) Rated ripple current [mA/r.m.s] ESR/ Impedance [Ωmax] Life (hrs)
    EW32D332ANNCG02M5 -25~105 200 3300 51 75 2437 3500 0.036 3000
    EW32D472ANNCG07M5 -25~105 200 4700 51 96 2909 4500 0.024 3000
    EW32D682ANNCG14M5 -25~105 200 6800 51 130 3499 6000 0.016 3000
    EW32D822ANNDG07M5 -25~105 200 8200 64 96 3842 7100 0.014 3000
    EW32D103ANNDG11M5 -25~105 200 10000 64 115 4243 8000 0.012 3000
    EW32D123ANNDG14M5 -25~105 200 12000 64 130 4648 9200 0.009 3000
    EW32D153ANNEG11M5 -25~105 200 15000 77 115 5196 11000 0.007 3000
    EW32D183ANNEG14M5 -25~105 200 18000 77 130 5692 13200 0.006 3000
    EW32D223ANNEG19M5 -25~105 200 22000 77 155 6293 14000 0.005 3000
    EW32D223ANNFG14M6 -25~105 200 22000 90 130 6293 14160 0.005 3000
    EW32D273ANNFG18M6 -25~105 200 27000 90 150 6971 15000 0.004 3000
    EW32D333ANNFG19M6 -25~105 200 33000 90 155 7707 16200 0.004 3000
    EW32E222ANNCG02M5 -25~105 250 2200 51 75 2225 3100 0.04 3000
    EW32E332ANNCG07M5 -25~105 250 3300 51 96 2725 4000 0.032 3000
    EW32E472ANNCG11M5 -25~105 250 4700 51 115 3252 5000 0.02 3000
    EW32E682ANNDG07M5 -25~105 250 6800 64 96 3912 6900 0.013 3000
    EW32E822ANNDG11M5 -25~105 250 8200 64 115 4295 7600 0.012 3000
    EW32E103ANNDG14M5 -25~105 250 10000 64 130 4743 8500 0.011 3000
    EW32E123ANNEG12M5 -25~105 250 12000 77 120 5196 9500 0.009 3000
    EW32E153ANNEG18M5 -25~105 250 15000 77 150 5809 12000 0.007 3000
    EW32E183ANNEG23M5 -25~105 250 18000 77 170 6364 13300 0.006 3000
    EW32E223ANNFG14M6 -25~105 250 22000 90 130 7036 12910 0.006 3000
    EW32E223ANNFG18M6 -25~105 250 22000 90 150 7036 14000 0.005 3000
    EW32E273ANNFG23M6 -25~105 250 27000 90 170 7794 15000 0.004 3000
    EW32E333ANNFG30M6 -25~105 250 33000 90 210 8617 17200 0.003 3000
    EW32V222ANNCG09M5 -25~105 350 2200 51 105 2632 3300 0.04 3000
    EW32V272ANNCG14M5 -25~105 350 2700 51 130 2916 4000 0.038 3000
    EW32V332ANNDG07M5 -25~105 350 3300 64 96 3224 4500 0.032 3000
    EW32V392ANNDG11M5 -25~105 350 3900 64 115 3505 5000 0.027 3000
    EW32V472ANNDG14M5 -25~105 350 4700 64 130 3848 5500 0.024 3000
    EW32V562ANNEG11M5 -25~105 350 5600 77 115 4200 6100 0.02 3000
    EW32V682ANNEG14M5 -25~105 350 6800 77 130 4628 7200 0.014 3000
    EW32V822ANNEG18M5 -25~105 350 8200 77 150 5082 8000 0.012 3000
    EW32V103ANNFG14M6 -25~105 350 10000 90 130 5612 9000 0.011 3000
    EW32V123ANNFG18M6 -25~105 350 12000 90 150 6148 10000 0.01 3000
    EW32V153ANNFG23M6 -25~105 350 15000 90 170 6874 12600 0.008 3000
    EW32V183ANNFG30M6 -25~105 350 18000 90 210 7530 14100 0.006 3000
    EW32V223ANNFG33M6 -25~105 350 22000 90 235 8325 15300 0.004 3000
    EW32V223ANNGG30M8 -25~105 350 22000 101 210 8325 15490 0.004 3000
    EW32V253ANNFG36M6 -25~105 350 25000 90 250 8874 16000 0.004 3000
    EW32V253ANNGG32M8 -25~105 350 25000 101 230 8874 16400 0.004 3000
    EW32G102ANNCG02M5 -25~105 400 1000 51 75 1897 2500 0.082 3000
    EW32G122ANNCG02M5 -25~105 400 1200 51 75 2078 3000 0.07 3000
    EW32G152ANNCG06M5 -25~105 400 1500 51 90 2324 3600 0.05 3000
    EW32G182ANNCG07M5 -25~105 400 1800 51 96 2546 4100 0.042 3000
    EW32G222ANNCG11M5 -25~105 400 2200 51 115 2814 4500 0.032 3000
    EW32G272ANNCG14M5 -25~105 400 2700 51 130 3118 5300 0.026 3000
    EW32G332ANNDG11M5 -25~105 400 3300 64 115 3447 6200 0.023 3000
    EW32G392ANNDG14M5 -25~105 400 3900 64 130 3747 7200 0.02 3000
    EW32G472ANNEG11M5 -25~105 400 4700 77 115 4113 8700 0.017 3000
    EW32G562ANNEG14M5 -25~105 400 5600 77 130 4490 9600 0.015 3000
    EW32G682ANNEG19M5 -25~105 400 6800 77 155 4948 10800 0.013 3000
    EW32G822ANNEG23M5 -25~105 400 8200 77 170 5433 12000 0.011 3000
    EW32G103ANNFG18M6 -25~105 400 10000 90 150 6000 14000 0.01 3000
    EW32G123ANNFG21M6 -25~105 400 12000 90 160 6573 16100 0.009 3000
    EW32G153ANNFG26M6 -25~105 400 15000 90 190 7348 17500 0.007 3000
    EW32W102ANNCG03M5 -25~105 450 1000 51 80 2012 2500 0.082 3000
    EW32W122ANNCG03M5 -25~105 450 1200 51 80 2205 3000 0.072 3000
    EW32W152ANNCG07M5 -25~105 450 1500 51 96 2465 3600 0.053 3000
    EW32W182ANNCG09M5 -25~105 450 1800 51 105 2700 4100 0.043 3000
    EW32W222ANNCG14M5 -25~105 450 2200 51 130 2985 4500 0.033 3000
    EW32W272ANNDG11M5 -25~105 450 2700 64 115 3307 5000 0.027 3000
    EW32W332ANNDG14M5 -25~105 450 3300 64 130 3656 6000 0.024 3000
    EW32W392ANNEG11M5 -25~105 450 3900 77 115 3974 7000 0.02 3000
    EW32W472ANNEG14M5 -25~105 450 4700 77 130 4363 8400 0.018 3000
    EW32W562ANNEG18M5 -25~105 450 5600 77 150 4762 9500 0.016 3000
    EW32W682ANNEG23M5 -25~105 450 6800 77 170 5248 10200 0.013 3000
    EW32W682ANNFG14M6 -25~105 450 6800 90 130 5248 9900 0.014 3000
    EW32W822ANNFG18M6 -25~105 450 8200 90 150 5763 11500 0.011 3000
    EW32W103ANNFG23M6 -25~105 450 10000 90 170 6364 13500 0.01 3000
    EW32W123ANNFG26M6 -25~105 450 12000 90 190 6971 16000 0.009 3000
    EW32H102ANNCG09M5 -25~105 500 1000 51 105 2121 4000 0.095 3000
    EW32H152ANNCG14M5 -25~105 500 1500 51 130 2598 5500 0.061 3000
    EW32H222ANNDG11M5 -25~105 500 2200 64 115 3146 6500 0.04 3000
    EW32H332ANNEG14M5 -25~105 500 3300 77 130 3854 8500 0.028 3000
    EW32H392ANNEG19M5 -25~105 500 3900 77 155 4189 10500 0.025 3000
    EW32H472ANNEG23M5 -25~105 500 4700 77 170 4599 12000 0.022 3000
    EW32H472ANNFG14M6 -25~105 500 4700 90 130 4599 11640 0.023 3000
    EW32H562ANNFG18M6 -25~105 500 5600 90 150 5020 13100 0.02 3000
    EW32H682ANNFG23M6 -25~105 500 6800 90 170 5532 14200 0.016 3000
    EW32H822ANNFG26M6 -25~105 500 8200 90 190 6075 16000 0.015 3000
    EW32H103ANNFG30M6 -25~105 500 10000 90 210 6708 16800 0.012 3000
