Main Technical Parameters
project |
characteristic |
|
range of working temperature |
-55~+105℃ |
|
Rated working voltage |
2.5-25V |
|
capacity range |
6.8-100uF 120Hz/20℃ |
|
Capacity tolerance |
±20% (120Hz/20℃) |
|
loss tangent |
120Hz/20℃ below the value in the list of standard products |
|
leakage current |
Charge for 5 minutes at rated voltage below the value in the list of standard products at 20°C |
|
Equivalent Series Resistance (ESR) |
100KHz/20℃ below the value in the list of standard products |
|
Surge voltage (V) |
1.15 times the rated voltage |
|
Durability |
The product should meet the requirements of applying rated working voltage for 2000 hours at a temperature of 105°C and placing it at 20°C |
|
Capacitance change rate |
±20% of initial value |
|
loss tangent |
≤150% of initial specification value |
|
leakage current |
≤Initial specification value |
|
High temperature and humidity |
The product should meet the conditions of 60°C temperature, 90%~95%R.H humidity for 500 hours, no voltage applied, and after 16 hours at 20°C: |
|
Capacitance change rate |
+40% -20% of initial value |
|
loss tangent |
≤150% of initial specification value |
|
leakage current |
≤300% of the initial specification value |
Temperature Coefficient Of Rated Ripple Current
temperature | -55℃<T≤45℃ | 45℃<T≤85℃ | 85℃<T≤105℃ |
Rated 105°C Product Coefficient |
1 | 0.7 | 0.25 |
Note: The surface temperature of the capacitor does not exceed the maximum operating temperature of the product |
Rated Ripple Current Frequency Correction Factor

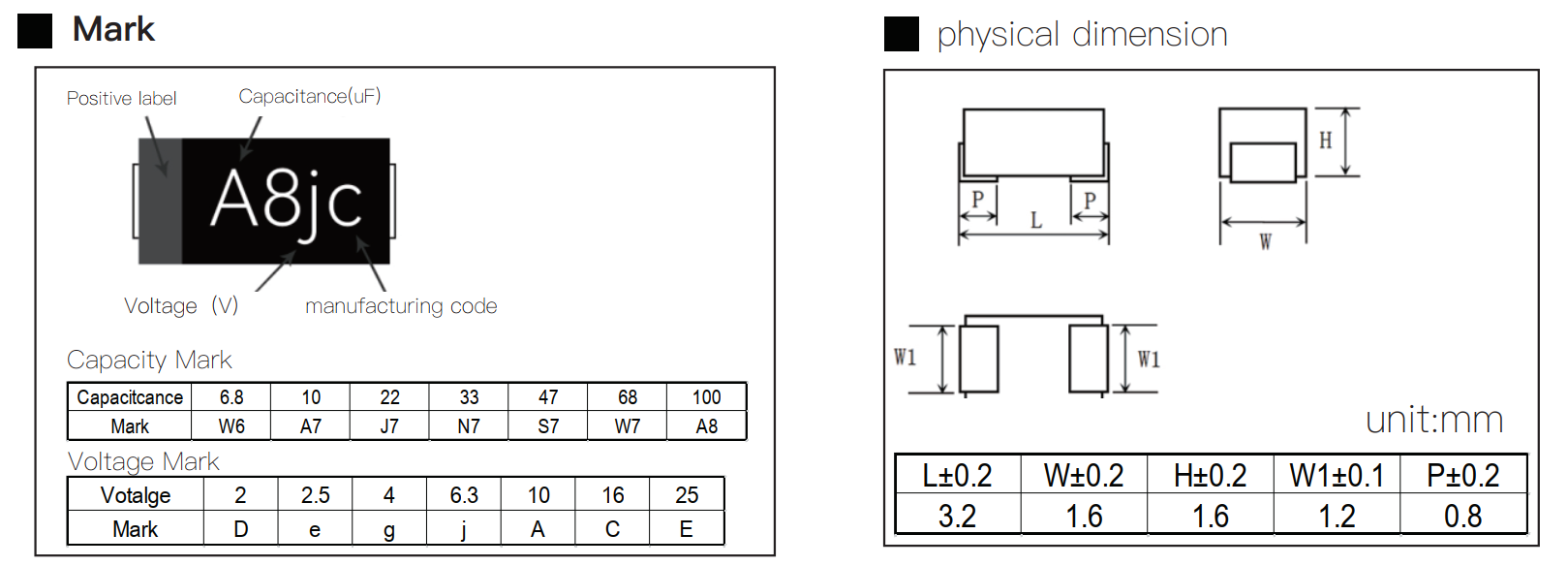

Frequency | 120Hz | 1kHz | 10kHz | 100-300kHz |
correction | 0.1 | 0.45 | 0.5 | 1 |
Products | Products Number | Temperature (℃) | Rated Voltage (Vdc) | Capacitance (μF) | Length (mm) | Width (mm) | Height (mm) | Life (hrs) | Products Certification |
TPA16 | TPA470M0EA16009RN | -55~105 | 2.5 | 47 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA680M0EA16015RN | -55~105 | 2.5 | 68 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA101M0EA16035RN | -55~105 | 2.5 | 100 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA330M0GA16070RN | -55~105 | 4 | 33 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA470M0GA16015RN | -55~105 | 4 | 47 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA330M0JA16035RN | -55~105 | 6.3 | 33 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA470M0JA16070RN | -55~105 | 6.3 | 47 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA101M0JA16009RN | -55~105 | 6.3 | 100 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA101M0JA16021RN | -55~105 | 6.3 | 100 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA101M0JA16035RN | -55~105 | 6.3 | 100 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA220M1AA16070RN | -55~105 | 10 | 22 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA470M1AA16009RN | -55~105 | 10 | 47 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA100M1CA16015RN | -55~105 | 16 | 10 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA220M1CA16035RN | -55~105 | 16 | 22 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA330M1CA16045RN | -55~105 | 16 | 33 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA100M1DA16070RN | -55~105 | 20 | 10 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA6R8M1EA16009RN | -55~105 | 25 | 6.8 | 3.2 | 1.6 | 1.6 | 2000 | - |
TPA16 | TPA100M1EA16015RN | -55~105 | 25 | 10 | 3.2 | 1.6 | 1.6 | 2000 | - |
