Product Details:
TQW42: High-Performance Conductive Tantalum Capacitor Powering Modern High-Density Electronic Devices
In today's rapidly evolving electronics industry, we witness a silent revolution: devices are becoming more powerful than ever before, while simultaneously shrinking in size. From high-speed smart cars to tireless AI data centers, from agile industrial robots to portable consumer electronics, every inch of space is precious. Against this backdrop, the core requirements for electronic components are clear and stringent: to provide extremely stable and efficient power support within extreme space constraints. The TQW42 series of conductive tantalum capacitors from the renowned Chinese manufacturer YMIN is a superior solution born to meet this challenge.
Precise Positioning: Directly Addressing the Space and Performance Challenges of High-Density Designs

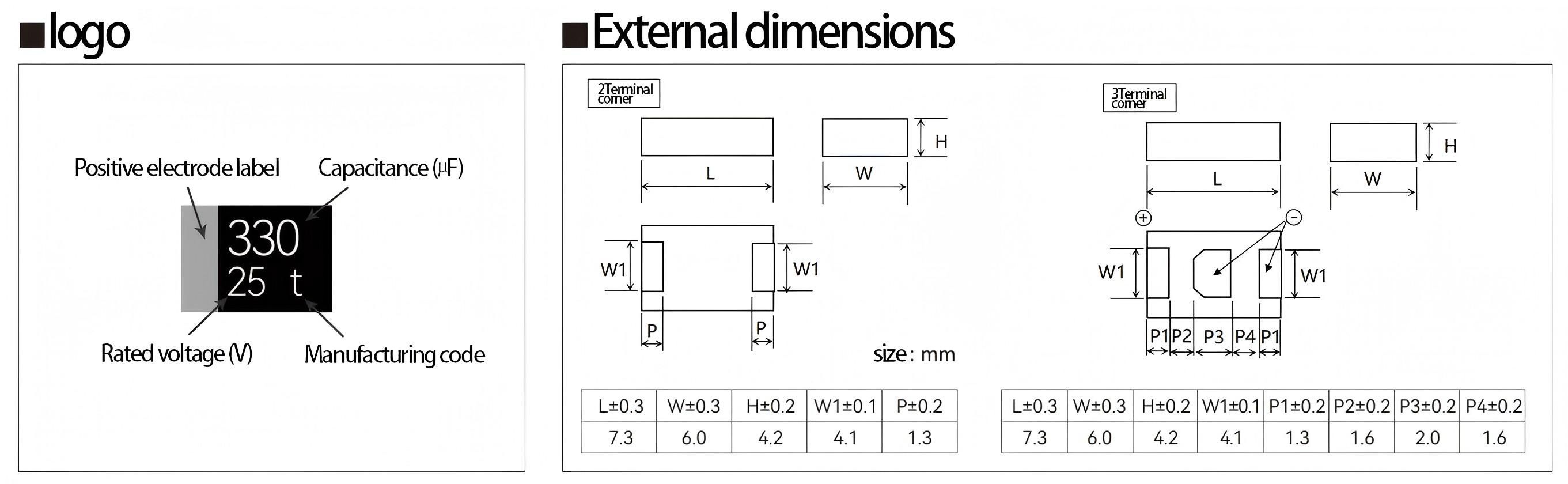

The TQW42 is not an ordinary capacitor; its design philosophy, from its inception, targeted the core pain point of modern electronic design—the contradiction between space constraints and performance requirements. Its compact size (7.3mm x 6.0mm x 4.2mm) constitutes its primary advantage. This slender profile allows it to be easily integrated into extremely limited areas of a circuit board layout, making it ideal for primary decoupling and filtering tasks around highly integrated microprocessors (MCUs), field-programmable gate arrays (FPGAs), and application-specific integrated circuits (ASICs).
More critically, its bottom-side terminal design significantly reduces the capacitor's equivalent series inductance (ESL). In traditional capacitors, the inductance from the leads hinders the rapid response of high-frequency currents. However, when dealing with nanosecond-level current spikes generated by high-speed digital circuits, low ESL means the capacitor can replenish charge more quickly, effectively suppressing power supply voltage fluctuations and noise, ensuring the purity and stability of the chip's core voltage. Therefore, the TQW42 is not merely a passive energy storage device, but also an active "noise canceller" and "power supply stabilizer."
Core Technology: Superior Electrical Properties from Conductive Polymer Materials
The cornerstone of the TQW42's performance lies in its use of advanced conductive polymers as a solid electrolyte, a stark contrast to traditional liquid electrolyte tantalum capacitors.
1. Extremely Low Equivalent Series Resistance (ESR) and High Ripple Current Withstand Capability: The conductive polymer material has extremely high conductivity, which enables the TQW42 to exhibit extremely low ESR at 100kHz. Low ESR directly brings two major benefits: firstly, extremely low energy loss (manifested as heat generation), resulting in higher efficiency; secondly, the ability to withstand higher ripple current. Ripple current is the AC component superimposed on DC in a switching power supply. Excessive ripple current can cause capacitors to heat up and shorten their lifespan. The TQW42's high ripple current rating ensures that it maintains low temperature and high efficiency even under high load conditions in the power supply circuit, greatly improving the overall reliability of the system. For example, at 45℃ and 100kHz, its ripple current withstand capability can reach 2050mA to 2500mA, a highly competitive specification among products of the same size.
2. Excellent Temperature Stability and Long Lifespan: The solid-state structure eliminates the risk of liquid electrolyte drying out or leakage. The TQW42 boasts a wide operating temperature range (-55℃ to +105℃) and can operate stably within this range for extended periods. Its durability testing shows that after 2000 hours of continuous operation at its rated voltage and 105℃, its capacitance change, loss tangent, and leakage current all remain within strictly specified ranges. This inherent stability is crucial for automotive electronics, communication base stations, and industrial equipment requiring maintenance-free operation for years or even decades.
3. Superior Safety and Reliability: YMIN adheres to high standards in its manufacturing processes, ensuring that the TQW42 product possesses robust surge withstand capability (up to 1.15 times the rated voltage) and has passed the stringent RoHS environmental directive certification, meeting the environmental requirements of the global market.
Practical Applications: Empowering Cutting-Edge Technology Fields
The aforementioned characteristics of the TQW42 make it an indispensable core component in several high-growth key technology fields.
• Automotive Electronics: Modern cars are evolving into "supercomputers on wheels." Advanced Driver Assistance Systems (ADAS), in-vehicle infotainment systems, and Electronic Control Units (ECUs) all require extremely reliable power supplies. The TQW42 can withstand the drastic temperature changes and vibrations of the automotive environment, providing clean and stable power to these critical systems. Especially during engine start-up and sudden load changes, its rapid response effectively prevents system resets or crashes, ensuring driving safety.
• AI Data Server: The CPUs and GPUs in AI servers generate extremely high transient current demands during massively parallel computing. Even minor fluctuations in the Power Distribution Network (PDN) can lead to computational errors or performance degradation. The TQW42, with its low ESL and low ESR characteristics, is widely used at the output of point-of-load (PoL) converters on server motherboards as a high-frequency decoupling capacitor. It can instantly respond to the current demands of the processor core, smoothing voltage ripple and playing a crucial role in ensuring stable AI computing power output.
• Robot Applications: The drive control systems and sensor modules of industrial and service robots are extremely sensitive to power supply noise and stability. The TQW42's compact size makes it ideal for embedding in tight spaces such as robot joint actuators. Its high reliability ensures the precision and continuity of robot movements, reducing downtime caused by power supply issues.
• Communication Equipment and 5G Technology: 5G base stations and network equipment process massive amounts of data, demanding extremely high power efficiency and power density. The TQW42 can operate stably in the high-temperature environments of base station equipment, and its high efficiency helps reduce overall energy consumption, aligning with the green and energy-saving development trend in the communications industry.
• PD Charger and Consumer Electronics: In the field of consumer electronics, where miniaturization and thinness are paramount, such as in high-end PD fast chargers, the TQW42 can be used for secondary-side output filtering. Its low ESR helps improve conversion efficiency and reduce heat accumulation, enabling chargers to maintain high power output while achieving miniaturization.
The Value of Choosing YMIN TQW42: Trust Endorsement from Manufacturing Experts
Choosing YMIN's TQW42 means choosing a partner with deep technological expertise and rigorous quality control. YMIN, a leading capacitor manufacturer in China, boasts a comprehensive product line and an integrated quality control system from R&D to production. Its industrial park in Fengxian District, Shanghai, is equipped with advanced production and testing equipment, ensuring that every TQW42 capacitor leaving the factory meets the specifications. Furthermore, YMIN's comprehensive technical support and excellent after-sales service help customers quickly resolve application issues and accelerate product launches.
Conclusion
In conclusion, the YMIN TQW42 conductive polymer tantalum capacitor is the ideal "pacemaker" for modern high-density, high-performance electronic devices. With its compact size, superior electrical performance, and unparalleled reliability, it successfully solves the balance problem between space, efficiency, and stability. Whether powering future smart cars, supporting massive artificial intelligence networks, or empowering sophisticated industrial robots, the TQW42, with its stable and powerful energy, lays a solid electrical foundation for every technological leap within its compact size. In the seemingly small yet crucial world of electronic components, the TQW42 is undoubtedly a strategic component that defines product competitiveness.
