Fellow engineers, have you ever encountered this kind of “phantom” failure? A well-designed data center gateway tested perfectly fine in the lab, but after one or two years of mass deployment and field operation, specific batches began experiencing inexplicable packet loss, power outages, and even reboots. The software team thoroughly investigated the code, and the hardware team repeatedly checked, ultimately using precision instruments to identify the culprit: high-frequency noise on the core power rail.
YMIN Multilayer Capacitor Solution
- Root Cause Technical Analysis – Let’s delve deeper into the underlying “pathology analysis.” The dynamic power consumption of the CPU/FPGA chips in modern gateways fluctuates dramatically, generating abundant high-frequency current harmonics. This requires their power decoupling networks, especially bulk capacitors, to have extremely low equivalent series resistance (ESR) and high ripple current capability. Failure mechanism: Under the long-term stress of high temperature and high ripple current, the electrolyte-electrode interface of ordinary polymer capacitors continuously degrades, causing the ESR to increase significantly over time. Increased ESR has two critical consequences: Reduced filtering effectiveness: According to Z = ESR + 1/ωC, at high frequencies, impedance Z is primarily determined by ESR. As ESR increases, the capacitor’s ability to suppress high-frequency noise is significantly weakened. Increased self-heating: Ripple current generates heat across the ESR (P = I²_rms * ESR). This temperature rise accelerates aging, creating a positive feedback loop that ultimately leads to premature capacitor failure. The consequence: A failed capacitor array cannot provide sufficient charge during transient load changes, nor can it filter out high-frequency noise generated by the switching power supply. This causes glitches and drops in the chip’s supply voltage, leading to logic errors.
- YMIN Solutions and Process Advantages – YMIN’s MPS series multilayer solid-state capacitors are designed for these demanding applications.
Structural breakthrough: The multilayer process integrates multiple small solid-state capacitor chips in parallel within a single package. This structure creates a parallel impedance effect compared to a single large capacitor, minimizing ESR and ESL (equivalent series inductance) to extremely low levels. For example, the MPS 470μF/2.5V capacitor has an ESR as low as below 3mΩ.
Material Guarantee: Solid-state polymer system. Using a solid conductive polymer, it eliminates the risk of leakage and offers excellent temperature-frequency characteristics. Its ESR varies minimally over a wide temperature range (-55°C to +105°C), fundamentally addressing the lifespan limitations of liquid/gel electrolyte capacitors.
Performance: Ultra-low ESR means greater ripple current handling capability, reduces internal temperature rise, and improves system MTBF (mean time between failures). Excellent high-frequency response effectively filters out MHz-level switching noise, providing clean voltage to the chip.

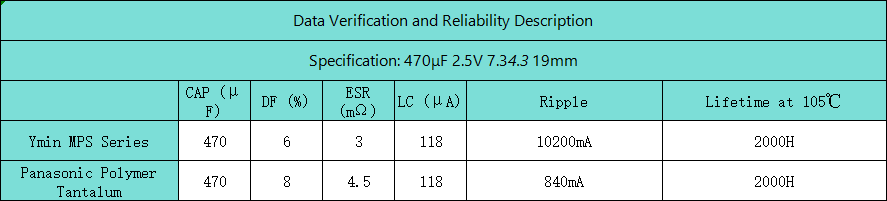

We conducted comparative tests on a customer’s faulty motherboard:
Waveform comparison: Under the same load, the peak-to-peak noise level of the original core power rail reached as high as 240mV. After replacing the YMIN MPS capacitors, the noise was suppressed to less than 60mV. The oscilloscope waveform clearly shows that the voltage waveform has become smooth and stable.
Temperature rise test: Under full load ripple current (approximately 3A), the surface temperature of ordinary capacitors can reach over 95°C, while the surface temperature of the YMIN MPS capacitors is only around 70°C, a temperature rise reduction of over 25°C. Accelerated life testing: At a rated temperature of 105°C and rated ripple current, after 2000 hours, the capacity retention rate reached >95%, far exceeding the industry standard.
- Application Scenarios and Recommended Models – YMIN MPS Series 470μF 2.5V (Dimensions: 7.3*4.3*1.9mm). Their ultra-low ESR (<3mΩ), high ripple current rating, and wide operating temperature range (105°C) make them a reliable foundation for core power supply designs in high-end network communications equipment, servers, storage systems, and industrial control motherboards.
Conclusion
For hardware designers striving for ultimate reliability, power supply decoupling is no longer simply a matter of selecting the right capacitance value; it requires greater attention to dynamic parameters such as the capacitor’s ESR, ripple current, and long-term stability. YMIN MPS multilayer capacitors, through innovative structural and material technologies, provide engineers with a powerful tool for overcoming power supply noise challenges. We hope this in-depth technical analysis will provide you with insights. For capacitor application challenges, turn to YMIN.
