How to Balance Small Size, Large Capacitance, and Low ESR in High-Voltage Input Capacitors for PD Fast Chargers/GaN Chargers? — YMIN Liquid Aluminum Electrolytic Capacitor Application Solution

In PD fast charger and gallium nitride (GaN) charger designs, the liquid aluminum electrolytic capacitor at the high-voltage input is typically located on the high-voltage bus side after rectification, playing a crucial role in input energy storage, ripple absorption, and voltage stabilization. As chargers continue to evolve towards miniaturization, high power density, and high frequency, capacitor selection at this location is shifting from simply “whether it can be used” to “whether it can simultaneously meet the requirements for capacitance, ESR (equivalent series resistance), ripple, and reliability within a limited space.”

To address the demand for smaller size, larger capacitance, and lower ESR in high-voltage input capacitors for PD fast chargers/GaN chargers, YMIN offers KC, KCG, KCM, and KCM(T) series liquid aluminum electrolytic capacitor solutions. These solutions cover aspects such as size optimization, capacitance improvement, low ESR, high voltage withstand, and high temperature resistance. Typical advantages include: 40% smaller size compared to traditional products, 30%~50% higher capacitance for the same size, ESR as low as 2.3mΩ (100kHz), voltage withstand up to 540V, and operating temperature up to 115℃.

Why are PD fast charging input capacitors becoming increasingly difficult to select?

For 20W, 30W, 65W, and even 100W+ PD fast charging products, the high-voltage electrolytic capacitor at the input end is not just a “placeholder device,” but one of the key components affecting the overall size, efficiency, temperature rise, lifespan, and mass production consistency.

1. Increasingly Compact Physical Space: Fast charging devices are continuously trending towards thinner and lighter designs, with some products now only about 20mm thick. This often results in the inability to fit traditionally large high-voltage electrolytic capacitors, forcing engineers to reduce their capacitance, thus impacting input energy storage capacity and ripple suppression.

2. Increasing Power Density: Chargers in the 65W~100W+ power range place higher demands on the energy storage capacity of their input capacitors. Insufficient capacitance makes it easier for bus voltage fluctuations and insufficient system margins to occur under load fluctuations, transient responses, or input disturbances.

3. Gallium Nitride (GaN) Solutions Drive Higher Frequency: GaN solutions can achieve switching frequencies up to hundreds of kHz. This means that input capacitors not only need sufficient capacitance but also the ability to withstand ripple current surges at higher frequencies. Higher ESR leads to more pronounced capacitor self-heating, further increasing temperature rise and shortening lifespan.

4. Reliability pressures have not decreased, but rather intensified.

Frequent plugging and unplugging, power grid fluctuations, lightning surges, and prolonged high-temperature operation all accelerate capacitor aging. Especially under high-temperature conditions, if the electrolyte system and sealing process are inadequate, the electrolyte will dry out faster, ultimately leading to reduced lifespan, abnormal leakage, or even premature failure.

What are the consequences of input capacitor mismatch?

From an engineering perspective, input capacitor selection is not just a parameter issue; it directly impacts overall system development and commercial outcomes. One consequence is that the design cannot be successfully implemented. For example, the size may be insufficient, or the capacitance may be inadequate, ultimately leading to repeated compromises between structure and performance, even affecting mass production. Another consequence is increased reliability risk. In high-frequency, high-ripple scenarios, if ESR is not well controlled, temperature rise will increase; increased temperature further accelerates lifespan degradation, creating a vicious cycle. A third consequence is increased cost and supply chain pressure. To mitigate risk, some solutions directly switch to importing large-size components, but this often means increased BOM costs, coupled with delivery time and substitution risks.

Often, the reason why PD fast charging input capacitors become a design bottleneck is not due to a single parameter failing to meet standards, but rather a combination of several underlying factors:

- The limited surface area utilization of traditional capacitor foil leads to insufficient utilization of the internal capacity per unit volume.

- Large winding margins result in inefficient use of internal space, hindering miniaturization.

- Insufficient electrolyte and sealing processes make them more prone to temperature rise runaway under high-frequency ripple.

- The lack of targeted lightning or surge protection designs can lead to breakdown and leakage surges after a surge.

In other words, the true selection logic is not just about “voltage and capacity,” but also about considering volumetric efficiency, ESR, ripple withstand capability, temperature life, and surge reliability simultaneously.

How does YMIN’s liquid aluminum electrolytic capacitor solution address these challenges?

1. Higher Surface Area Utilization, Supporting Larger Capacity

Utilizing high-purity aluminum foil etching and formation processes creates a larger three-dimensional surface area on a two-dimensional foil surface. This allows for greater capacity design space within the same volume, helping fast charging solutions retain more energy storage capacity within a limited size.

2. More Compact Winding, Supporting Smaller Volume

Through an extremely small margin winding process, the internal space utilization of the casing is improved. This allows for further volume reduction while maintaining performance targets, making it more suitable for thinner, high-density PD fast charging designs. The volume can be reduced by 40% compared to traditional products; for example, an 8×15mm design can achieve 400V 22μF.

3. Lower ESR Design, Reducing Heat Generation Risk Under High-Frequency Ripple

Using precision sealing, low-resistance electrolyte, and lightning-resistant/self-healing conductors, the product achieves lower ESR and stronger ripple withstand capability under high-frequency ripple conditions. This helps reduce self-heating, improve temperature rise performance, and enhance input stability.

Recommended Solutions from YMIN for PD Fast Charging Input Terminals

The following series can be categorized according to performance requirements, temperature requirements, and voltage tolerance:

Table 1: YMIN Recommended Solutions for PD Fast Charging

Meanwhile, we also compared specific specifications with those of our competitors’ aluminum electrolytic capacitors.

(Data source: Public information):

Table 2: Comparison of parameters between Yongming and competitors’ capacitors of the same specifications

(Dimensions, aluminum foil withstand voltage, lead wire diameter)

Scenario-Based Q&A

Judgment Point 1: Consider Structural Dimensions First, Then Capacitance

If the overall thickness is severely limited, first confirm the usable external dimensions, then check if the target capacitance and withstand voltage requirements can be met within those dimensions. Otherwise, subsequent thermal design and reliability will easily lack margin.

Judgment Point 2: GaN Solutions Must Consider ESR and Ripple Capability Upfront

High-frequency operation is not about “casually checking ESR,” but rather evaluating ESR, ripple current, and temperature rise in conjunction with the initial design phase. Focusing only on capacity without considering high-frequency ripple performance often leads to compensating for heat generation and lifespan issues later.

Judgment Point 3: Allow for Reliability Margins for Surge and High Temperatures

Frequent plugging and unplugging, grid fluctuations, and lightning surges are not isolated incidents, but real-world conditions encountered by fast-charging products. Input capacitors should not only “light up” but also consider post-production stability and the risk of returns.

Practical Application Cases

(Data Source: ChargerLAB Teardown Report)

Table 3: Unit Usage of Yongming Aluminum Electrolytic Capacitors in Practical Applications

Frequently Asked Questions (Q&A)

Q1: How to choose the rated voltage of the aluminum electrolytic capacitors in a PD power supply?

A: Based on the combined considerations of the global grid peak voltage of 373V and lightning surge testing, Yongming’s 400V capacitors have passed the most stringent tests and fully meet the standard requirements. If your product power exceeds 100W, or you require flagship-level reliability, or if it is used in areas with unstable overseas power grids, we recommend using our KCM/KCG series or 420V/450V operating voltage product series prepared for the high-end market. This provides you with a greater safety margin, ensuring the product’s reliability even in harsh environments.

Q2: How to choose between Yongming’s KCX, KCG, KCM, and KCM(T) capacitors?

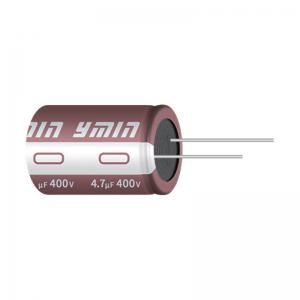

A: Simply put: for general fast charging scenarios, choose KCX; for higher requirements on temperature resistance and low ESR, choose KCG; for higher requirements on size, voltage withstand, and ripple, choose KCM; for higher requirements on voltage withstand margin, choose KCM(T).

Conclusion

From 20W to 100W+, the competition in PD fast charging is no longer just about power figures, but a comprehensive contest of size, efficiency, temperature rise, and lifespan. For the critical high-voltage input, the appropriate capacitor selection often directly impacts the feasibility of the entire solution.

Focusing on the core requirements of “small size, large capacitance, low ESR, and high reliability” for the high-voltage input of PD fast chargers/GaN chargers, Yongming’s KCX, KCG, KCM, and KCM(T) series liquid aluminum electrolytic capacitors offer more targeted options for fast charging designs with different power ranges, structural constraints, and reliability targets.

For further evaluation of specific models, please contact Yongming to obtain datasheets, selection tables, sample support, or test reports to confirm a more suitable solution based on your power range, size limitations, and input conditions.

[Abstract]

“Applicable Scenarios”: “PD fast charging, high-voltage input terminal of GaN chargers, energy storage and filtering on high-voltage bus side”,

“Core Advantages”: “Small size, large capacitance, low ESR, high ripple withstand capability, high temperature resistance, high voltage resistance, surge resistance”,

“Recommended Models”: “KCX / KCG / KCM / KCM(T)”

“Action Guide”: “Download datasheet | Get selection guidance | Leave a message for consultation”
