In the sophisticated world of humanoid robots, every tiny component plays an important role. The controller, as the “brain” of the robot, is crucial to the performance of the entire system in terms of stability and reliability. The controller not only needs to process complex algorithms and signals, but also accurately direct the movement and operation of the robot, including but not limited to path planning, speed control, precise positioning, etc. The tiny components in the controller are key components to ensure the stability and reliability of the humanoid robot controller.
01 Ultra-low ESR
During operation, humanoid robot controllers will face current fluctuations of high-speed and complex movements, especially when performing high-frequency and high-load movements. The controller needs to respond to these current fluctuations in a timely manner to ensure the stability of the power supply.
When facing such fluctuations, traditional capacitors may cause energy loss due to high ESR, affecting system performance.
The ultra-low ESR characteristics of polymer solid aluminum electrolytic capacitors can significantly reduce energy loss, enable capacitors to respond quickly and stably to current changes, provide stable power supply, and ensure that the robot control system always maintains optimal performance.
02 High ripple current resistance
When humanoid robots perform various actions, especially when starting, stopping or turning quickly, the controller will experience instantaneous high current fluctuations. Traditional capacitors may be damaged because they cannot withstand excessive current, resulting in system failure.
Polymer solid aluminum electrolytic capacitors have the advantage of high allowable wave current, which helps robot controllers maintain a stable power supply in complex dynamic environments. They can quickly respond and stably supply power in the case of large current fluctuations to avoid damage caused by capacitor overload.
03 Small size and large capacity
Robot controllers usually need to load high-capacity capacitors in a limited space to provide sufficient power support. The polymer solid aluminum electrolytic capacitors have the characteristics of small size and large capacity, which greatly optimizes the design space of the robot controller, provides sufficient power support for compact robots, and avoids the burden of volume and weight.
04 Selection recommendation

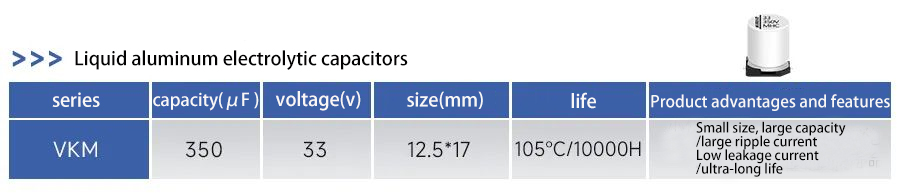

Liquid chip aluminum electrolytic capacitor solution
01 Small size and large capacity
Humanoid robots have increasingly stringent requirements for space and weight. The miniaturization of liquid chip aluminum electrolytic capacitors effectively reduces the size and weight of the power module. While optimizing the overall design of the robot, it also reduces the burden on the robot itself. During rapid startup or load changes, the high capacity of liquid chip aluminum electrolytic capacitors can provide sufficient current reserves to avoid control system response delays or failures caused by insufficient power, thereby improving the control accuracy and operation stability of the robot.
02 Low impedance
Liquid chip aluminum electrolytic capacitors can effectively reduce energy loss in the power circuit and ensure efficient transmission of electrical energy. This optimizes the response speed of the power system, enhances the real-time performance and stability of the controller, and can better cope with complex control requirements, especially when the load fluctuates greatly.
03 High ripple current resistance
When humanoid robots move at high speed and precisely control, the power supply of the controller often encounters large current ripples. Liquid chip aluminum electrolytic capacitors can withstand large current fluctuations, effectively avoiding the instability caused by current fluctuations, ensuring that the controller power supply can still operate stably under high load, thereby optimizing the stability and reliability of the robot system.
04 Ultra-long life
Liquid chip aluminum electrolytic capacitors provide long-lasting reliability for robot controllers with their ultra-long life. In a high temperature environment of 105℃, the life span can reach 10,000 hours, which means that under various harsh working conditions, the capacitors can maintain stable performance, reducing maintenance costs and replacement frequency.
Conclusion
In the precision system of humanoid robot controllers, the choice of capacitors is directly related to the stability and reliability of robot performance. YMIN liquid chip aluminum electrolytic capacitors & polymer solid aluminum electrolytic capacitors, with their unique advantages, have become key components to solve the challenges faced by robot control systems.
Whether it is providing high-capacity power in a compact design, ensuring power supply stability under large load fluctuations, or ensuring fast response in high-frequency complex actions, these capacitors can meet the strict requirements of robot controllers for power supply stability, reliability and efficient energy transmission.
