With the advancement of electrification and intelligent vehicles, thermal management systems face the dual challenges of higher power density and more stringent temperature environments. To better address this challenge, YMIN’s VHE series of polymer hybrid aluminum electrolytic capacitors was developed.
01 VHE Empowers Automotive Thermal Management Upgrades
As an upgraded version of the VHU series of polymer hybrid aluminum electrolytic capacitors, the VHE series boasts exceptional durability, capable of stable operation for 4,000 hours at 135°C. Its core purpose is to provide high-performance, high-reliability components for critical thermal management applications such as electronic water pumps, electronic oil pumps, and cooling fans.
Four Core Advantages of VHE
Ultra-Low ESR

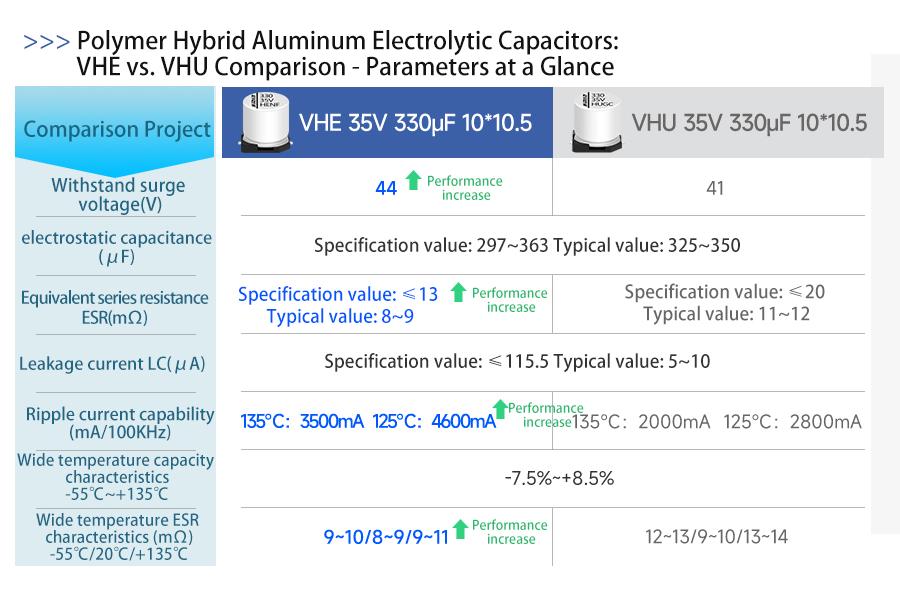

Across the full temperature range of -55°C to +135°C, the new VHE series maintains an ESR value of 9-11mΩ (better than the VHU and with less fluctuation), resulting in lower high-temperature losses and more consistent performance.
High Ripple Current Resistance
The VHE series’ ripple current handling capability is over 1.8 times greater than that of the VHU, significantly reducing energy loss and heat generation. It efficiently absorbs and filters the high ripple current generated by the motor drive, effectively protecting the actuator, ensuring continuous and stable operation, and effectively suppressing voltage fluctuations from interfering with sensitive peripheral components.
High Temperature Resistance
With an ultra-high operating temperature rating of 135°C and support for harsh ambient temperatures up to 150°C, it can easily withstand the harshest working medium temperatures in the engine compartment. Its reliability far exceeds that of conventional products, with a service life of up to 4,000 hours.
High Reliability
Compared to the VHU series, the VHE series offers enhanced overload and shock resistance, ensuring stable operation under sudden overload or shock conditions. Its excellent charge and discharge resistance easily adapts to dynamic operating scenarios such as frequent start-stop and on-off cycles, ensuring a long service life.

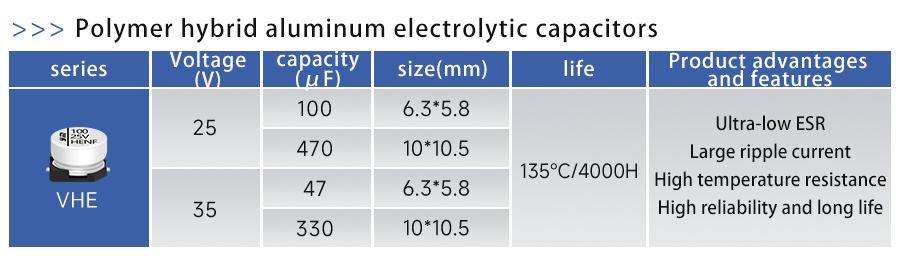

03 Recommended Models
04 Summary
The VHE series provides higher-performance, more reliable capacitor solutions for critical applications in thermal management systems, such as electronic water pumps, electronic oil pumps, and cooling fans. The release of this new series marks a new step for YMIN in the automotive-grade capacitor field. Its enhanced durability, lower ESR, and improved ripple resistance not only directly improve system response and efficiency, but also provide strong support for OEMs to optimize thermal management designs and reduce costs.
Post time: Aug-16-2025
