LKG Featured Image
  • LKG

LKG

Short Description:

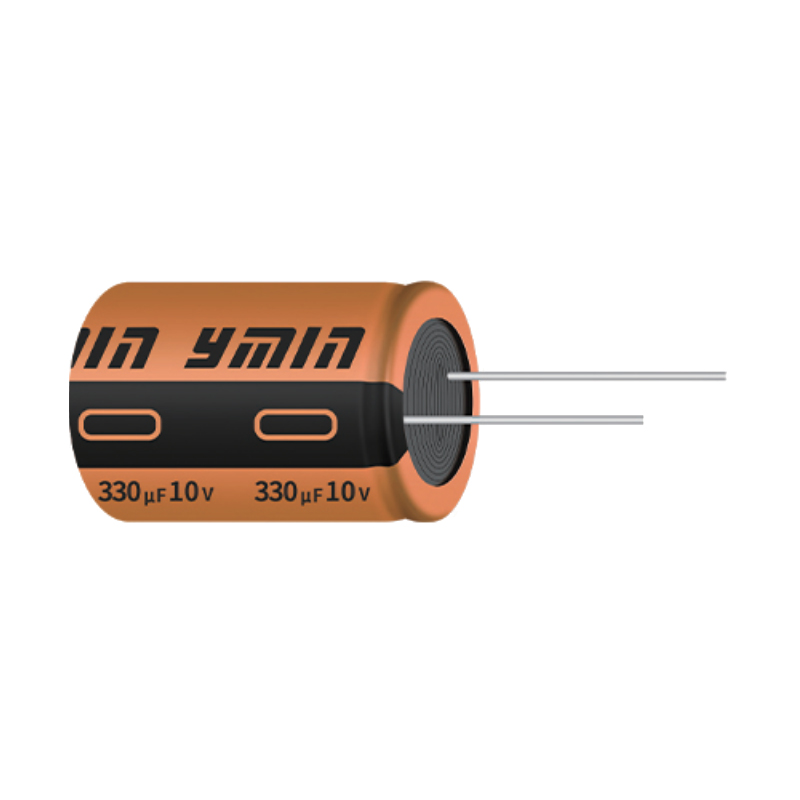

Lead Type Miniature Aluminum Electrolytic Capacitor

Long life, high frequency and large ripple current resistance, high frequency and low impedance, 8000~12000 hours for power supply products at 105°C environment, complies with AEC-Q200 RoHS directive corresponding products.
  • Series: LKG
  • Life (Hrs): 8000~12000
  • Features: Long life, high frequency and low impedance
  • Rated Votalge Range(V.DC): 10~500
  • Rated Capacitance（uF）: 0.47~4700
  • working temperature(°C): -55~105

    • Product Detail

    Product Tags

    Technical Parameter

    ♦ 105℃ 8000〜12000 Hours

    ♦ Load Life, High Ripple Current, High Frequency, Low ESR

    ♦ RoHS Compliant

    ♦ AEC-Q200 Qualified, Please Consult Us For More Details

    Specification

    Items Characteristics
    Operation Temperature Range ≤120V.DC -55℃~+105℃ ; 160~500V.DC -40℃~+105℃
    Rated Voltage 10~500V.DC
    Capacitance Tolerance ±20% ( 25±2℃ 120Hz)
    Leakage Current((uA) 10~ 120WV I≤ 0.01CV or 3uA whichever is greater C:rated capacitance(uF) V:rated voltage(V) 2 minutes reading
    160- 500WV I≤ 0.02CV+10(uA) C:rated capacitance(uF) V:rated voltage(V) 2 minutes reading
    Dissipation Factor (25±2℃ 120Hz) Rated Voltage(V) 10 16 25 35 50 63 80 100
    tgδ 0.19 0.16 0.14 0.12 0.1 0.09 0.09 0.09
    Rated Voltage(V) 120 160 200 250 350 400 450 500
    tgδ 0.09 0.09 0.08 0.08 0.1 0.1 0.12 0.2
    For those with rated capacitance larger than 1000uF, when the rated capacitance is increased by 1000uF,then tgδ will be increased by 0.02
    Temperature Characteristics (120Hz) Rated Voltage(V) 10 16 25 35 50 63 80 100
    Z(-40℃)/Z(20℃) 6 4 3 3 3 3 3 3
    Rated Voltage(V) 120 160 200 250 350 400 450 500
    Z(-40℃)/Z(20℃) 5 5 5 5 7 7 7 8
    Endurance After standard test time with applying the rated voltage with the rated ripple current in the oven at 105℃, the following specification shall be satisfied after 16 hours at 25±2°C.
    Capacitance change within±20% of the intial value
    Dissipation Factor Not more than 200% of the specified value
    Leakage current Not more than the specified value
    Load life( hours) 10WV- 120WV Φ5 8000hrs
    Φ6.3 10000hrs
    ≥Φ8 12000hrs
    160WV-500WV Φ5 〜Φ6.3 10000hrs ≥Φ8 12000hrs
    Shelf Life At High Temperature After leaving capacitors under no load at 105℃ fbr 1000 hours, the following specification shall be satisfied at 25±2℃.
    Capacitance change within±20% of the intial value
    Dissipation Factor Not more than 200% of the specified value
    Leakage current Not more than 200% of the specified value

    Dimension (Unit:mm)

    L=9 a=1.0
    L≤16 a=1.5
    L>16 a=2.0
    D 5 6.3 8 10 12.5 16 18
    d 0.5 0.5 0.6 0.6 0.6 0.8 0.8
    F 2 2.5 3.5 5 5 7.5 7.5

    Ripple Current Correction Factor

    Frequency Correction Factor

    Frequency (Hz) 50 120 1K 10K-50K 100K
    Coefficient 0.4 0.5 0.8 0.9 1

    Temperature Correction Factor

    Environment Temperature(℃) 50℃ 70℃ 85℃ 105℃
    Correction Factor 2.1 1.8 1.4 1

    List of Standard Products

    Voltage (V) 10 16
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    10 5x9 1.05 57 5x9 1.05 72
    15 5x9 1.05 77 5x9 1.05 92
    22 5x9 0.4 92 5x9 0.4 112
    33 5x9 0.4 107 5x9 0.4 122
    39 5x9 0.4 137 5x9 0.4 152
    47 5x9 0.25 144 5x9 0.25 162
    56 5x9 0.25 152 5x9 0.25 172
    68 5x9 0.25 162 5x9 0.25 182
    68 　 　 　 　 　 　
    82 5x9 0.25 172 5x9 0.25 212
    82 　 　 　 　 　 　
    100 5x9 0.25 182 5x11 0.23 350
    100 　 　 　 　 　 　
    120 5x9 0.25 320 5x11 0.23 550
    120 　 　 　 　 　 　
    150 5x11 0.23 350 6.3x9 0.2 550
    150 　 　 　 　 　 　
    180 5x11 0.23 350 6.3x9 0.16 550
    180 　 　 　 　 　 　
    220 6.3x9 0.2 550 6.3x11 0.098 550
    220 　 　 　 8x9 0.098 580
    270 6.3x9 0.16 550 8x9 0.098 580
    270 　 　 　 　 　 　
    330 6.3x11 0.098 550 8x9 0.098 864
    330 8x9 0.098 580 　 　 　
    390 8x9 0.098 580 8x11.5 0.0608 960
    390 　 　 　 10x9 0.0608 980
    470 8x9 0.098 864 8x11.5 0.0608 960
    470 　 　 　 10x9 0.0608 980
    560 8x11.5 0.0608 960 8x16 0.0485 1270
    560 10x9 0.0608 980 10x9 0.0485 1330
    680 8x11.5 0.0608 960 8x16 0.0485 1270
    680 10x9 0.0608 980 10x12.5 0.0429 1330
    820 8x14 0.0585 1170 8x20 0.0313 1530
    820 10x12.5 0.0608 1270 10x14 0.0313 1850
    1000 8x16 0.0485 1270 8x20 0.0313 1530
    1000 10x12.5 0.0429 1330 10x16 0.0308 1850
    1200 8x20 0.0313 1530 10x16 0.0308 1960
    1200 10x14 0.0308 1760 　 　 　

    Voltage (V) 10 16
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1500 8x20 0.0313 1530 10x20 0.028 1960
    1500 10x16 0.0308 1850 12.5x16 0.035 2330
    1800 10x20 0.028 1960 10x20 0.028 2250
    1800 12.5x16 0.0201 2330 12.5x16 0.028 2480
    2200 10x20 0.028 1960 12.5x20 0.028 2480
    2200 12.5x16 0.0201 2330 　 　 　
    2700 10x23 0.0198 2250 12.5x20 0.0218 2900
    2700 12.5x20 0.028 2480 　 　 　
    3300 12.5x20 0.028 2480 12.5x25 0.0165 3450
    3300 　 　 　 　 　 　
    3900 12.5x25 0.0165 2900 12.5x30 0.0143 3450
    3900 　 　 　 16x20 0.0165 3250
    4700 12.5x30 0.0143 3450 12.5x30 0.0143 3570
    4700 16x20 0.0165 3450 16x25 0.0143 3630
    5600 12.5x30 0.0143 3570 16x31.5 0.0121 3890
    5600 16x20 0.0165 3250 18x25 0.0132 3650
    6800 12.5x35 0.0132 3570 16x31.5 0.0121 3890
    6800 16x25 0.0143 3630 18x25 0.0132 3650
    8200 16x31.5 0.0121 3890 16x35.5 0.011 4010
    8200 18x25 0.0132 3650 18x31.5 0.011 4010
    10000 16x31.5 0.0121 3890 18x35.5 0.01 4080
    10000 18x25 0.0132 3650 　 　 　
    Voltage (V) 25 35
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    10 5x9 1.05 92 5x9 1.5 102
    15 5x9 1.05 112 5x9 1.5 122
    22 5x9 0.4 122 5x9 1.5 170
    33 5x9 0.4 152 5x9 0.4 220
    39 5x9 0.4 182 5x11 0.36 240
    47 5x9 0.25 212 5x11 0.32 350
    56 5x9 0.25 320 6.3x9 0.32 495
    68 5x11 0.23 350 6.3x11 0.26 550
    68 　 　 　 8x9 0.26 580
    82 6.3x9 0.2 550 6.3x11 0.25 550
    82 　 　 　 8x9 0.25 580
    100 6.3x9 0.2 550 6.3x11 0.25 550
    100 　 　 　 8x9 0.25 580
    120 6.3x11 0.098 550 8x9 0.25 864
    120 8x9 0.098 580 　 　 　
    150 6.3x11 0.098 550 8x11.5 0.098 960
    150 8x9 0.098 580 10x9 0.098 980
    180 8x9 0.098 864 8x11.5 0.098 960
    180 　 　 　 10x9 0.098 980
    220 8x11.5 0.0608 960 8x11.5 0.098 1270
    220 10x9 0.0608 980 　 　 　
    270 8x11.5 0.0608 960 8x16 0.07 1270
    270 10x9 0.0608 980 10x12.5 0.0629 1330
    330 8x14 0.0532 960 10x12.5 0.0629 1330
    330 　 　 　 　 　 　
    390 8x16 0.0485 1270 8x20 0.055 1720
    390 10x12.5 0.0485 1270 10x16 0.055 1850
    470 10x12.5 0.0429 1330 10x16 0.055 1850
    470 　 　 　 12.5x14 0.055 1890
    560 8x20 0.0313 1530 10x20 0.048 2250
    560 10x14 0.0313 1850 12.5x16 0.048 2330
    680 10x16 0.0308 1850 10x23 0.0398 2330
    680 　 　 　 12.5x20 0.035 2330
    820 10x20 0.028 2250 12.5x20 0.028 2480
    820 12.5x16 0.035 2330 　 　 　
    1000 10x20 0.028 2330 12.5x20 0.028 2480
    1000 12.5x16 0.035 2330 　 　 　
    1200 12.5x20 0.028 2480 12.5x25 0.0265 2900
    1200 　 　 　 　 　 　

    Voltage (V) 25 35
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1500 12.5x20 0.028 2480 12.5x30 0.0243 3450
    1500 　 　 　 16x20 0.0265 3250
    1800 12.5x25 0.023 2900 12.5x35 0.022 3570
    1800 　 　 　 16x25 0.0243 3630
    2200 12.5x25 0.0143 3450 16x25 0.0243 3630
    2200 16x20 0.0165 3250 　 　 　
    2700 12.5x35 0.0132 3570 16x35.5 0.021 4010
    2700 16x25 0.0143 3630 18x31.5 0.021 4180
    3300 12.5x40 0.0121 3890 16x40 0.021 4220
    3300 16x25 0.0143 3630 18x35.5 0.016 4220
    3900 16x31.5 0.0121 3890 18x35.5 0.016 4500
    3900 18x25 0.0132 3650 　 　 　
    4700 16x31.5 0.011 4010 　 　 　
    4700 18x25 0.011 4180 　 　 　
    5600 18x35.5 0.01 4220 　 　 　
    5600 　 　 　 　 　 　
    6800 18x40 0.01 4500 　 　 　
    6800 　 　 　 　 　 　
    8200 　 　 　 　 　 　
    8200 　 　 　 　 　 　
    10000 　 　 　 　 　 　
    10000 　 　 　 　 　 　



    Voltage (V) 50 63
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 5x9 4 22 5x9 3 24
    1 5x9 4 32 5x9 3 35
    1.2 5x9 4 32 5x9 3 35
    1.5 5x9 4 38 5x9 3 42
    1.8 5x9 4 38 5x9 3 42
    2.2 5x9 1.5 40 5x9 3 46
    2.7 5x9 1.5 40 5x9 3 56
    3.3 5x9 1.5 55 5x9 3 60
    3.9 5x9 1.5 55 5x9 3 79
    4.7 5x9 1.5 90 5x9 3 99

    Voltage (V) 50 63
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    5.6 5x9 1.5 92 5x9 3 101
    6.8 5x9 1.5 95 5x9 3 105
    8.2 5x9 1.5 97 5x9 3 110
    10 5x9 1.5 102 5x9 3 112
    12 5x9 1.5 122 5x9 3 122
    12 　 　 　 　 　 　
    15 5x9 1.5 122 5x9 1.35 170
    15 　 　 　 　 　 　
    18 5x9 1.05 170 5x11 0.78 278
    18 　 　 　 　 　 　
    22 5x11 0.95 180 6.3x9 0.74 356
    22 　 　 　 　 　 　
    27 5x11 0.95 180 6.3x9 0.61 356
    27 　 　 　 　 　 　
    33 6.3x9 0.74 356 6.3x11 0.38 400
    33 　 　 　 8x9 0.38 482
    39 6.3x9 0.62 356 6.3x11 0.38 400
    39 　 　 　 8x9 0.38 482
    47 6.3x11 0.32 356 6.3x11 0.32 520
    47 8x9 0.26 395 8x9 0.24 520
    56 6.3x11 0.21 666 8x9 0.24 520
    56 8x9 0.21 666 　 　 　
    68 8x9 0.21 666 8x11.5 0.23 520
    68 　 　 　 10x9 0.24 535
    82 8x11.5 0.15 740 8x11.5 0.17 722
    82 10x9 0.15 666 10x9 0.17 650
    100 8x11.5 0.15 740 8x16 0.17 722
    100 10x9 0.15 666 10x12.5 0.17 722
    120 8x14 0.13 970 8x16 0.17 722
    120 10x12.5 0.13 985 10x12.5 0.17 722
    150 8x16 0.11 970 8x20 0.12 890
    150 10x12.5 0.11 985 10x16 0.12 998
    180 8x20 0.1 1220 10x16 0.12 998
    180 10x14 0.1 1370 　 　 　
    220 8x20 0.05 1220 10x20 0.086 1200
    220 10x16 0.046 1370 12.5x16 0.0804 1250
    270 10x20 0.042 1580 10x20 0.086 1200
    270 12.5x14 0.05 1752 12.5x16 0.0804 1250
    330 10x20 0.042 1580 10x23 0.076 1410

    Voltage (V) 50 63
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    330 12.5x16 0.05 1752 12.5x20 0.066 1570
    390 10x20 0.042 1870 12.5x20 0.066 1570
    390 　 　 　 　 　 　
    470 12.5x20 0.056 2050 12.5x25 0.047 1990
    470 　 　 　 　 　 　
    560 12.5x20 0.056 2410 12.5x30 0.039 2410
    560 　 　 　 16x20 0.039 2410
    680 12.5x25 0.056 2410 12.5x30 0.036 2620
    680 　 　 　 16x25 0.035 2730
    820 12.5x25 0.045 2960 12.5x35 0.03 2940
    820 16x20 0.042 2730 16x25 0.035 2730
    1000 12.5x30 0.035 2960 16x31.5 0.026 2990
    1000 16x25 0.035 3010 18x25 0.034 2800
    1200 16x31.5 0.0247 3280 16x31.5 0.026 2990
    1200 18x25 0.0323 3060 18x25 0.034 2800
    1500 16x31.5 0.0247 3280 16x35.5 0.023 3040
    1500 18x25 0.0323 3300 18x31.5 0.028 3300
    1800 16x35.5 0.0218 3040 16x40 0.021 3570
    1800 18x31.5 0.0266 3300 18x35.5 0.022 3570
    2200 18x35.5 0.021 3570 18x40 0.0285 3900
    2700 18x40 0.02 3900 　 　 　
    Voltage (V) 80 100
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 5x9 3 25 5x9 3 25
    1 5x9 3 36 5x9 3 36
    1.2 5x9 3 36 5x9 3 36
    1.5 5x9 3 44 5x9 3 44
    1.8 5x9 3 44 5x9 3 44
    2.2 5x9 3 48 5x9 3 48
    2.7 5x9 3 56 5x9 3 56
    3.3 5x9 3 63 5x9 3 63
    3.9 5x9 3 82 5x9 1.35 82
    4.7 5x9 3 102 5x9 1.35 102

    Voltage (V) 80 100
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    5.6 5x9 3 107 5x11 1.12 107
    6.8 5x9 3 112 5x11 1.12 112
    8.2 5x9 1.35 127 5x11 0.88 127
    10 5x11 1.35 170 6.3x9 0.88 275
    12 5x11 0.78 248 6.3x11 0.78 300
    12 　 　 　 8x9 0.78 300
    15 6.3x9 0.61 275 6.3*11 0.78 400
    15 　 　 　 8x9 0.78 416
    18 6.3x9 0.61 275 6.3x11 0.61 400
    18 　 　 　 8x9 0.61 416
    22 6.3x11 0.78 400 8x11.5 0.39 462
    22 8x9 0.78 416 10x9 0.39 500
    27 6.3x11 0.78 400 8x11.5 0.27 585
    27 8x9 0.78 416 10x9 0.27 624
    33 6.3x11 0.61 400 8x11.5 0.27 585
    33 8x9 0.61 416 10x9 0.27 624
    39 8x11.5 0.39 462 8x16 0.27 585
    39 10x9 0.61 500 10x12.5 0.27 624
    47 8x11.5 0.39 462 8x16 0.27 585
    47 10x9 0.61 500 10x12.5 0.27 624
    56 8x11.5 0.27 585 10x12.5 0.25 750
    56 10x9 0.28 585 　 　 　
    68 8x16 0.27 585 8x20 0.2 770
    68 10x12.5 0.25 624 10x14 0.19 780
    82 8x20 0.25 624 10x16 0.19 780
    82 10x12.5 0.25 624 12.5x14 0.18 858
    100 8x20 0.2 800 10x20 0.13 1040
    100 10x16 0.19 780 12.5x16 0.14 975
    120 10x16 0.19 780 10x23 0.12 1170
    120 12.5x14 0.18 858 12.5x20 0.093 1430
    150 10x20 0.13 1040 12.5x20 0.093 1430
    150 12.5x16 0.14 975 　 　 　
    180 10x20 0.13 1040 12.5x25 0.066 1620
    180 12.5x16 0.14 975 　 　 　
    220 　 　 　 12.5x25 0.066 1620
    220 12.5x20 0.094 1430 　 　 　
    270 12.5x20 0.094 1430 12.5x30 0.056 1950
    270 　 　 　 16x20 0.064 1750
    330 12.5x20 0.066 1620 12.5x35 0.047 2140

    Voltage (V) 80 100
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    330 　 　 　 16x25 0.048 2210
    390 12.5x30 0.056 1950 12.5x40 0.04 2340
    390 16x20 0.064 1750 16x25 0.048 2210
    470 12.5x35 0.047 2140 16x31.5 0.036 2400
    470 16x25 0.048 2210 18x25 0.042 2270
    560 12.5x40 0.04 2340 16x35.5 0.032 2600
    560 16x25 0.048 2210 18x31.5 0.034 2470
    680 16x31.5 0.036 2400 16x40 0.03 2860
    680 18x25 0.042 2270 18x35.5 0.03 2860
    820 16x35.5 0.032 2600 18x40 0.0285 3510
    820 18x25 0.042 2270 　 　 　
    1000 16x40 0.03 2860 　 　 　
    1000 18x31.5 0.034 2470 　 　 　
    1200 18x35.5 0.03 2860 　 　 　
    1200 　 　 　 　 　 　
    1500 18x40 0.0285 3510 　 　 　
    1500 　 　 　 　 　 　
    1800 　 　 　 　 　 　
    1800 　 　 　 　 　 　
    2200 　 　 　 　 　 　
    2700 　 　 　 　 　 　
    Voltage (V) 120 160
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 5x9 3 25 　 　 　
    1 5x9 3 38 5x11 27 52
    1.2 5x9 3 38 5x11 27 57
    1.5 5x9 3 44 5x11 27 64
    1.8 5x9 3 44 5x11 27 70
    2.2 5x9 3 48 5x11 27 77
    2.7 5x9 3 56 5x11 27 85
    3.3 5x9 3 63 5x11 27 95
    3.9 5x11 1.35 82 5x11 21 108
    3.9 　 　 　 　 　 　
    4.7 5x11 1.35 102 6.3x9 21 108

    Voltage (V) 120 160
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    4.7 　 　 　 　 　 　
    5.6 6.3x9 1.12 107 6.3x9 12.78 130
    5.6 　 　 　 　 　 　
    6.8 6.3x9 1.12 112 6.3x11 12.78 130
    6.8 　 　 　 8x9 12.78 117
    8.2 6.3x9 1.12 127 8x9 12.78 140
    8.2 　 　 　 　 　 　
    10 6.3x11 0.88 275 8x9 12.78 140
    10 　 　 　 　 　 　
    12 8x9 0.8 300 8x11.5 10.15 168
    12 　 　 　 10x9 10.15 168
    15 8x11.5 0.78 358 8x11.5 10 261
    15 10x9 0.78 358 10x9 10 261
    18 8x11.5 0.61 358 8x14 7.5 290
    18 10x9 0.61 358 10x9 7.5 261
    22 8x14 0.48 450 8x14 7.5 350
    22 10x9 0.48 450 10x12.5 7.5 380
    27 8x16 0.37 550 8x16 2.65 350
    27 10x12.5 0.37 550 10x12.5 2.65 380
    33 8x16 0.37 585 8x20 2.65 650
    33 10x12.5 0.37 585 10x14 2.65 760
    39 8x20 0.28 624 10x16 2.65 650
    39 10x14 0.28 624 12.5x14 2.65 760
    47 10x14 0.28 624 10x20 2.65 750
    47 　 　 　 12.5x14 2.65 760
    56 10x16 0.25 750 10x20 2.65 920
    56 12.5x14 0.25 750 12.5x16 2.27 1180
    68 10x20 0.21 770 12.5x16 2.27 1280
    68 12.5x14 0.21 780 　 　 　
    82 12.5x16 0.19 900 12.5x20 2.27 1280
    82 　 　 　 　 　 　
    100 12.5x20 0.13 1040 12.5x20 2.27 1280
    100 　 　 　 　 　 　
    120 12.5x20 0.12 1240 12.5x25 1.43 1550
    120 　 　 　 16x20 1.25 1420
    150 12.5x25 0.093 1430 12.5x30 1.43 1960
    150 16x20 0.093 1430 16x25 1.43 1890
    180 16x20 0.093 1530 16x25 1.43 1890
    180 　 　 　 　 　 　

    Voltage (V) 120 160
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    220 16x25 0.066 1750 16x31.5 1.14 2450
    220 18x20 0.066 1750 18x25 1.14 2370
    270 16x31.5 0.056 1950 16x31.5 1.14 2450
    270 18x25 0.064 1950 　 　 　
    330 16x31.5 0.047 2210 18x31.5 1.1 3200
    330 18x25 0.048 2210 　 　 　
    390 16x35.5 0.04 2430 18x35.5 0.95 3450
    390 18x31.5 0.04 2430 　 　 　
    470 18x35.5 0.032 2600 　 　 　
    560 18x40 0.032 2860 　 　 　
    Voltage (V) 200 250
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 　 　 　 　 　 　
    1 5x11 27 52 6.3x9 26 72
    1.2 5x11 27 57 6.3x9 26 72
    1.5 5x11 27 64 6.3x9 26 72
    1.8 5x11 27 70 6.3x9 26 108
    2.2 5x11 27 77 6.3x9 26 117
    2.7 5x11 27 85 6.3x9 26 117
    3.3 6.3x9 26 108 6.3x9 10.15 140
    3.9 6.3x9 16 108 6.3x11 10.15 140
    3.9 　 　 　 8x9 10.15 144
    4.7 6.3x11 10.15 130 6.3x11 10.15 144

    Voltage (V) 200 250
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    4.7 8x9 10.15 153 8x9 10.15 144
    5.6 6.3x11 10.15 130 8x9 10.15 144
    5.6 8x9 10.15 153 　 　 　
    6.8 8x9 10.15 153 8x9 10.15 160
    6.8 　 　 　 　 　 　
    8.2 8x9 10.15 160 8x11.5 10.15 160
    8.2 　 　 　 10x9 10.15 144
    10 8x11.5 10.15 170 8x11.5 9.5 290
    10 10x9 10.15 180 10x9 9.5 365
    12 8x14 8.5 270 8x14 8.5 270
    12 　 　 　 　 　 　
    15 8x16 3.65 290 8x16 3.65 290
    15 10x12.5 4.5 365 10x12.5 3.24 380
    18 8x20 3.24 370 8x20 3.24 370
    18 10x14 3.24 380 10x14 3.24 400
    22 8x20 3.24 370 8x20 3.24 370
    22 10x14 3.24 400 10x14 3.24 400
    27 　 　 　 　 　 　
    27 　 　 　 　 　 　
    33 10x20 1.65 650 10x20 1.65 650
    33 12.5x14 1.65 760 12.5x14 1.65 760
    39 　 　 　 　 　 　
    39 　 　 　 　 　 　
    47 12.5x20 1.38 980 12.5x20 1.38 980
    47 　 　 　 　 　 　
    56 12.5x20 1.38 980 12.5x20 1.38 980
    56 　 　 　 　 　 　
    68 12.5x25 1.25 1300 12.5x25 1.25 1300
    68 16x20 1.25 1420 16x20 1.25 1420
    82 12.5x25 1.25 1390 12.5x30 1.15 1390
    82 16x20 1.18 1420 16x20 1.18 1420
    100 12.5x30 1.15 1390 16x25 1.18 1950
    100 16x20 1.18 1420 18x20 1.02 1950
    120 12.5x30 1.15 1420 18x20 1.02 1950
    120 16x25 1.18 1950 16x31.5 0.98 1990
    150 16x25 1.18 1950 16x31.5 0.98 2030
    150 　 　 　 18x25 0.98 2030
    180 16x35.5 0.8 2300 16x35.5 0.8 2300
    180 18x31.5 0.8 2300 18x31.5 0.8 2300

    Voltage (V) 200 250
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    220 18x31.5 0.8 2300 18x35.5 0.74 2680
    220 　 　 　 　 　 　
    270 　 　 　 　 　 　
    270 　 　 　 　 　 　
    330 　 　 　 　 　 　
    330 　 　 　 　 　 　
    390 　 　 　 　 　 　
    390 　 　 　 　 　 　
    470 　 　 　 　 　 　
    560 　 　 　 　 　 　
    Voltage (V) 350 400
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1 6.3x9 55 81 6.3x9 55 77
    1.2 6.3x9 34 99 6.3x9 34 81
    1.5 6.3x9 34 99 6.3x9 34 81
    1.8 6.3x9 34 99 6.3x9 34 81
    1.8 　 　 　 　 　 　
    2.2 6.3x9 34 130 6.3x9 28 100
    2.7 6.3x11 23 144 8x9 23 144
    2.7 8x9 23 144 　 　 　
    3.3 8x9 16 144 8x9 16 160
    3.3 　 　 　 　 　 　
    3.9 8x9 16 155 8x11.5 16 160
    3.9 　 　 　 10x9 16 220
    4.7 8x11.5 16 155 8x11.5 16 160
    4.7 10x9 16 180 10x9 16 220
    5.6 8x11.5 12.5 200 8x14 12.5 240
    5.6 10x9 16 170 10x12.5 12.5 250
    6.8 8x14 10.5 220 8x16 10.5 270
    6.8 10x9 12.5 240 10x12.5 10.5 280
    8.2 8x16 7.5 290 8x20 7.5 290
    8.2 10x12.5 12.5 315 10x14 7.5 315
    10 8x20 12.5 290 8x20 7.5 315
    10 10x14 7.5 350 10x14 7.5 350

    Voltage (V) 350 400
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    12 10x16 6.2 370 10x20 6.2 490
    15 10x16 6.2 370 10x20 6.2 490
    15 12.5x14 6.2 490 12.5x16 6.2 550
    18 10x20 6.2 490 　 　 　
    18 12.5x14 6.2 510 12.5x16 6.2 550
    22 10x20 6.2 550 12.5x20 6.2 1000
    22 12.5x16 6.2 1060 　 　 　
    33 12.5x20 2.25 1060 12.5x25 4 1060
    33 　 　 　 16x20 3 1150
    47 12.5x25 2.25 1150 12.5x30 2 1180
    47 16x20 2.25 1150 16x25 2 1180
    56 12.5x30 2.02 1220 16x25 1.82 1580
    56 16x25 2.02 1320 18x20 1.82 1530
    68 16x25 1.38 1580 16x31.5 1.38 1580
    68 18x20 1.38 1530 18x25 1.38 1530
    82 16x31.5 1.38 1580 16x35.5 1.25 2280
    82 18x25 1.38 1530 18x31.5 1.25 2280
    100 16x35.5 1.25 1945 18x31.5 1.07 2580
    100 18x31.5 1.25 2280 　 　 　
    120 18x31.5 1.25 2780 18x35.5 0.95 2850
    150 18x35.5 0.97 2850 18x40 0.95 2980
    Voltage (V) 450 500
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1 6.3x9 55 81 6.3x12 55 48
    1.2 6.3x9 50 81 6.3x12 50 48
    1.5 6.3x9 50 81 6.3x12 50 48
    1.8 6.3x11 45 86 8x11.5 45 84
    1.8 8x9 38 86 　 　 　
    2.2 8x9 38 95 8x11.5 16.5 90
    2.7 8x9 38 126 8x14 12 110
    2.7 　 　 　 　 　 　
    3.3 8x11.5 28 140 8x14 12 110
    3.3 10x9 28 150 　 　 　
    3.9 8x11.5 28 140 8x16 12 130
    3.9 10x9 28 150 　 　 　
    4.7 8x14 21.8 175 8x20 12 130
    4.7 10x9 18.5 180 　 　 　
    5.6 8x16 12.5 190 10x16 12 140
    5.6 10x12.5 12.5 200 　 　 　
    6.8 8x20 9.8 230 10x16 11 250
    6.8 10x14 9.8 210 　 　 　
    8.2 8x20 6.2 230 10x20 11 250
    8.2 10x14 6.2 280 　 　 　
    10 10x16 6.2 280 10x20 10 280
    10 12.5x14 6.2 360 12.5x14 7 320

    Voltage (V) 450 500
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    12 10x20 6.2 410 12.5x16 6.5 420
    15 10x20 6.2 410 12.5x20 6 480
    15 12.5x16 6.2 460 　 　 　
    18 12.5x20 4.5 500 12.5x25 6 480
    18 　 　 　 　 　 　
    22 12.5x20 4.25 500 12.5x25 4.5 520
    22 　 　 　 　 　 　
    33 12.5x30 2.82 770 12.5x35 2.2 740
    33 16x20 3 730 16x25 2.2 740
    47 16x25 2.82 1240 16x31.5 2 850
    47 18x20 2.82 1200 　 　 　
    56 16x31.5 1.5 1240 16x35.5 2 850
    56 18x25 1.5 1200 18x31.5 2 850
    68 16x35.5 1.25 1400 18x31.5 1.8 1200
    68 18x31.5 1.25 1460 　 　 　
    82 16x40 1.25 1460 18x35.5 1.5 1200
    82 18x31.5 1.25 1460 　 　 　
    100 18x35.5 0.9 1970 18x40 1.25 1200
    100 　 　 　 　 　 　
    120 18x40 0.9 1970 18x45 0.98 1268
    150 18x45 0.85 2080 　 　 　



    The Liquid Small Business Unit has been engaged in R&D and manufacturing since 2001. With an experienced R&D and manufacturing team, it has continuously and steadily produced a variety of high-quality miniaturized aluminium electrolytic capacitor to meet customers' innovative needs for electrolytic aluminum capacitors. The liquid small business unit has two packages: liquid SMD aluminum electrolytic capacitors and liquid lead type aluminium electrolytic capacitors. Its products have the advantages of miniaturization, high stability, high capacity, high voltage, high temperature resistance, low impedance, high ripple, and long life. Widely used in new energy automotive electronics, high-power power supply, intelligent lighting, gallium nitride fast charging, home appliances, photo voltaics and other industries.

    All about Aluminum Electrolytic Capacitor you need know

    Aluminum electrolytic capacitors are a common type of capacitor used in electronic devices. Learn the basics of how they work and their applications in this guide. Are you curious about aluminium electrolytic capacitor? This article covers the fundamentals of these aluminum capacitor, including their construction and usage. If you’re new to aluminium electrolytic capacitors, this guide is a great place to start. Discover the basics of these aluminum capacitors and how they function in electronic circuits. If you’re interested in electronics capacitor component , you may have heard of aluminium capacitor. These capacitor components are widely used in electronic devices and play an important role in circuit design. But what exactly are they and how do they work? In this guide, we’ll explore the basics of aluminum electrolytic capacitors, including their construction and applications. Whether you’re a beginner or an experienced electronics enthusiast, this article is a great resource for understanding these important components.

    1.What is an aluminum electrolytic capacitor? An aluminium electrolytic capacitor is a type of capacitor that uses an electrolyte to achieve a higher capacitance than other types of capacitors. It is made up of two aluminum foils separated by a paper soaked in electrolyte.

    2.How does it work? When a voltage is applied to the electronic capacitor, the electrolyte conducts electricity and allows the capacitor electronic to store energy. The aluminum foils act as the electrodes, and the paper soaked in electrolyte acts as the dielectric.

    3.What are the advantages of using an aluminum electrolytic capacitors? Aluminium electrolytic capacitors have a high capacitance, which means they can store a lot of energy in a small space. They are also relatively inexpensive and can handle high voltages.

    4.What are the disadvantages of using an aluminum electrolytic capacitor? One disadvantage of using an aluminum electrolytic capacitors is that they have a limited lifespan. The electrolyte can dry out over time, which can cause the capacitor components to fail. They are also sensitive to temperature and can be damaged if exposed to high temperatures.

    5.What are some common applications of aluminium electrolytic capacitors? Aluminium electrolytic capacitor are commonly used in power supplies, audio equipment, and other electronic devices that require high capacitance. They are also used in automotive applications, such as in the ignition system.

    6.How do you choose the right aluminum electrolytic capacitor for your application? When choosing an aluminum electrolytic capacitors, you need to consider the capacitance, voltage rating, and temperature rating. You also need to consider the size and shape of the capacitor, as well as the mounting options.

    7.How do you care for an aluminium electrolytic capacitor? To care for an aluminium electrolytic capacitors, you should avoid exposing it to high temperatures and high voltages. You should also avoid subjecting it to mechanical stress or vibration. If the capacitor is used infrequently, you should periodically apply a voltage to it to keep the electrolyte from drying out.

    The Advantages and Disadvantages of Aluminum Electrolytic Capacitors

    Aluminum electrolytic capacitor have both advantages and disadvantages. On the positive side, they have a high capacitance-to-volume ratio, making them useful in applications where space is limited. The aluminium Electrolytic Capacitor also have a relatively low cost compared to other types of capacitors. However, they have a limited lifespan and can be sensitive to temperature and voltage fluctuations. Additionally, Aluminium Electrolytic Capacitors may experience leakage or failure if not used properly. On the positive side, Aluminum Electrolytic Capacitors have a high capacitance-to-volume ratio, making them useful in applications where space is limited. However, they have a limited lifespan and can be sensitive to temperature and voltage fluctuations. Additionally, Aluminum Electrolytic Capacitor can be prone to leakage and have a higher equivalent series resistance compared to other types of electronic capacitors.

  • Previous:
  • Next:
    • Write your message here and send it to us

    Products categories

    Hit enter to search or ESC to close
