LK Featured Image
  • LK

LK

Short Description:

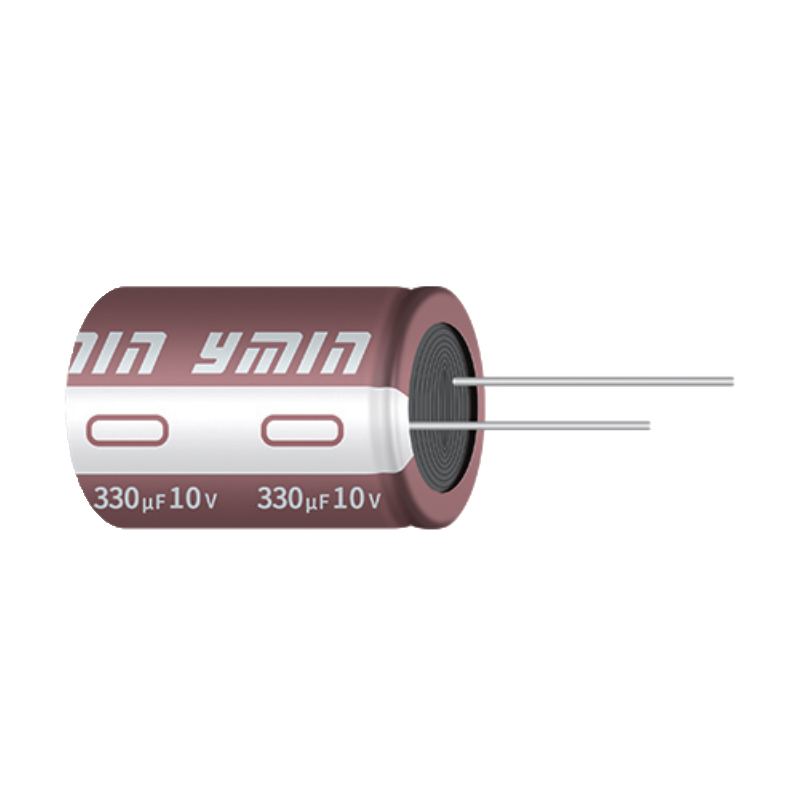

Radial Lead type Aluminum Electrolytic Capacitors

Small size, high frequency and large ripple current resistance

High-frequency low-impedance high-end power supply dedicated

6000~8000 hours under 105°C environment

Conforms to AEC-Q200 RoHS Directive Correspondence
  • Series: LK
  • Life(Hrs): 6000~8000
  • Features: Small size, high frequency and low impedance
  • Rated Voltage Range(V.DC): 10~500
  • Rated Capacitance（uF）: 0.47~10000
  • working temperature(°C): -55~105

    • Product Detail

    Product Tags

    Technical Parameter

     ♦ 105℃ 6000〜8000 Hours

    ♦ Miniature, High Ripple Current, High Frequency, Low ESR

    ♦ RoHS Compliant

    ♦ AEC-Q200 Qualified, Please Consult Us For More Details

    Specification

    Items Characteristics
    Operation Temperature Range ≤120V.DC -55℃~+105℃ ； 160~500V.DC -40℃~+105℃
    Rated Voltage 10~500V.DC
    Capacitance Tolerance ±20%(25±2℃ 120Hz)
    Leakage Current((uA) 10~120WV |≤0.01CV or 3uA whichever is greater C:rated capacitance(uF) V:rated voltage(V) 2 minutes reading
    160 〜500WV |≤0.02CV+10(uA) C:rated capacitance(uF) V:rated voltage(V) 2 minutes reading
    Dissipation Factor (25±2℃ 120Hz) Rated Voltage(V) 10 16 25 35 50 63 80 100
    tgδ 0.19 0.16 0.14 0.12 0.1 0.09 0.09 0.09
    Rated Voltage(V) 120 160 200 250 350 400 450 500
    tgδ 0.09 0.09 0.08 0.08 0.1 0.1 0.12 0.2
    For those with rated capacitance larger than 1000uF, when the rated capacitance is increased by 1000uF,then tgδ will be increased by 0.02
    Temperature Characteristics (120Hz) Rated Voltage(V) 10 16 25 35 50 63 80 100
    Z(-40℃)/Z(20℃) 6 4 3 3 3 3 3 3
    Rated Voltage(V) 120 160 200 250 350 400 450 500
    Z(-40℃)/Z(20℃) 5 5 5 5 7 7 7 8
    Endurance After standard test time with applying the rated voltage with the rated ripple current in the oven at 105℃, the following specification shall be satisfied after 16 hours at 25±2℃.
    Capacitance change within±20% of the intial value
    Dissipation Factor Not more than 200% of the specified value
    Leakage current Not more than the specified value
    Load life( hours) ≤Φ5〜Φ6.3 6000hrs 　 　 　
    ≥Φ8 8000hrs 　 　 　
    Shelf Life At High Temperature After leaving capacitors under no load at 105℃ for 1000 hours, the following specification shall be satisfied at 25±2℃.
    Capacitance change within±20% of the intial value
    Dissipation Factor Not more than 200% of the specified value
    Leakage current Not more than 200% of the specified value



    Dimension （Unit：mm)

    L=9 a=1.0
    L≤16 a=1.5
    L>16 a=2.0
    D 5 6.3 8 10 12.5 16 18
    d 0.5 0.5 0.6 0.6 0.6 0.8 0.8
    F 2 2.5 3.5 5 5 7.5 7.5



    Ripple Current Correction Factor

    Frequency Correction Factor

    Frequency (Hz) 50 120 1K 10K-50K 100K
    Coefficient 0.4 0.5 0.8 0.9 1

    Temperature Correction Factor

    Environment Temperature(℃) 50℃ 70℃ 85℃ 105℃
    Correction Factor 2.1 1.8 1.4 1



    List of Standard Products

    Voltage (V) 10 16
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    10 5x9 1.1 55 5x9 1.1 70
    15 5x9 1.1 75 5x9 1.1 90
    22 5x9 0.42 90 5x9 0.42 110
    33 5x9 0.42 105 5x9 0.42 120
    39 5x9 0.42 135 5x9 0.42 150
    47 5x9 0.28 142 5x9 0.28 160
    56 5x9 0.28 150 5x9 0.28 170
    68 5x9 0.28 160 5x9 0.28 180
    82 5x9 0.28 170 5x9 0.28 210
    100 5x9 0.28 180 5x9 0.28 290
    100 　 　 　 　 　 　
    120 5x9 0.28 210 5x11 0.25 310
    150 5x9 0.28 290 6.3x9 0.25 390
    150 　 　 　 　 　 　
    180 5x11 0.28 290 6.3x9 0.25 390
    180 　 　 　 　 　 　
    220 5x11 0.25 310 6.3x11 0.17 404
    220 　 　 　 8x9 0.17 441
    270 6.3x9 0.25 390 6.3x11 0.17 404
    270 　 　 　 8x9 0.17 441
    330 6.3x11 0.17 404 6.3x11 0.17 650
    330 8x9 0.17 441 8x9 0.17 765
    390 6.3x11 0.17 650 8x11.5 0.1 830
    390 8x9 0.17 765 10x9 0.1 765
    470 6.3x11 0.17 650 8x11.5 0.1 830
    470 8x9 0.17 765 10x9 0.1 765
    560 8x11.5 0.1 830 8x11.5 0.1 830
    560 10x9 0.1 765 10x9 0.1 765
    680 8x11.5 0.1 830 8x16 0.1 1125
    680 10x9 0.1 765 10x12.5 0.13 1150
    820 8x11.5 0.1 830 8x20 0.0505 1350
    820 　 　 　 10x14 0.0805 1350
    1000 8x16 0.1 1125 8x20 0.0505 1350
    1000 10x12.5 0.1 1150 10x14 0.0805 1350
    1200 8x16 0.1 1125 10x16 0.0505 1550
    1200 10x14 0.0805 1350 12.5x14 0.06 1808
    1500 8x20 0.0805 1350 10x20 0.042 1590
    1500 10x14 0.0805 1350 12.5x14 0.06 1808
    1800 10x20 0.062 1590 10x20 0.042 1590

    Voltage (V) 10 16
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1800 12.5x14 0.06 1808 12.5x16 0.05 1910
    2200 10x20 0.062 1590 10x23 0.03 2050
    2200 12.5x14 0.06 1808 12.5x20 0.03 2250
    2700 10x20 0.062 1590 12.5x20 0.03 2250
    2700 12.5x16 0.05 1910 　 　 　
    3300 12.5x20 0.03 2250 12.5x25 0.0268 2620
    3300 　 　 　 　 　 　
    3900 12.5x20 0.03 2250 12.5x30 0.0255 3110
    3900 　 　 　 16x20 0.0268 2925
    4700 12.5x25 0.027 2620 12.5x30 0.0255 3110
    4700 　 　 　 16x25 0.0246 3270
    5600 12.5x25 0.027 2620 12.5x35 0.0246 3215
    5600 　 　 　 16x25 0.0246 3270
    6800 12.5x30 0.0155 3110 16x31.5 0.0213 3500
    6800 16x25 0.0146 3270 18x25 0.0235 3600
    8200 12.5x40 0.0123 3500 16x35.5 0.022 3610
    8200 16x25 0.0146 3270 18x31.5 0.022 3610
    10000 16x31.5 0.0123 3500 18x35.5 0.021 3680
    10000 18x25 0.0135 3600 　 　 　
    Voltage (V) 25 35
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    10 5x9 1.1 90 5x9 1.6 100
    15 5x9 1.1 110 5x9 1.1 120
    22 5x9 1.1 120 5x9 1.1 160
    33 5x9 0.42 150 5x9 0.42 215
    39 5x9 0.42 180 5x9 0.42 215
    47 5x9 0.28 210 5x11 0.38 310
    56 5x9 0.28 290 5x11 0.38 310
    68 5x11 0.25 310 6.3x9 0.36 390
    82 5x11 0.25 310 6.3x9 0.36 390
    100 5x11 0.25 310 6.3x11 0.17 404
    100 　 　 　 8x9 0.17 441
    120 6.3x9 0.25 390 8x9 0.17 441
    150 6.3x11 0.17 404 8x11.5 0.13 830
    150 8x9 0.17 441 10x9 0.13 765
    180 6.3x11 0.17 404 8x11.5 0.13 830
    180 8x9 0.17 441 10x9 0.13 765
    220 6.3x11 0.17 404 8x11.5 0.13 830
    220 8x9 0.17 441 10x9 0.13 765
    270 8x11.5 0.1 830 8x16 0.1 1150
    270 10x9 0.1 765 10x12.5 0.1 1150
    330 8x11.5 0.1 830 8x16 0.1 1170
    330 10x9 0.1 765 10x12.5 0.1 1150
    390 8x14 0.12 1150 8x20 0.0505 1350
    390 10x12.5 0.1 1150 10x16 0.0505 1550
    470 8x16 0.1 1170 8x20 0.0505 1350
    470 10x12.5 0.1 1150 10x16 0.0505 1550
    560 8x20 0.0505 1350 10x16 0.042 1550
    560 10x12.5 0.1 1150 12.5x14 0.05 1808
    680 8x20 0.0505 1350 10x20 0.042 1590
    680 10x16 0.0505 1550 12.5x16 0.05 1910
    820 10x16 0.0505 1550 10x20 0.042 1590
    820 12.5x14 0.06 1808 12.5x16 0.05 1910
    1000 10x20 0.0505 1808 12.5x20 0.03 2250
    1000 12.5x14 0.06 1808 　 　 　
    1200 10x23 0.05 2050 12.5x20 0.03 2250
    1200 12.5x16 0.05 1910 　 　 　
    1500 12.5x20 0.03 2250 12.5x25 0.027 2620
    1500 　 　 　 16x20 0.027 2925
    1800 12.5x20 0.03 2250 12.5x35 0.021 3215

    Voltage (V) 25 35
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1800 　 　 　 16x20 0.021 3270
    2200 12.5x25 0.027 2620 12.5x35 0.016 3215
    2200 　 　 　 16x25 0.016 3270
    2700 12.5x30 0.025 3110 16x31.5 0.014 3500
    2700 　 　 　 18x25 0.027 3600
    3300 12.5x35 0.025 3215 16x31.5 0.0123 3500
    3300 16x25 0.025 3270 18x25 0.0135 3600
    3900 16x31.5 0.02 3500 16x35.5 0.01 3610
    3900 18x25 0.0135 3300 18x25 0.0135 3600
    4700 18x25 0.0135 3600 16x40 0.01 3680
    4700 　 　 　 18x35.5 0.01 3680
    5600 18x31.5 0.012 3610 　 　 　
    5600 　 　 　 　 　 　
    6800 18x35.5 0.011 3680 　 　 　
    6800 　 　 　 　 　 　
    8200 18x40 0.01 3735 　 　 　
    8200 　 　 　 　 　 　
    10000 　 　 　 　 　 　
    10000 　 　 　 　 　 　
    Voltage (V) 50 63
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 5x9 5.5 20 5x9 3 22
    1 5x9 5.5 30 5x9 3 33
    1.8 5x9 5.5 36 5x9 3 40
    2.2 5x9 1.6 38 5x9 3 44
    2.7 5x9 1.6 46 5x9 3 51
    3.3 5x9 1.6 53 5x9 3 58
    3.9 5x9 1.6 70 5x9 3 77
    4.7 5x9 1.6 88 5x9 3 97
    5.6 5x9 1.6 90 5x9 1.5 99
    6.8 5x9 1.6 93 5x9 1.5 102
    8.2 5x9 1.6 97 5x9 1.5 108
    10 5x9 1.6 100 5x9 1.5 110
    12 5x9 1.6 110 5x9 1.5 120

    Voltage (V) 50 63
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    15 5x9 1.6 120 5x9 1.5 145
    18 5x9 1.4 130 5x9 1 155
    18 　 　 　 　 　 　
    22 5x9 1.4 145 5x11 1 160
    22 　 　 　 　 　 　
    27 5x11 0.38 215 6.3x9 0.6 225
    27 　 　 　 　 　 　
    33 5x11 0.38 215 6.3x9 0.6 225
    33 　 　 　 　 　 　
    39 6.3x9 0.38 315 6.3x9 0.4 250
    39 　 　 　 　 　 　
    47 6.3x9 0.36 350 6.3x11 0.4 250
    47 　 　 　 8x9 0.5 260
    56 6.3x11 0.36 350 8x9 0.5 350
    56 8x9 0.25 450 　 　 　
    68 6.3x11 0.36 350 8x11.5 0.25 480
    68 8x9 0.25 450 10x9 0.25 490
    82 8x9 0.25 585 8x11.5 0.25 480
    82 　 　 　 10x9 0.25 490
    100 8x9 0.25 585 8x14 0.25 550
    100 　 　 　 10x9 0.25 500
    120 8x11.5 0.16 630 8x16 0.19 620
    120 10x9 0.16 650 10x12.5 0.18 630
    150 8x14 0.12 760 8x20 0.14 775
    150 10x9 0.12 650 10x14 0.14 810
    180 8x16 0.12 860 8x20 0.14 775
    180 10x12.5 0.12 875 10x16 0.14 900
    220 8x16 0.12 860 10x16 0.14 900
    220 10x12.5 0.12 875 　 　 　
    270 8x20 0.0768 1080 10x20 0.0877 1080
    270 10x16 0.0768 1250 12.5x14 0.092 1022
    330 10x16 0.0768 1250 10x20 0.0877 1080
    330 12.5x14 0.081 1022 12.5x16 0.092 1080
    390 10x20 0.0695 1430 12.5x20 0.0673 1415
    390 12.5x14 0.081 1022 12.5x20 0.0673 1415
    470 10x20 0.0695 1430 　 　 　
    470 12.5x16 0.0675 1080 12.5x25 0.0479 1800
    560 12.5x16 0.0675 1598 　 　 　
    560 　 　 　 　 　 　

    Voltage (V) 50 63
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    680 12.5x20 0.06 1850 12.5x30 0.041 2370
    680 　 　 　 16x20 0.0482 1890
    820 12.5x25 0.0625 2170 12.5x35 0.0367 2360
    820 　 　 　 16x25 0.0385 2460
    1000 12.5x30 0.058 2580 16x25 0.0385 2460
    1000 16x20 0.058 2460 18x20 0.0426 2550
    1200 12.5x30 0.058 2580 16x31.5 0.035 2695
    1200 16x25 0.0455 2710 18x25 0.035 2520
    1500 12.5x40 0.0211 2745 16x31.5 0.035 2695
    1500 16x25 0.024 2710 18x31.5 0.035 2970
    1800 16x31.5 0.0265 2960 16x40 0.035 3215
    1800 18x25 0.0347 2760 18x31.5 0.035 2970
    2200 18x31.5 0.0286 2970 18x35.5 0.035 3215
    2700 18x35.5 0.0224 3215 18x40 0.035 3310
    3300 18x40 0.0204 3410 　 　 　
    Voltage (V) 80 100
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 5x9 3 23 5x9 5 23
    1 5x9 3 34 5x9 3 34
    1.8 5x9 3 42 5x9 3 42
    2.2 5x9 3 46 5x9 3 46
    2.7 5x9 1.5 54 5x9 3 54
    3.3 5x9 1.5 61 5x9 1.5 61
    3.9 5x9 1.5 80 5x9 1.5 80
    4.7 5x9 1.5 100 5x9 1.5 100
    5.6 5x9 1.5 105 5x11 1.5 105
    6.8 5x9 1.5 110 5x11 1.5 110
    8.2 5x9 1.5 125 5x11 1.5 125
    10 5x9 1.5 135 5x11 1.5 135
    12 5x11 1.5 150 6.3x9 1 216

    Voltage (V) 80 100
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    15 5x11 1.5 150 6.3x9 1 216
    18 6.3x9 1 216 6.3x11 0.64 240
    18 　 　 　 8x9 0.64 216
    22 6.3x9 1 216 6.3x11 0.64 240
    22 　 　 　 8x9 0.64 216
    27 6.3x11 0.64 240 8x9 0.64 369
    27 8x9 0.64 260 　 　 　
    33 6.3x11 0.64 240 8x11.5 0.41 410
    33 8x9 0.64 260 10x9 0.41 369
    39 8x9 0.64 260 8x11.5 0.41 410
    39 　 　 　 10x9 0.41 369
    47 8x11.5 0.41 410 8x16 0.29 510
    47 10x9 0.41 450 10x12.5 0.29 510
    56 8x11.5 0.41 410 8x16 0.29 510
    56 10x9 0.41 450 10x12.5 0.26 565
    68 8x11.5 0.41 410 8x20 0.22 660
    68 10x9 0.41 450 10x14 0.22 660
    82 8x16 0.29 510 8x20 0.22 660
    82 10x12.5 0.29 565 10x16 0.2 710
    100 8x16 0.29 510 10x16 0.2 710
    100 10x12.5 0.26 565 12.5x14 0.18 833
    120 8x20 0.22 660 10x20 0.14 950
    120 10x14 0.2 660 12.5x14 0.18 833
    150 10x16 0.2 710 10x20 0.15 950
    150 12.5x14 0.18 833 12.5x16 0.15 880
    180 10x20 0.14 950 12.5x20 0.0959 1290
    180 12.5x14 0.18 833 　 　 　
    220 10x20 0.14 950 12.5x20 0.0959 1290
    220 12.5x16 0.18 1020 　 　 　
    270 12.5x20 0.0959 1290 12.5x25 0.0673 1460
    270 　 　 　 　 　 　
    330 12.5x20 0.0959 1290 12.5x30 0.0571 1760
    330 　 　 　 16x20 0.0653 1560
    390 12.5x25 0.0673 1460 12.5x35 0.052 1930
    390 12.5x25 0.0673 1460 16x25 0.048 1990
    470 16x20 0.0653 1560 16x25 0.048 1990
    470 12.5x30 0.0571 1760 18x20 0.0465 1990
    560 16x25 0.048 1990 16x31.5 0.0368 2160
    560 　 　 　 18x25 0.0427 2050

    Voltage (V) 80 100
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    680 12.5x35 0.052 1930 16x35.5 0.0326 2340
    680 16x25 0.048 1990 18x31.5 0.0346 2230
    820 16x31.5 0.0368 2160 16x40 0.0305 2580
    820 18x25 0.0427 2050 18x35.5 0.0305 3160
    1000 16x35.5 0.0326 2340 18x40 0.0305 3160
    1000 18x31.5 0.0346 2230 　 　 　
    1200 16x40 0.0305 2580 　 　 　
    1200 18x31.5 0.0246 2970 　 　 　
    1500 18x35.5 0.0246 3160 　 　 　
    1500 　 　 　 　 　 　
    1800 18x40 0.0204 3160 　 　 　
    1800 　 　 　 　 　 　
    2200 　 　 　 　 　 　
    2700 　 　 　 　 　 　
    3300 　 　 　 　 　 　
    Voltage (V) 120 160
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 5x9 6.6 23 　 　 　
    1 5x9 6.6 34 5x11 40 50
    1.2 5x9 6.6 34 5x11 40 55
    1.5 5x9 6.6 42 5x11 40 60
    1.8 5x9 6.6 42 5x11 40 65
    2.2 5x9 1.8 46 5x11 40 75
    2.7 5x9 1.8 54 5x11 40 80
    3.3 5x9 1.8 61 5x11 40 90
    3.9 5x9 1.8 80 5x11 40 90
    4.7 5x9 1.8 100 6.3x9 25 104
    4.7 　 　 　 　 　 　
    5.6 5x11 1.8 105 6.3x9 25 104
    5.6 　 　 　 　 　 　
    6.8 5x11 1.6 110 6.3x9 25 122
    8.2 5x11 1.6 125 6.3x11 22 125
    8.2 　 　 　 8x9 22 130
    10 6.3x9 1.21 135 8x9 22 130

    Voltage (V) 120 160
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    10 　 　 　 　 　 　
    12 6.3x9 1.21 163 8x11.5 20 135
    15 6.3x11 0.83 195 8x11.5 16 135
    15 8x9 0.83 195 10x9 16 140
    18 8x9 0.83 215 8x11.5 16 135
    18 　 　 　 10x9 16 140
    22 8x9 0.83 215 8x16 8.92 250
    22 　 　 　 10x12.5 8.92 250
    27 8x11.5 0.64 369 　 　 　
    33 8x11.5 0.5 369 8x20 6.8 315
    33 10x9 0.5 369 10x12.5 6.8 450
    39 8x14 0.41 410 　 　 　
    39 10x12.5 0.41 410 　 　 　
    47 8x16 0.32 451 10x16 6.6 580
    47 10x12.5 0.32 451 12.5x14 6.6 650
    56 8x20 0.29 510 10x20 6.6 600
    56 10x14 0.29 565 12.5x14 6.6 670
    68 8x23 0.22 660 10x23 4.65 670
    68 10x16 0.22 660 12.5x16 4.65 770
    82 10x16 0.22 660 10x23 4.65 770
    82 12.5x14 0.2 710 12.5x20 4.65 1040
    100 10x20 0.2 710 12.5x20 4.65 1040
    100 12.5x16 0.18 833 　 　 　
    120 10x23 0.18 850 12.5x25 4.09 1260
    120 12.5x16 0.18 833 16x20 4.09 1260
    150 12.5x20 0.15 950 12.5x30 4.09 1600
    150 　 　 　 16x25 3.92 1670
    180 12.5x25 0.11 1290 12.5x35 3.01 1720
    180 　 　 　 16x25 3.92 1670
    220 16x20 0.11 1290 16x31.5 2.71 2160
    220 　 　 　 18x25 2.71 2090
    270 12.5x30 0.0859 1460 　 　 　
    270 16x20 0.0859 1460 　 　 　
    330 16x25 0.0671 1760 18x31.5 1.25 2400
    330 18x20 0.0671 1560 18x35.5 1.15 2850
    390 16x31.5 0.052 1930 　 　 　
    390 18x25 0.052 1990 　 　 　
    470 16x31.5 0.048 1990 　 　 　
    470 18x25 0.048 1990 　 　 　

    Voltage (V) 120 160
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    560 16x35.5 0.0368 2160 　 　 　
    560 18x31.5 0.0368 2050 　 　 　
    680 18x35.5 0.0326 2340 　 　 　
    Voltage (V) 200 250
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    0.47 　 　 　 　 　 　
    1 5x11 40 50 6.3x9 30 95
    1.2 5x11 40 55 6.3x9 30 95
    1.5 5x11 40 60 6.3x9 30 95
    1.8 5x11 40 65 6.3x9 30 95
    2.2 5x11 40 75 6.3x9 30 104
    2.7 5x11 40 80 6.3x9 30 113
    3.3 6.3x9 30 95 6.3x9 30 113
    3.9 6.3x9 30 104 6.3x9 15 113
    4.7 6.3x11 15 115 6.3x11 15 125
    4.7 8x9 15 135 8x9 15 135
    5.6 6.3x11 15 115 8x9 15 135
    5.6 8x9 15 135 　 　 　
    6.8 8x9 15 135 8x9 15 135
    8.2 8x9 15 135 8x11.5 15 150
    8.2 　 　 　 10x9 15 150
    10 8x11.5 15 150 8x11.5 15 150

    Voltage (V) 200 250
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    10 10x9 15 150 10x9 15 150
    12 8x14 12 220 8x14 12 220
    15 8x16 8.92 250 8x16 8.92 250
    15 10x12.5 8.92 260 10x12.5 8.92 250
    18 8x20 6.8 315 8x20 6.8 315
    18 10x14 6.8 290 10x14 6.8 290
    22 8x20 6.8 315 8x20 6.8 315
    22 10x14 6.8 290 10x14 6.8 290
    27 　 　 　 　 　 　
    33 10x20 6.6 575 10x20 6.6 575
    33 12.5x14 6.6 670 12.5x14 6 650
    39 　 　 　 　 　 　
    39 　 　 　 　 　 　
    47 12.5x20 4.65 870 12.5x20 4.65 870
    47 　 　 　 　 　 　
    56 12.5x20 4.65 870 12.5x20 4.65 870
    56 　 　 　 　 　 　
    68 12.5x25 4.31 1150 12.5x25 4.31 1150
    68 16x20 4.31 1200 16x20 4.31 1200
    82 12.5x25 4.31 1150 12.5x25 4.31 1150
    82 16x20 4.31 1200 16x20 4.31 1200
    100 12.5x25 4.31 1150 12.5x30 3.35 1260
    100 16x20 4.31 1200 16x25 3.05 1350
    120 12.5x30 3.05 1440 16x25 3.05 1350
    120 16x25 3.05 1670 　 　 　
    150 16x25 3.05 1670 16x31.5 2.71 1780
    150 　 　 　 18x25 2.71 1780
    180 16x35.5 2.1 2025 16x35.5 2.1 2025
    180 18x25 2.71 2025 18x31.5 2.1 2025
    220 18x31.5 2.1 2200 18x35.5 1.04 2365
    220 　 　 　 　 　 　
    270 　 　 　 　 　 　
    270 　 　 　 　 　 　
    330 　 　 　 　 　 　
    330 　 　 　 　 　 　
    390 　 　 　 　 　 　
    390 　 　 　 　 　 　
    470 　 　 　 　 　 　
    470 　 　 　 　 　 　

    Voltage (V) 200 250
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    560 　 　 　 　 　 　
    560 　 　 　 　 　 　
    680 　 　 　 　 　 　
    Voltage (V) 350 400
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1 6.3x9 38 68 6.3x9 58 68
    1.2 6.3x9 38 95 6.3x9 38 77
    1.5 6.3x9 38 95 6.3x9 38 77
    1.8 6.3x9 38 104 6.3x9 33 90
    1.8 　 　 　 　 　 　
    2.2 6.3x9 33 120 6.3x9 33 90
    2.7 6.3x11 33 120 6.3x11 33 110
    2.7 8x9 27 130 8x9 27 117
    3.3 6.3x11 33 120 6.3x12 33 110
    3.3 8x9 27 130 8x9 27 117
    3.9 6.3x12 33 120 6.3x12 33 110
    3.9 8x9 27 130 8x9 27 117
    4.7 6.3x12 33 120 6.3x12 33 120
    4.7 8x9 27 130 8x11.5 27 135
    5.6 8x11.5 21 135 8x14 18 180
    5.6 10x9 21 150 10x9 18 180
    6.8 8x11.5 21 135 8x16 13.5 180
    6.8 10x9 21 150 10x12.5 13.5 180
    8.2 8x16 13.5 180 8x16 13.5 180
    8.2 10x12.5 13.5 190 10x12.5 13.5 180
    10 8x16 13.5 180 8x20 9.5 250
    10 10x12.5 13.5 220 10x14 9.5 250
    12 10x14 11 240 10x16 9 280
    15 10x16 9.5 280 10x20 8.15 310
    15 12.5x14 8.15 530 12.5x14 8.15 310
    18 10x20 8.15 550 10x20 8.15 310
    18 12.5x14 8.15 530 12.5x16 8.15 330
    22 12.5x16 8.15 600 12.5x20 8.15 500
    33 12.5x20 8.15 865 12.5x25 5.14 670

    Voltage (V) 350 400
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    33 　 　 　 16x20 4.54 670
    47 12.5x25 4.14 960 12.5x30 4.14 1035
    47 16x20 4.14 1000 16x25 4.14 1035
    56 12.5x25 4.14 960 16x25 4.14 1035
    56 16x20 4.14 1000 18x20 4.14 1280
    68 16x25 4.05 1150 16x31.5 3.5 1315
    68 18x20 3.5 1330 18x25 3.5 1330
    82 16x31.5 3.5 1400 16x35.5 3.05 1720
    82 18x25 3.5 1600 18x31.5 3.05 1720
    100 16x31.5 3.5 2010 18x31.5 3.05 2010
    100 18x25 3.5 2010 　 　 　
    120 16x35.5 3.05 2080 18x35.5 2.05 2250
    120 18x31.5 3.05 2010 　 　 　
    150 18x35.5 2.05 2450 18x40 2 2500
    Voltage (V) 450 500
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    1 6.3x9 58 77 6.3x11 52 40
    1.2 6.3x9 55 77 6.3x11 52 40
    1.5 6.3x9 55 85 6.3x11 52 40
    1.8 6.3x11 55 90 8x9 48 72
    1.8 8x9 45 90 　 　 　
    2.2 8x9 45 90 8x11.5 45 72
    2.7 8x9 45 90 8x11.5 45 76
    2.7 　 　 　 　 　 　
    3.3 8x11.5 25.5 130 8x11.5 45 76
    3.3 10x9 25.5 130 　 　 　
    3.9 8x11.5 25.5 130 8x14 35 92
    3.9 10x9 25.5 130 　 　 　
    4.7 8x11.5 25.5 130 8x16 29 102
    4.7 10x9 18 130 10x12.5 22.5 102
    5.6 8x16 13.5 135 10x14 18 117
    5.6 10x12.5 13.5 180 　 　 　
    6.8 8x20 9.5 200 10x14 18 117
    6.8 10x12.5 13.5 180 　 　 　
    8.2 8x20 9.5 200 10x16 15 152
    8.2 10x14 12 205 　 　 　
    10 10x16 9.5 205 10x20 11 216
    10 12.5x14 9.2 315 12.5x14 10 234
    12 10x20 8.15 300 12.5x16 9.5 240
    15 10x20 8.15 300 12.5x16 9 240
    15 12.5x16 8.15 410 　 　 　
    18 12.5x20 8.15 410 12.5x20 8 288
    18 　 　 　 　 　 　
    22 12.5x20 8.15 410 12.5x25 7 423
    33 12.5x25 6.5 650 12.5x30 6.5 508

    Voltage (V) 450 500
    Items Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz) Size DXL(mm) Impedance (Ωmax/100KHz 25±2℃) Ripple Current (mA/r.m.s /105℃100KHz)
    Capacitance（uF） 　 　 　 　 　 　
    33 16x20 4.14 650 　 　 　
    47 12.5x35 3.5 950 12.5x35 5.5 630
    47 16x25 3.5 950 16x25 3.5 630
    56 16x31.5 3.5 1100 16x31.5 2.5 648
    56 18x25 3.5 1060 　 　 　
    68 16x35.5 3.05 1240 16x35.5 2.3 756
    68 18x31.5 3.05 1290 18x31.5 2.3 756
    82 16x40 2.95 1510 18x35.5 1.8 990
    82 18x31.5 3.05 1290 　 　 　
    100 18x35.5 2.75 1490 18x40 1.5 1020
    100 　 　 　 　 　 　
    120 18x40 2.05 1740 　 　 　
    120 　 　 　 　 　 　
    150 18x45 2 1950 　 　 　

    The Liquid Small Business Unit has been engaged in R&D and manufacturing since 2001. With an experienced R&D and manufacturing team, it has continuously and steadily produced a variety of high-quality miniaturized aluminium electrolytic capacitor to meet customers' innovative needs for electrolytic aluminum capacitors. The liquid small business unit has two packages: liquid SMD aluminum electrolytic capacitors and liquid lead type aluminium electrolytic capacitors. Its products have the advantages of miniaturization, high stability, high capacity, high voltage, high temperature resistance, low impedance, high ripple, and long life. Widely used in new energy automotive electronics, high-power power supply, intelligent lighting, gallium nitride fast charging, home appliances, photo voltaics and other industries.

    All about Aluminum Electrolytic Capacitor you need know

    Aluminum electrolytic capacitors are a common type of capacitor used in electronic devices. Learn the basics of how they work and their applications in this guide. Are you curious about aluminium electrolytic capacitor? This article covers the fundamentals of these aluminum capacitor, including their construction and usage. If you’re new to aluminium electrolytic capacitors, this guide is a great place to start. Discover the basics of these aluminum capacitors and how they function in electronic circuits. If you’re interested in electronics capacitor component , you may have heard of aluminium capacitor. These capacitor components are widely used in electronic devices and play an important role in circuit design. But what exactly are they and how do they work? In this guide, we’ll explore the basics of aluminum electrolytic capacitors, including their construction and applications. Whether you’re a beginner or an experienced electronics enthusiast, this article is a great resource for understanding these important components.

    1.What is an aluminum electrolytic capacitor? An aluminium electrolytic capacitor is a type of capacitor that uses an electrolyte to achieve a higher capacitance than other types of capacitors. It is made up of two aluminum foils separated by a paper soaked in electrolyte.

    2.How does it work? When a voltage is applied to the electronic capacitor, the electrolyte conducts electricity and allows the capacitor electronic to store energy. The aluminum foils act as the electrodes, and the paper soaked in electrolyte acts as the dielectric.

    3.What are the advantages of using an aluminum electrolytic capacitors? Aluminium electrolytic capacitors have a high capacitance, which means they can store a lot of energy in a small space. They are also relatively inexpensive and can handle high voltages.

    4.What are the disadvantages of using an aluminum electrolytic capacitor? One disadvantage of using an aluminum electrolytic capacitors is that they have a limited lifespan. The electrolyte can dry out over time, which can cause the capacitor components to fail. They are also sensitive to temperature and can be damaged if exposed to high temperatures.

    5.What are some common applications of aluminium electrolytic capacitors? Aluminium electrolytic capacitor are commonly used in power supplies, audio equipment, and other electronic devices that require high capacitance. They are also used in automotive applications, such as in the ignition system.

    6.How do you choose the right aluminum electrolytic capacitor for your application? When choosing an aluminum electrolytic capacitors, you need to consider the capacitance, voltage rating, and temperature rating. You also need to consider the size and shape of the capacitor, as well as the mounting options.

    7.How do you care for an aluminium electrolytic capacitor? To care for an aluminium electrolytic capacitors, you should avoid exposing it to high temperatures and high voltages. You should also avoid subjecting it to mechanical stress or vibration. If the capacitor is used infrequently, you should periodically apply a voltage to it to keep the electrolyte from drying out.

    The Advantages and Disadvantages of Aluminum Electrolytic Capacitors

    Aluminum electrolytic capacitor have both advantages and disadvantages. On the positive side, they have a high capacitance-to-volume ratio, making them useful in applications where space is limited. The aluminium Electrolytic Capacitor also have a relatively low cost compared to other types of capacitors. However, they have a limited lifespan and can be sensitive to temperature and voltage fluctuations. Additionally, Aluminium Electrolytic Capacitors may experience leakage or failure if not used properly. On the positive side, Aluminum Electrolytic Capacitors have a high capacitance-to-volume ratio, making them useful in applications where space is limited. However, they have a limited lifespan and can be sensitive to temperature and voltage fluctuations. Additionally, Aluminum Electrolytic Capacitor can be prone to leakage and have a higher equivalent series resistance compared to other types of electronic capacitors.

  • Previous:
  • Next:
    • Write your message here and send it to us

    Products categories

    Hit enter to search or ESC to close
